Products

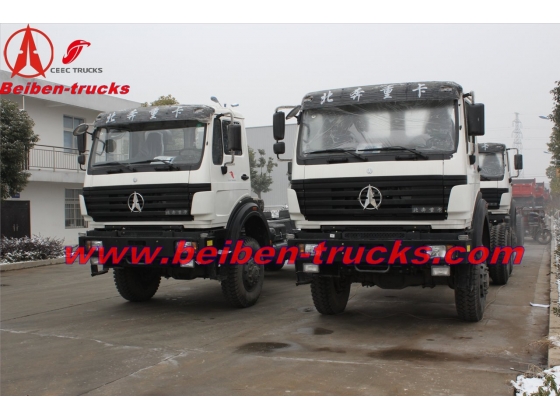

6x4 Beiben V3 tractor truck /north benz tractor heads
Product Details
Mercedes Benz technology
Engine: WEICHAI
Driving type: 6x4
Standard: Euro3
Engine: WEICHAI
Driving type: 6x4
Standard: Euro3
| Beiben 6x4 tractor truck | |
| Model | ND4250W362JJ |
| Traction type | 6x4 |
| Driving type | LHD |
| Cabin | Mercedes Benz |
| Engine brand | Steyr (Weichai) |
| Engine model | WD615.46 |
| Engine type | 4-stroke direct injection diesel engine, inline 6-cylinder with water cooling, turbo-charging & intercooling |
| Displacement | 9.726 liters |
| Max. output | 360hp@2200rpm |
| Max torque | 1460NM@1400-1600rpm |
| Bore/Stroke(mm) | 126/130 |
| Mean Pistion Speed | 9.53m /s |
| Compression ratio | 15.5:1 |
| Specific fuel consumption | 198g /Kwh |
| Gear box | Fuller 12-speed (12JS160T) |
| Clutch | GF420 spring type |
| Steering | TAS85 |
| Front axle | Benz |
| Rear axle | Benz |
| Ratio | 1:5.2 |
| Frame | Strengthened |
| Tyre | 12.00-20 |
| Fuel consumption (L/100km) | 36 |
| Fuel tank capacity (L) | 300 |
| Max. speed (km/h) | 90 |
| Max. gradeability (%) | 28 |
| Curb Weight | 9,200 kg |
| Total Mass | 38,500kg |
| Wheel base (mm) | 3,450+1,450 |
| Front overhang (mm) | 1,410 |
| Rear overhang (mm) | 740 |
| Front track (mm) | 1,995 |
| Rear track (mm) | 1,800 |
| Turning circle diameter (m) | 14.2 m |
| Approach angle | 26° |
| Departure angle | 64° |
| Dimension (mm) | 7,050x2,495x3,260 |
| 5th wheel | 3.0" |
