Order(MOQ):
1Production time:
40 daysPayment terms:
T/T, West union
Function:
◆ Heavy duty Mining area
◆ Construction site
◆ Municipal road construction
◆ Transport of heavy density stone, sand, gravel,mine
Feature:
◆ Extrmely reinforced Germnany benz technology dump truck chassis, super reliablity assurance.
◆ Weichai diesel 340Hp engine combined with original benz typerear axle reducer gear and differential gear
◆Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
◆ Enhanced Q550A U type dumper body, and the motherboard adopts variable cross-section beams.
◆ Special beiben WELLDOX and HARDOX tipper Body Design are optional
◆ 15 years great experiences on beiben dump truck upper structures designing and supplying.
Similar key words: beiben 70 T dump truck, north benz 2534 70 T dumper truck supplier, china baotou beiben 2534 tipping truck, kenya beiben 40 T dump truck, kenya beiben dumper supplier, congo beiben 40 T dumper supplier, beiben camions benne supplier, africa beiben 2534 tipping truck price, best beiben 2534 dump truck price.
Best supplier of beiben 6*4 drive dump truck, beiben 6*6 dump truck, we have more than 20 years experience in manufacturing beiben 2527,2529,2532,2534,2538 dumper. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 6 wheeler dump tuck, beiben 10 wheeler dump trucks, beiben 12 wheeler earth moving tipping trucks. .
The best north benz dump truck supplier from china baotou beiben heavy duty dump trucks. The most professional beiben dump truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 dump trucks. Currently, we supply beiben LHD dump truck with 2534 cabin, beiben RHD dumper with 2534 cabin. Also beiben off road dumper , beiben mining dump trucks are also avaiable .

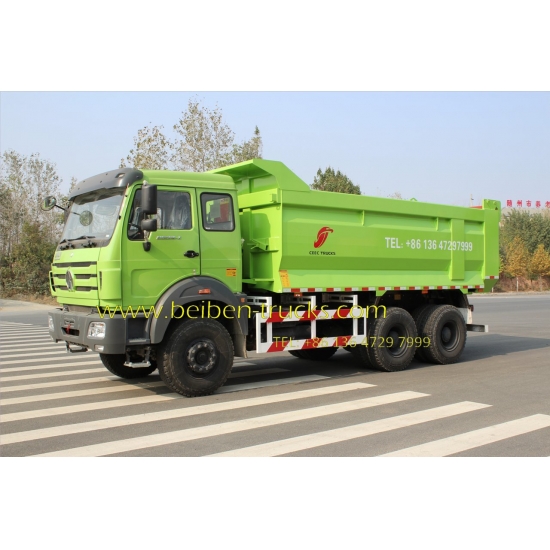

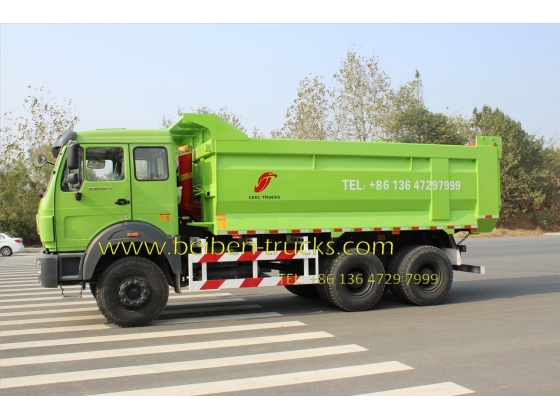

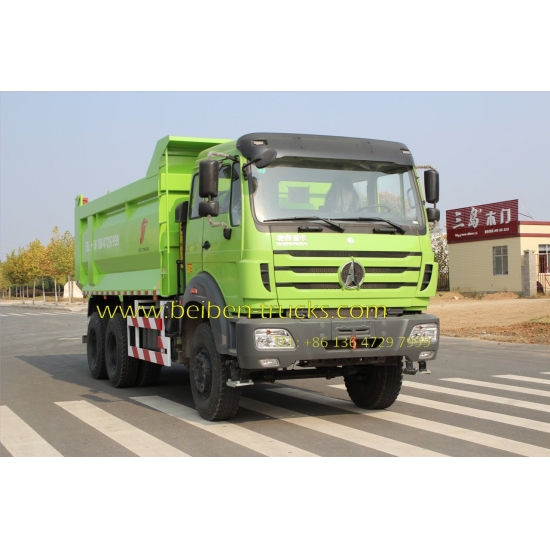

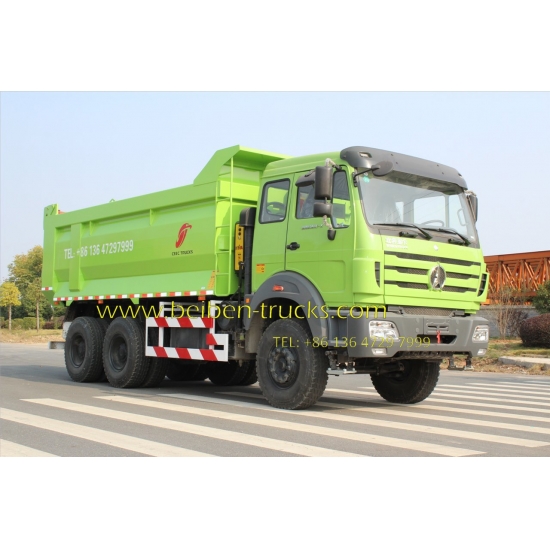

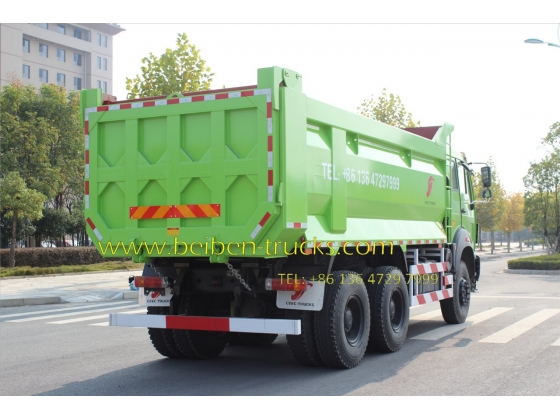

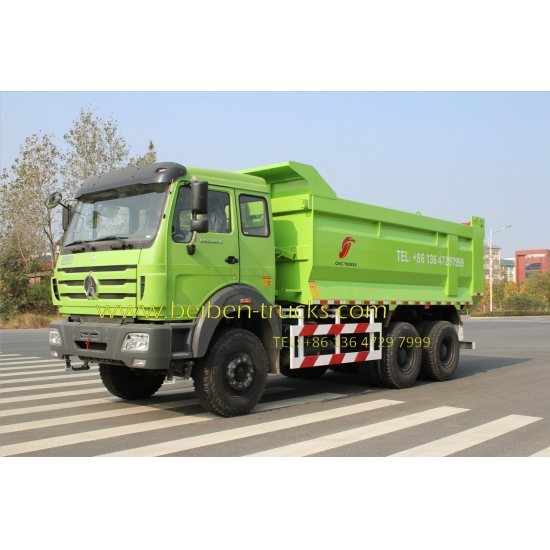

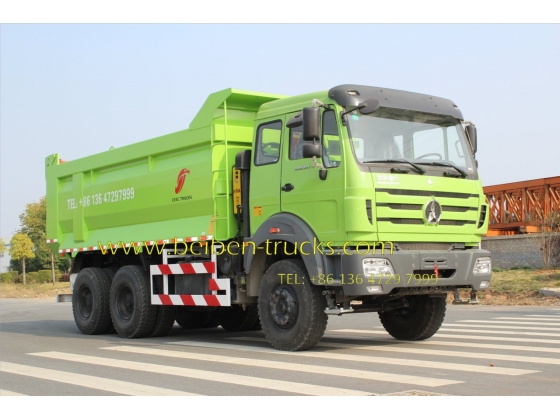

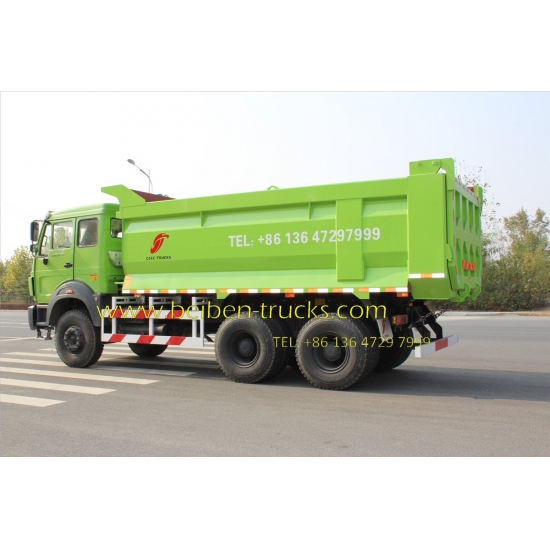

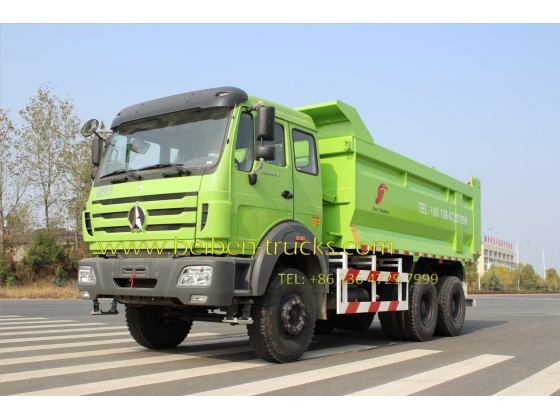

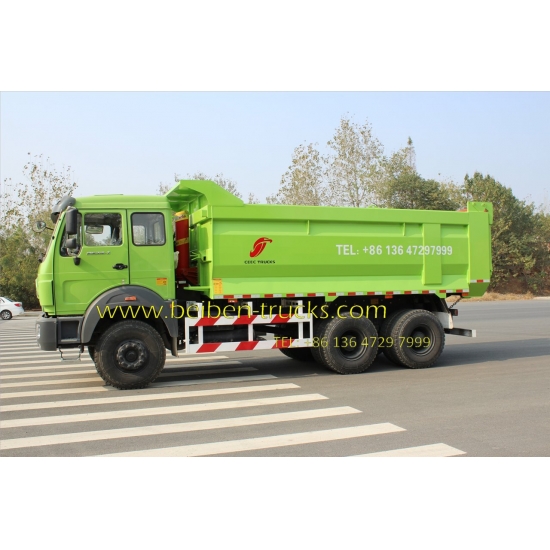

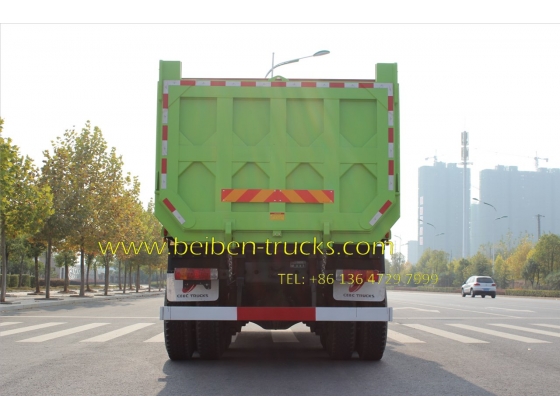

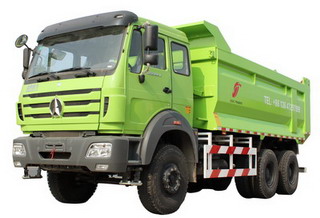

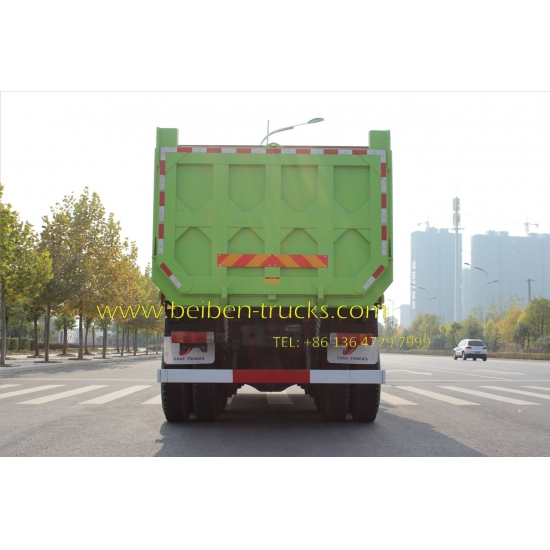

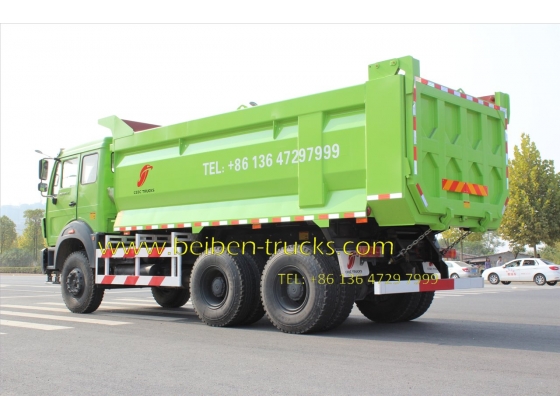

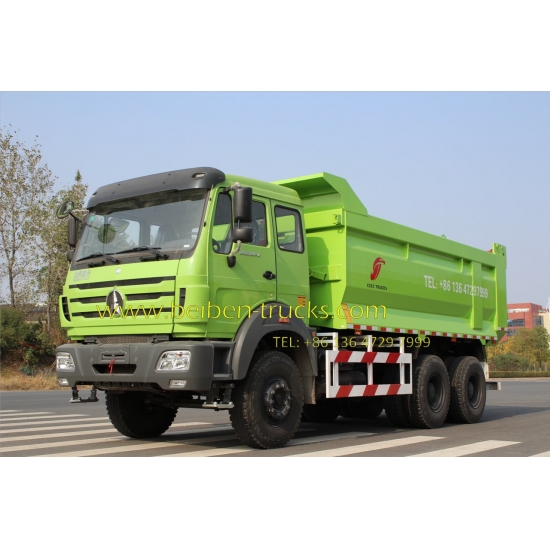

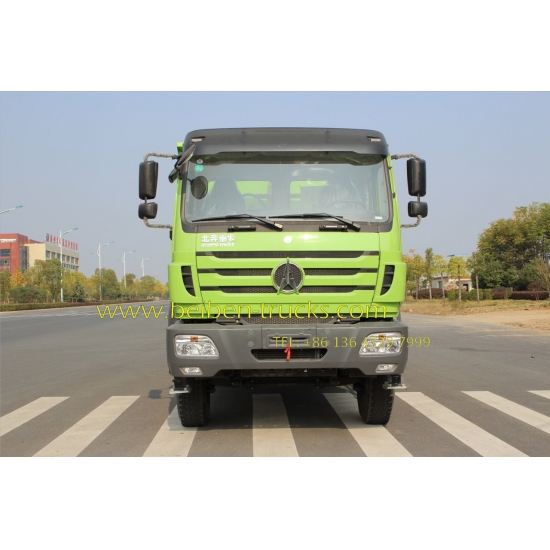

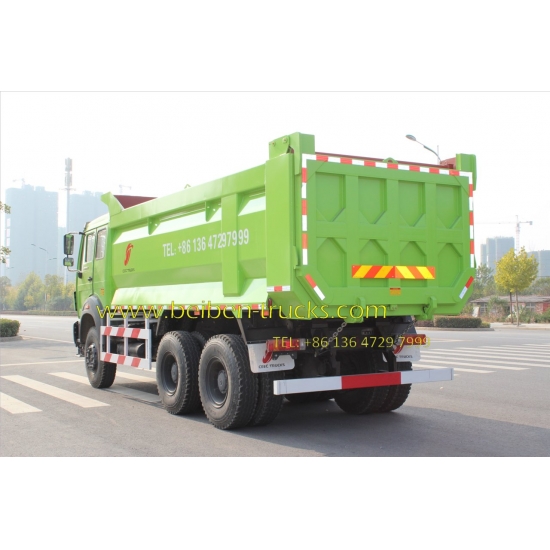

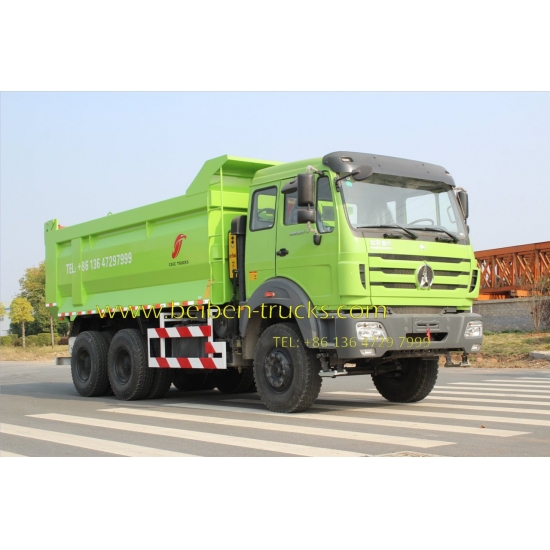

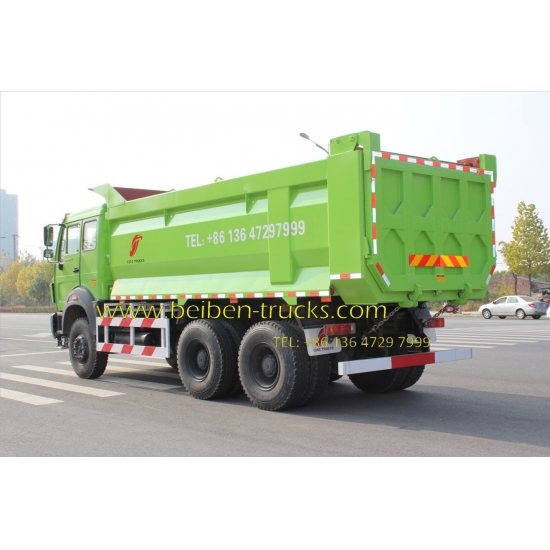

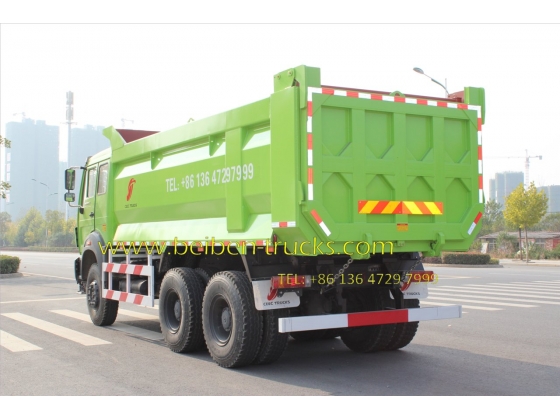

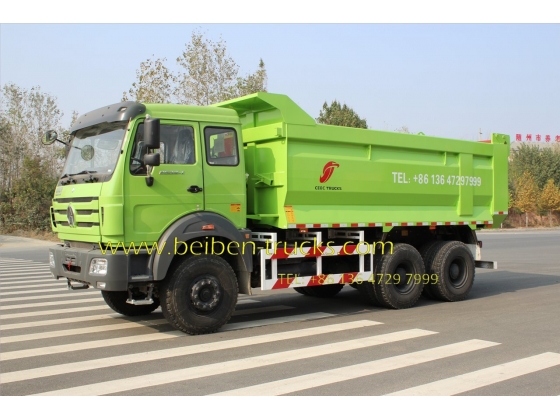

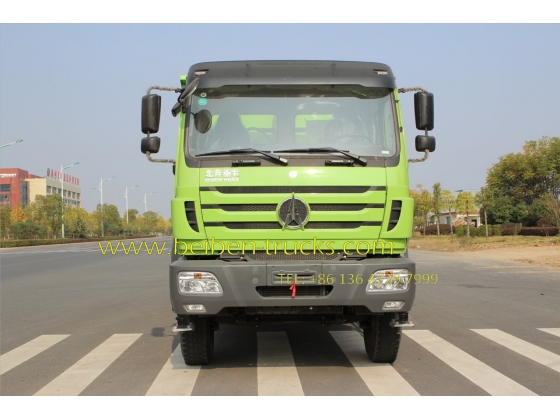

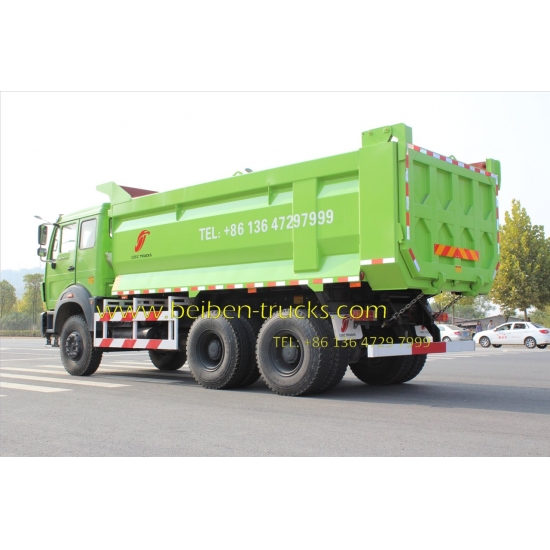

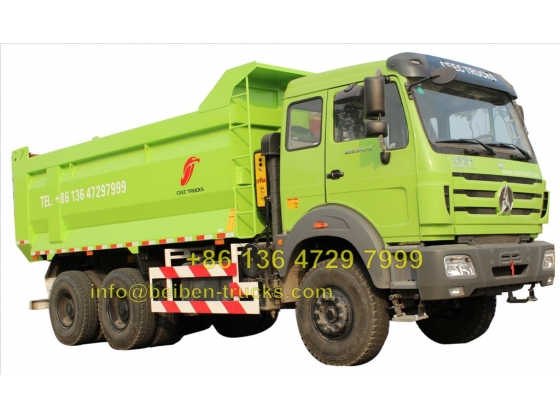

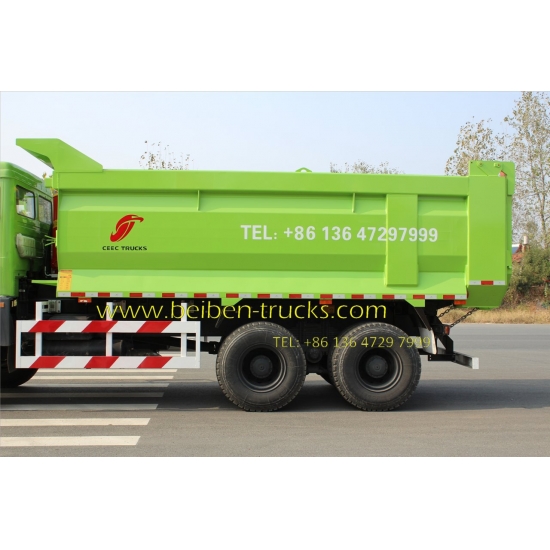

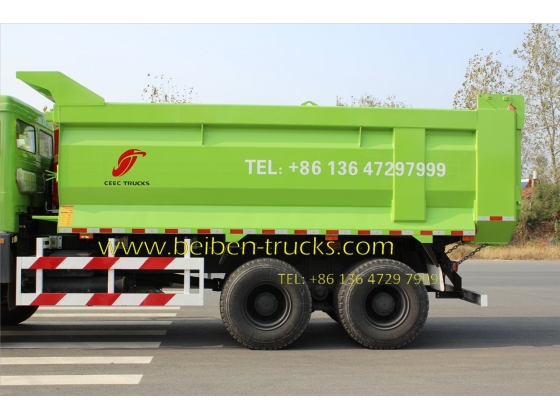

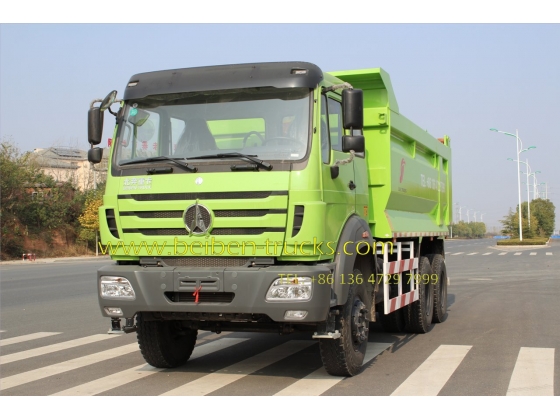

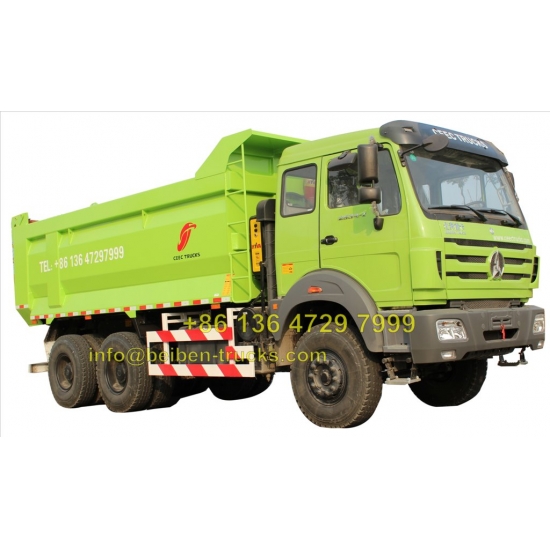

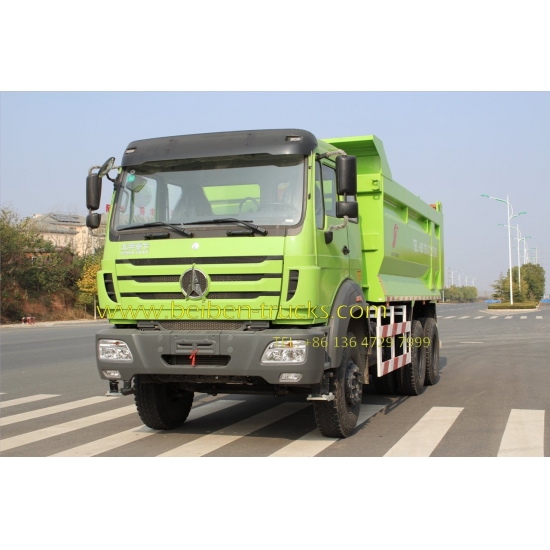

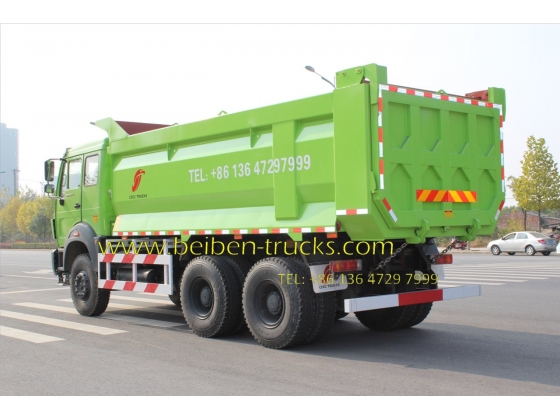

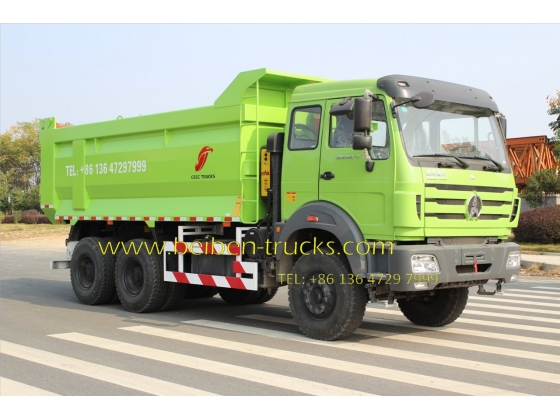

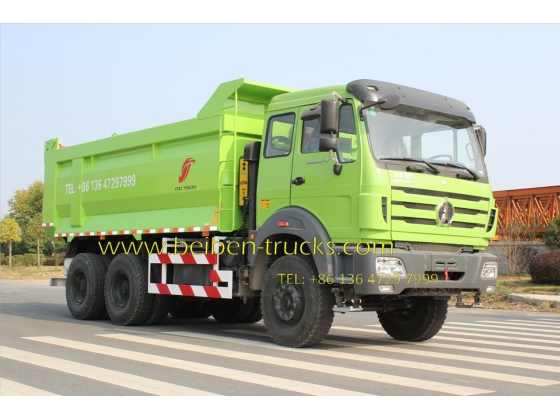

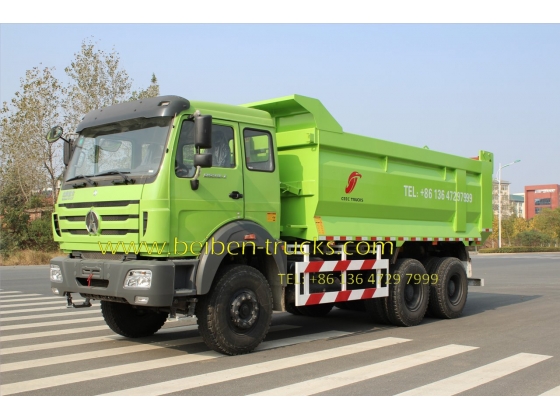

Beiben 2534KY tipper truck
| Beiben 2534KY tipper/6×4/4450+1450/Long Cab/LHD | ||||||
|
Dimension |
9110*2500*3430mm | |||||
| Upper body inner dimension | 6500x2300x1050 sand body, Hyva hydralic lifting system,thickness: bottom 8mm, side 6mm | |||||
| Approaching angle/Departure angle | 26/45° | |||||
| Overhang(front/rear) | 1410/1800mm | |||||
| Wheel base | 4450+1450mm | |||||
| Max speed | 85km/h | |||||
| Curb weight | 12190kg | |||||
| Loading capacity | 12680kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 250/2200 (kw/rpm) | |||||
| Max.torque | 1350/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 9JS150A, mechanism,9 forward gears,1 reverse gear, manual operated, | |||||
| Gear ratio of gear box | 12.57/8.39/6.15/4.59/3.4/2.47/1.81/1.35/1.00 R:13.14 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | ZJ120D,whole circulation in ball, hydraulic booster | |||||
| Frame | Strengthened Streight beam | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |
NG80B Long cabin with single sleeper ; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C |
|||||
|
Model |
Engine Model |
Rated Power |
Payload |
Driving Mode |
|
WP10.380N |
380 Hp |
60 Ton |
6*4 |
|
|
WP10.340 |
340 hP |
50 Ton |
6*4 |
|
|
WP10.340 |
340 Hp |
30 Ton |
6x4 |
|
|
WP10.340 |
340 Hp |
36 Ton |
6*4 |
|
|
WP10.380 |
380 Hp |
40 Ton |
6*4 |
|
|
Beiben 2529 |
WP10.290 |
290 Hp |
45 Ton |
6*4 |
|
WP10.380 |
380 Hp |
40 Ton |
6*4 |
|
|
WP10.380N |
380 Hp |
45 Ton |
6*4 |
|
|
Beiben 2529 |
WP10.290N |
290 hp |
30 Ton |
6*4 |
|
Power star 2628 |
WP 10.280N |
280 Hp |
40 Ton |
6*4 |
|
WP 10.290N |
290 Hp |
40 Ton |
6*4 |
|
|
WP 10.340N |
340 Hp |
35 Ton |
6*4 |
|
|
WP 10.290N |
290 Hp |
35 Ton |
6*4 |
|
|
WP10.340 |
340 Hp |
40 T |
6x4 |
|
|
WP10.290 |
290 Hp |
25-30 T |
6x4 |
Beiben 2534 tipper in Road testing: https://youtu.be/Pmu0J7s0-4E
Beiben 2534 dump truck in inspection: https://youtu.be/LmqjZAeh7rs
How to build a good quality beiben dump truck ?
http://beibentruck.blogspot.jp/2016/02/how-to-build-qualified-beiben-dump-truck.html
Cameroon Beiben 2534 dumper shipping review
http://www.beiben-trucks.com/Beiben-60-T-heavy-duty-dumper-export-to-Douala-Cameroon_n147

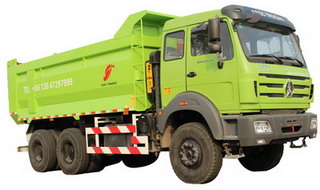

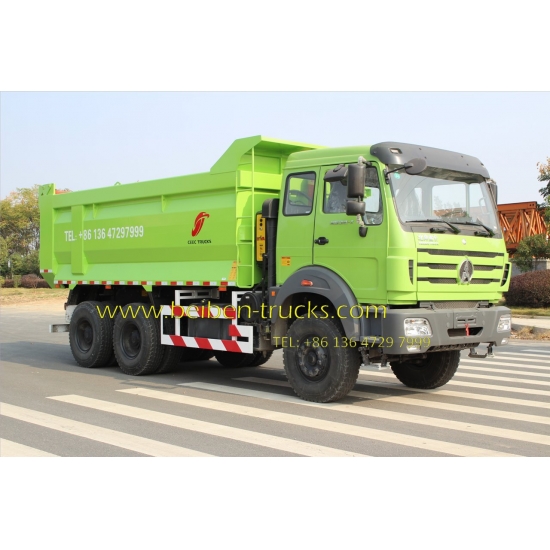

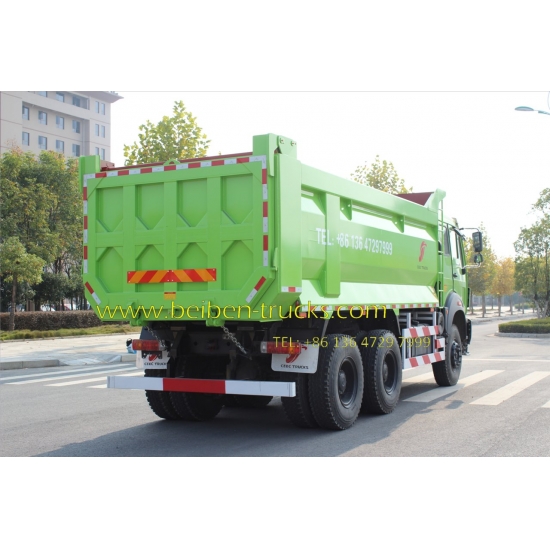

China beiben 2534 dump truck chassis, 6*4 drive system, benz technology 7 Ton front axle, double rear 16 T axle with doubel reducer, benz technology NG80B cabin, with A/C, CD player, with HYVA 159 hydraulic cylinder system, whole hyva fuel tanker system. 20 CBM mine cargo box capacity.

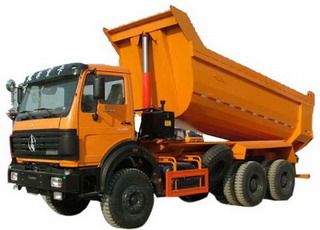

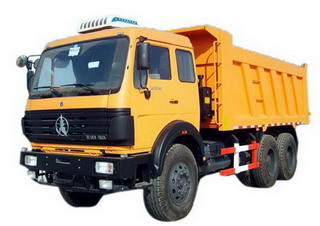

beiben 2638 K dump truck , this is the classic cabin of beiben beiben 2638 K dump truck , with benz truck reliable technology, our beiben NG80 dump truck get great reputation in congo country.
Beiben 50 T dump trucks, can be based on beiben 2634,2636,2638,2642 truck chassis, we produce good quality benz technology beiben brand 10 wheeler dump trucks, supply with beiben 40 T, 50 T, 60 T dump trucks.

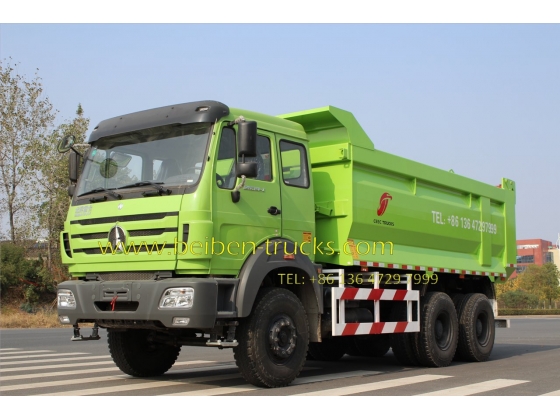

africa beiben dump truck, with china famous beiben weichai 340 hp euro 2 engine, fast 9 shift transmission, equipped with benz technology 7 T front axle, benz 16 T double rear axle with double reducer, 12.00R20 tyre. 3800+1450 mm wheelbase.
china north benz dump trucks, with germany benz technology NG80B cabin, excellent 7 T front axle, 16 T axle double rear axle , 12.00R20 tyre

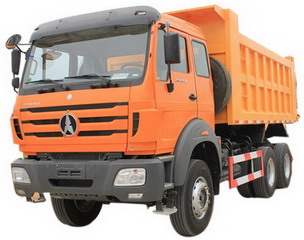

congo beiben 2638 dump truck, with weichai 380 hp engine, fast 9 shift transmission, 3800+1450 mm wheel base, 12.00R20 tyre. 16 CBM capacity cargo box.

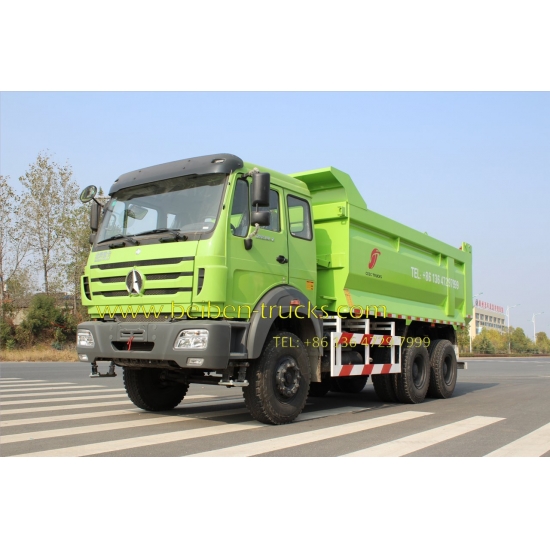

Beiben 40T beiben dumper truck, which use benz technology chassis, WEICHAI brand diesel engine, with engine power can be 240HP to 460HP, FAST 9-shift transmission gearbox for safe driving. high strength steel material 8mm thickness dumper body special used for mining rock delivery
Beiben 40T beiben dumper truck, which use benz technology chassis, WEICHAI brand diesel engine, with engine power can be 240HP to 460HP, FAST 9-shift transmission gearbox for safe driving. high strength steel material 8mm thickness dumper body special used for mining rock delivery
cheapest beiben dump truck price, supply best quality beiben dumper, beiben 2534 dumper, beiben 2538 dumper
