Order(MOQ):

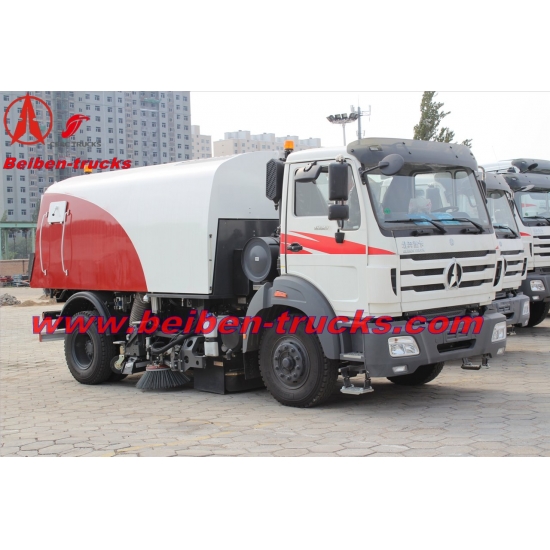

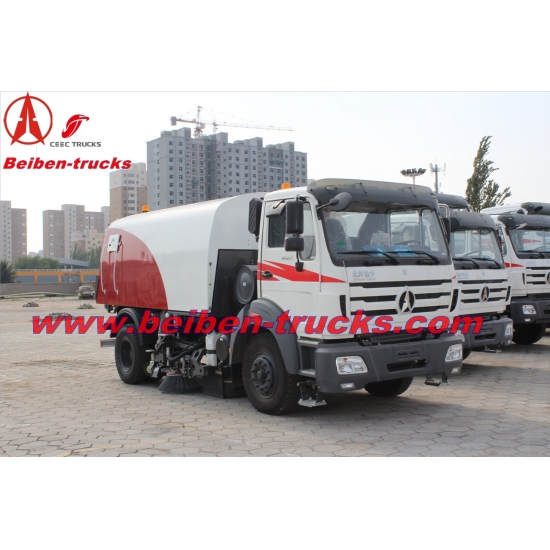

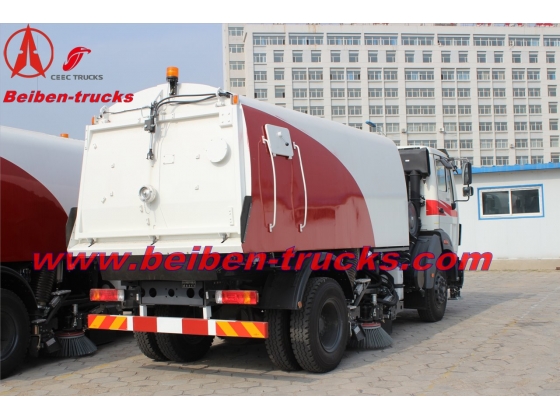

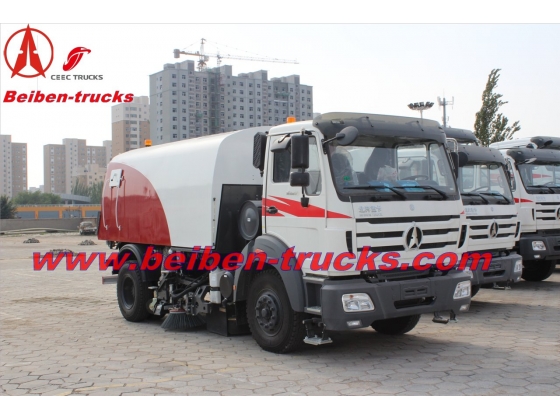

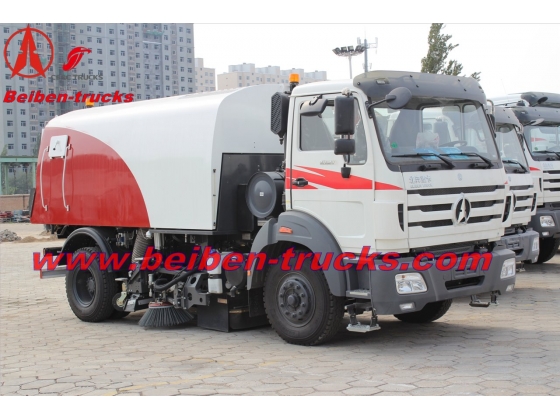

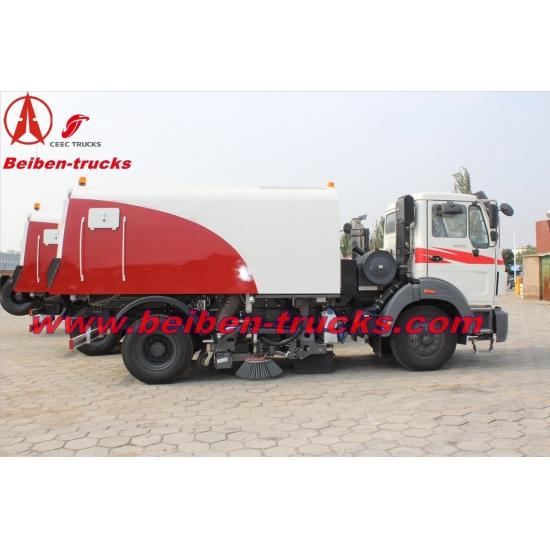

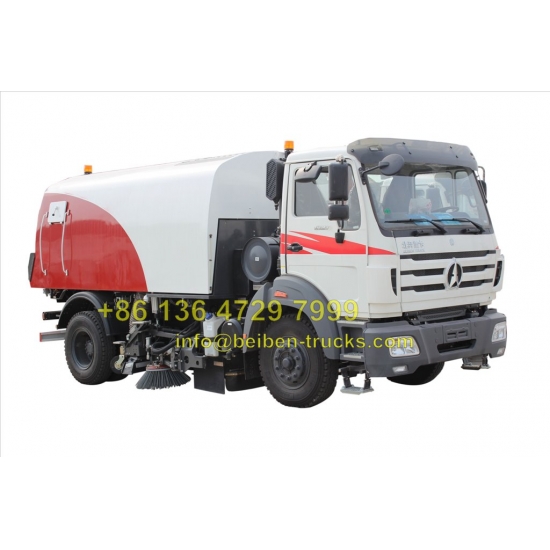

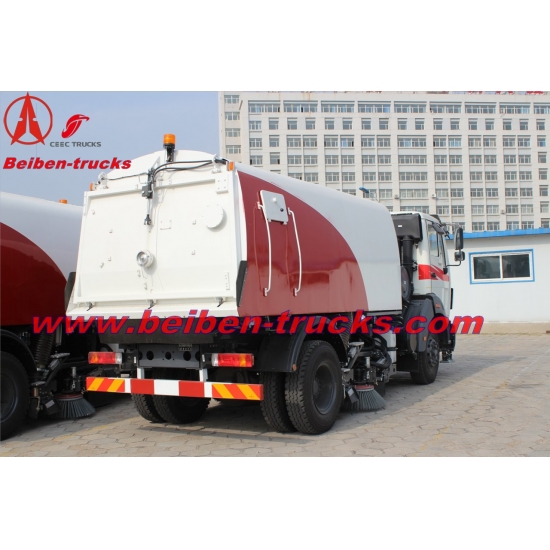

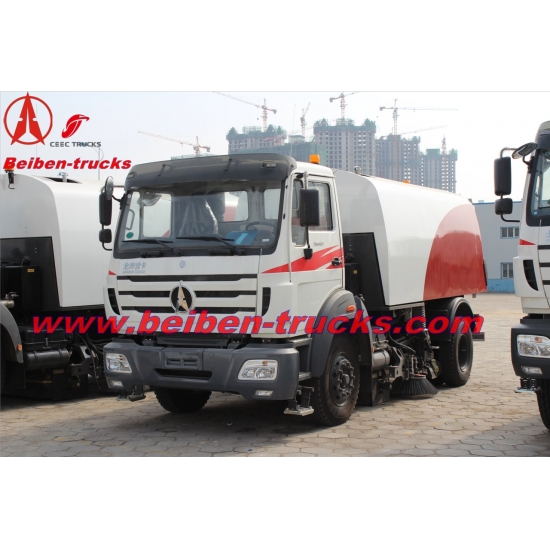

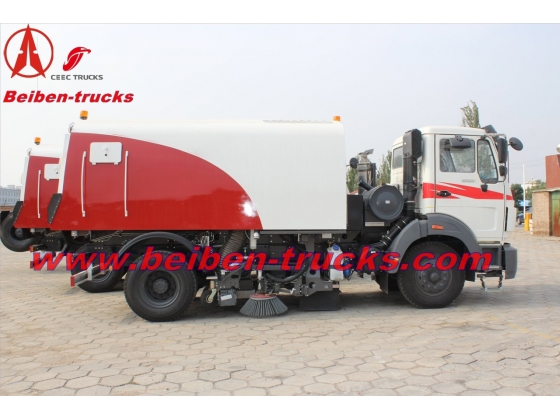

1Beiben 8 CBM road sweeper truck, based on beiben 1821 truck chassis, Germany benz technology, with beiben trucks latest road sweeping truck upper structure technology.
Key Features
1. Consist of originalIsuzu Vehicles chassis, hydraulic system, elevating system and electricalsystem.
2. Sweeper Truck technologyfrom American and made a lot of optimized design.
3. The cleaning system isdriven by imported advanced hydraulic motor to guarantee the power andreliability during work.

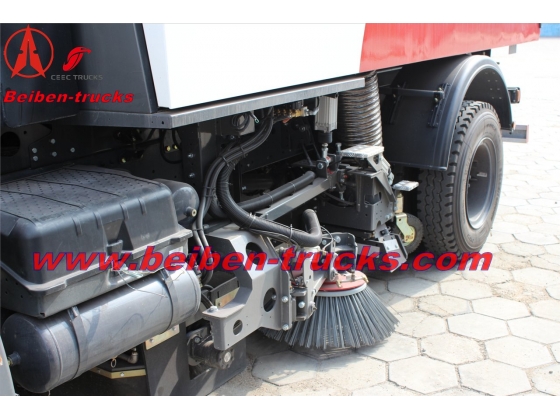

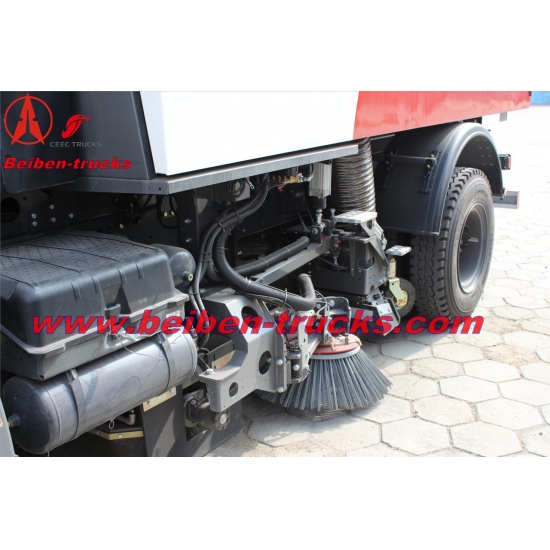

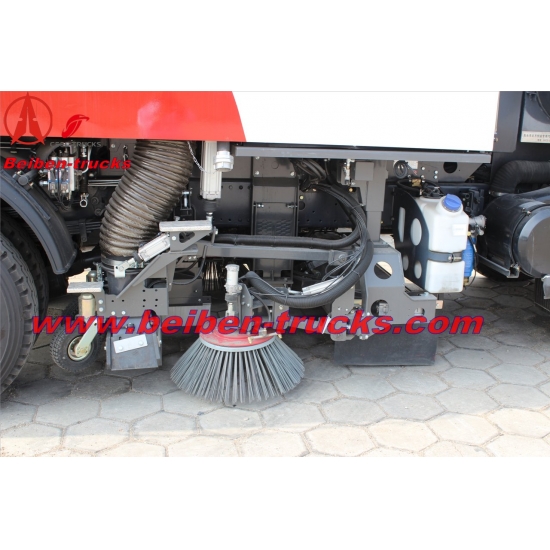

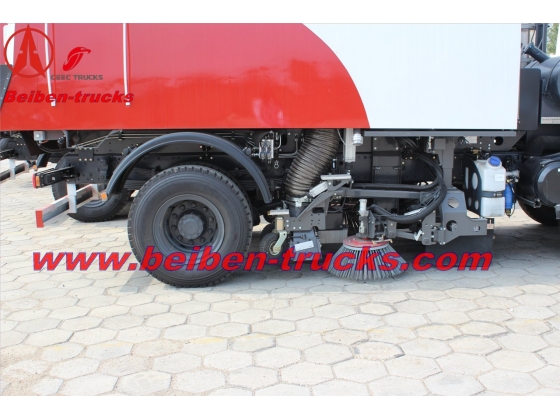

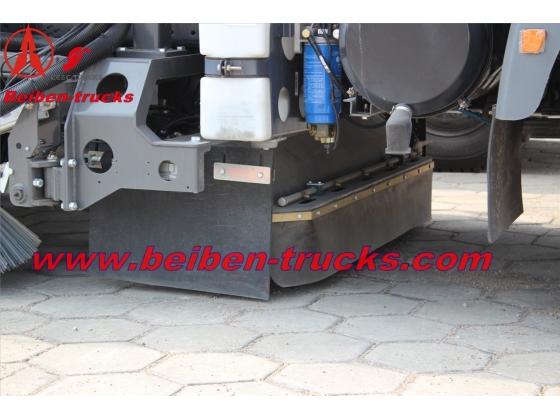

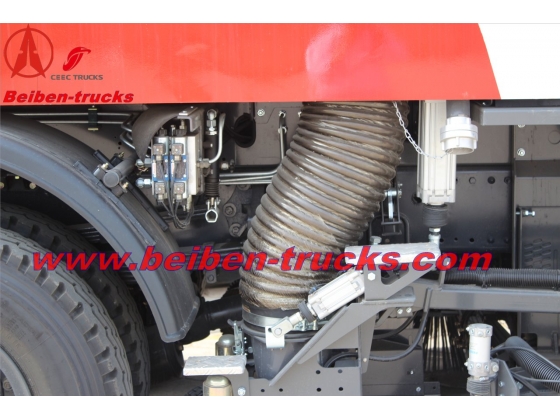

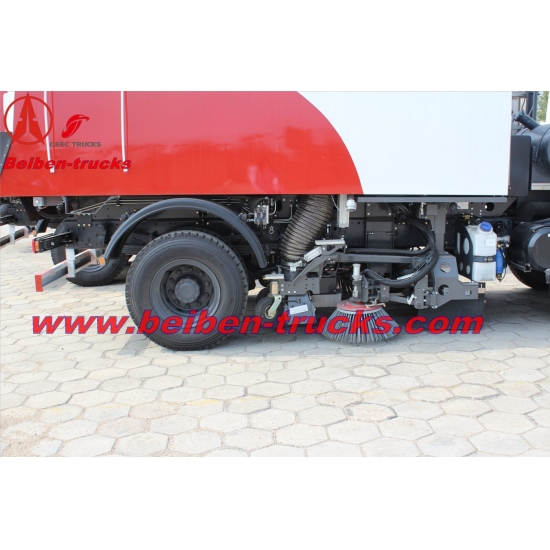

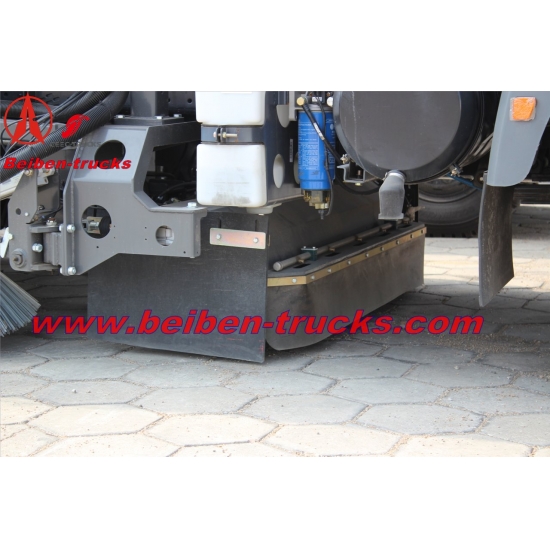

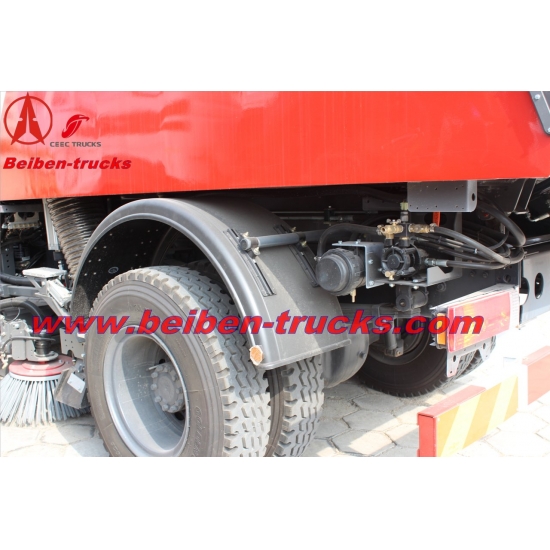

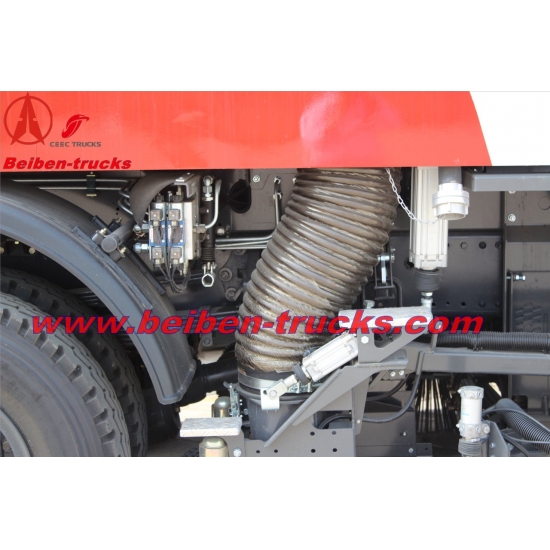

4. With the structure offour mid-mounted disk brushes and one rear-mounted suction nozzle, whichprovide a large sweeping width, high sweeping efficiency and good trafficability. Also convenient for adjustment and maintenance of sweeper device andnozzle.
5. An automatic clutch isset up on the transmission between the vice-engine and the fan, wshich canensure the automatic separation of the vice-engine from the fan when thevice-engine startup or shutdown.

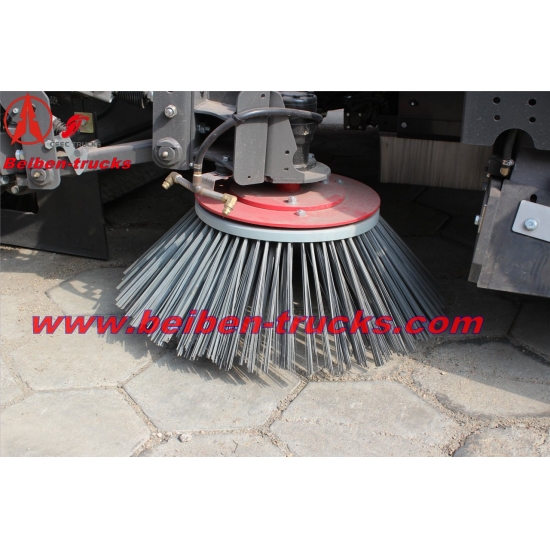

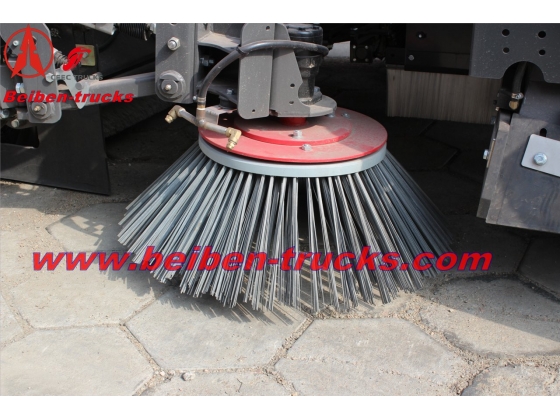

6. The sweeping disk hasthe protection function and automatic reset function, which can avoid obstaclesautomatically and return automatically
| Steering System |
|
| Type of Steering Gear |
Recirculating ball and screw type with hydraulic power assistance |
| Adjustment Steering Wheel |
Tilt and Telescopic |
| Steering Wheel Position |
Left hand drive |
| Brake System |
|
| Service Brake System |
Full Air Brake |
| Parking Brake |
Pneumatically Controlled Spring Brake |
| Assistant Brake |
Exhaust Brake |
| Cab |
|
| Type |
Forward Control Over Engine Type |
| Seat |
3 Seats |
| Air Condition System |
Manual Control |
| Radio System |
AM-FM Radio |
| Dimension (mm) |
|
| Overall Length |
7,220 |
| Overall Width |
2,300 |
| Overall Height |
2,640 |
| Wheel Base |
4,475 |
| Weight (kg) |
|
| Curb Weight |
7,050 |
| Loading capacity |
7,000 |
| Max Gross Weight (G.V.W) |
15,020 |
| Sweeping system |
|
| Japan Isuzu493 |
|
| Engine power (kw) |
85 |
| Rolling brush |
One unit Standard |
| Side brush |
4 unit standard |
| Dust suction collector |
2 units left and right |
| Control box |
English |
| Hydraulic system |
Europe |
| Waste hopper capacity (m3) |
7 |
| Water capacity (m3) |
1 |
| Sweeping Speed(km/h) |
3~25 |
| Sweeping Width(mm) |
3500 |
| Maximum cleanable particle size(mm) |
95 |
