beiben 2638 cargo truck
-
FOB Price
$67,000-$69,000
-
Production time
30 days
-
Payment terms
T/T

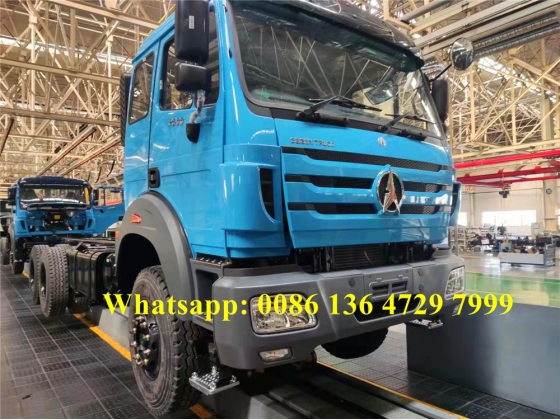

Right hand drive Beiben 2638 truck
Applications:
Beiben 2638 truck chassis, also called as china 2638 truck chassis, china beiben 6*4 drive truck, beiben 10 wheeler drive truck. This beiben heavy duty truck 6*4 drive chassis can loading, transporting and discharging heavy duty
material , also can
be used in for extremely road and weather situation, can be used in wild area, off road area.
Congo beiben 2638 truck chassis apply germany benz technology device, with extremely work performance.
The north benz 6*4 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- Beiben 2638 chassis, 6*4 drive system
---- Military quality , Mercedes benz technology

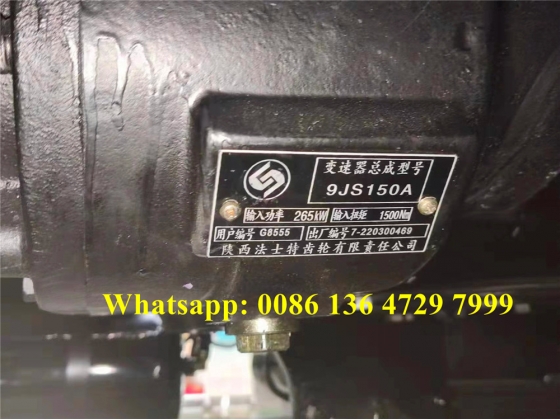

---- 9JS150T transmission, super combination.

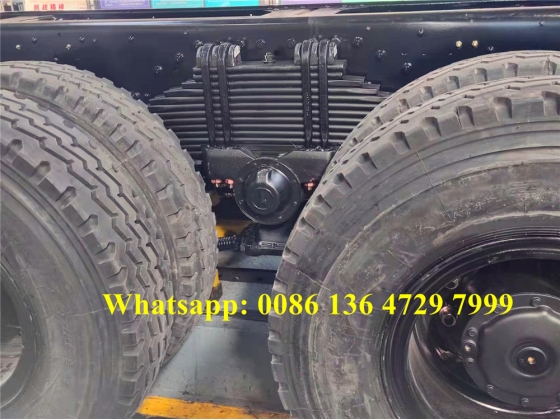

---- Original benz technology axle
---- 12.00R20- tyre, suitable for congo road
Specifications:
|
Model |
ND1255B44J |
|

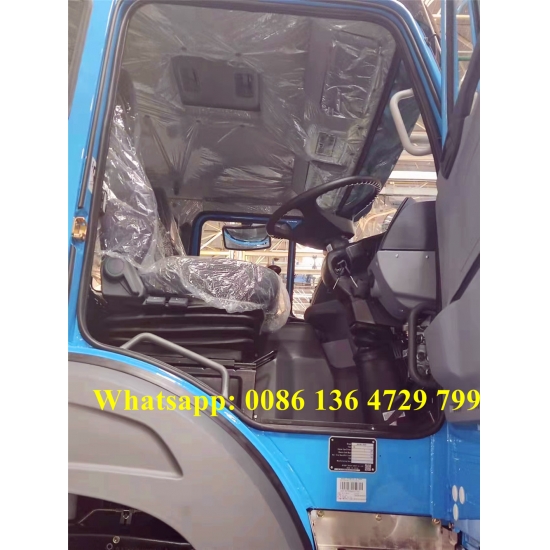

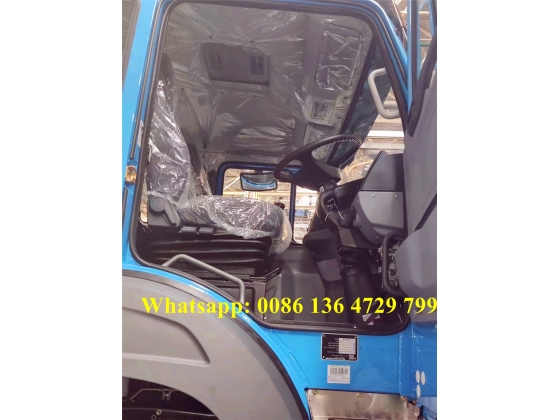

Driver's cab |
Long cabin, one sleeper |
|
Engine |
Maker: North Benz |
|
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling |
|
|
Engine model: WP10.380NE32 |
|
|
Maximum output:380hp@2200rpm |
|
|
Number of cylinder:6 |
|
|
Displacement: 11.726L |
|
|
Clutch |
Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
|

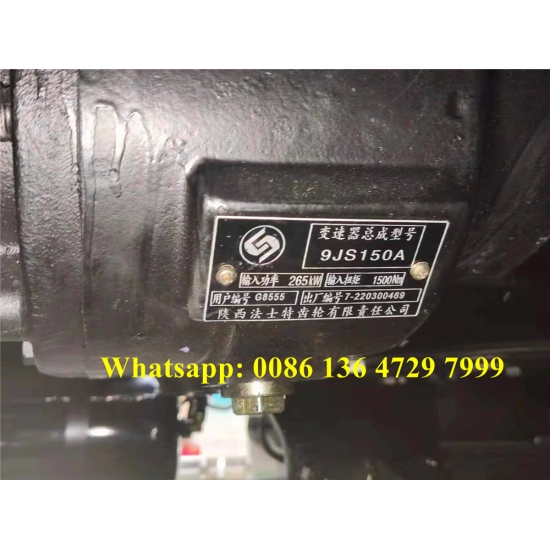

Transmission |
Fuller 12JS200T transmission. |
|
Front Axle |
Mercedes Benz, drum brake |
|

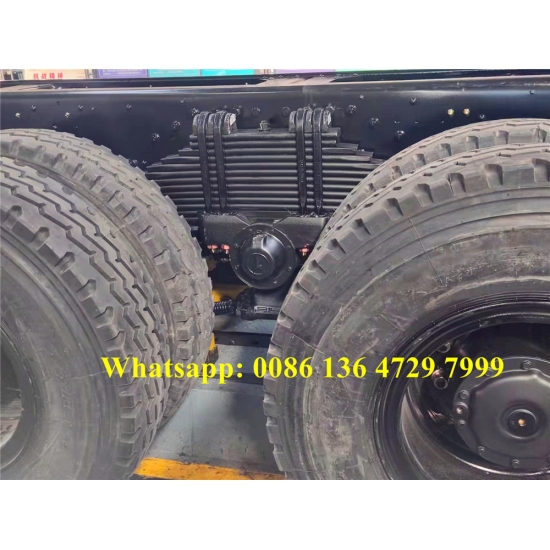

Rear Axle |
Mercedes Benz double reduction drive axle, ratio=5.2 |
|
Steering |
ZF8098 |
|
Wheel & Types |
Rims:8.0-20 |
|
Tyre:12.00R20 |
|
|
Optional: 12R22.5//315/80R22.5 |
|
|
Radial tire is optional |
|
|
Electrics |
Operating voltage: 24V,negative grounded |
|
Dimensions in mm |
Wheel base : 4450+1450 |
|
Overall size: 10250x2500x3385 |
|
|
Weight in kg |
Kerb. mass: 9800 kg |
|
Total mass: 25000kg |
|
|
Performance |
Maximum driving speed(km/h) 85 |
|
Body in mm |
7000x2300x800 |
|
The manufacture reserves the right of technical alteration/change for better improvement prior notice |
|

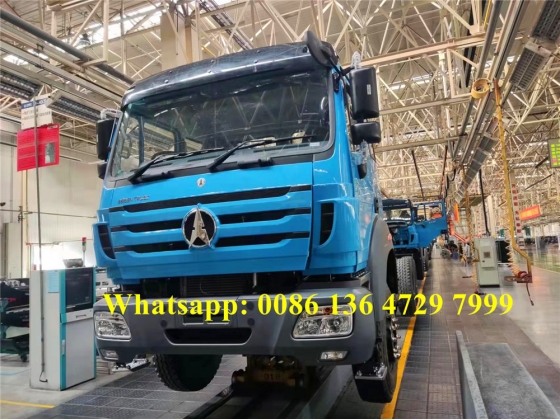

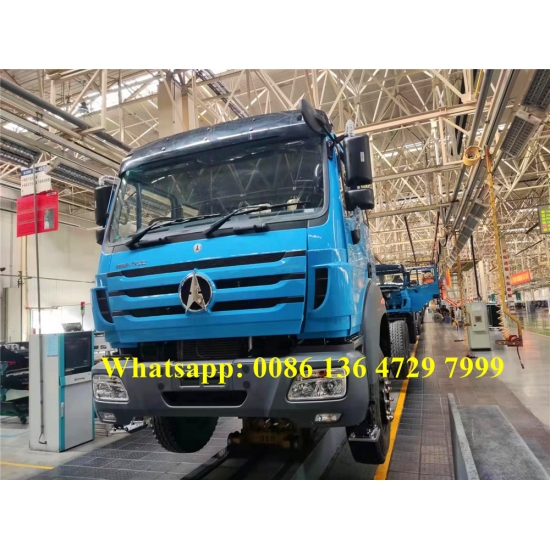

RHD beiben 2638 truck chassis

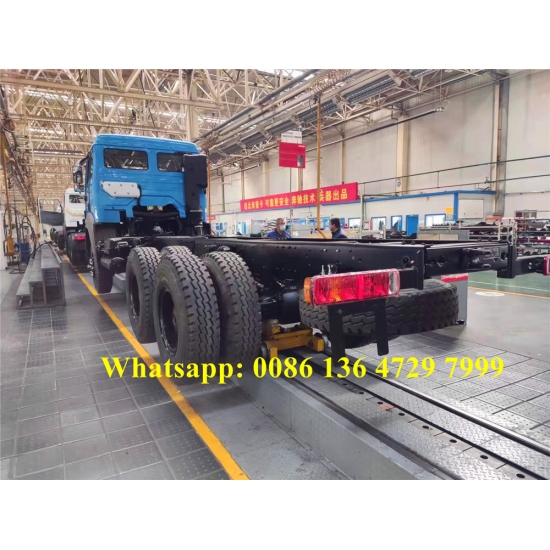

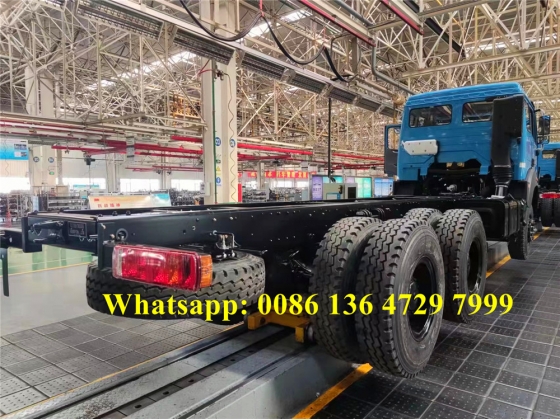

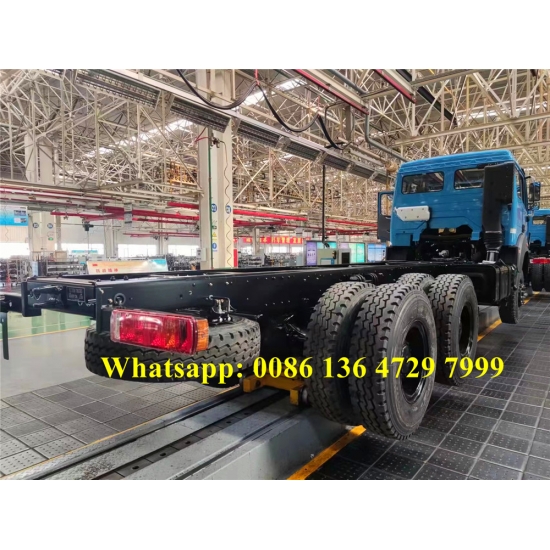

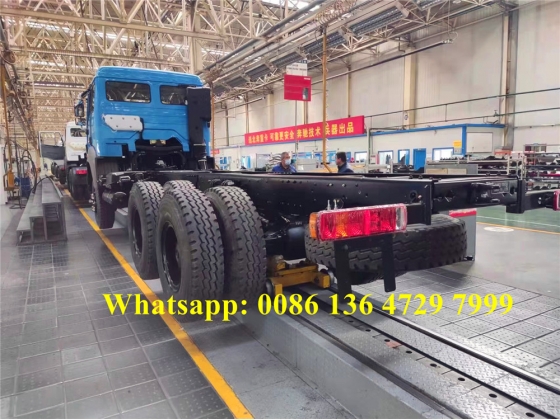

Beiben 2638 cargo truck chassis
