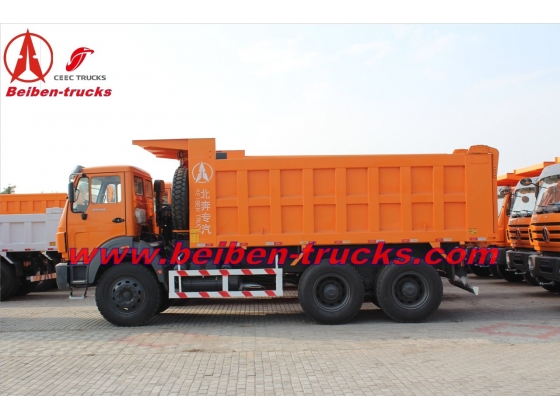

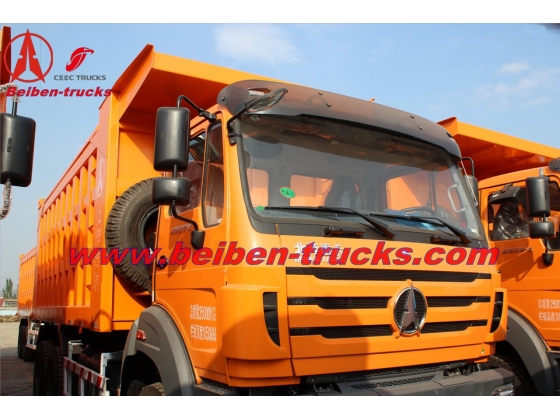

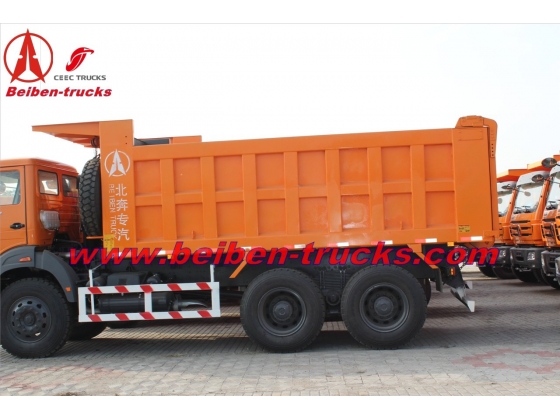

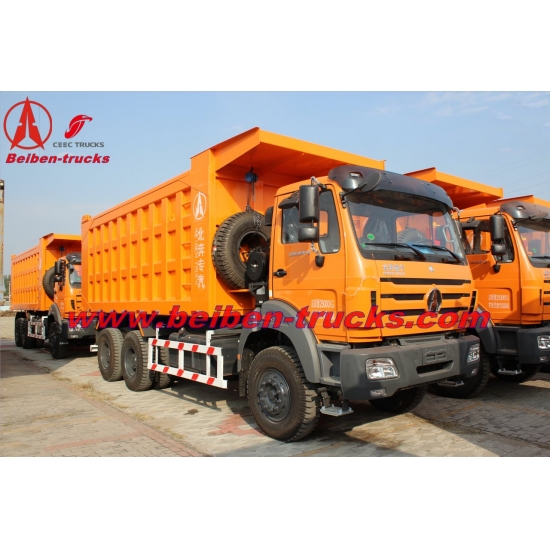

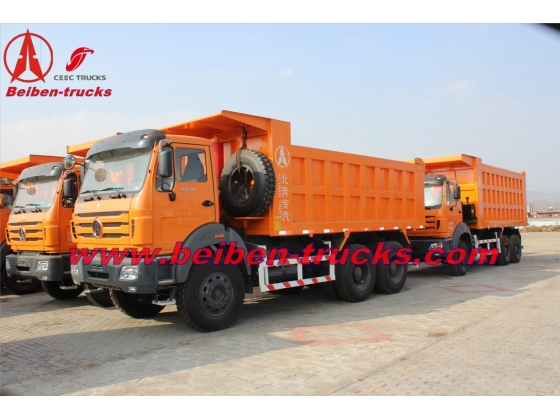

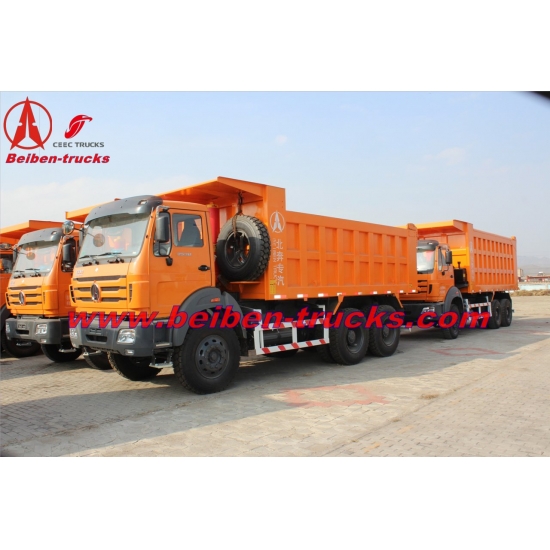

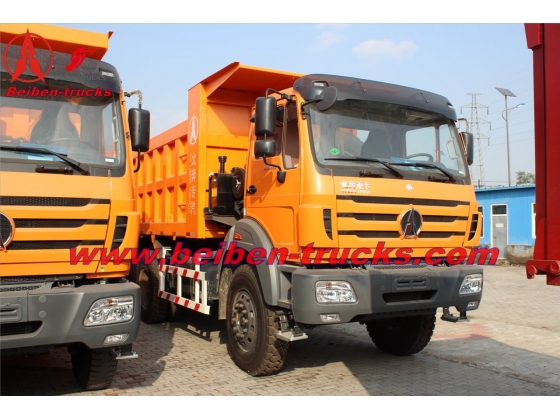

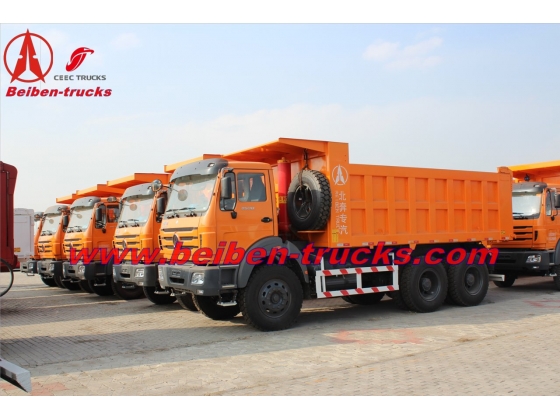

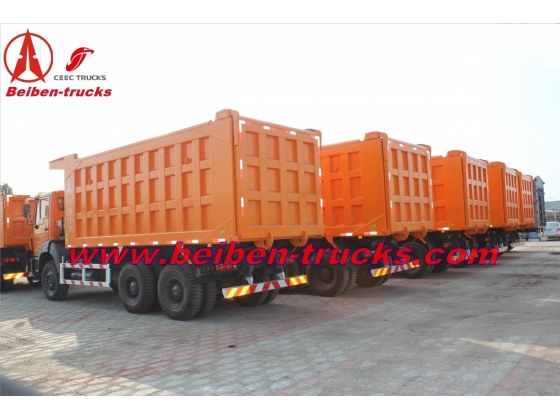

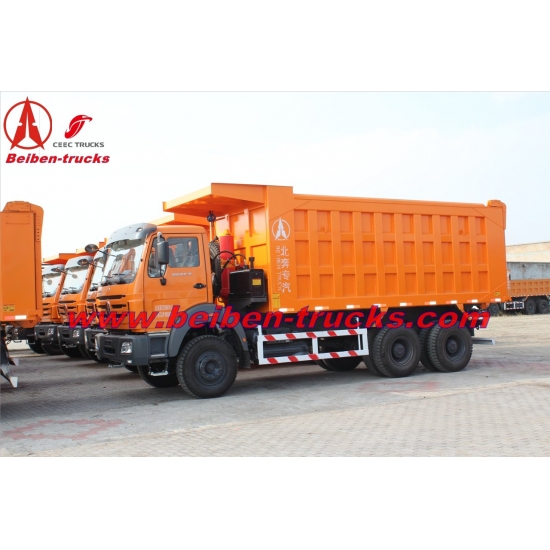

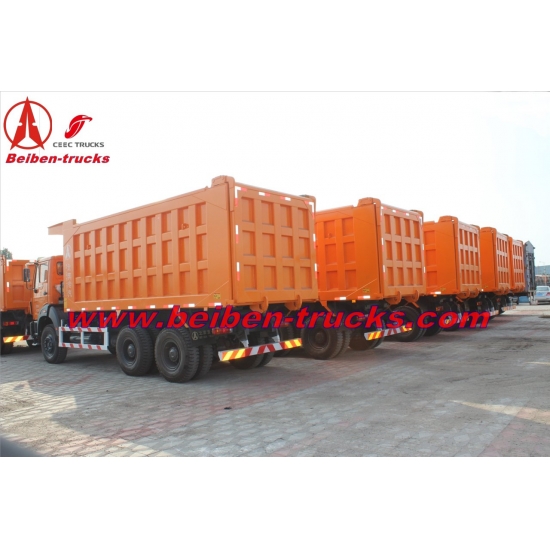

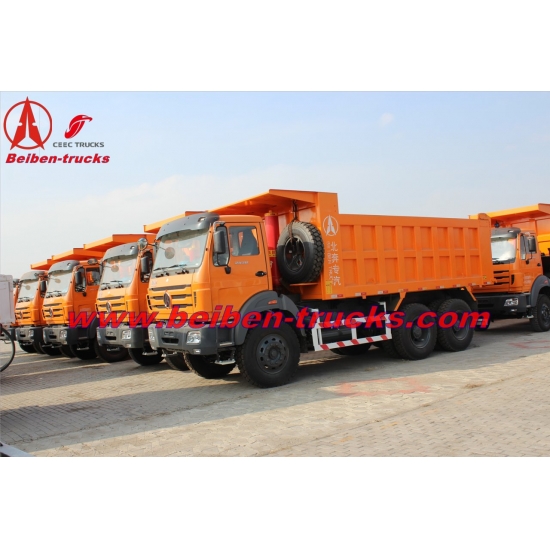

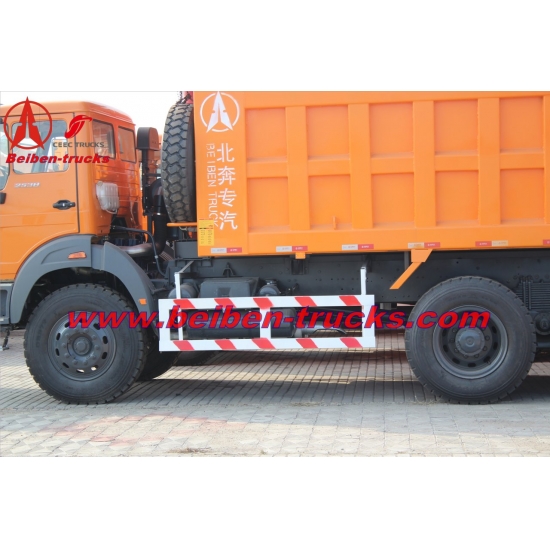

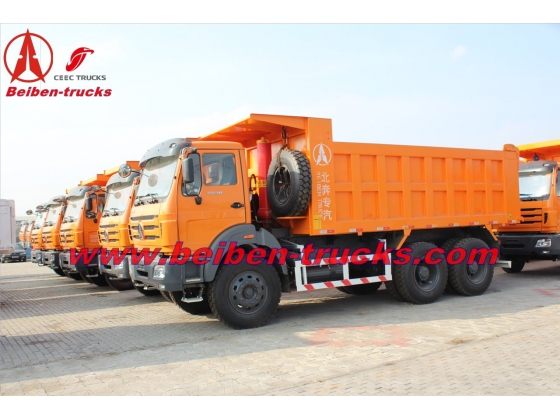

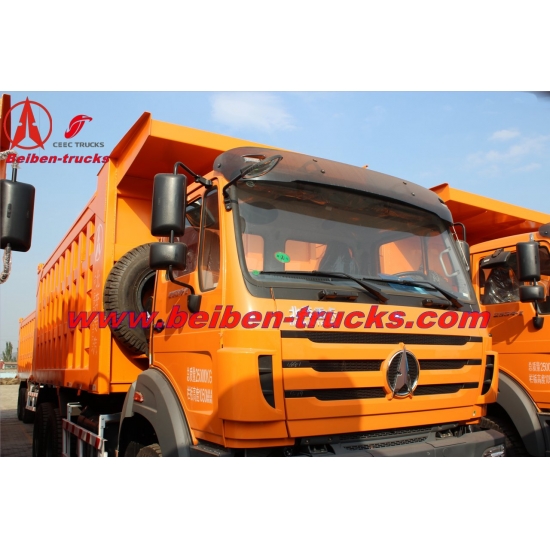

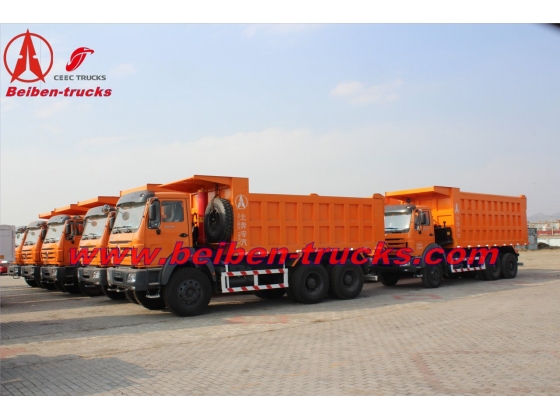

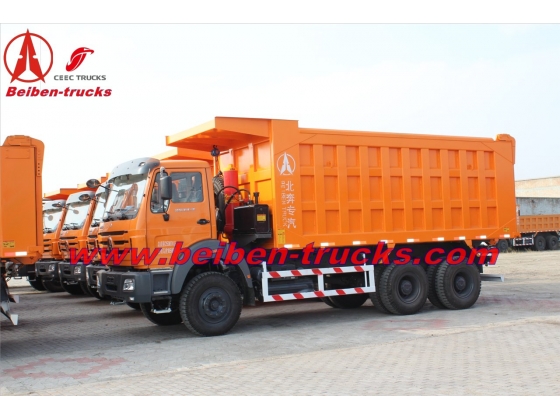

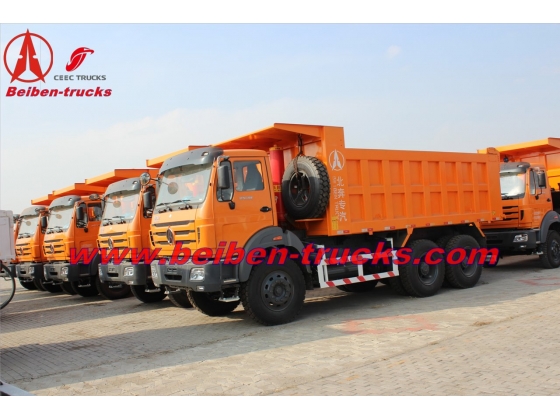

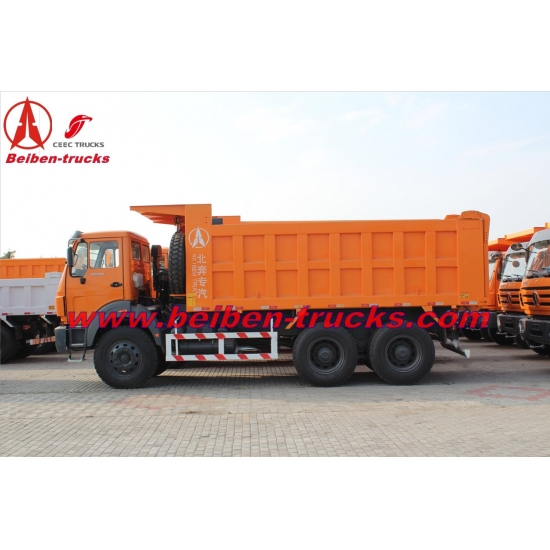

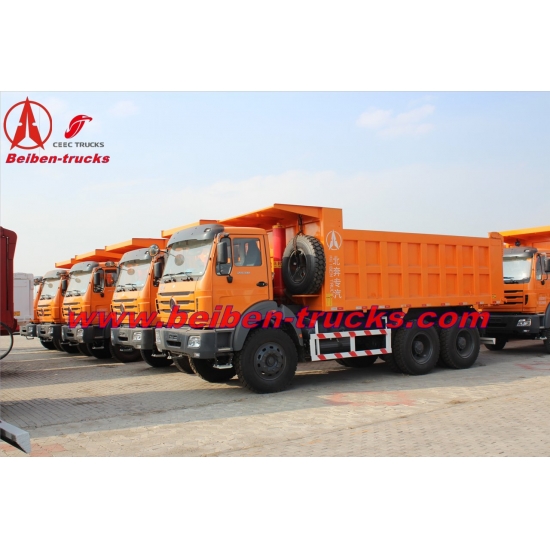

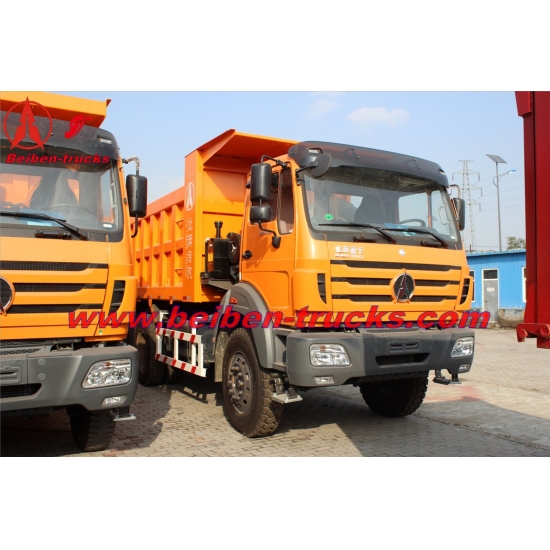

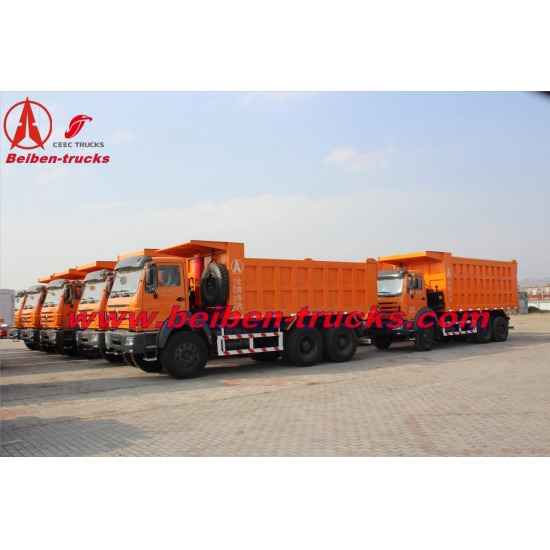

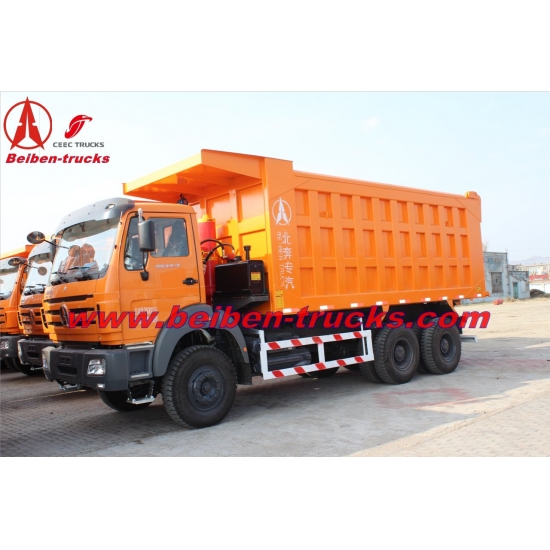

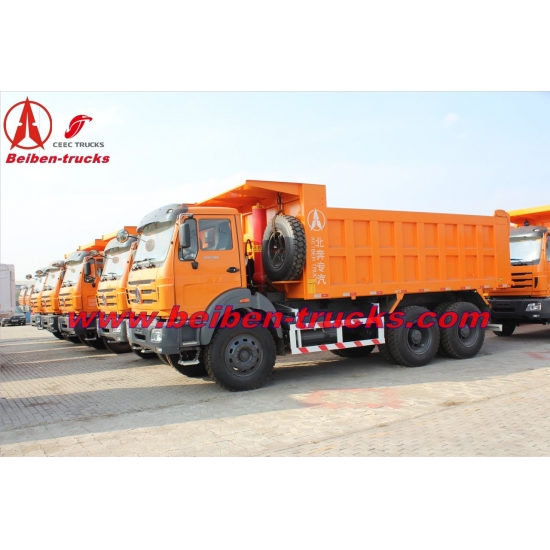

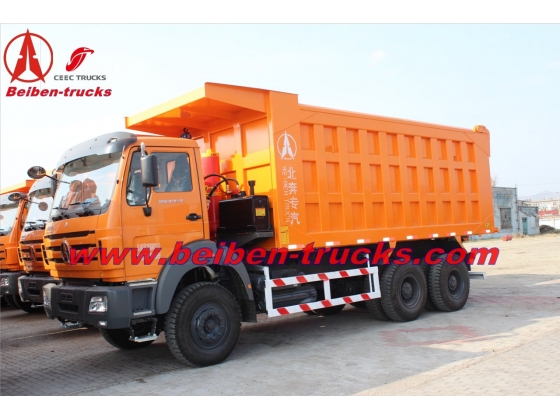

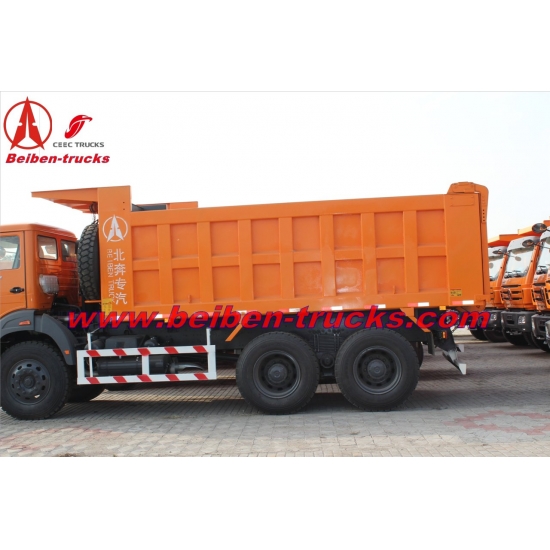

1North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump trucks.
Description:
CEEC provides greater durability and superior performance with its newly reinforced heavy-duty dump trucks of responding to customer’s needs.
Beiben 2538 dump trucks Areas of Application and Use:
◆Mining area
◆Construction site
◆Municipal road construction
◆Transport of stone, sand, gravel
Beiben 2538K /6×4/4100+1450/Short Cab/LHD or RHD |
|||
Dimension |
8880*2500*3430mm |
||

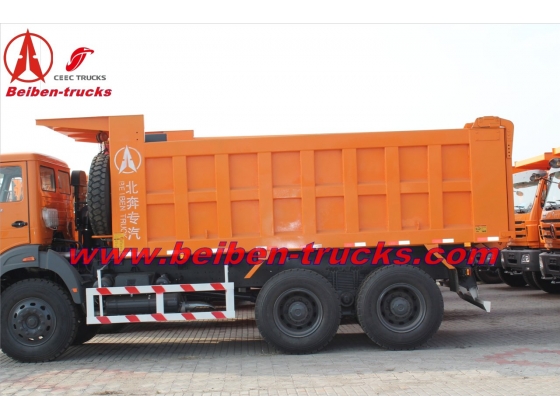

Cargo box |
5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm |
||
Approaching angle/Departure angle |
26/28° |
||
Overhang(front/rear) |
1410/1720mm |
||
Wheel base |
4100+1450mm |
||
Max speed |
85km/h |
||
Curb weight |
12650kg |
||
Engine |
Model |
WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection |
|
Displacement |
9.726L/Diesel |
||
Stroke |
126/130mm |
||
Max. power |
280/2200 (kw/rpm) |
||
Max.torque |
1600/1800(N.m/rpm) |
||
Emission |
Euro III |
||
Fuel tanker capacity |
300L |
||
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
||
Gearbox |
9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated |
||
Gear ratio of gear box |
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22 |
||
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs |
|
Rear |
Non-free standing stabilization spring, balance suspension system, 13pcs |
||
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
||
Park brake |
Potential springs pressing on middle and rear wheels |
||
Steering system |
ZF8098 hydraulic steering with power assistance |
||
Frame |
Strengthened Straight beam |
||
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
||

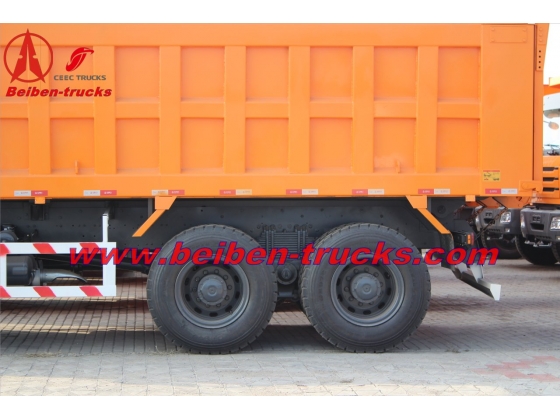

Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
||
Tyre |
315/80R22.5 tubeless tyres |
||
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
||
Starter |
5.4Kw/24V |
