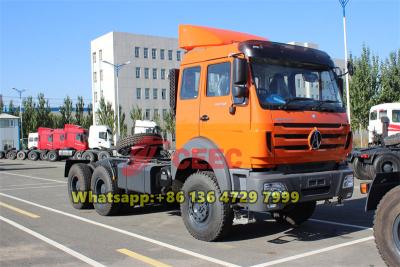

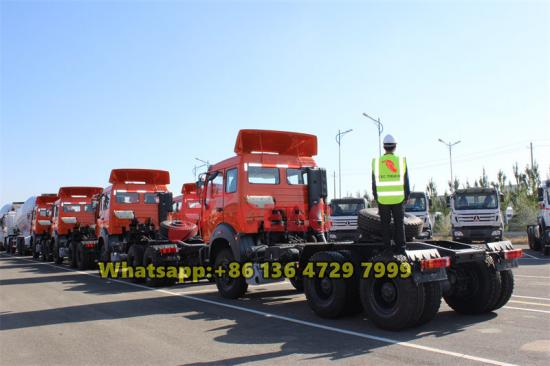

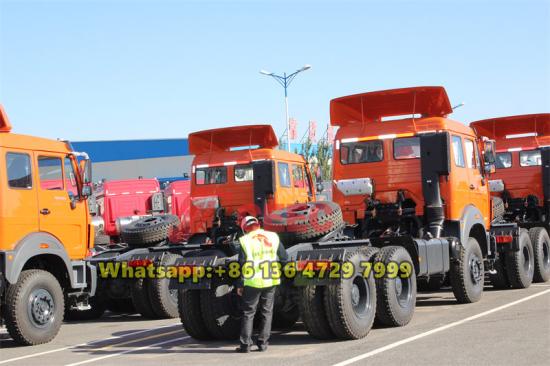

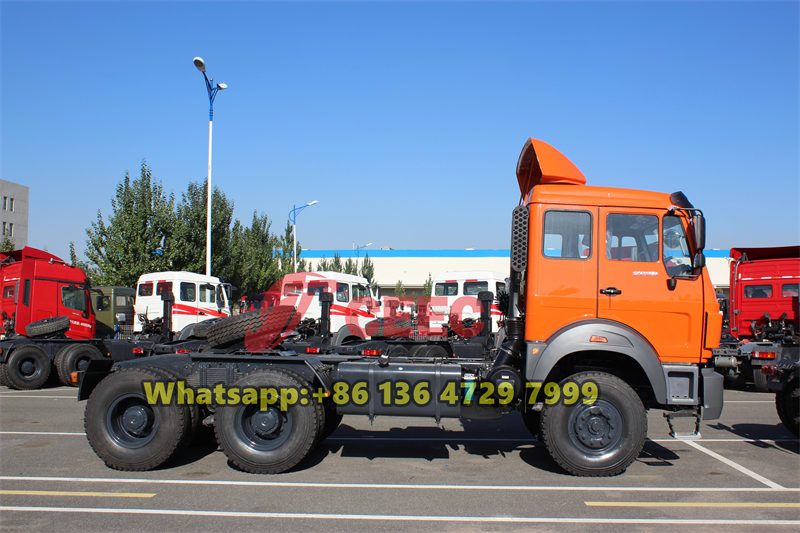

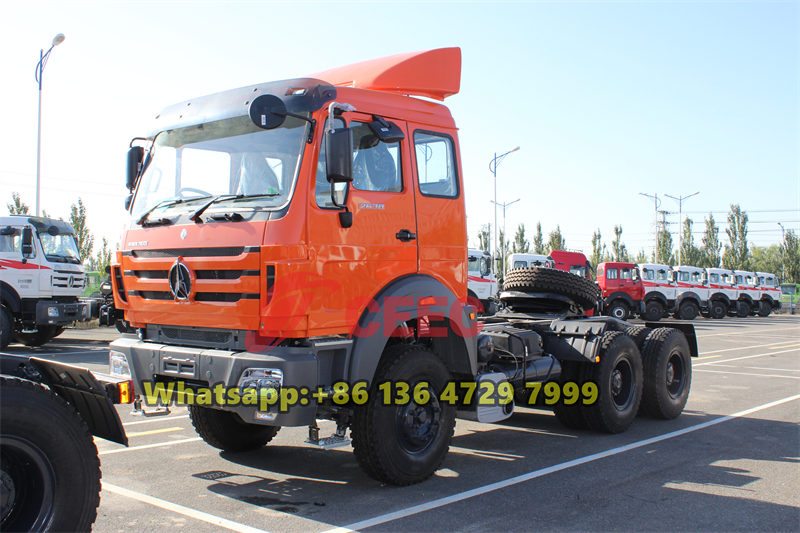

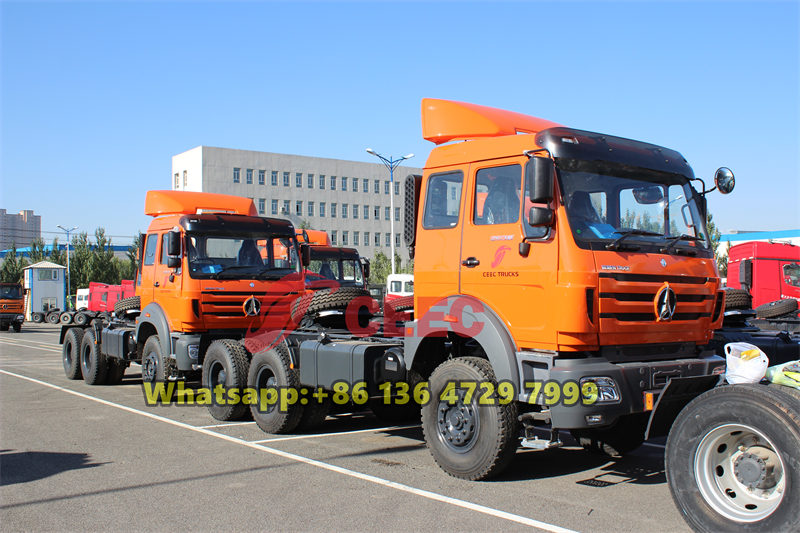

Beiben 2638 RHD tractor truck for Tanzania

Product Description

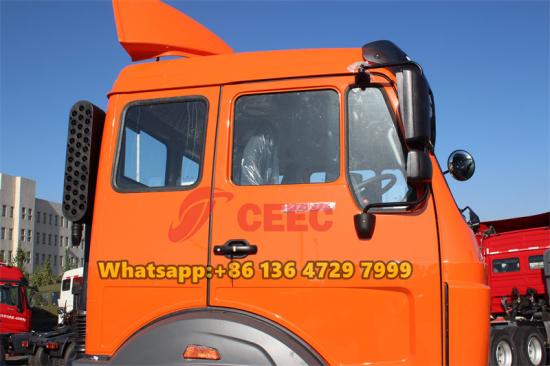

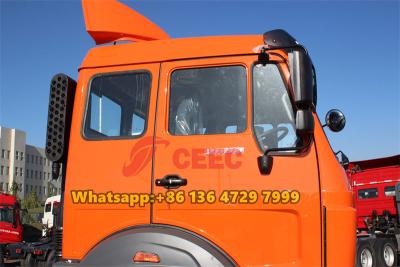

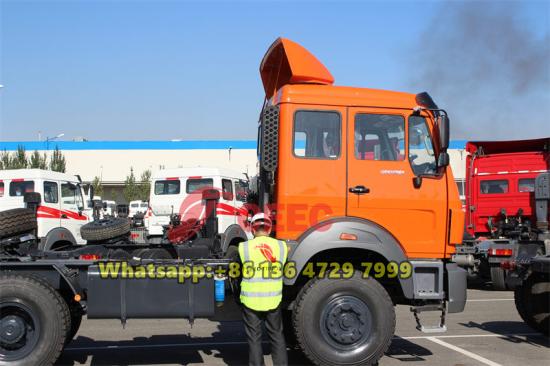

The Beiben 2638 RHD tractor head is a heavy-duty tractor vehicle specifically designed for markets such as Tanzania. With its powerful towing capability, stable performance, and comfortable driving environment, it excels in long-distance transportation and heavy logistics. The vehicle features a 6x4 right-hand drive (RHD) configuration, making it suitable for traffic regulations in countries like Tanzania where driving is on the left side of the road. The cab type is NG80, equipped with an air-conditioned sleeper, providing a comfortable resting environment for the driver and ensuring fatigue is alleviated during long-distance driving.

The Beiben 2638 tractor truck is powered by a WEICHAI brand WP10.380E32 engine, with a power output of 380 horsepower (280 kW) and a maximum torque of 1600 Nm, delivered within a speed range of 1500-1800 RPM. The engine has a displacement of 9.726 liters and meets Euro III EGR emission standards. In terms of the transmission system, this tractor head adopts a FAST brand 12JS200T manual transmission gearbox, featuring 12 forward gears and 2 reverse gears, providing the driver with flexible gear shifting options. The clutch is a single-plate, diaphragm spring type with a diameter of Φ430 mm, ensuring reliable and durable transmission.

The Beiben RHD tractor head employs drum brakes and is equipped with a dual-circuit compressed air brake system and a service brake. The parking brake is a spring brake acting on the rear wheels. The auxiliary brake is of the WEVB type, and the vehicle is also equipped with an ABS anti-lock braking system, enhancing driving safety. The vehicle is fitted with a ZF brand TAS85 type steering gear, ensuring precise steering control. The frame is of a ladder structure with parallel straight beams, measuring 317x70x8.5+7+8 mm. The front suspension is a longitudinal leaf spring, and the rear suspension is an inverted leaf spring stabilizer suspension, providing a stable driving experience.

For the axles, the Beiben 2638 prime mover is equipped with BENZ technology axles. The front axle is a 6.5-ton BENZ type front axle, and the rear axle is a 13-ton BENZ type rear axle, both equipped with double reduction functionality. The axle ratio is 5.263, providing the vehicle with suitable torque output and travel speed.

Product Specifications

Product Details
