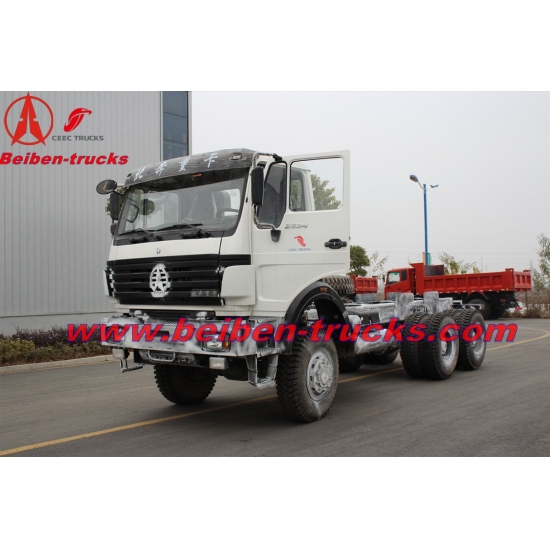

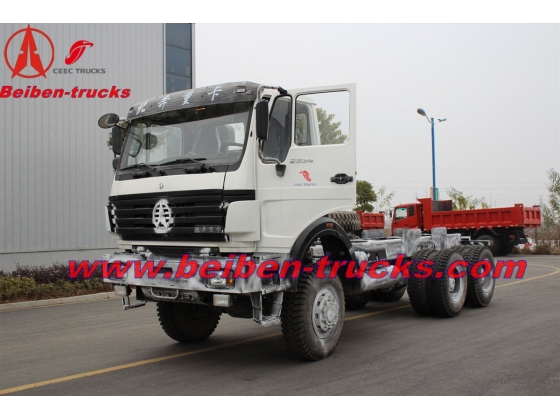

Reinforced Type Beiben Full Drive 6x6 Tractor Head Trailer Head Truck
Order(MOQ):
1Reinforced Type Beiben Full Drive 6x6 Tractor Head Trailer Head Truck
Model |
ND4251F38J |
Traction type |
6X6 |
Driving type |
LHD |
Driver's cab |
long cabin, 1 sleeper, A/C |
Dimensions in (mm) |
Wheel base(mm): 3850+1450 |
|
Overall size(mm): 7340x2500x3300 |
Engine |
Maker: WEICHAI |
|
Engine model: WP10.380E32 |
|
Maximum output: 380HP /2200 rpm |
Clutch |
430mm, hydraulically operating with air assistance |
Transmission |
Fuller 12JS200T |
Transfer case |
LF200 |
Steering |
TAS85 |
Front Axle |
Benz front axle 7 ton |
Rear Axle |
Benz strengthened type 13T, double reduction drive axle Ratio: 5.921 |
Spring |
13/13 |
Types |
12.00R20 Radial tyre |
No. of tyre |
10+1(spare) |
Fuel tank |
400L |
Fifth wheel |
3.5’(90#) |
Electrics Weight in kg |
Operating voltage: 24V, negative grounded |
|
Kerb weight 9200kg |
|
Total mass 25000kg |
Other
|
Desert air filter, PTO, axle differential lock, wheel differential lock, strengthened rim, water tank guardrail, self-help draw hook |
