Order(MOQ):
1Weight:
12000Production time:
10 daysPayment terms:
T/T, L/C

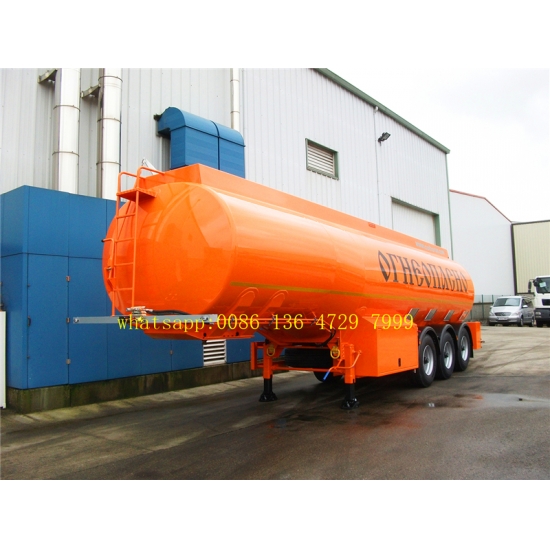

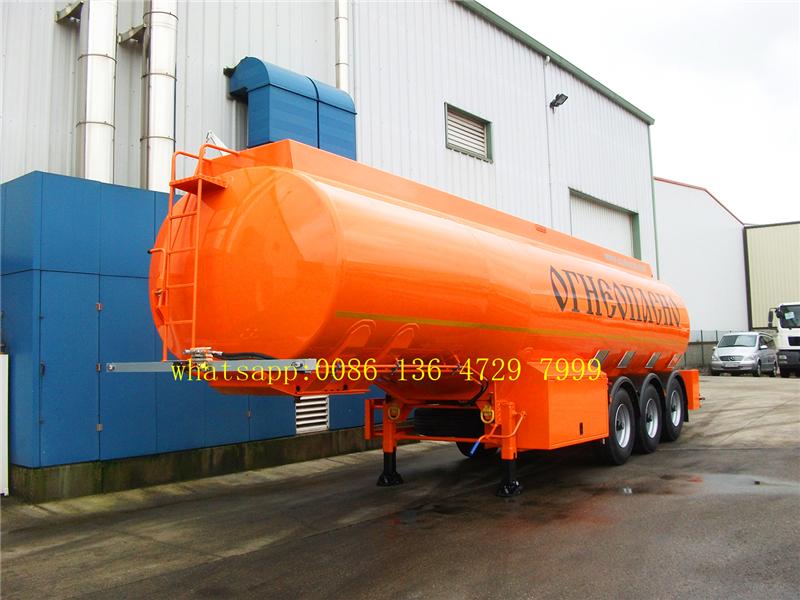

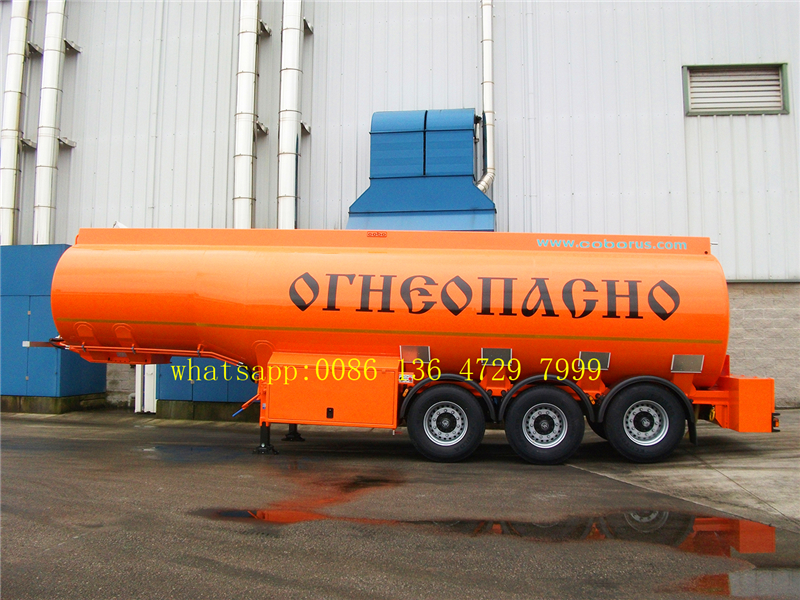

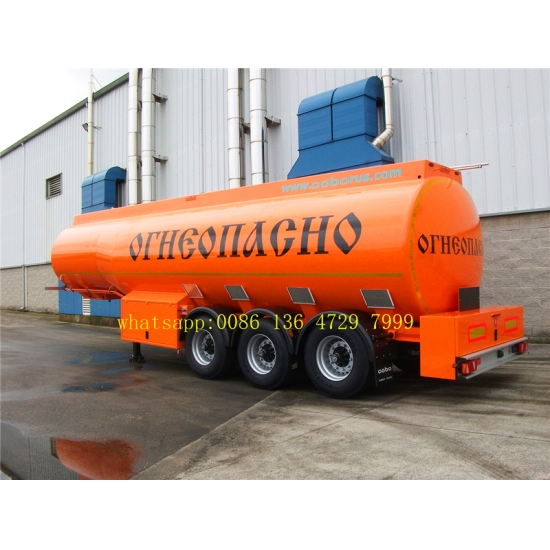

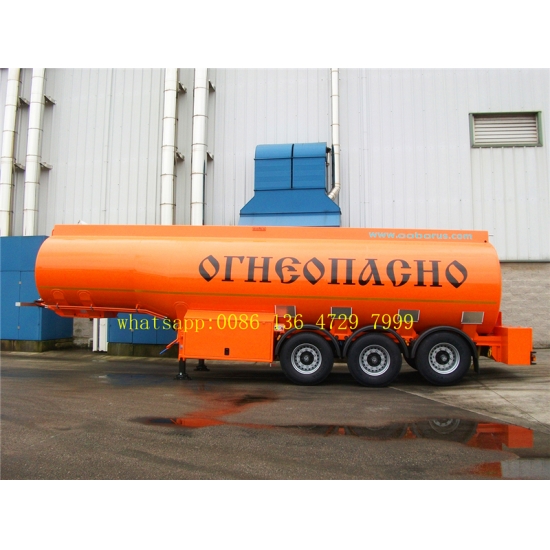

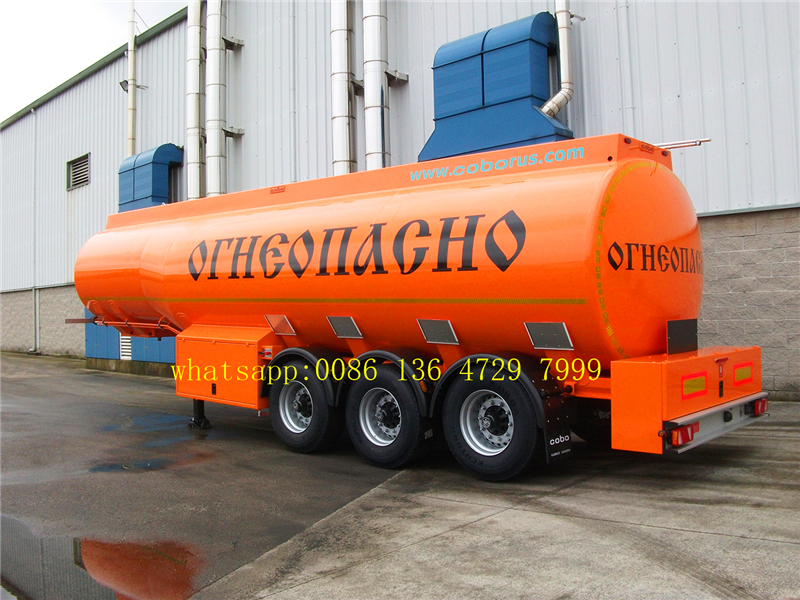

3 axle fuel tanker semitrailer
Applications:
Fuel tanker semitrailer , also called as oil tanker semitrailer, china oil fuel semitrailer, china 3 axle oil semitrailer tanker.
Key Features:
---- 30 years on semitrailer manufacturing, germany benz technology assurance.
---- All genuine spare parts , 20,000 km maintenance
---- 12 months after sale service guarantee
---- Service for more than 200 horned customer , export more than 100 countries.
---- Patented design on semitrailer, reliable and
Specifications:
| Shape |
Round or Square |
| Dimension |
12000mm×2490mm×3990mm ( The exact size depends on the final design.) |
| Tare weight |
About 8000kg-12800kg |
| Total Volume ( m3 ) |
35 m³ |
| Tanker Body Material |
5mm or 6mm/ Q235 carbon steel |
| End Plate |
5mm or 6mm /Q235 carbon steel |
| Manhole Cover |
Carbon steel or aluminum alloy API manhole cover, 500mm(diameter) |
| Bottom Valve |
Aluminum API Pneumatic Bottom Valve |
| Discharging Valve |
Diameter is 3 or 4 inch |
| Compartments |
Optional |
| Discharging Pipe |
4” rubber hose, 2 pcs , 6m/each |
| Cat Walk |
With (Common model or special design) |
| Chassis |
|
| Main Beams |
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material |
| Axle |
2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear |
JOST (D200T ) or CHINA BRAND 28T |
| King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension |
Mechanical suspension/Germany or America type /air suspension |
| Leaf Spring |
90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without |
| Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank |
| Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire |
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
| ABS |
Optional |
| Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Accessories |
One standard tool box |
| Shipping Terms |
By bulk cargo ,RORO or 40HQ Containers |
china best fuel tanker semitrailer manufacturer, supply 2 axle fuel tanker semitrailer, 3 axles fuel tanker semitrailer.
we are professional fuel tanker semitrailer manufacturer
Fuel tanks semi trailer is designed to carry any liquid oil items like fuel, crude oil, cooking oil, petrol, water, diesel and so on. china best flammable fuel tanker semitrailer manufacturer, can supply kinds of oil fuel tanker semitrailer for all foreign customers. We have different Tanker Trailer capacity starts from 30,000 Liter to 70,000 Liter capacity
Fuel Tanker Semi Trailers , 45000 Litres 5 compartments Diesel Fuel Oil Tanker Trailers As the Professional Fuel tanker semi trailer manufacturer, we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country.
As the Professional Fuel tanker semi trailer manufacturer, we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country. We are china best factory of petroleum tanker semitrailer manufacturer, can produce kind of oil tanker semitrailer, fuel tanker semitrailer and other fuel tanker semtirailers.
Oil Tanker Crude Oil Tank Trailer Fuel/petroleum 45000l Steel Fuel Tanker Semi Trailer Tri-axle Fuel tanker semi trailers are desinged to carry any liquid items like fuel, Petrol,Cooking Oil,water, diesel Jet A1 and else. We have different Tanker Trailers opportunity starts from 30.000 Liters to 60.000 liter capacity. with 1 to 10 compartments 1.We Exported Zimbabwe more Aluminium Tank trailer . and this country weight limit serious ,So only Aluminium Tank satisfied the request ; 2.Like Zimbia ,Rwanda ,Tanzania and so on , Other country have rough road condition , So we can provide Thicken Mechnical Suspension for these country; 3.The folding arm rest can be design hydraulic ,It's convenient for your operate ; 4.Axles brand can be choose by yourself ,Like BPW/FUWA/L1/FD Brand
Tri-axle Fuel tanker semi trailers are desinged to carry any liquid items like fuel, Petrol,Cooking Oil,water, diesel Jet A1 and else. We have different Tanker Trailers opportunity starts from 30.000 Liters to 60.000 liter capacity. with 1 to 10 compartments. CEEC factoryTrailer gives its customers wide range of Tanker Trailers assortment and find the best solution according to customer road regulations. All of our oil tanker semitrailer have long guarantee more than 12 months.
Premium 12 Wheeler 50000 Liters Oil/Fuel Tank Trailer ,can exporting best quality oil tanker semitrailer for africa customer , supply 30 T, 40 T, 50 T, 60T fuel wagon semitrailer , all of our oil wagon semitrailer can comply with ADR, DOT standard.
Premium africa fuel tanker semitrailer manufacturer,can exporting best quality oil tanker semitrailer for africa customer , supply 30 T, 40 T, 50 T, 60T fuel wagon semitrailer , all of our oil wagon semitrailer can comply with ADR, DOT standard.
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material 2 or 3 axles, BPW/FUWA/HUAJING brand JOST (D200T ) or CHINA BRAND 28T
Tri axle oil tanker trailers 50000 liters fuel tank semi trailer gasoline transport tank trailer,Fuel Tanker semi trailers optional: 36cbm fuel tank trailer, 38cbm oil tank trailer, 40m3 diesel tank trailer, 45cbm liquid tanker truck trailer, 48cbm crude tanker semi trailer, 50,000liters fuel tank trailer, 55,000 liters oil tanker truck trailer, 60,000 liters tank truck trailer
