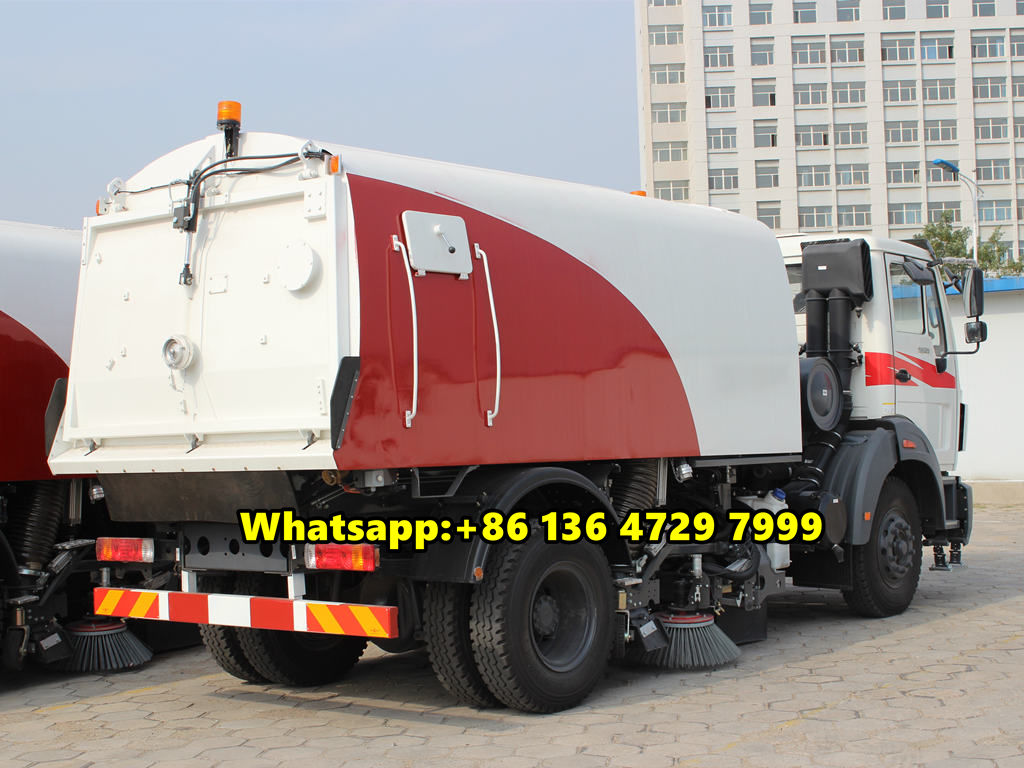

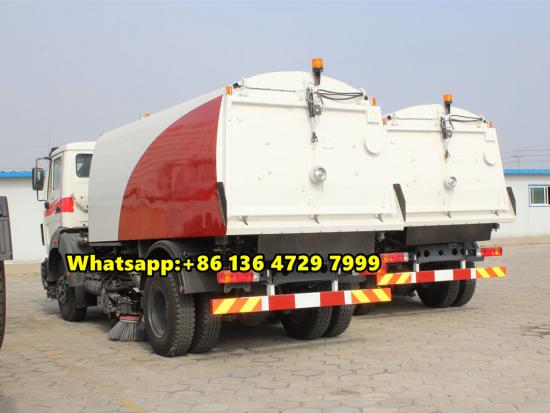

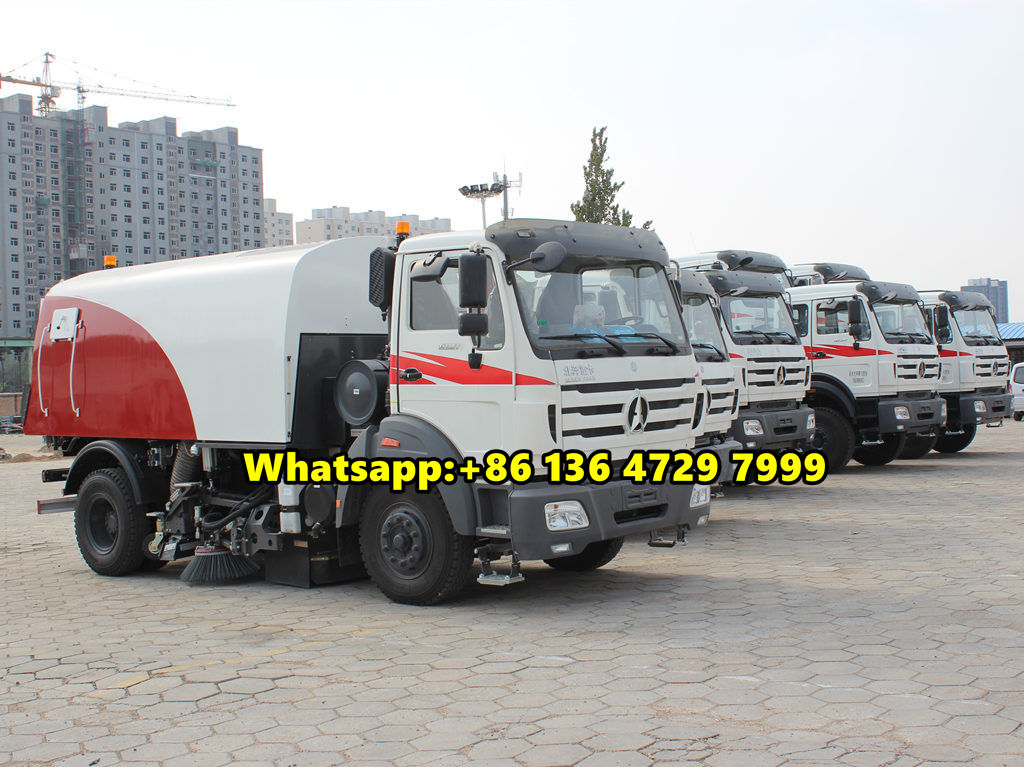

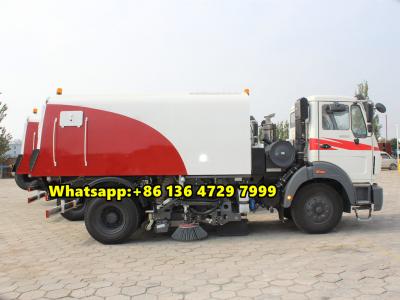

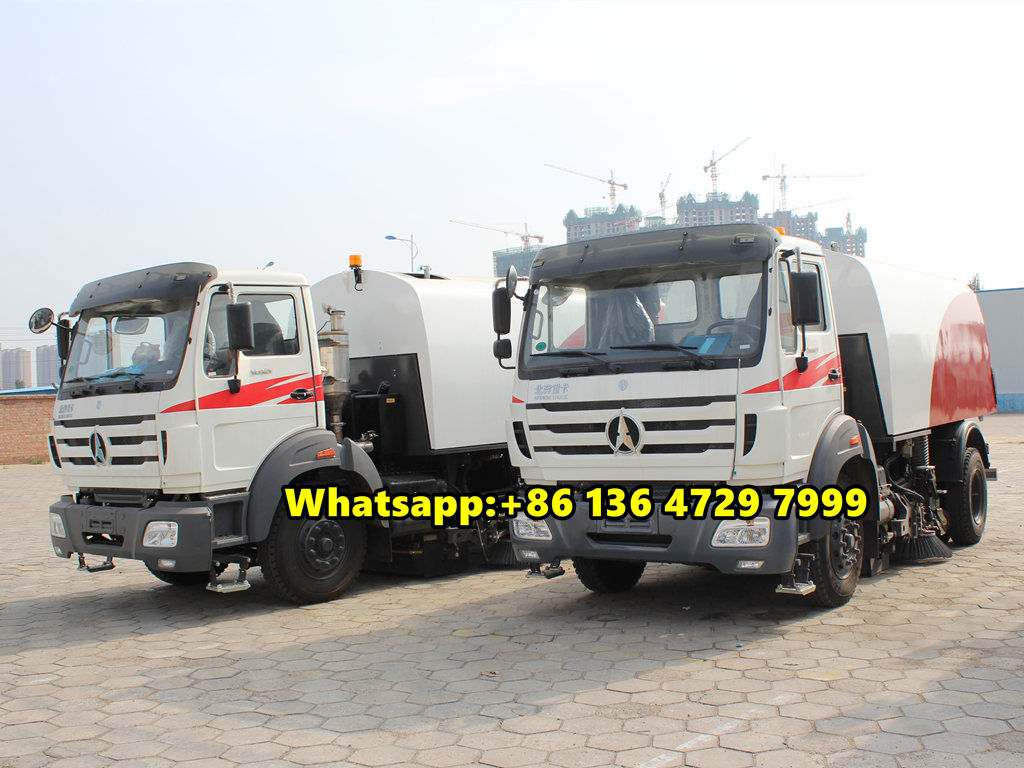

Beiben 1927 road washing sweeper truck is a new type of efficient sweeping equipment that integrates road sweeping, garbage collection and transportation. Beiben road sweeper is a road sweeping vehicle modified with road sweeping function on a special vehicle chassis. In addition to the chassis engine, the vehicle is equipped with an auxiliary engine. This new model can complete the tasks of ground sweeping, road curb sweeping, road curb cleaning and watering the ground after sweeping at one time. It is suitable for sweeping operations in various climates and on roads with different dryness.
Order(MOQ):
1Goods Stock:
1Payment:
40% T/T deposit, 60% T/T before shippingLead Time:
40 daysProduction time:
Beiben 1927 road sweeper truckEngine power:
270HPDrive system:
4x2, 4x4, 6x4, 6x6Beiben road sweeper truck is widely used in road sweeping of trunk roads, municipal and airport pavements, urban residential areas, parks, etc. Beiben road sweeper truck can not only sweep garbage, but also remove dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the sanitation of the environment, maintains the good working condition of the road surface, but also reduces and prevents the occurrence of traffic accidents.
Beiben road sweeper truck also called street sweeper truck , sweeping vehicle,street cleaner ,sweeper cleaning truck ,street cleaning vehice.
The road sweeper truck is composted by chassis ,auxiliary engine ,air blower,mahnetic vavles ,dustbin ,water taner ,sweepring system ,suction system ,water sprinkling system ,hydraulic system ,electrical control system ,etc .

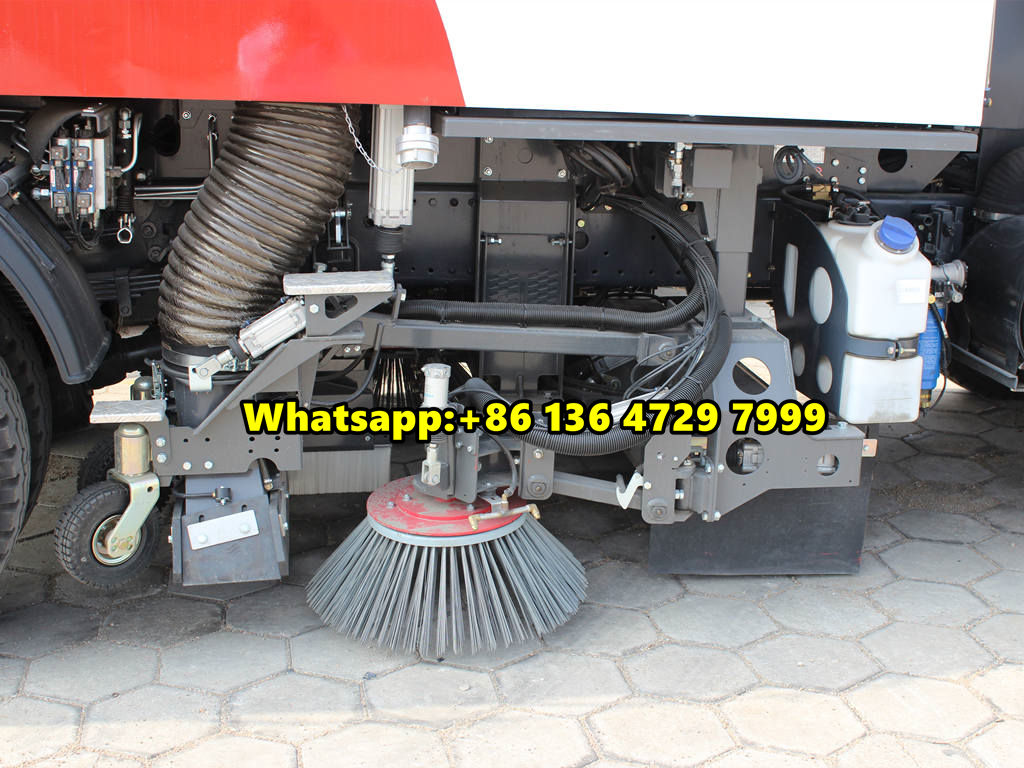

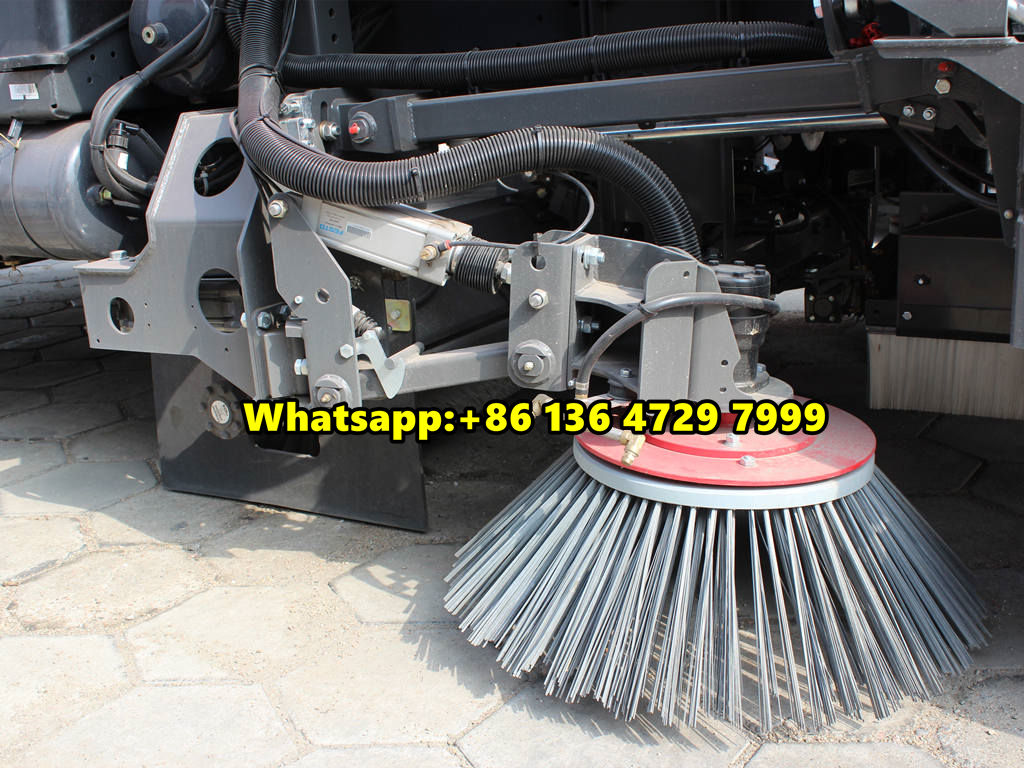

4 brooms sweeping system and suction system combine working high efficient.Water sprinklers equipped on brooms ,suction nozzles ,effective dust suppression .
The main uses of Beiben street cleaning truck include:
Urban road cleaning: Beiben street cleaning truck can quickly and efficiently clean urban roads, sidewalks and crosswalks, prevent water accumulation and debris from causing inconvenience to traffic, and improve the cleanliness and traffic safety of roads.
Parking lot cleaning: Beiben street cleaning truck can regularly clean parking lots, remove garbage and dust generated when vehicles are parked, improve the parking environment, and improve the overall sanitation level of parking lots.
Public square and garden cleaning: Beiben Vacuum Truck can clean leaves, paper scraps and other garbage in parks, squares, scenic spots and gardens, keep public places clean and tidy, and enhance people's leisure experience.
Industrial area cleaning: Beiben Vacuum Truck can clean factory roads and workshop sites in industrial areas, remove industrial waste and debris, maintain environmental sanitation in industrial areas, and improve work efficiency and production quality.
|
Beiben 1927 chassis information |
|
|
Wheel base (mm) |
3500 |
|
Curb Weight（kgs) |
5800 |
|
Engine Model |
WP10.270E32，270HP，water-cooled，four strokes，6 cylinders straight in line，turbocharged |
|
Engine Fuel type |
Diesel |
|
Engine Emission |
EURO 3 |
|
Engine Displacement（ml) |
9726 |
|
Fuel tanker capacity (L) |
400 |
|
Clutch Model |
#430, Single dry frictional disc，Hydraulic boosting |
|
Gearbox - Model |
9JS119B/ ZF9T 160, mechanical type，Based on Fuller Eaton technology ,9 Forward speed gear. |
|
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system - Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
|
Rear Suspension |
Non-free standing stabilisation spring， stabilisation suspension. |
|
Frame |
Fish belly shape, variable width, variable sections |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
Ratio：5.263 |
|
|
Tyre |
315/80R22.5 radial tyre |
|
Qty of tyre |
7 |
|
Electrical system - Battery |
2X12V/135Ah |
|
Electrical system - Generator |
28V-35A |
|
Electrical system - Starter |
5.4Kw/24V |
|
Cab |
NG80B, Short cab without sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
|
Interior trimming: Integral interior trimming, Integral instrument, digital instrument, , radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. |
|
|
Exterior trimming: Metal bumper, with new mirror. with outer sun visor ,with Headlight retainer |
|
|
Fifth wheel |
#90 single direction |
|
Others |
With protective plate under radiator |
|
Insect screen in front of cooling system |
|
|
30T Jack |
|
|
Radio and CD player |
|
|
Differential lock on rear axle |
|
|
ABS (optional) |
|
|
Headlamp protector |
|
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.
|
Road washing sweeper truck structure parameters |
|||
|
Dust tank volume |
4000L |
Water tank volume |
1500L |
|
Sweep width |
3000m |
Cleaning speed |
3-20km/h |
|
Cleaning ability |
9000-60000 m2/h |
Cleaning efficiency |
0.98 |
|
Maximum suction particle |
120mm |
Min. clearance of suction nozzle |
200mm |
|
Unloading angle |
45° |
Unloading height |
970mm |
|
Standard configuration |
Sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. |
||
|
Selective configuration |
surveillance system,rolling brush. |
||
