Order(MOQ):

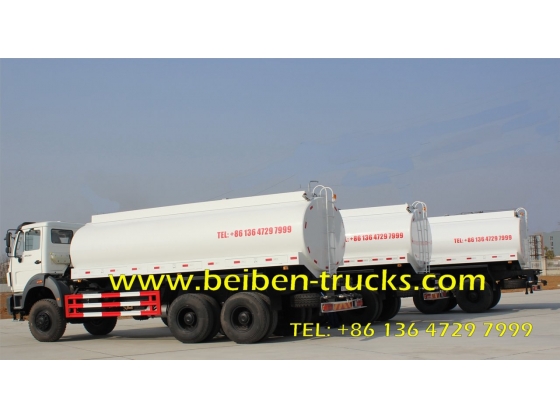

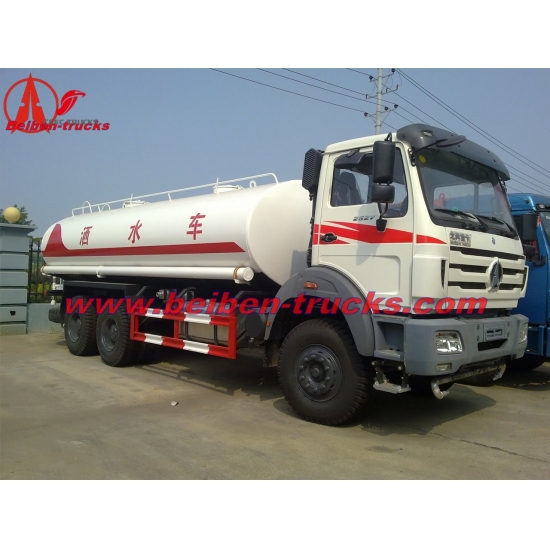

1Beiben military quality water tank truck
Cabin / Passenger Capacity |
One and half row Seat (optional one row cabin), flat top with a bed, tiltable, |
|
Chassis |
Model |
ND1252 |
Overall dimensions |
9465*2500*3370 mm |
|
G.V.W |
25000 kg |
|
Net weight |
11800 kg |
|
Design load |
23000 kg |
|
Drive type |
6x4 |
|
Suspension F/R |
1410/2205 mm |
|
Wheelbase |
4500+1350 mm |
|
Number of axles |
3 |
|
Axle-load |
7000/18000 kg (two rear driving axle) |
|
Approach/Departure Angle |
12/12 ° |
|
Number of Spring leafs |
9/10 |
|
Track F/R |
2020/1847/1847 mm |
|
Tire ( No. & specification) |
11.00-20, 10pcs+1pc ( optional 11.00R20) |
|
Max speed (Km/h) |
≥ 96 km/h |
|
Brake system |
Pneumatic braking |
|
Steering |
Power steering |
|
Transmission |
DC7J100T, Mechanical 7+1 |
|
Engine |
Engine model |
WP6.240 (EURO 3 emission) |
Type of fuel |
diesel |
|
Power |
176 kw ( 240 hp ) |
|
Exhaust |
6750 ml |
|
Water Tank |
Tank capacity |
18000~30000 Liters = 18~30 m3 |
Tank shape |
Oval shape. |
|
Water tanker size |
6000*2300*1500 mm (18 m3) |
|
Tank material |
Mild steel / stainless steel / aluminum alloy |
|
Standard equipment |
With water pump, water cannon with working platform. fire valve, water valves, water pipes. Also could modify in potable or transport water tank. |
