Beiben 2634 RHD truck crane is equipped with a powerful WEICHAI engine with an output power of up to 250kW and a peak torque of 1250N·m, ensuring strong power. It is equipped with an XCMG 10-ton folding arm crane with excellent lifting capacity, 360-degree rotation and a maximum lifting height of 14 meters. The cargo box is 6 meters long and provides a stable loading platform. This truck crane combines strength and flexibility, and is a powerful assistant for engineering construction and logistics transportation.
Production time:
40 daysPayment terms:
30% TT deposit and balance before deliveryWorking Capcity:
10 tonsEngine power:
340HPDrive system:
6×4, RHDProduct Description
BEIBEN 2634 boom crane truck has become a leader in the industry with its excellent performance and flexible maneuverability. This vehicle is based on the Beiben NG80B 2634 chassis and adopts a 6x4 drive mode to ensure stable driving force under various road conditions. The overall dimensions of the vehicle are 8960×2500×3328 mm, and the wheelbase configuration is 5050+1450 mm. It provides a spacious cargo box space with a size of 6000x2300x600 mm, which is very suitable for transporting large objects.
BEIBEN 2634 RHD truck with crane is equipped with WEICHAI WP10.340E32 engine, which is a 6-cylinder, 4-stroke, water-cooled, turbocharged and intercooled diesel engine with a displacement of 9.726 liters and a maximum power of 250 kW (340 hp). It can output maximum power at 2200 rpm and provide a maximum torque of 1250 Nm at 1400-1600 rpm. Such a power configuration ensures that the truck crane can provide strong power in various working environments.

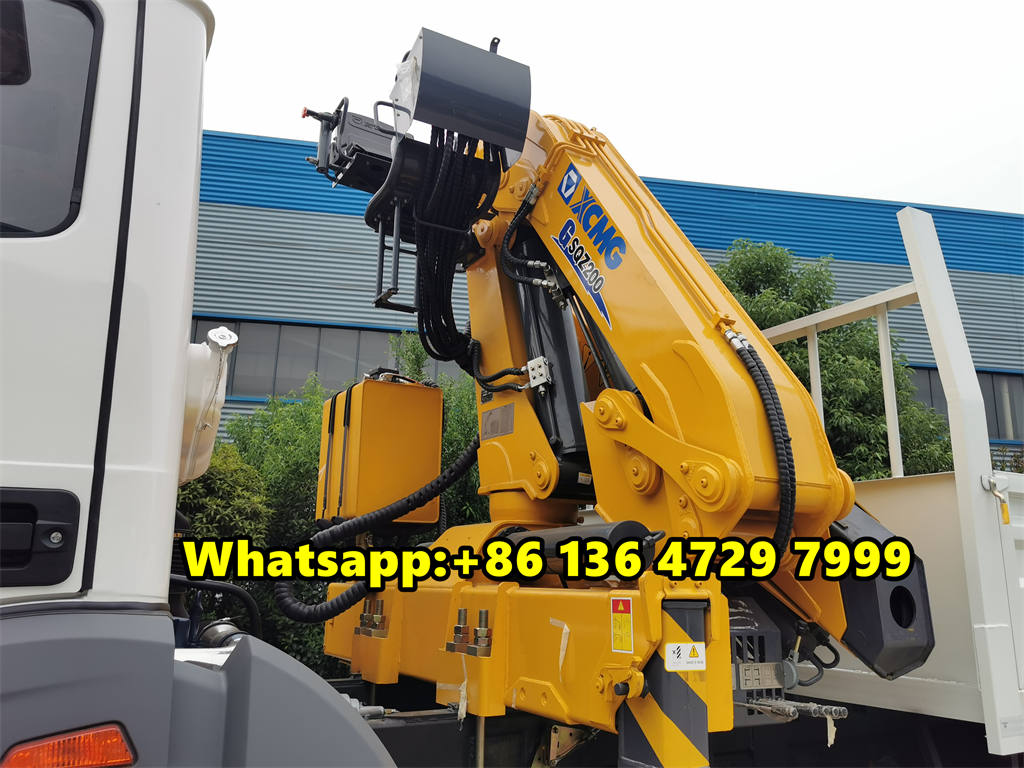

BEIBEN 2634 RHD truck mounted crane is equipped with XCMG 10-ton knuckle boom crane. This crane has a maximum lifting capacity of 10,000 kg, a maximum lifting torque of 25 tons m, a recommended required power of 28 kW, and a slewing angle of 360 degrees, ensuring the flexibility and accuracy of hoisting. The maximum flow of the hydraulic system is 63 liters/minute, the maximum pressure is 26 MPa, the installation space only requires 1150 mm, the crane weighs 3800 kg, the fuel tank capacity is 160 liters, the maximum lifting height can reach 14 meters, and the working radius is 12 meters.
Product Specifications
|
BEIBEN 2634 RHD truck mounted crane specifications |
||
|
Emission Standard |
EURO 3 |
|
|
Chassis model |
NG80B TYPE, 2634 |
|
|
Driving Type |
6x4 |
|
|
Dimensions |
||
|
Wheelbase(mm) |
5050+1450 |
|
|
Overall Dimension(mm) |
8960×2500×3328 |
|
|
Cargo box dimension(mm) |
6000x2300x600 |
|
|
Weight parameters |
||
|
GVW(kg) |
25,000kgs |
|
|
Curb weight(kg) |
13,250kgs |
|
|
Real load weight(kg) |
11,010kgs |
|
|
Chassis parameter |
||
|
Front axle |
7 Ton front axle load capacity, Double shoe disc air break |
|
|
Rear/middle axle |
18Ton/axle (2 axle combined) |
|
|
Front/rear overhang(mm) |
1410/2530 |
|
|
Approach angle(°) |
34 |
|
|
Departure angle(°) |
24 |
|
|
Max speed(km/h) |
80 |
|
|
Suspension |
Leaf spring suspension |
|
|
Engine performance |
||
|
Engine model |
WEICHAI, WP10.340E32 |
|
|
Engine type |
Straight in-line,6 cylinders,4 strokes,water-cooling |
|
|
No. of cylinders |
Straight-6 cylinders |
|
|
Displacement(L) |
9.726L |
|
|
Max. Output (KW) |
250kw (340hp) |
|
|
Fuel type |
Diesel |
|
|
Max. output (kw/Ps/rpm) |
250kw(340ps)/2200 rpm |
|
|
Max torque/Speed(N.m/rpm) |
1250 N.m/1400-1600rpm |
|
|
Tire specification |
12.00R20, total 10+1 spare tire |
|
|
Drive Line |
|
|
|
Clutch description |
¢420, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
|
Transmission |
FAST 9 forwarder,1 reverse gear, synchronous meshing, manual |
|
|
Braking system |
Service brake: Brake gap can be adjusted automatically |
|
|
Suspension system |
||
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
|
Electrical Equipment |
||
|
Voltage |
24V |
|
|
Batteries |
2X12V/135Ah |
|
|
Starter |
6.2Kw/24V |
|
|
Crane specifications |
||
|
Crane model |
SQ10ZK3Q (4 booms) |
Unit |
|
Max lifting capacity |
10,000 |
kg |
|
Max lifting moment |
25 |
T.M |
|
Recommend Power Needed At |
28 |
KW |
|
Rotation angle |
360 |
Degree |
|
Max Oil Flow of Hydraulic system |
63 |
L/min |
|
Max Pressure of Hydraulic system |
26 |
Mpa |
|
Installation Space |
1150 |
mm |
|
Crane Weight |
3800 |
kg |
|
Oil tanker capacity |
160 |
Liter |
|
Crane max Lifting height |
14 |
m |
|
Crane working radius |
12 |
m |

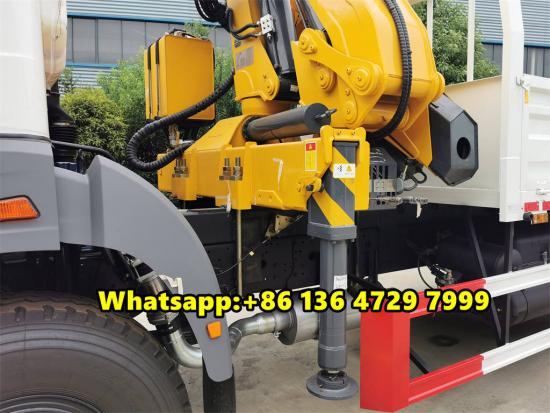

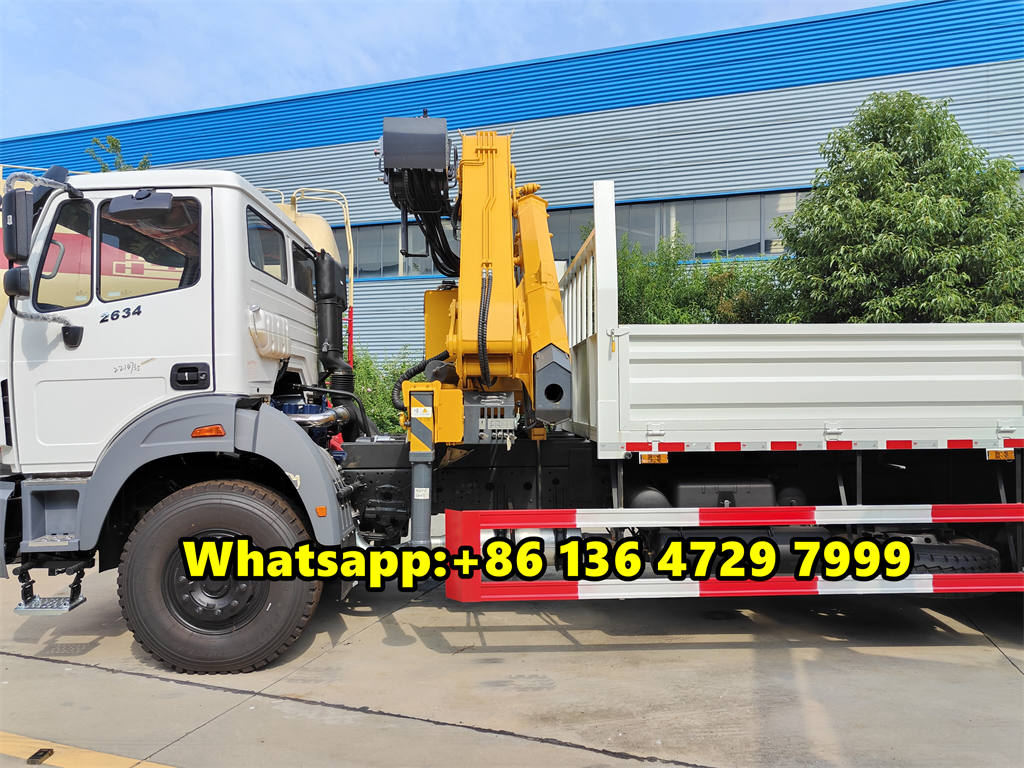

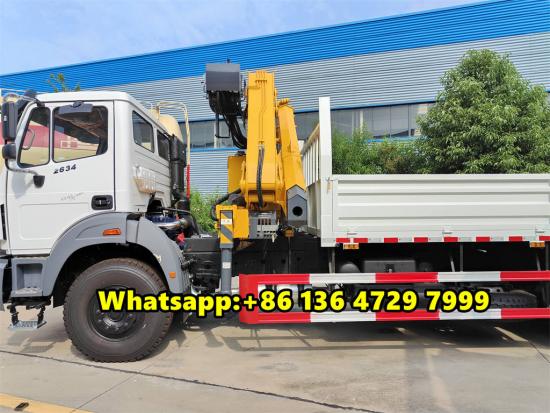

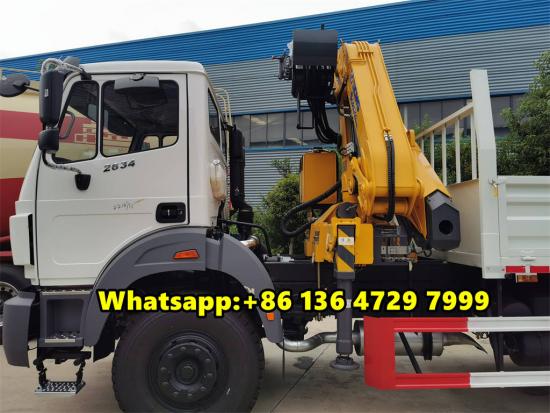

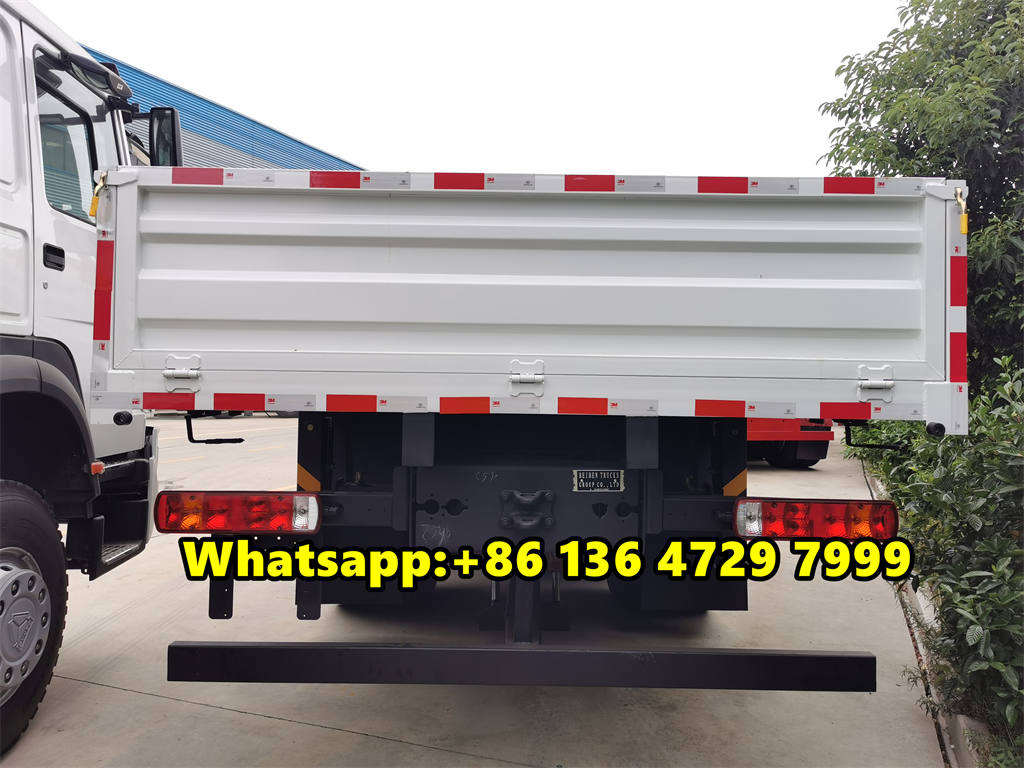

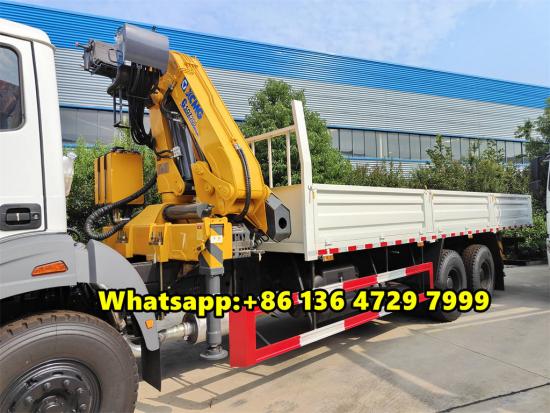

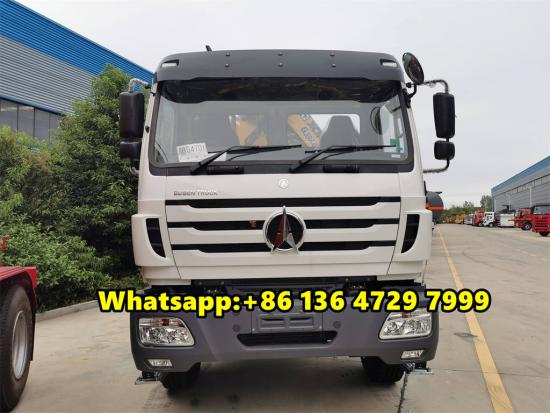

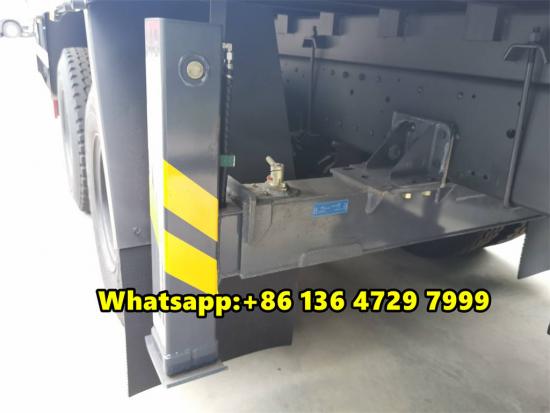

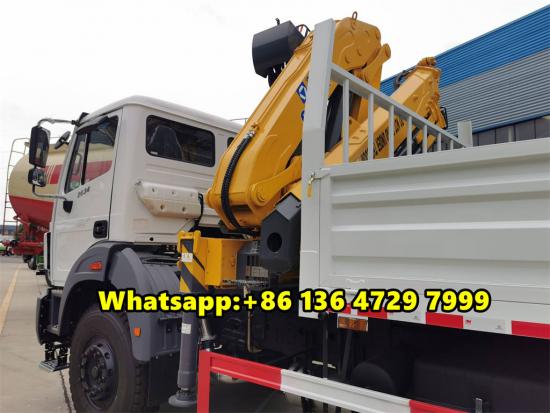

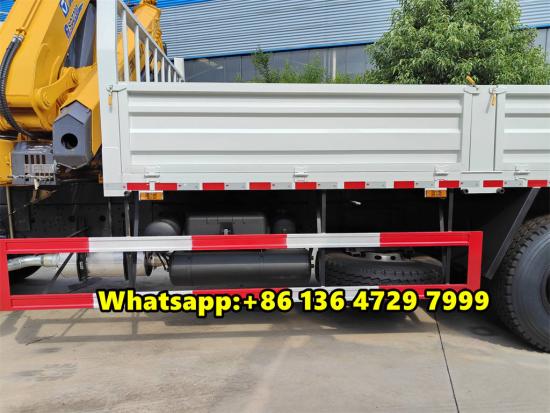

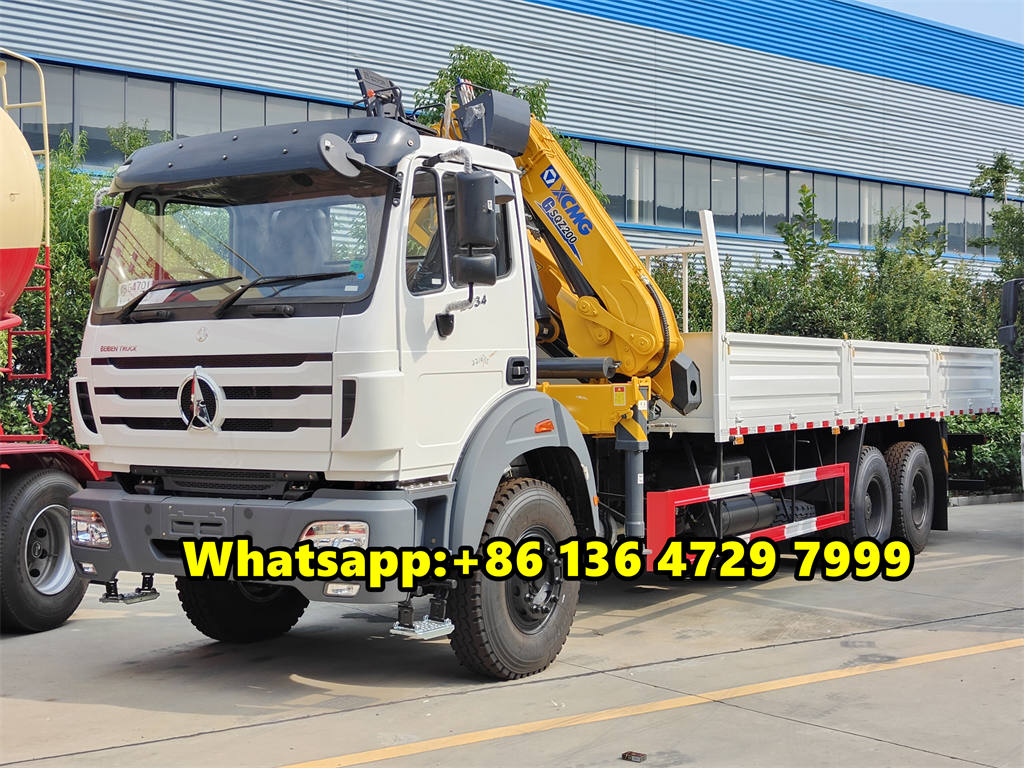

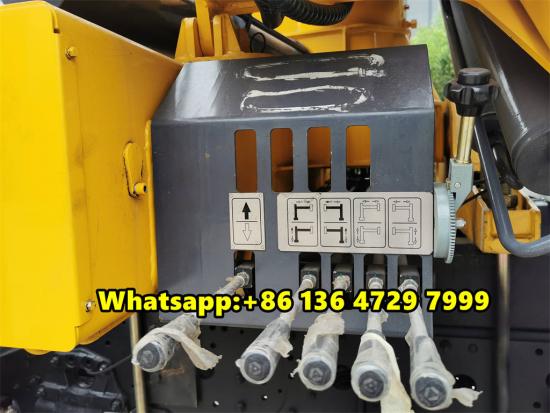

Product Detailed Photos
