Order(MOQ):
1Goods Stock:
1
Function:
Construction, Mining
and quarries,
Normal material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Advantage:
Axles from Mercedes Benz technology
Made for heavy usage applications, all V3 are equipped with double-layer reinforced frames
Ease of use, simple and reliable
Specification:
Similar key words beiben 2628 towing trucks supplier, china beiben 2628 tracteur camions, north benz 2628 tractor trucks, beiben 280 hp euro 2 engine tractor vehicle.
China famous brand beiben 2528 tractor truck,for using in logistic, seaport, airport, fuel transporation.
Best supplier of beiben 2828 tractor truck, beiben 2636 tractor truck, beiben 2642,2646,2648 prime mover, we have great reputation in africa country for supplying beiben 4*2 tractor truck, beiben 4*4 tractor truck, beiben 6*4 tractor truck and beiben 6*6 tractor trucks.
CEEC TRUCKS aims at supplying best quality beiben EURO 2 engine, 2634,2638,2636,2642,2648 tractor trucks for all africa customer, range from congo beiben trucks, kenya beiben trucks, tanzania beiben trucks, and algeria beiben trucks.

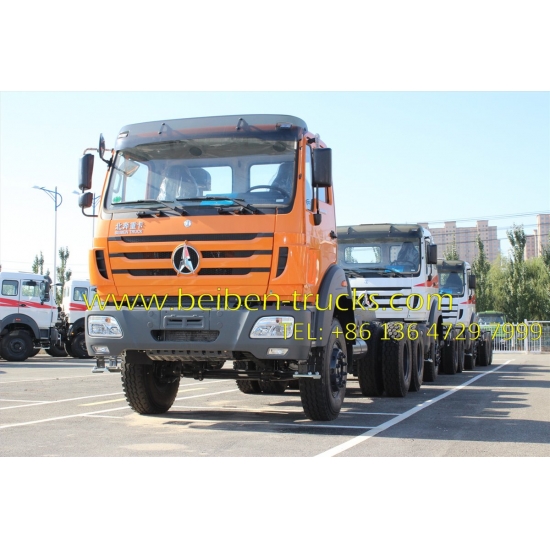

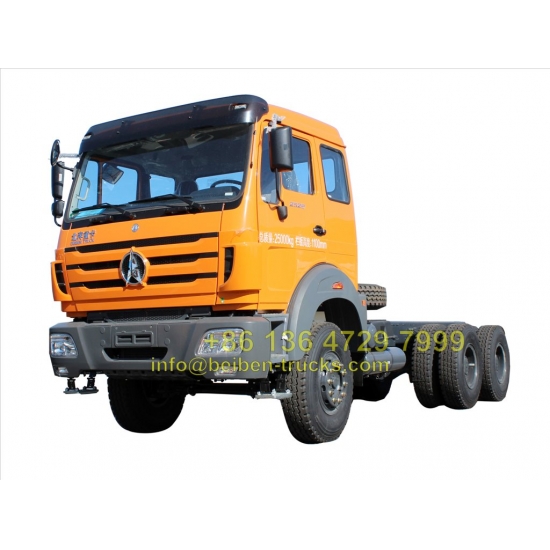

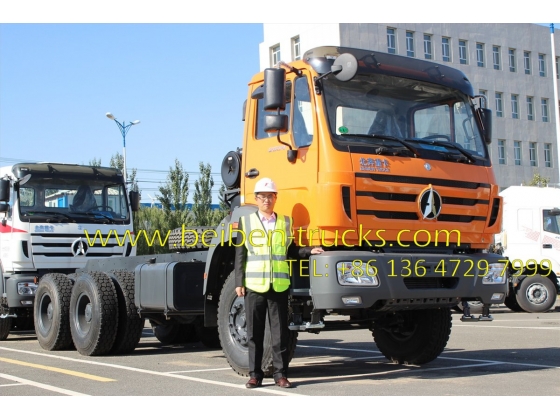

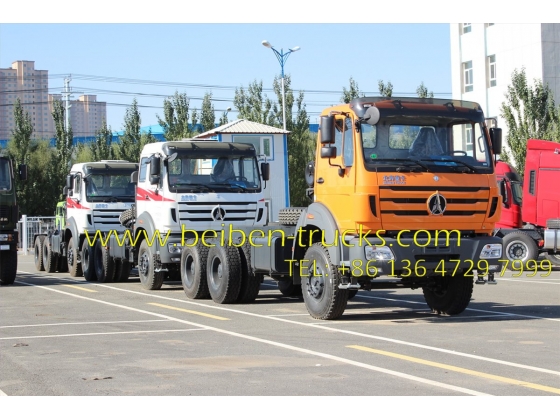

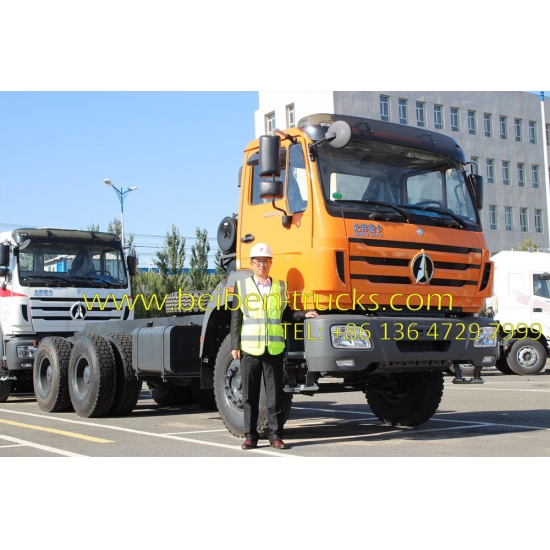

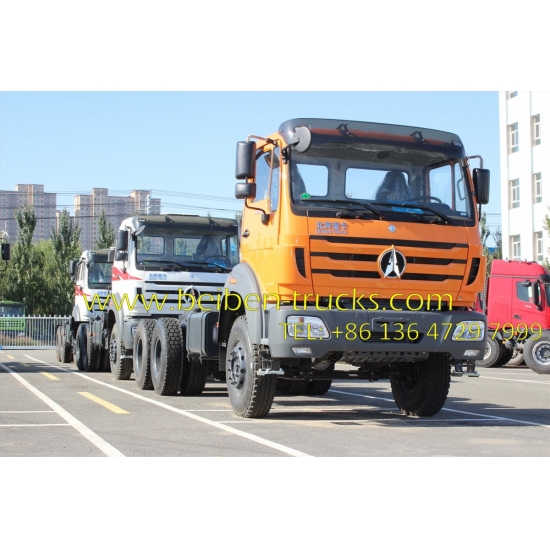

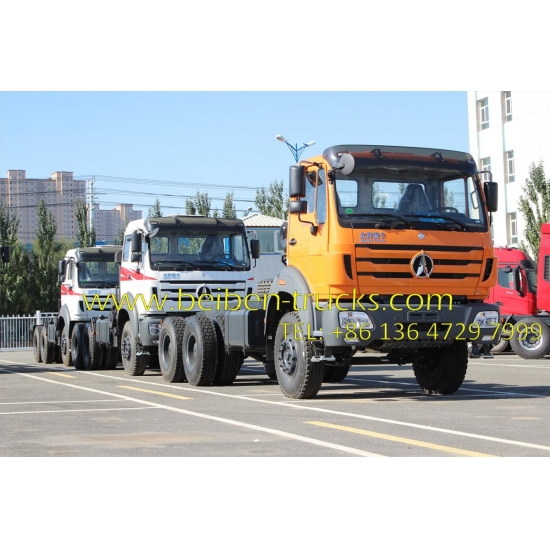

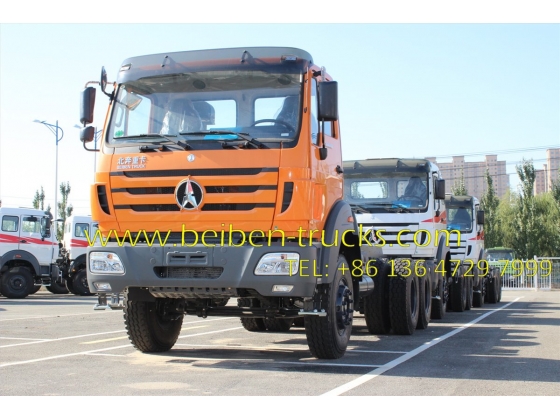

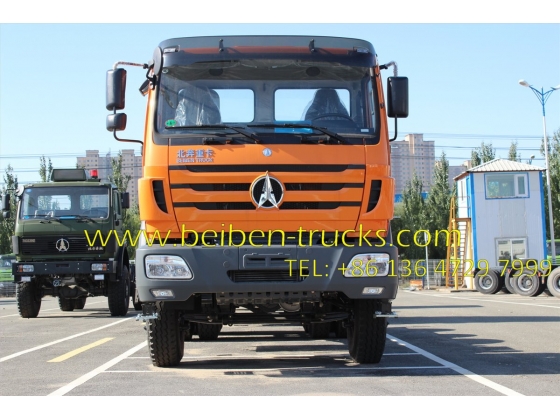

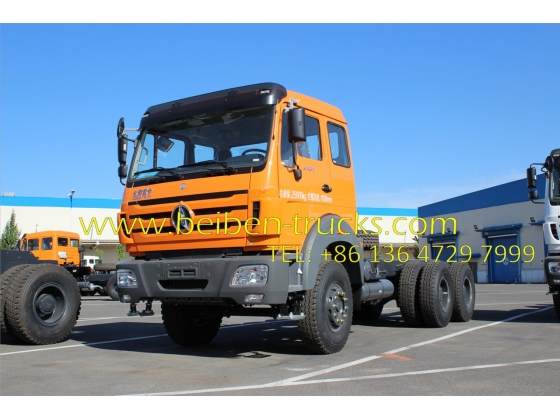

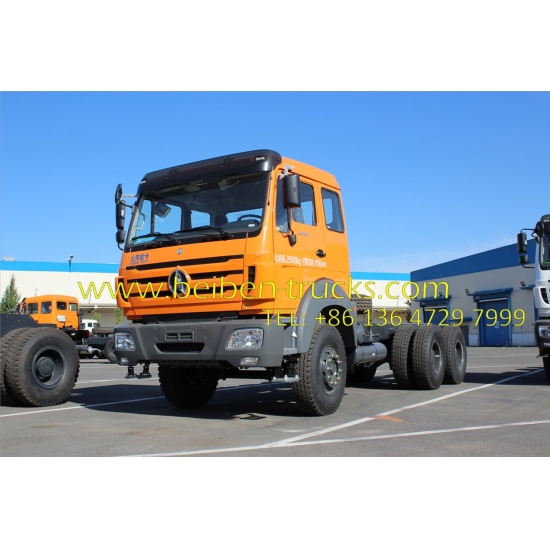

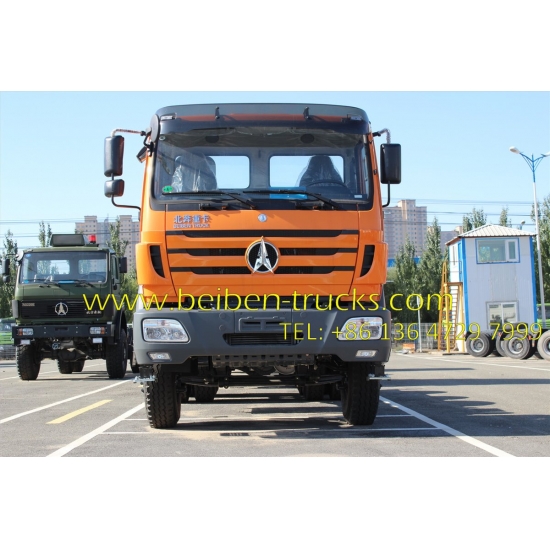

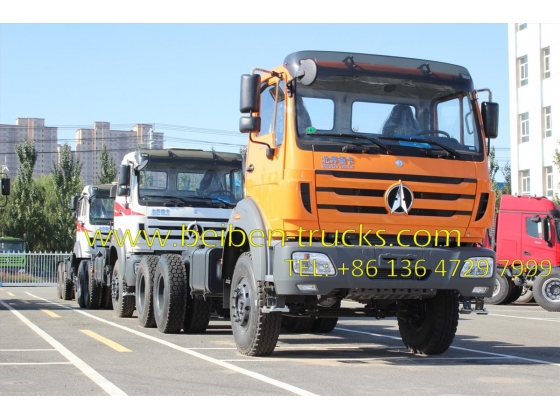

| Beiben 2536SZ tractor truck /6×4/3450+1450/Long Cab/LHD | ||||||
| Dimension | 7136*2495*3180mm | |||||
| Approaching angle/Departure angle | 26/64° | |||||
| Overhang(front/rear) | 1410/825mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 9200kg | |||||
| Max towing weight | 36900kg | |||||
|
Max loading on fifth wheel, Permitted(kg) |
15670kg |
|||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.360E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 60/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
|
Model |
JOST ∮90 single direction |
|||||
|
Height of fifth wheel(mm) (unload) |
1410 |
|||||
|
Radius of front gap (mm) |
2300 |
|||||
|
Radius of rear slew (mm) |
2600 |
|||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-R20 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |
NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
Beiben 40 T,50 T,60 T,70 T tractor truck
Beiben 6*4 patented truck chassis, benz 6*4 driving system, weichai 380 hp engine, benz 7.5 T front axle and 16 T rear axle with double reducer. stailess steel fire tanker material.
China beiben 3138 concrete mixer truck manufacturer, baotou beiben 380 hp engine transit mixer truck for africa customer, best quality beiben 3138 type 8*4 drive mixer truck .
This orange color beiben 2634 cargo truck is customized for nigeria customer, It is with weichai 340 hp diesel engine , wheelbase 4450+1450 mm, heavy duty 4-bolt suspension .This heavy duty beiben 10 wheeler truck chassis is specially used for heavy duty cargo transportation. we are premium china beiben 2638 truck exporter, exporting beiben 2638 truck, beiben 2642 truck for congo customer.
North benz 2638 tractor truck , applied germany benz technology , weichai 380 hp Euro 2 diesel engine, fast 9 shift manual transmission, famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre.
Congo beiben 12 wheeler truck chassis supplier, china beiben 3134 trucks, with strong beiben 12 wheeler driving system, benz technology 7 T front axle, benz technology 13 T double rear axle, with wheel reducer, 12.00R20 tyre. This beiben 12 wheeler truck chassis can be used for producing beiben fuel truck, beiben water tanker truck, beiben wrecker truck, beiben fire fighting trucks, and other beiben special purpose trucks.
This Beiben 3138 long chassis truck is for cote diovire customer, NG80B cabin with sleeper bed, mercedes benz technology 7.5 T double shoe pneumatic brake, mercedes benz techology 13 T pheumatic brake, differential lock between wheels. This beiben 12 wheeler truck chassis can be used for producing beiben fuel truck, beiben water tanker truck, beiben wrecker truck, beiben fire fighting trucks, and other beiben special purpose trucks.
This Beiben 3138 long chassis truck is for kenya customer, it is classis beiben 12 wheeler truck chassis, Right hand drive system, beiben NG80B cabin, mercedes benz technology 7 T front axle, mercedes benz technology 13 T double rear axle. This beiben 12 wheeler truck chassis can be used for producing beiben fuel truck, beiben water tanker truck, beiben wrecker truck, beiben fire fighting trucks, and other beiben special purpose trucks.
This beiben 2642 truck chassis is for congo RDC customer, it is beiben classic NG80B cabin, 5050+1450 mm wheelbase, fast 12JS200T transmission, with sleeper bed inside cabin. mercedes benz technology 7 T front axle, mercedes benz technology 13 T double rear axle. This beiben 2642 truck chassis can be produce beiben 2642 cargo truck, beiben 2642 van truck, beiben 2642 fuel tanker truck, beiben 2642 water tanker truck , and beiben 2642 dump trucks.
This beiben 2642 truck cargo truck chassis is for congo DRC customer, it is china beiben NG80B cabin, 5050+1450 mm wheelbase, fast 12JS200T transmission, with sleeper bed inside cabin. mercedes benz technology 7 T front axle, mercedes benz technology 13 T double rear axle. This beiben 2642 truck chassis can be produce beiben 2642 cargo truck, beiben 2642 van truck, beiben 2642 fuel tanker truck, beiben 2642 water tanker truck , and beiben 2642 dump trucks.
