Beiben 2638 industrial vacuum truck

Product Description

Beiben 2638 vacuum jetter truck, also known as Beiben truck mounted sewer jetter or Beiben industrial vacuum truck, is a special production equipment that combines the principles of negative pressure pneumatic conveying and positive pressure pneumatic conveying. It uses air as the conveying carrier of the material, and automatically completes the suction (loading), closed transportation and automatic discharge (unloading) of the material in a closed space.

Beiben 2638 vacuum jetter truck combines the advantages of negative pressure pneumatic conveying and positive pressure pneumatic conveying, and realizes the automatic collection and transfer of materials in a closed system through the action of air flow. The negative pressure system is used to suck the material from the source into the on-board tank, while the positive pressure system is used to discharge the material from the tank to the target location. During the whole process, the material is separated from the air to ensure that the dust does not leak out and meet the environmental protection requirements.

Beiben 2638 industrial vacuum truck is widely used in metallurgy, chemical industry, energy, building materials, coal, mining, terminal transportation and other industries, especially suitable for the in-plant transportation of dust materials such as ironmaking, steelmaking, sintering, coking, smelting desiliconization, desulfurization, dephosphorization agent, blast furnace, converter dust removal ash, etc. It can efficiently and safely complete the collection, transportation and transportation of various dust and powder materials.

Product Specifications

Product Composition

Beiben 2638 vacuum jetter truck is mainly composed of the following parts:

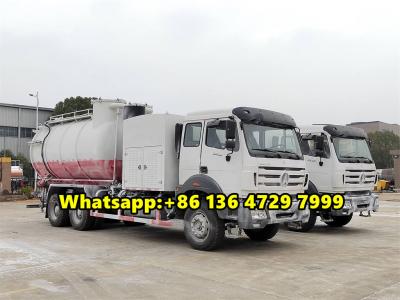

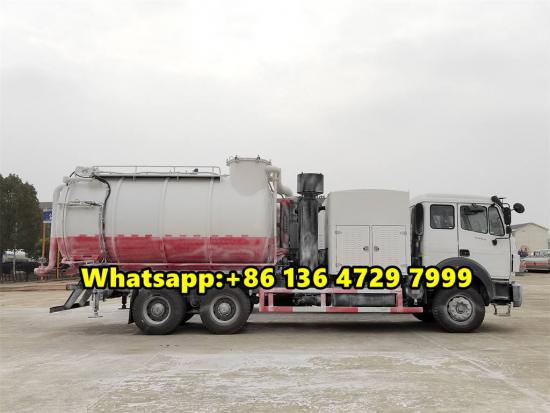

1. Truck chassis: Based on Beiben 2638 truck chassis, it ensures the vehicle's carrying capacity and driving stability.

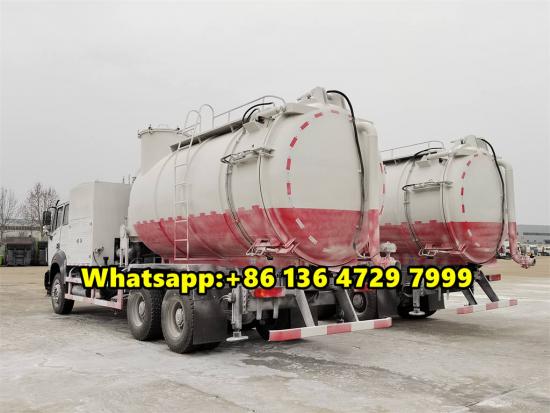

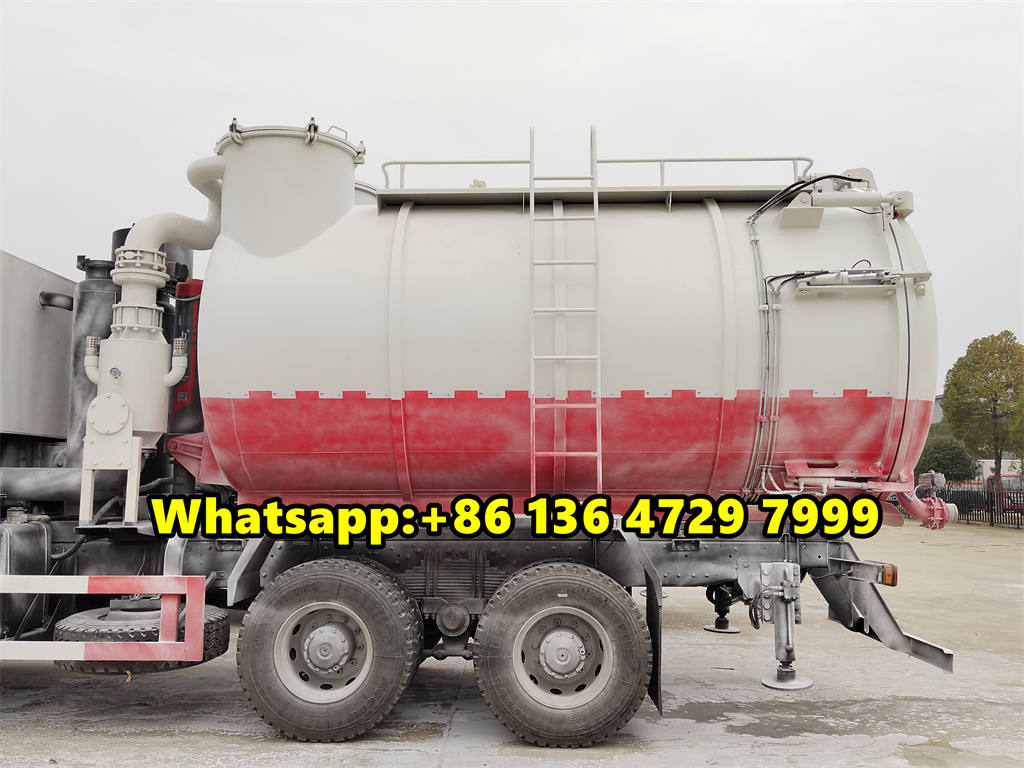

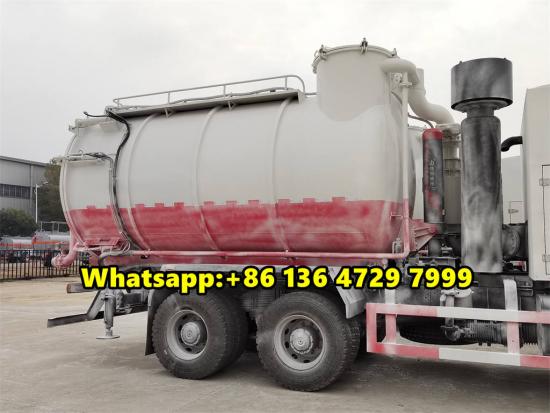

2. Vacuum tank: The tank is horizontal cylindrical, made of high-quality cold-rolled steel plate, and is designed and manufactured in strict accordance with pressure vessel standards. The tank volume can be customized according to demand.

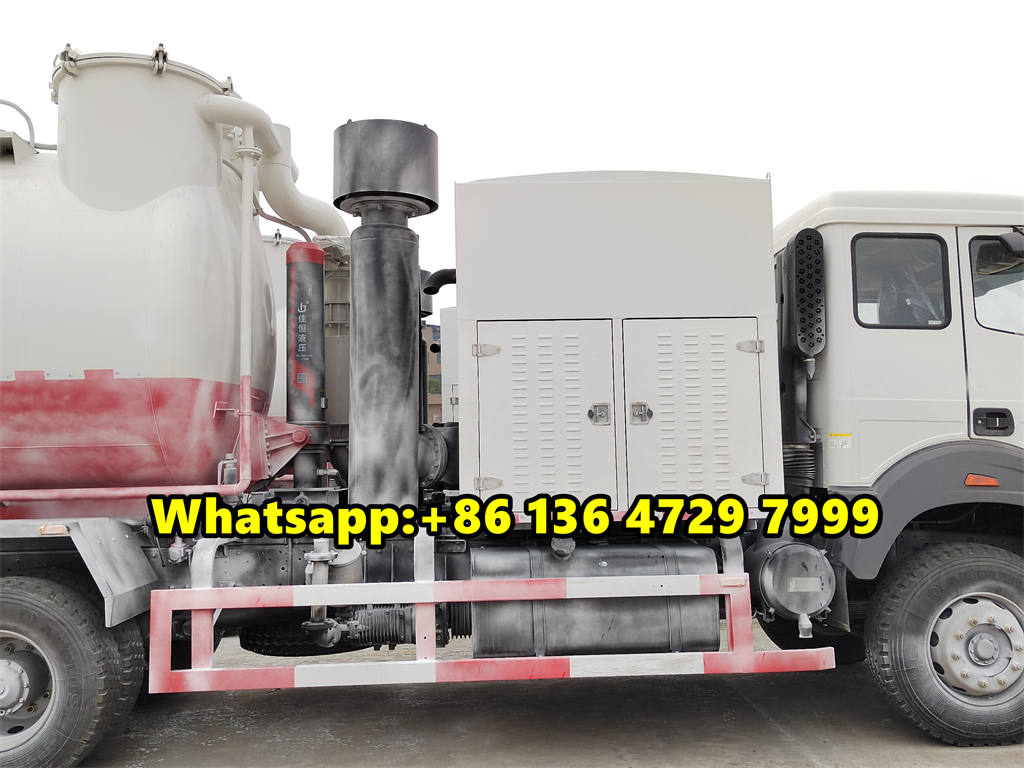

3. Negative pressure suction system: It consists of a vacuum pump, pipes and valves. The vacuum pump generates negative pressure to suck the material into the tank. The system uses wear-resistant materials to make key components to ensure long life and efficient operation.

4. Positive pressure discharge system: It consists of air compressors, pipes, valves, etc. The air compressor generates positive pressure to discharge the material from the tank to the target location. The system also uses wear-resistant materials and quick connectors to ensure fast and reliable unloading.

5. Filtration separation and recovery system: It is mainly composed of gravity sedimentation device, cyclone separation device and bag device. It is used to separate materials and air to ensure that the quality of filtered air meets environmental protection standards.

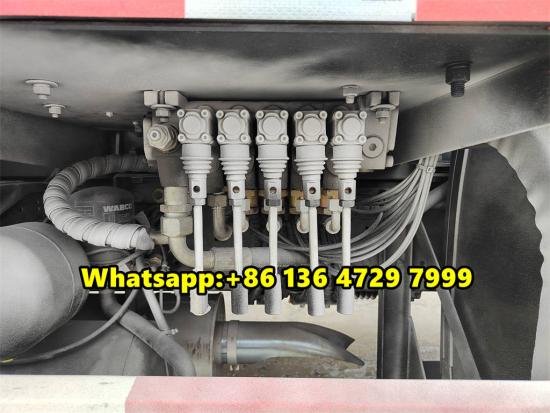

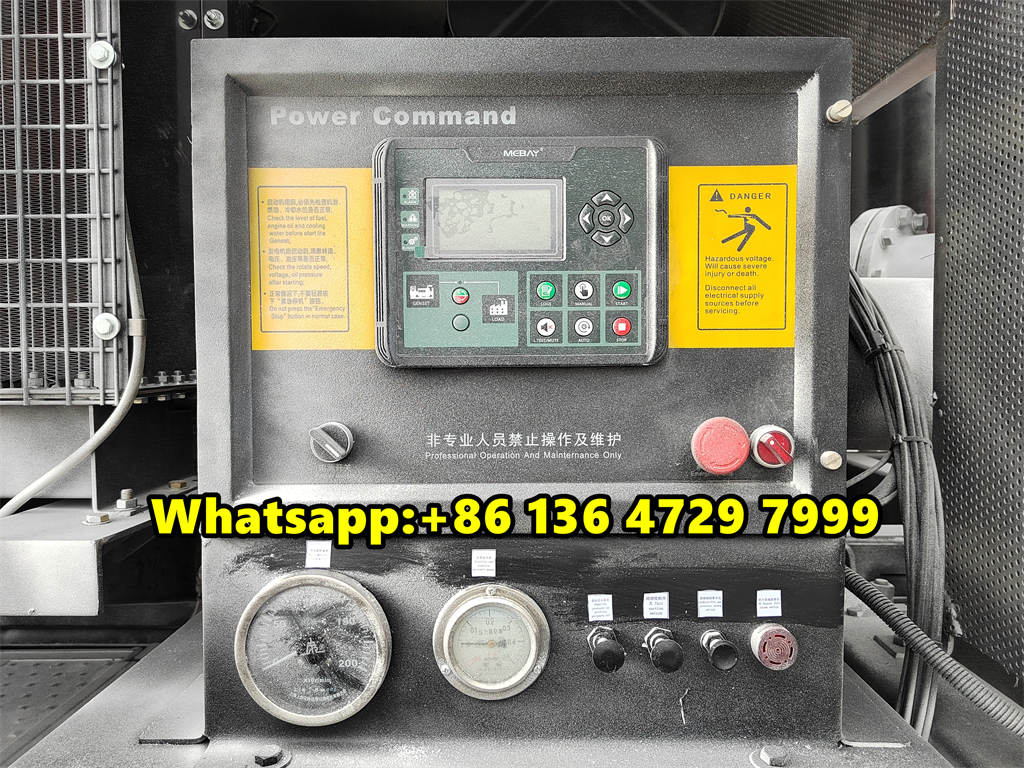

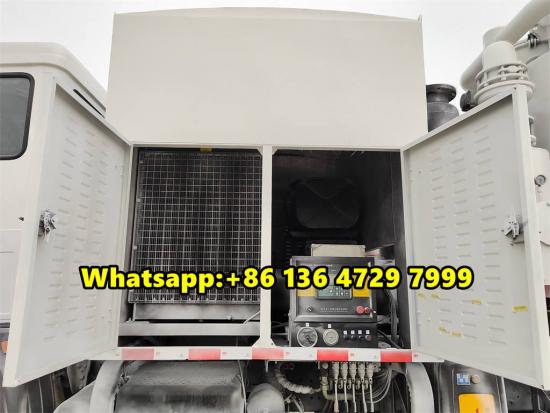

6. Other auxiliary systems: including hydraulic system, central control system, material level display and alarm system, etc., which are used to control the conversion operation of various tasks of the vehicle, prompt and warn about the material loading status, etc.

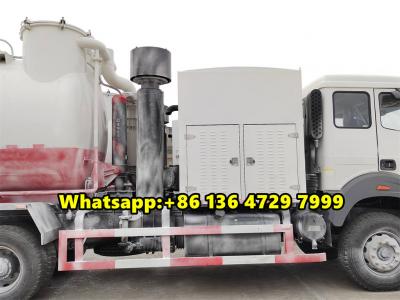

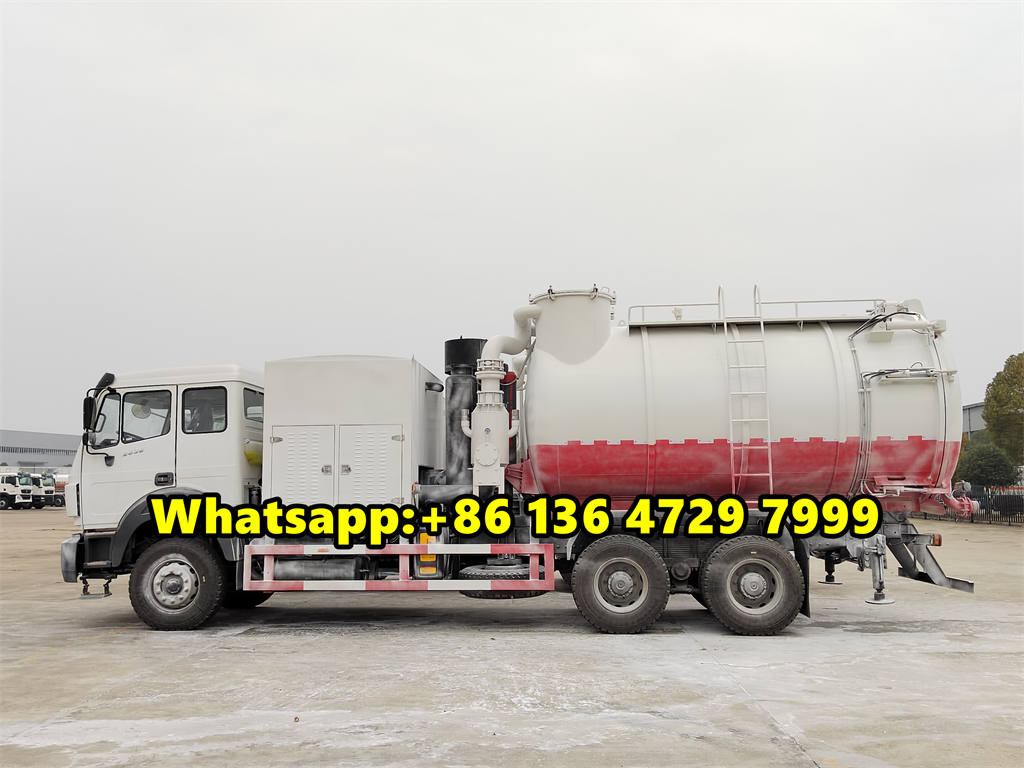

Product Details
