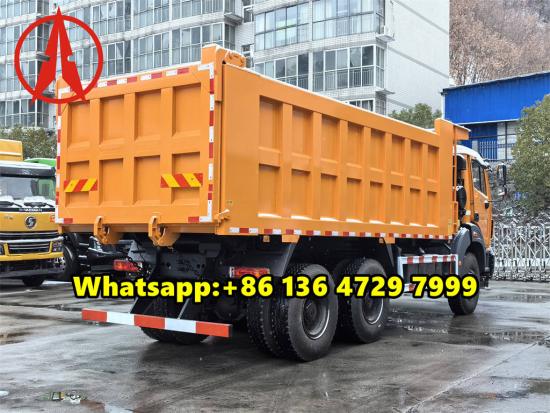

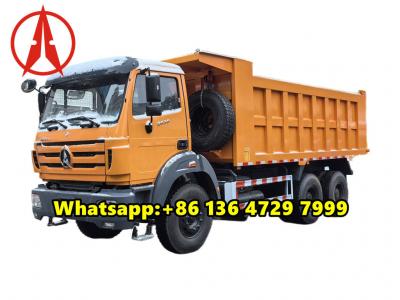

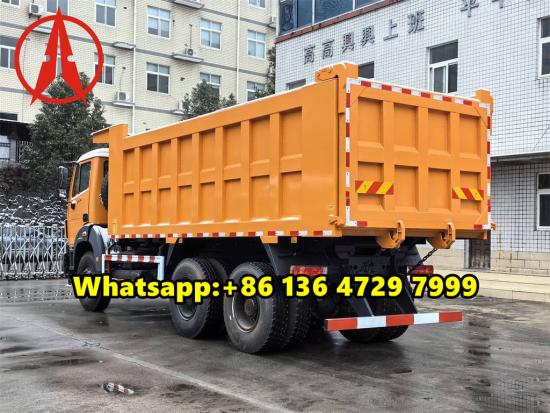

The Beiben 2638 dump truck is a robust model specifically designed for heavy-duty transportation tasks. It adopts a 6x4 drive configuration and features a chassis model of ND1252B38, with overall dimensions of 8600x2500x3450mm and a wheelbase of 3800+1450mm. This vehicle has a rated loading capacity of 30 tons and a maximum speed of 90km/h. It is powered by the WP10.380E32 engine, a 6-cylinder diesel engine with a displacement of 9.726L and an output power of 380 horsepower. The dump box measures 5800x2300x1500mm and can be customized according to customer requirements.
Production time:
30 daysPayment terms:
TTWorking Capcity:
30 tonsEngine power:
380 HPDrive system:
6×4Product Descriptions
The Beiben 2638 dump truck is a powerful model specifically designed for heavy-duty transportation tasks, distinguished by its exceptional load capacity and efficient performance in the market. The Beiben 2638 dump truck adopts a 6x4 drive configuration and features a chassis model of ND1252B38. Its overall dimensions are 8600x2500x3450mm, with a wheelbase of 3800+1450mm. This size design ensures stability and maneuverability during vehicle operation. This dump truck has a rated loading capacity of 30 tons and a maximum speed of 90km/h. Whether for short-distance transportation or long-distance journeys, the Beiben dump truck can meet various transportation demands with its outstanding speed and load capacity.
The Beiben 2638 tipper truck is equipped with the WP10.380E32 engine, which has 6 cylinders and uses diesel as fuel, with a displacement of 9.726L. It meets Euro III emission standards and has an output power of 380 horsepower, providing robust power support for the vehicle. This model is equipped with a 9JS150A transmission, featuring manual transmission. There are 9 forward gears and 1 reverse gear, allowing the driver to flexibly select gears based on different road conditions, enhancing driving comfort and efficiency.

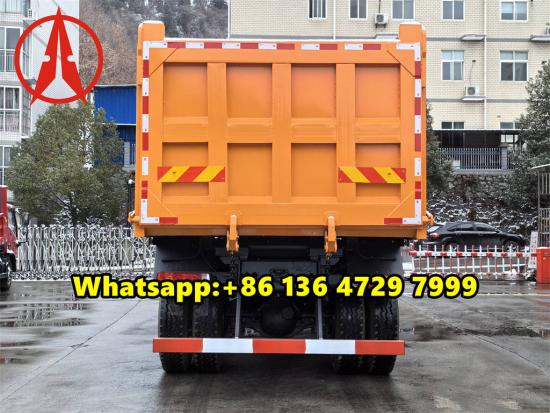

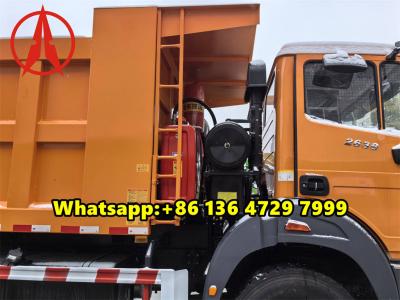

The cargo box of the Beiben 2638 tipper lorry measures 5800x2300x1500mm and adopts a front-lifting hydraulic system. The floor thickness of the cargo box is 8mm, and the side thickness is 6mm. This design ensures the durability of the cargo box while reducing the vehicle's weight. It is worth mentioning that the cargo box can be customized according to the actual needs of customers to meet different transportation requirements.
Product Specifications
|
Driving type |
6x4 |
Chassis Model |
ND1252B38 |
|
Overall dimension |
8600x2500x3450mm |
Wheel base |
3800+1450mm |
|
Loading weight |
30 ton |
Max speed |
90km/h |
|
Engine |
|||
|
Engine No |
WP10.380E32 |
Cylinder No |
6 |
|
Fuel type |
Diesel |
Displacement |
9.726L |
|
Emission standard |
Euro 3 |
Horse power |
380 hp |
|
Gearbox |
|||
|
Gearbox model |
9JS150A |
Transmission type |
Manual |
|
Forward |
9 speed |
Reverse |
1 speed |
|
Dump truck chassis and tire |
|||
|
Front axle |
Beiben |
Front axle loading |
7500kg |
|
Rear axle |
Beiben Double-reduction axle |
Rear axle loading |
13000kg×2 |
|
Tires |
12.00R20 |
Tire quantity |
11, with spare tire |
|
Dump box |
|||
|
Box dimension |
5800x2300x1500mm |
Hydraulic system |
Front lift |
|
Floor thickness |
8mm |
Side thickness |
6mm |
|
Note: Box of dump truck can be customized as customer's request. |
|||
Product Details
North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
10 wheeler North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
As the biggest manufacturer of NG80B 380 hp dump trucks ,we continue designing the super quality for beiben NG80B 10 wheeler dump truck. Beiben NG80B 380 hp dump trucks are with china famous weichai diesel engine, 6*4 driving sytem and fast 12 shift transmission.
North Benz 2538 K dump truck for sale , weichai 380 Hp diesel engine fast 9 shift transmission ,12,00R20 radial tires , HYVA 157 lifting system
Congo beiben 2534 camions benne , 6*4 driving system, weichai WP10.340E diesel engine , fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre, beiben dump truck cargo box 20 CBM capacity.
China beiben 380 hp dump truck manufacturer, 6*4 driving system, weichai brand 380 diesel engine, fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre. 20 CBM dump cargo box capacity.
beiben 50 T heavy duty dump truck,The unique structure of the tray is part of the essence of beiben dump truck, the structure to replace the traditional side frame dumper, cancelled the container underframe,U shaped and U shaped container tightly combined tray,enlarge the contact area
Beiben 6*4 drive dump truck chassis, cargo box 19 CBM capacity, payload around 60T rock stone or mine material , With 10 years experience in beiben dump trucks producing experience, Germany benz technology axle, and Q550 steel cargo box.
Beiben 2638 6×4 dump truck, equipped with WEICHAI 280kw/380hp engine, FAST 9JS180 gearbox, 9 forward gears and 1 reverse gear, has strong power and flexible speed selection. The vehicle adopts a short cab design, with a maximum length of 9880mm and a cargo box size of 5600mm×2500mm×1500mm, which can meet various engineering transportation needs. It has excellent safety performance and is equipped with a dual-circuit compressed air brake system, making it a powerful assistant in engineering projects.
