Beiben 8x4 Fuel truck

Home Beiben Fuel Truck Beiben 8x4 Fuel truck

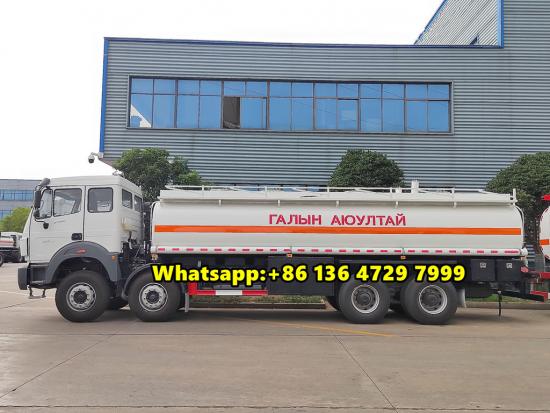

Beiben 3138 30cbm oil tanker truck

Kazakhstan Beiben 3138 mobile fuel bowser
Kazakhstan Beiben 3138 mobile fuel bowser
Kazakhstan Beiben 3138 mobile fuel bowser
Kazakhstan Beiben 3138 mobile fuel bowser
Kazakhstan Beiben 3138 mobile fuel bowser
Kazakhstan Beiben 3138 mobile fuel bowser
Kazakhstan Beiben 3138 mobile fuel bowser
Kazakhstan Beiben 3138 mobile fuel bowser
Kazakhstan Beiben 3138 mobile fuel bowser

Beiben 3138 30cbm oil tanker truck

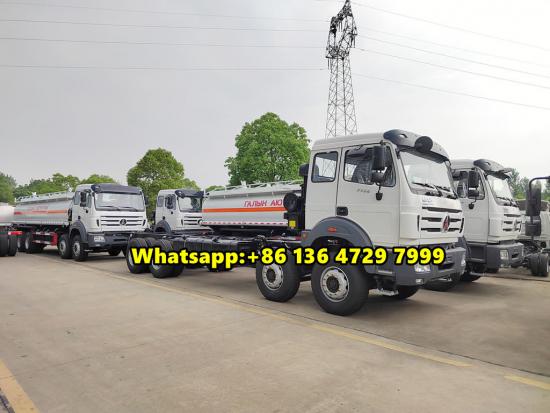

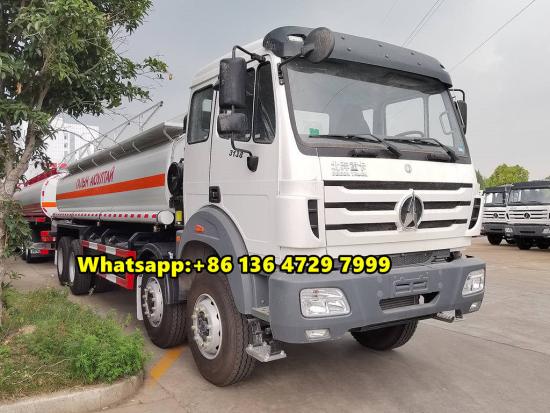

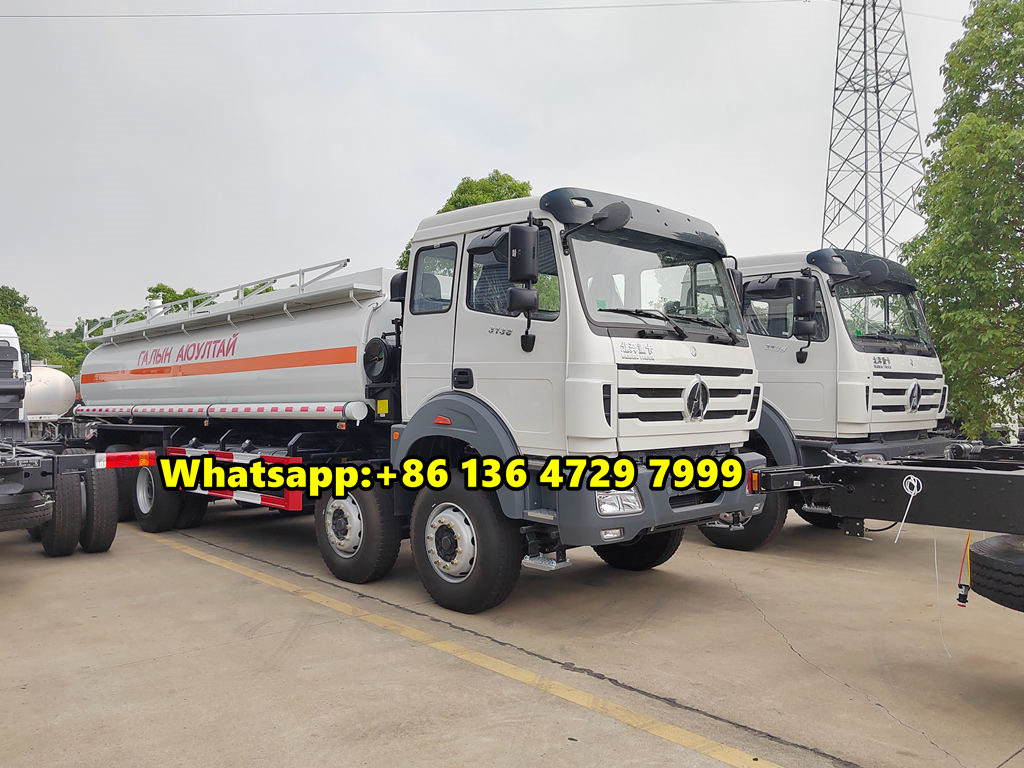

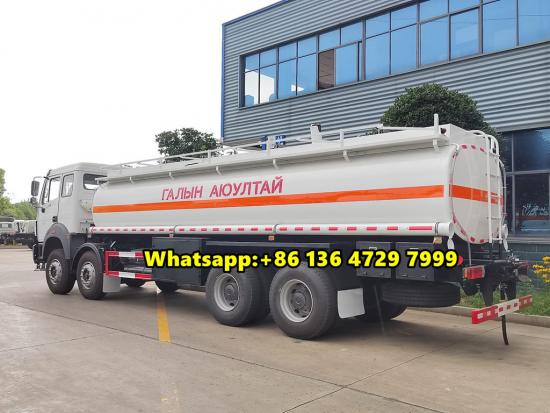

This beiben 30 cbm fuel tanker truck is for Kazakhstan customer, WP10.380E32 diesel engine, fast 9 shift transmission, 12.00R20 tyre.   the beiben 3138  truck chassis is with NG80B Long cabin with single sleeper. Beiben 3138 oil tanker truck has a well-designed tank compartment made of high-quality materials to prevent leakage and ensure safe transportation of oil. It is equipped with advanced safety measures to prevent accidents and ensure protection of the environment.

  • Order(MOQ):

    1
  • Goods Stock:

    1
  • Production time:

    40 days
  • Payment terms:

    40% T/T deposit, 60% T/T before shipping
  • Working Capcity:

    30,000 liters
  • Engine power:

    380 Hp, WP10.380
  • Drive system:

    8x4, 8x8
New Products

Beiben oil tanker truck (also called fuel tanker truck, oil transport truck,oil delivery truck, mobile Fuel Truck, oil loading truck, oil refuelling truck, oil transport truck, fuel bowser, diesel dispensing truck,) is mainly used o storage and transport oil, diesel, gasoline, kerosene, stainless steel fuel bowser etc.

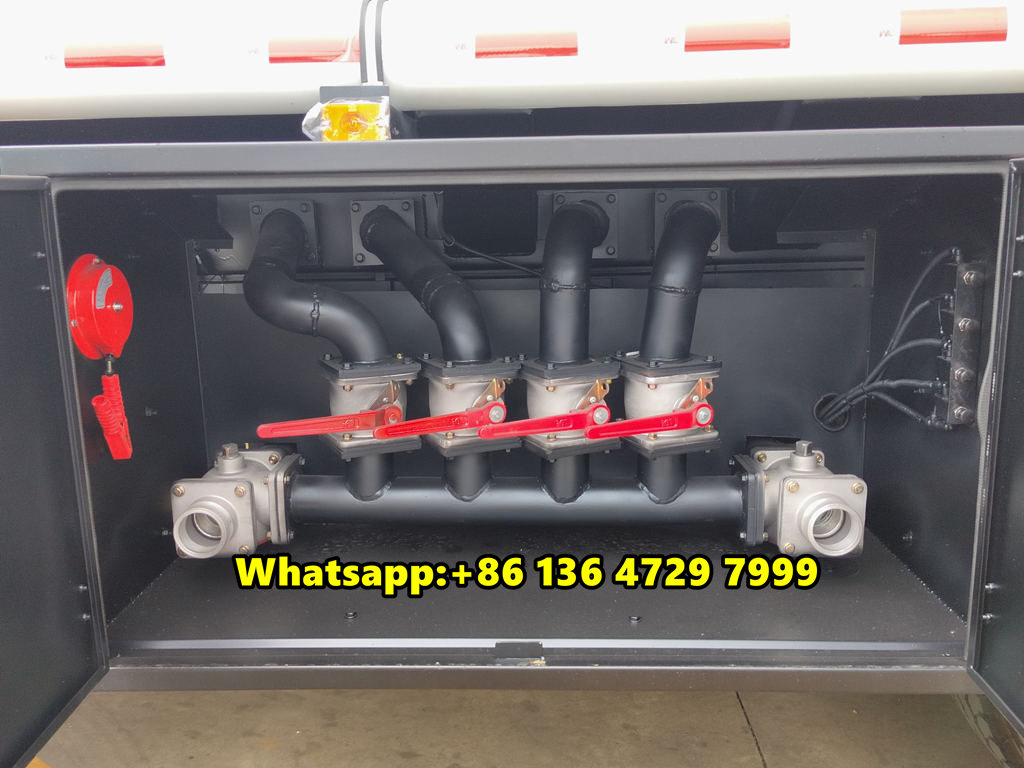

Beiben 3138 30cbm fuel truck is a vehicle specially used for transporting liquid fuels such as oil, diesel and gasoline. Widely used in transportation work in the oil industry, it uses large-capacity tanks to store and transport liquid substances such as oil, fuel, and chemical raw materials. The tank body can usually be divided into multiple tank chambers to transport different liquid products at the same time. Each tank chamber has independent import and export and valve control. Its safe use and fire and explosion prevention are crucial.





1. The Beiben 3138 8x4 30 cbm refueling truck is made of high-strength materials and has strong carrying capacity and durability. The vehicle structure is strong and stable, which can well resist various external influences, ensuring the safety and stability of the vehicle in long-distance transportation and harsh environments. At the same time, this refueling truck is also equipped with advanced safety systems and equipment to ensure the safety of drivers and vehicles.



2. The Beiben 3138 8x4 30 cbm refueling truck has excellent performance. Equipped with a high-performance engine and advanced transmission system, it can provide strong power output and excellent acceleration performance, and can easily cope with various roads and working conditions. The vehicle is also equipped with advanced braking and suspension systems to ensure the vehicle's controllability and driving stability, providing drivers with a more comfortable and safe driving experience.



Superstructure

Tank Capacity

30,000 Liters

Tank shape

Ellipse

Material

Carbon steel, 5mm

Fuel pump

Fuel pump equipped for overhead delivery

Loading type

Self loading

Tank thickness

5 mm

Cover thickness

5 mm

Hose

High quality, wire strengthened hose,

with cooper wire, anti-static

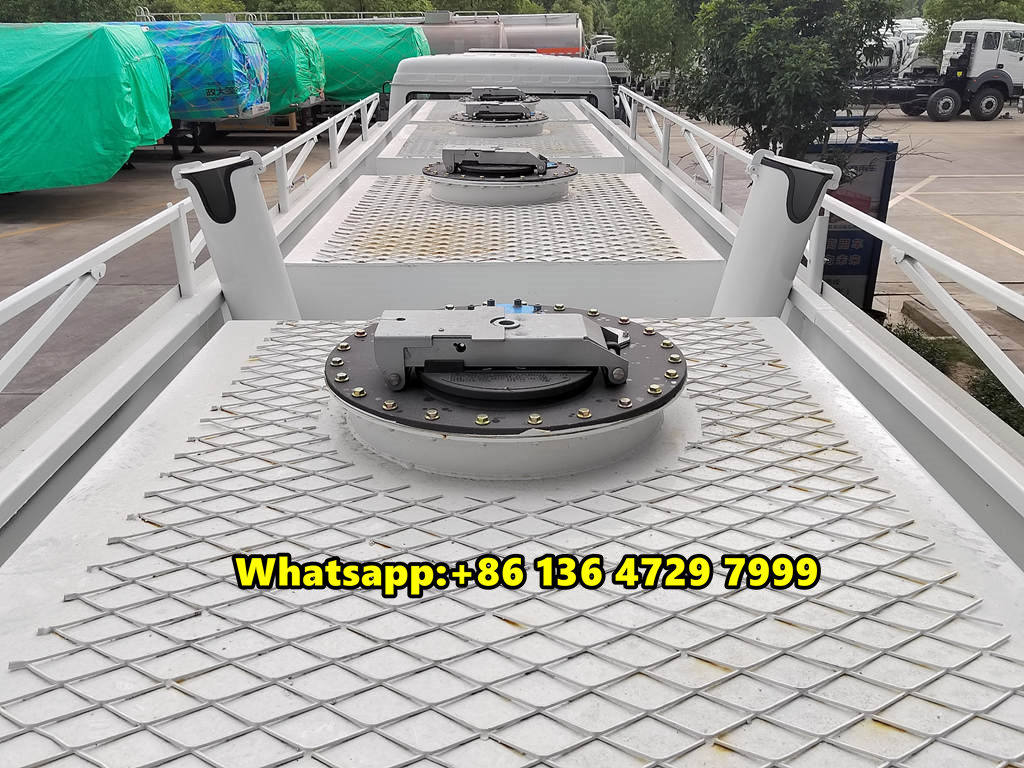

Tank cover

European standard filling

Control

Manual (Optional air operated)

Control panel

English or Your language

All standard accessories: Warning lights, music alarm, basic tool kit, English manual etc.

Optional

Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).

It can be divided into many compartments.

Imported American pump as optional.

Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc.

Heat preservation & heating system could be added.

Bottom loading system can be equipped.



Beiben 3138 30cbm mobile fuel bowser Features:

1.Tank material : 4-6mm thick carbon steel with high quality.

carbon steel and stainless steel or aluminum alloy can be choose.

2.Tank shape: square-round, oval, round;

3. Pump : can be choose self-priming pump, gear pump or double pump; the pump can help the oil pump in and out or self-flow.

4.Special design: can be designed to an independent sub-warehouse to transport different oil with the same time.

5.15 meters refueling reel (can automatically return to position),

the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity,

delivery safety and other characteristics in the transportation.





Beiben 3138 Chassis detailed configuration / 8×4

Dimension

11080*2500*3980mm

Approaching angle/Departure angle

26/20°

Overhang(front/rear)

1410/2640mm

Wheel base

1500+3550+1450

Max speed

80km/h

Curb weight

13650kg

Loading capacity

11220kg

Slope climbing capability

Max.40%

Engine

Model

WP10.380E32water-cooledfour strokes6 cylinders in lineturbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

250/2200 (kw/rpm)

Max.torque

1350/1200-1600Nm/rpm

Emission stantard

EuroⅢ

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional discHydraulic boosting

Gearbox

ZF160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer

Gear ratio of gear box

12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

TAS85,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long cabin with single sleeper;

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

High back with arm seat for driver, high back seat for co-driver; With inner A/C
