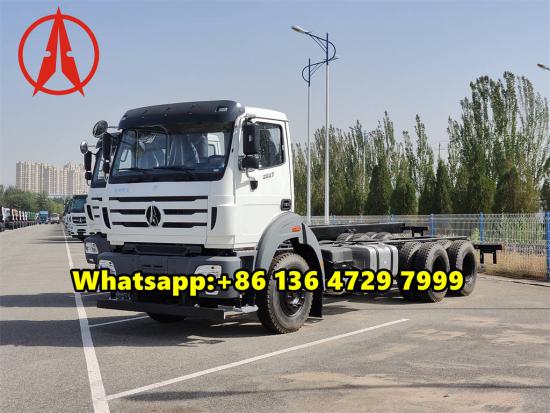

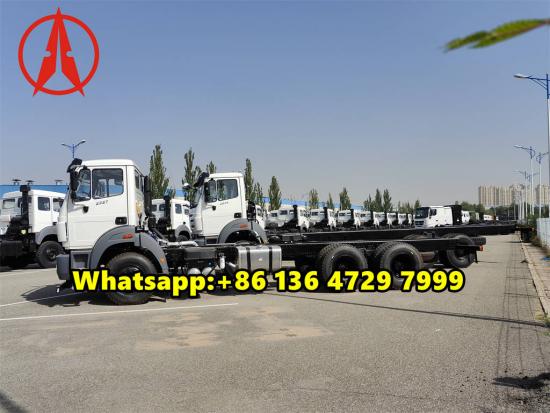

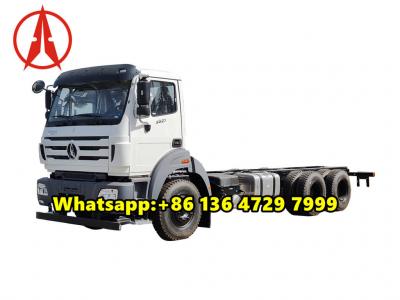

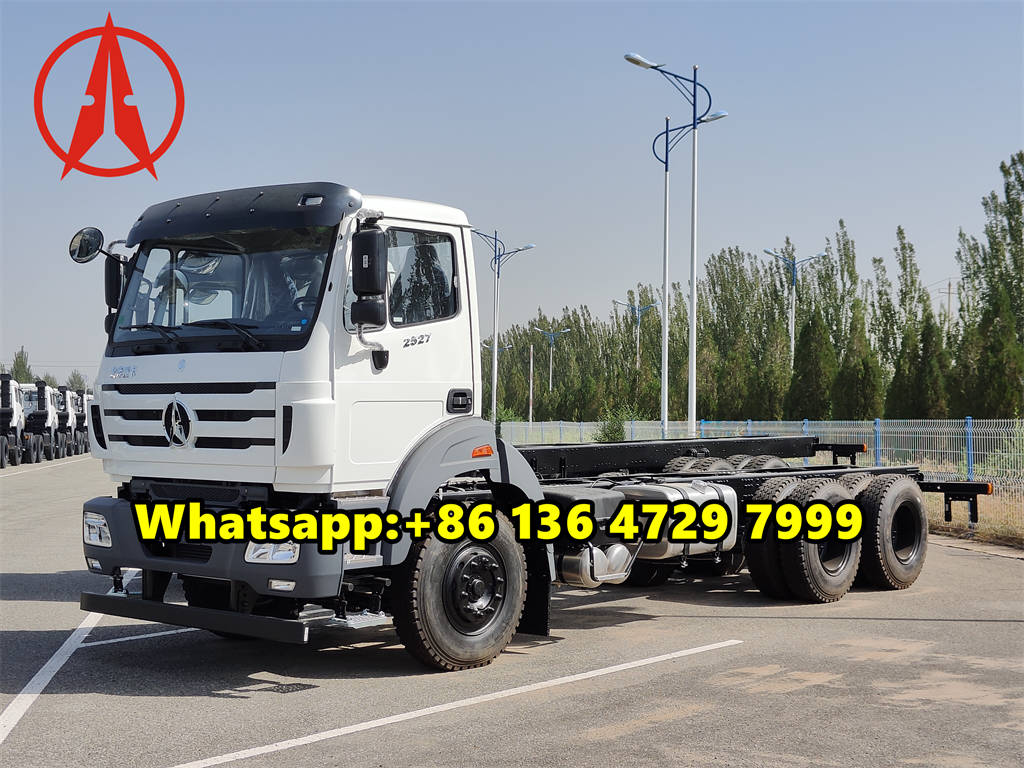

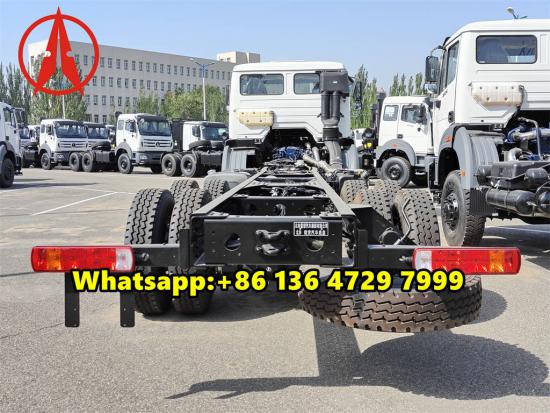

Beiben 6×4 cargo truck chassis

Product Description

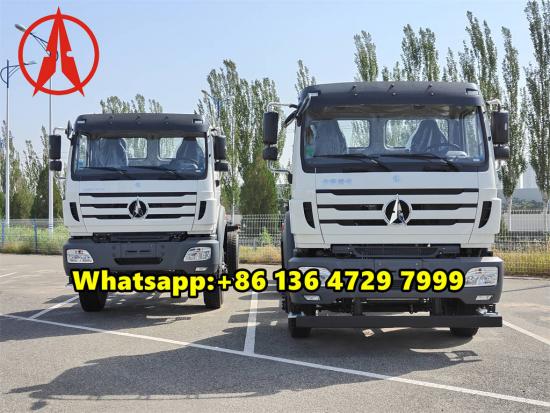

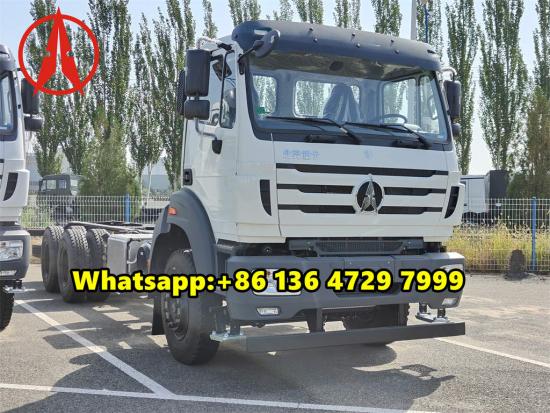

The Beiben 6×4 truck chassis is a high-performance chassis specifically designed for heavy-duty cargo transportation. With its exceptional drive system, comfortable cab configuration, and outstanding load capacity, it occupies an important position in the logistics and transportation industry. The chassis features a 6x4 drive configuration, with front four-wheel drive and rear dual wheels, and is available in both left-hand drive and right-hand drive options to accommodate driving habits in different countries and regions. In terms of the cab, the Beiben 6×4 chassis is equipped with the NG80 cab, offering a choice between a short or long cabin to adapt to different transportation needs and driving environments. The cab is equipped with air conditioning to ensure driver comfort during long-distance driving. To maximize space utilization, the chassis is designed without a sleeper berth.

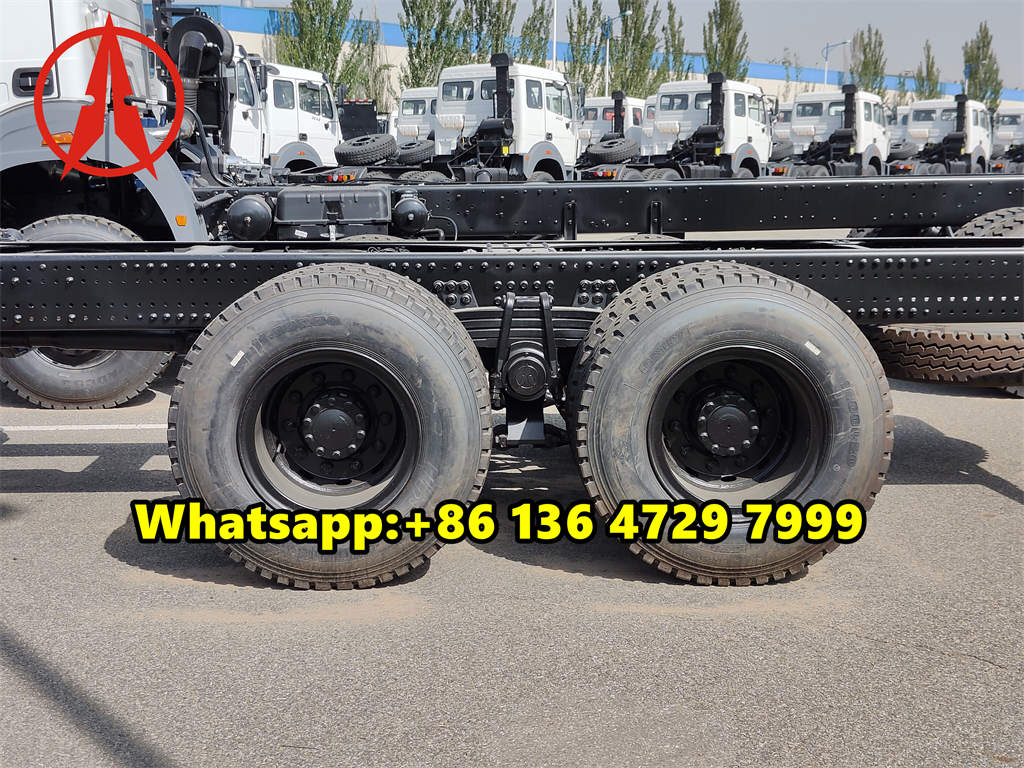

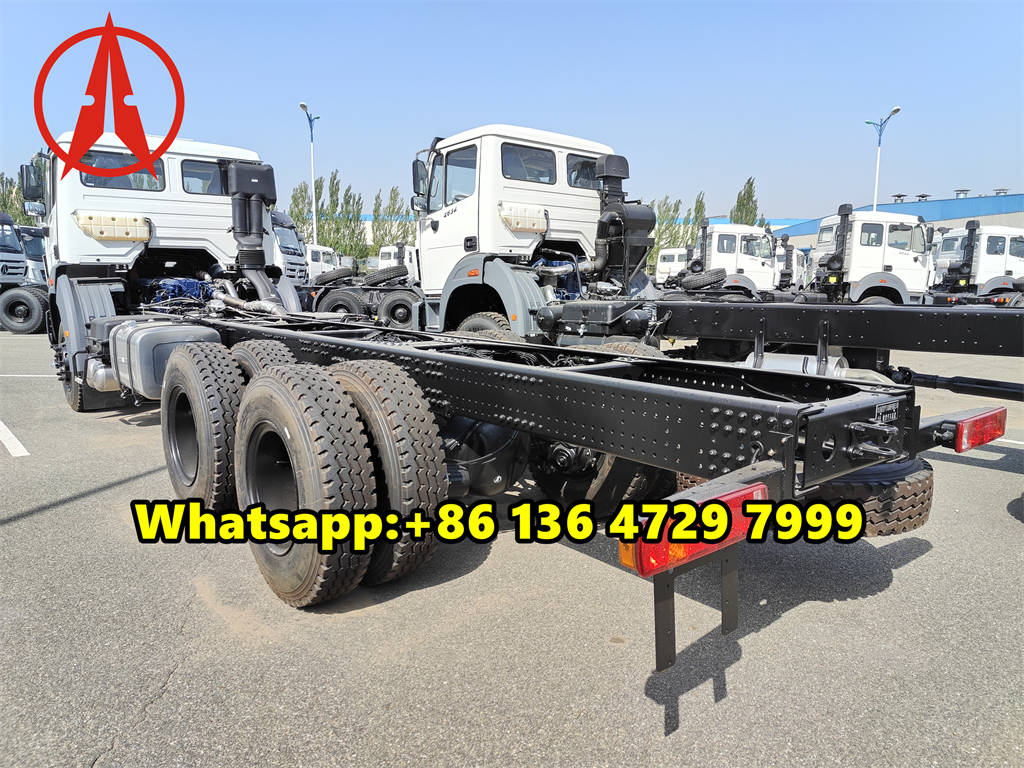

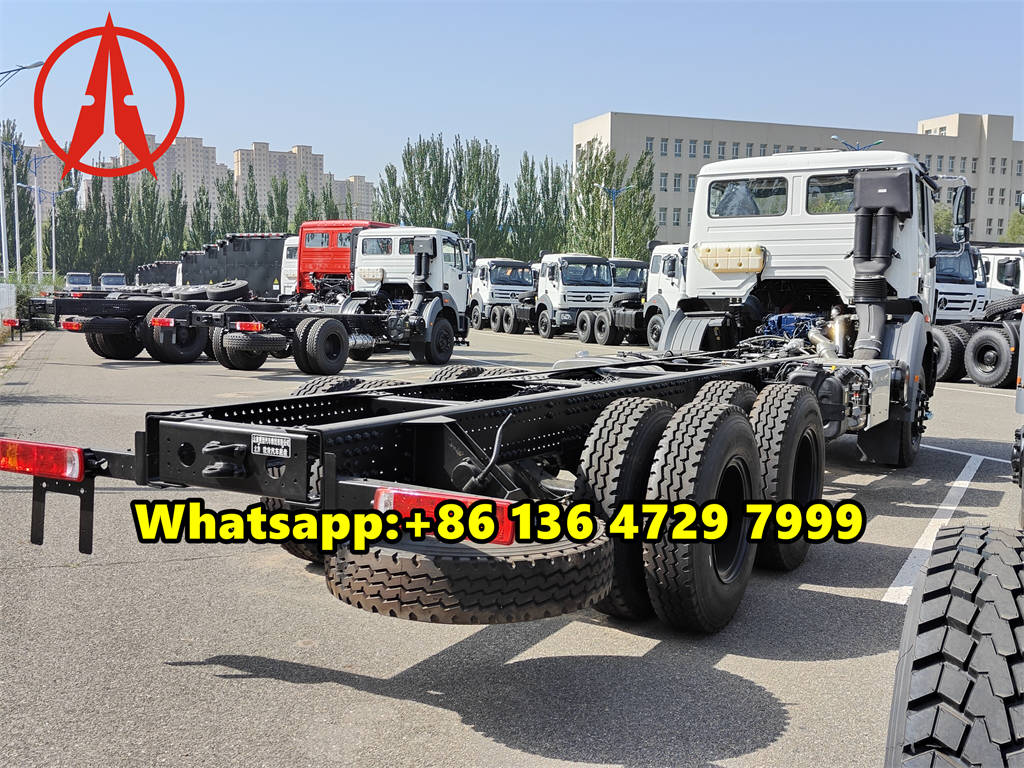

The kerb mass of the Beiben 6×4 cargo truck chassis is 10,800kg, and the gross vehicle weight (GVW) is 25,000kg, demonstrating its strong load-carrying potential. In terms of dimensions, the chassis has a maximum length of 9,880mm, a maximum width of 2,500mm, and a maximum height of 3,630mm, providing sufficient space to accommodate various large cargo. The front and rear overhang lengths are 1,410mm and 1,870mm, respectively, and the wheelbase is 4,750mm + 1,450mm, ensuring stability during vehicle operation.

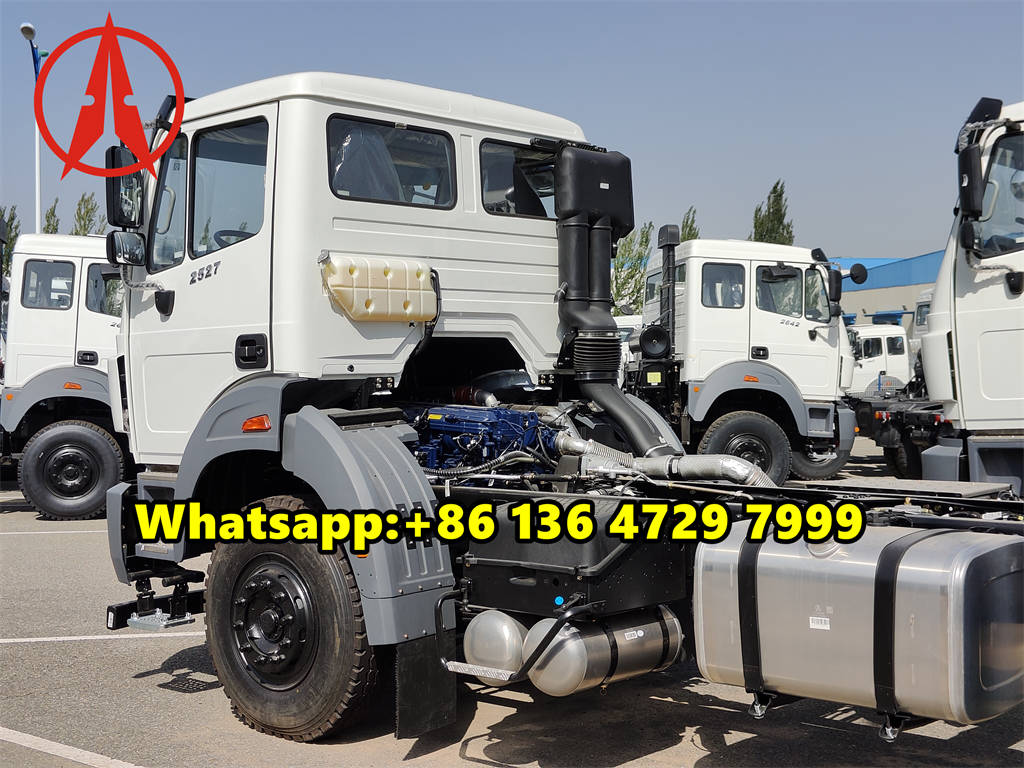

The Beiben 10 wheeler chassis is powered by a WEICHAI brand WP10.340E32 engine, delivering a power of 340 horsepower (HP) and a maximum torque of 1,250 N.m within the range of 1,400 to 1,600 rpm. With a displacement of 9.726 liters, the engine meets Euro III emission standards. In terms of the transmission system, the chassis adopts a FAST brand 9JS180 manual transmission, featuring 9 forward speeds and 1 reverse speed, providing smooth shifting and convenient operation.

Product Specifications

Product Details
