Order(MOQ):
1Production time:
50 daysPayment terms:

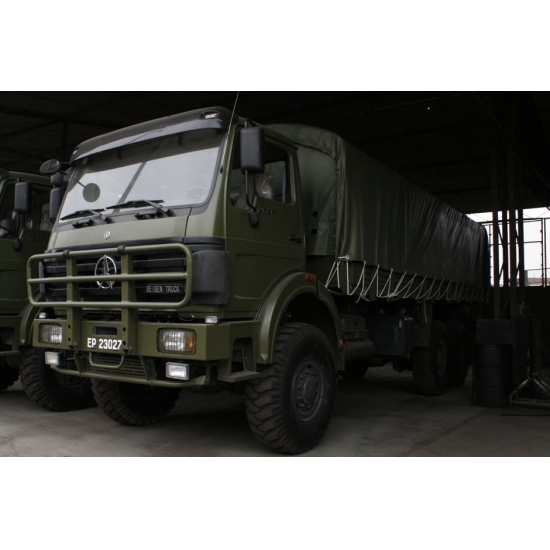

T/T, west unionBeiben 6*6 truck Lorry truck
The series products
of our Beiben military all
wheel drive trucks are ideal transport with outstanding performance and
high quality, they are widely used in industries and sectors, such as national
defense, aviation, postal service, railways, highways, harbors, petroleum,
chemicals, water and electricity, forests, fire fighting, banks and peace
keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.
Beiben truck features and advantages:
1: Driving room: the steel structure, high safety,lower wind resistance coefficient
2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient

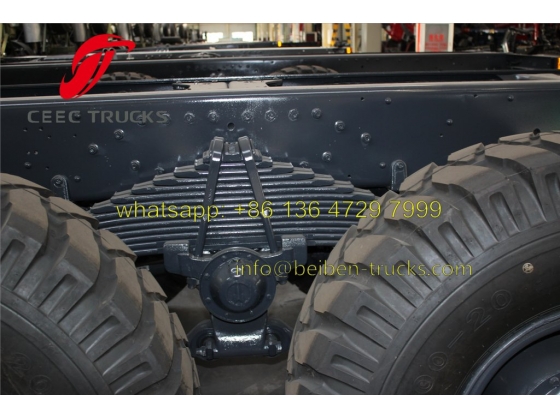

3: The suspension system: Mercedes suspension, high intensity
4: Benz axle: double deceleration bridge, high efficiency, carrying large
5: Transmission system: high efficiency, bigger torque, climbing superior performance
6: Steering system:high safe and reliable, and flexible
7:Braking system, high security, brake with high efficiency
8: Electric system: stronger load ability, high reliability and easy maintenance

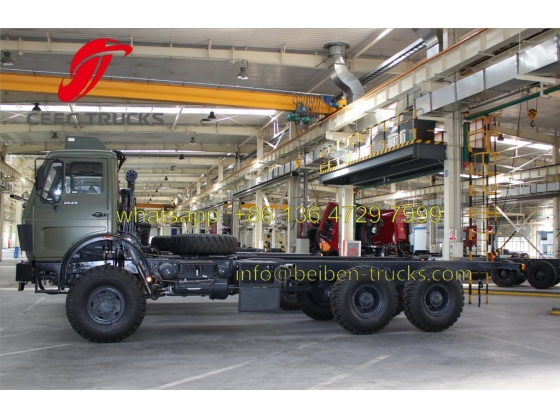

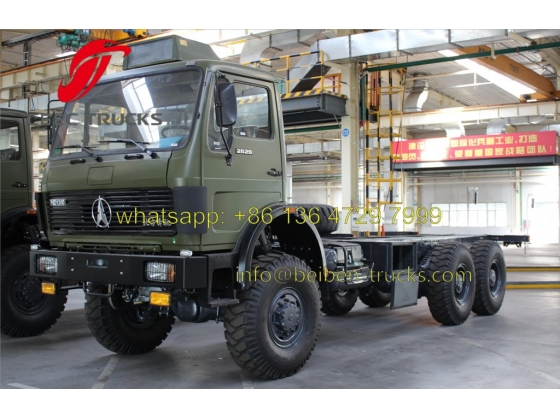

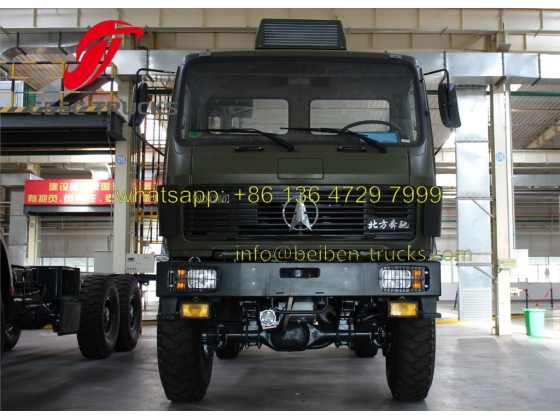

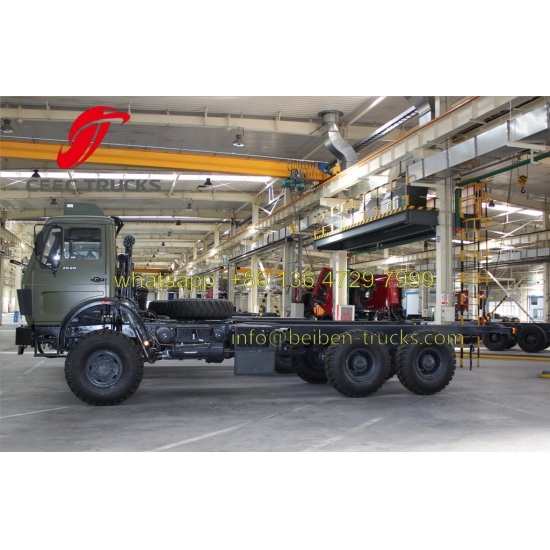

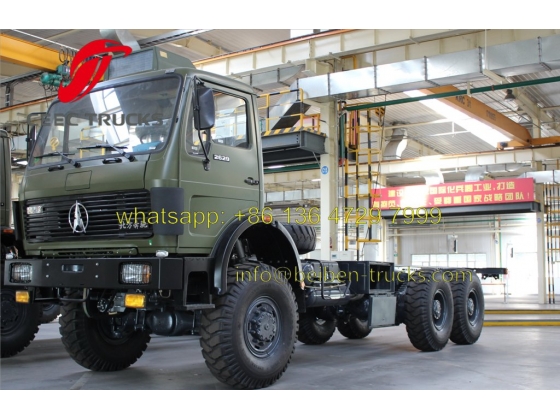

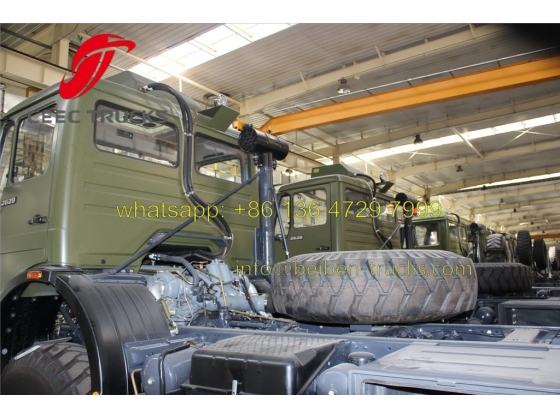

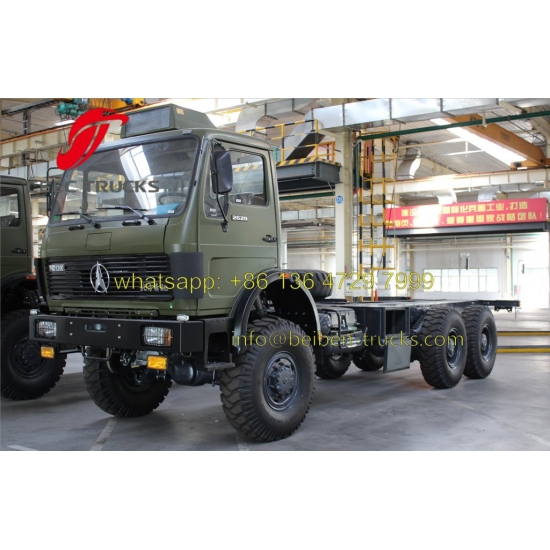

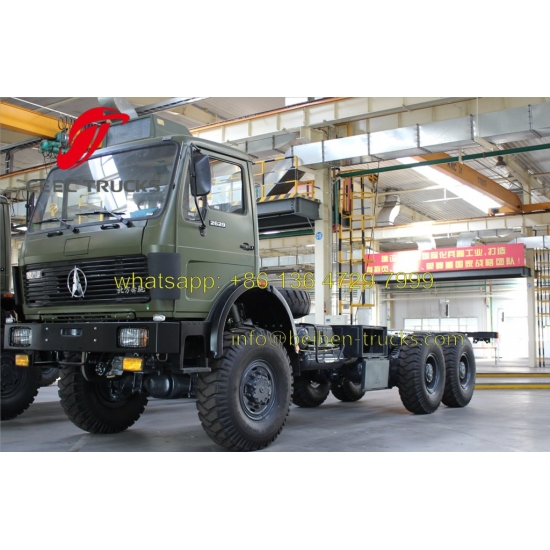

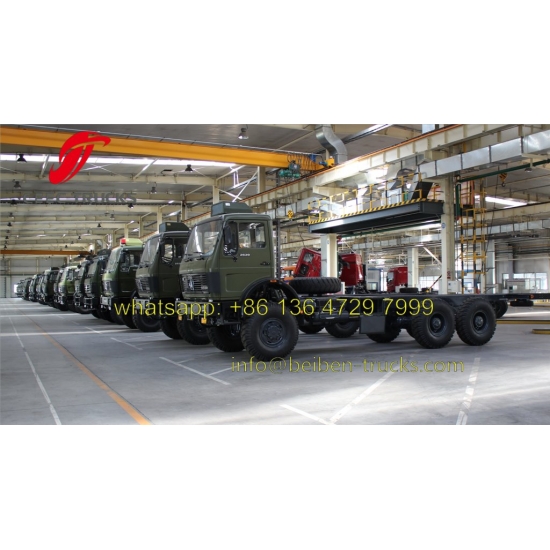

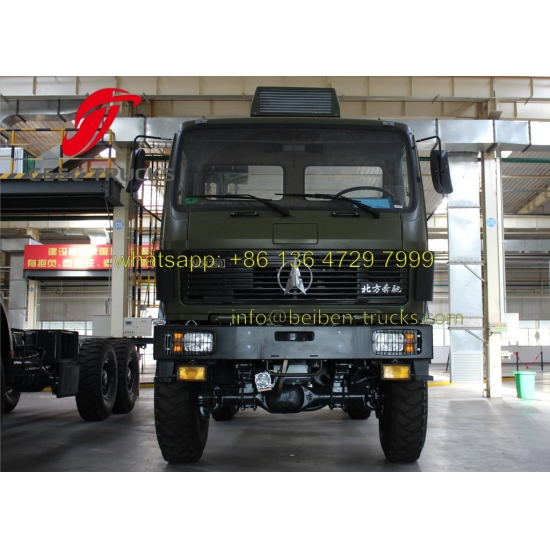

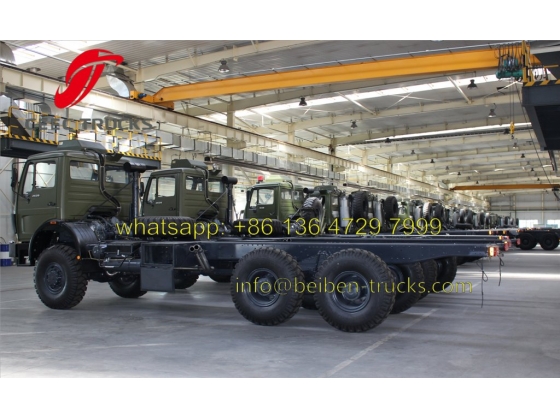

Beiben 6*6 cargo truck manufactured under the license of Mercedes Benz technology, which has excellent performance with reasonable price.
|
Vehicle Name: |
Beiben 6*6 truck chassis |
|
Types of drive |
Right hand drive (LHD ) |
|
Truck model number |
2528S |
|
Drive wheel |
6×6 |
|
Engine model |
WD10.340 Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling |
|
Horsepower(hp) |
340 |
|
Bore*stroke (MM) |
120*150 |
|
Displacement (L) |
9.876 |
|
Rated speed (R/min) |
2200 |
|
Max torque (Nm) |
1750 |
|
Max Torque speed( R/min) |
1300-1600 |
|
Lowest fuel consumption (G/kw.h) |
< 198 |
|
Net weight (KG) |
905 |
|

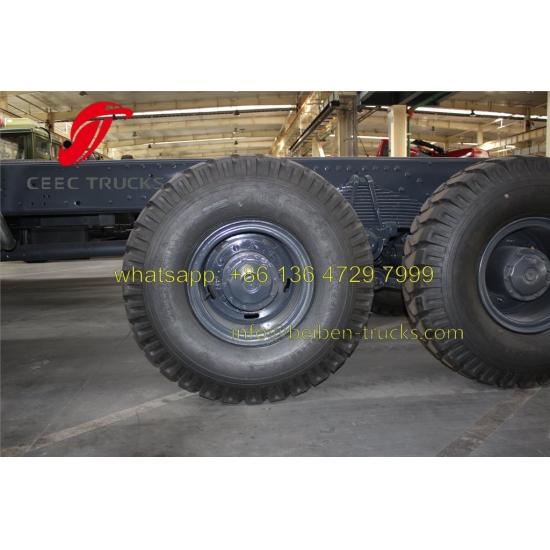

Meridian tire |
12.00-20 |
|
Number of tires |
10 + 1(spare wheel) |
|
Saddle types |
None |
|
Transmission types : |
12JS200T , 12 shift transmission, FAST technology |
|
Steering mechanism: |
TAS85 |
|
Wheelbase (mm) |
4450+1450 |
|
Cab style |
Long with 2 beds, Benz technology |
|
Air-condition |
With air-condition |
|
Cab body style |
The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology. |
|
Steering system |
High safe and reliable, and flexible, ZF8098 |
|
Brake system |
Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB |
|
Electric system: |
Stronger load ability, high reliability and easy maintenance |
|
Truck frame style |
Fish maw shape, inequilaterally section, equal intensity, Benz technology |
|
Front axle |
Benz 7.0T Transaxle |
|
Rear axle |
Benz Technology,double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) Ratio=5.263 |
|
Electric system: |
Stronger load ability, high reliability and easy maintenance,24 V |
|
Emission standard |
Eur 2 & EURO 3 |
|
Fuel tank capacity (L) |
400 |
|
Optional equipment |
Saddle , upper berth, ABS , squareness silencer. |
we are china best beiben 6*6 wheel drive trucks supplier, can provide customer with the best quality beiben 6*6 drive truck chassis, beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
Best beiben 6 wheel drive trucks with super benz trucks quality , beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
