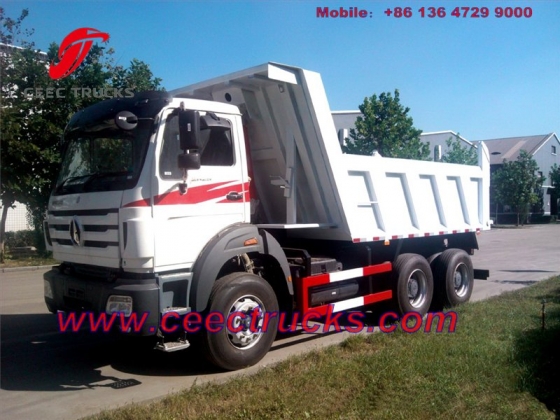

(This series mainly refers to the Beiben light dump truck with internal length above 6.5m, classified into rectangular north benz dump body and U-shaped dump body)
Order(MOQ):
1
Building new profit concept in the age of “lightweight”
(This series mainly refers to the Beiben light dump truck with internal length above 6.5m, classified into rectangular north benz dump body and U-shaped dump body)
Energy-saving, high efficiency, lightweight, and environment-friendly
The steel material of the superstructure is completely upgraded to manganese steel and 610L steel adopted in partial portions, with strength up to 550-700Mpa, which is more than 2 times of conventional steel plate.
The width and thickness for the pillars and ribs of the beiben dump body are sufficiently optimized to effectively guarantee anti-expansion performance of dump body and ensure elegant appearance.
The longitudinal beams of the frame sufficiently utilized the height and the side crossbeam adopts variable section type to reduce the dead weight and ensure sufficient strength.
Wide tail + middle balance stand structure ensure stable and safe lifting of dump body.
Powerful pump and large pipes of the hydraulic system relize fast lifting speed, high dumping efficiency, and durability.
Key Features:
◆Germany BENZ technology chassis with high durability and reliability
◆ Germany BENZ technology engine combined with original rear axle reducer gear and differential gear
◆Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
◆ Enhanced body, and the motherboard adopts variable cross-section beams.
◆Special Dump Body Design are optional
◆Other customer requirements are welcome
Technical Parameters:
|
Beiben 2538K /6×4/4100+1450/Short Cab/LHD or RHD |
|||
|
Dimension |
8880*2500*3430mm |
||
|
Cargo box |
5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm |
||
|
Approaching angle/Departure angle |
26/28° |
||
|
Overhang(front/rear) |
1410/1720mm |
||
|
Wheel base |
4100+1450mm |
||
|
Max speed |
85km/h |
||
|
Curb weight |
12650kg |
||
|
Engine |
Model |
WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection |
|
|
Displacement |
9.726L/Diesel |
||
|
Stroke |
126/130mm |
||
|
Max. power |
280/2200 (kw/rpm) |
||
|
Max.torque |
1600/1800(N.m/rpm) |
||
|
Emission |
Euro III |
||
|
Fuel tanker capacity |
300L |
||
|
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
||
|
Gearbox |
9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated |
||
|
Gear ratio of gear box |
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22 |
||
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs |
|
|
Rear |
Non-free standing stabilization spring, balance suspension system, 13pcs |
||
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
|
Assistant brake |
Engine exhaust brake |
||
|
Park brake |
Potential springs pressing on middle and rear wheels |
||
|
Steering system |
ZF8098 hydraulic steering with power assistance |
||
|
Frame |
Strengthened Straight beam |
||
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
||
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
||
|
Tyre |
315/80R22.5 tubeless tyres |
||
|
Electrical system |
Battery |
2X12V/135Ah |
|
|
Generator |
28V-35A |
||
|
Starter |
5.4Kw/24V |
||
|
Cabin |
NG80B
Long cabin one sleeper and inner A/C ; |
||
|
Beiben Dumper Body |
Body type |
Rectangle reinforced standard body (more body type refer to using environment) |
|
Inner size |
5600x2250x1300 mm |
|
|
Side/front/tail plate thickness |
8 mm Q235A carbon steel |
|
|
Deck plate thickness |
10 mmQ235A carbon steel |
|
|
Lifting system, |
China famous hydraulic lifting system |
|
|
Lifting Type |
Middle tipping |
|
|
Tipper body lifting time, |
≤ 20 S |
|
|
Tipper body Falling Time |
≤ 20 S |
|
|
Max. lifting angle |
52° |
■Working principle
