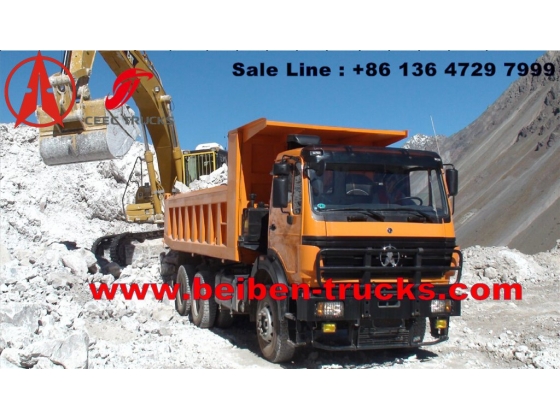

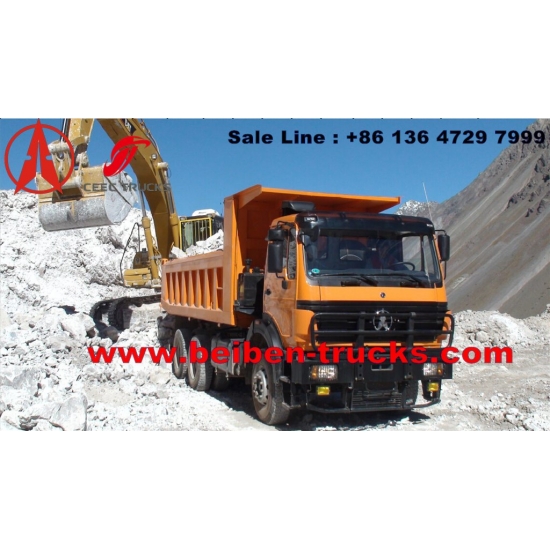

Beiben Weichai Engine 340hp Strong Dump Truck

                                 SPECIFICATION

                  NORTH BENZ 6X4 DUMP TRUCK LHD DRIVE

Traction

6x4

Driving type

LHD (RHD is option)

Cabin

North Benz, V3 cabin, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure, high back and shock absorption seat for the driver, with One Sleeper

Major color of cab: Ice white lacquer+ color bar, yellow

Vehicle Main Dimensions

LxWxH(mm)

7800x2500x3430

Wheel base(mm)

3450+1550

Wheel track(front/rear)(mm)

Front track (mm): 1995

Rear track (mm): 1800/1800

Approach/Departure angle(°)

23/ 35°

Overhang (front/rear)(mm)

1410/1870

Weight

in KGS

Tare Weight(kg)

12300kg

Total mass(kg)

25000kg

Front axle loading capacity

7.5tons

Rear axle loading capacity

2x13tons

Driving Speed(km/h)

85

Engine

Brand

Wei chai

Model

 WP10.340

Emission

 Euro III

Engine type

Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & intercooling

Displacement

9.726 L /Diesel

Max. output

340hp@2200rpm

Max torque

1250NM@1400-1600rpm

Bore/Stroke(mm)

126/130

Specific fuel consumption

198g/Kwh

Gear box

Model

9JS150A

Brand

FAST 9 speeds

Type

Fuller transmission, mechanism, 9 forward gears, 1 reverse gear, manual, made in China

Clutch

Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting

Steering

ZJ120D

Tyre

Tyre

12.002-20 Bias tyres

No. of tyres

10+1spare

Fuel tank

300L  Aluminum Tank

Front axle

Mercedes Benz Technology, Double-shoe pneumatic brake, non-driving steering axle

Rear axle

Mercedes Benz Technology, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Frame

Mercedes-Benz technology, Strengthened frame 300x90x8+6+8mm

Spring

10/13

Strengthened rear spring 7x25mm+6x22mm, 4-line U-bolt, Strengthened Push Rod, Strengthened Transmission Shaft

Gradeability

28%

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

ABS

With

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

PTO

TIPPER BODY

YES

Inner size (mm)

5600*2300*1500

Capacity

19.32m³

Thickness

floor 8 front 6  side & back 4

Tipping type

Back tipping type

oil cylinder

HYVA Φ150x4230
