The Beiben 2638 tractor truck is a heavy-duty transport vehicle with a 6X4 drive system, powered by a 380HP diesel engine with a rated power of 280 KW and a rated speed of 2200 rpm. The vehicle has a kerb weight of 8800 kg, a gross vehicle weight of 25000 kg, and a maximum towing capacity of 40000 kg. Its body dimensions are 7135 mm in length, 2495 mm in width, and 3100 mm in height, with a wheelbase of 3450+1450 mm. Equipped with a FAST 12JS200T transmission, it features 12 forward gears and 2 reverse gears, along with a 430-millimeter clutch. The front axle can bear a load of 7.5 tons, while the rear axle can handle 13 tons. With a maximum speed of 90 kilometers per hour and a maximum gradeability of 35%, coupled with a 400-liter fuel tank and a sleeper-equipped cabin, the Beiben 2638 tractor is ideal for long-distance transportation.
Production time:
30 daysPayment terms:
TTWorking Capcity:
40 tonsEngine power:
380 HPDrive system:
6×4Product Description
The Beiben 2638 tractor truck is a high-performance, heavy-duty transport vehicle designed to meet various complex and high-intensity transportation needs. The cabin of the truck is both luxurious and practical, equipped with a sleeper to provide a comfortable resting environment for long-distance driving. The various control buttons and instruments in the cabin are laid out reasonably, facilitating easy operation and observation for the driver.
The overall dimensions of the Beiben 2638 tractor head are designed to be reasonable, with a length of 7135 mm, a width of 2495 mm, and a height of 3100 mm. These dimensions not only ensure the stability of the vehicle but also facilitate driving and parking on the road. Its wheelbase of 3450+1450 mm provides the vehicle with good handling and stability. The kerb mass of the truck is 8800 kg, indicating its sturdy and durable body structure. Meanwhile, its gross vehicle weight is 25000 kg, and the maximum towing capacity can reach 40000 kg, fully satisfying the demands of long-distance heavy-load transportation.
The Beiben 2638 tractor truck is powered by a WP10.380E32 engine with a rated power of 280 kW, equivalent to 380 hp, and a rated speed of 2200 revolutions per minute. The engine can output a maximum torque of 1600 Nm at a speed range of 1500-1800 rpm, providing strong power output for the vehicle. In terms of the transmission system, the truck adopts a FAST 12JS200T gearbox with 12 forward gears and 2 reverse gears, ensuring smooth gear shifting and high transmission efficiency. The clutch has a diameter of 430 millimeters, guaranteeing excellent transmission performance and handling.
Product Specifications
SPECIFICATIONS OF BEIBEN TRACTOR TRUCK |
|||
Vehicle Specifications |
Model |
Beiben 2638 |
|
Traction |
6X4 |
||
Power |
380HP |
||
Weight Parameter |
Vehicle Kerb Mass (kg) |
8800 |
|
Gross Vehicle Weight (kg) |
25000 |
||
Maximum towing weight (kg) |
40000 |
||
Dimension Parameter |
Overall Dimensions(mm) |
Length (mm) |
7135 |
Width (mm) |
2495 |
||
Height (mm) |
3100 |
||
wheelbase(mm) |
3450+1450 |
||
Performance Parameter |
Maximum Speed(km/h) |
90 |
|
Maximum Gradeability (%) |
35 |
||
Turning diameter(m) |
16 |
||
Chassis |
Engine |
Engine Type |
WP10.380E32 |
Rated power (kW) |
280 |
||
Horsepower (hp) |
380 |
||
Rated speed (rpm) |
2200 |
||
Torque(N*m)/Speed(r/min) |
1600/1500-1800 |
||
Transmission |
FAST 12JS200T |
||
Gearbox |
12 forward gears |
||
2 backward gears |
|||
Clutch(mm) |
430 |
||
Axle |
Front Axle |
7.5t |
|
Rear Axle |
13t |
||
Axle load bearing |
Front axle |
7.5t |
|
Front axle |
13t x2 |
||
Fuel Tank(L) |
400 |
||
Track(mm) |
1995/1800,1800 |
||
Front overhang/rear overhang(mm) |
1410/825 |
||
Type |
12.00R20 |
||
Cabin |
Sleeper |
One sleeper |

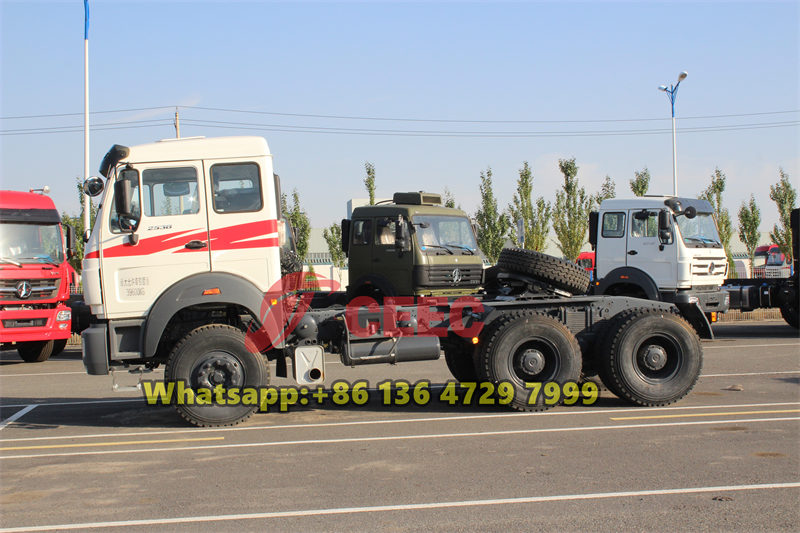

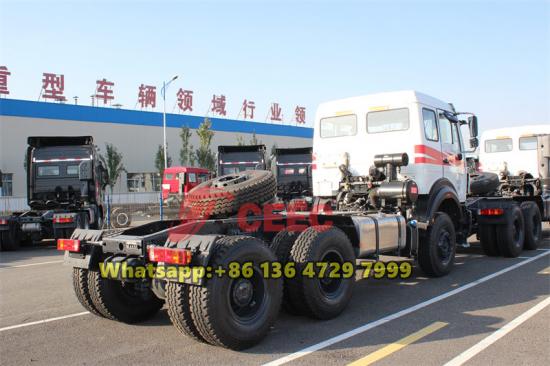

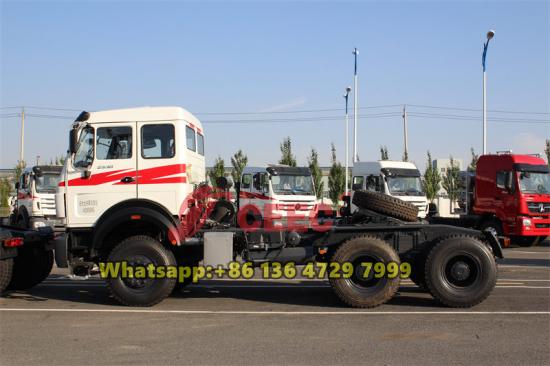

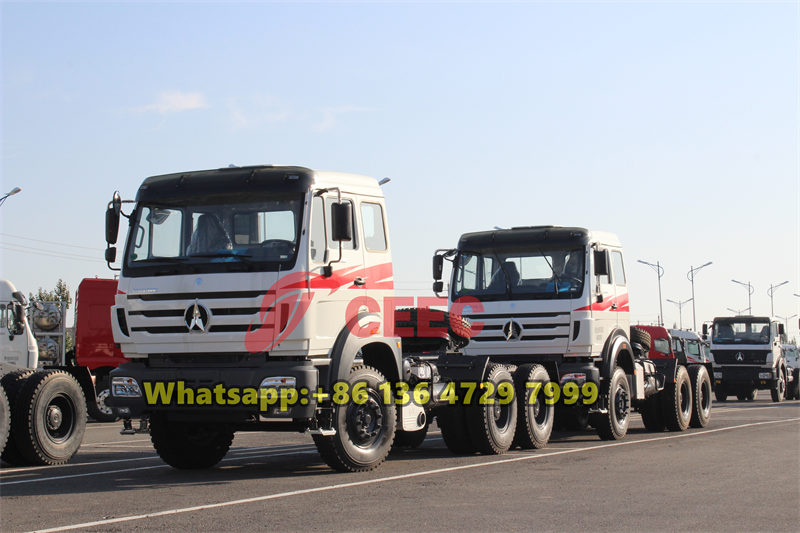

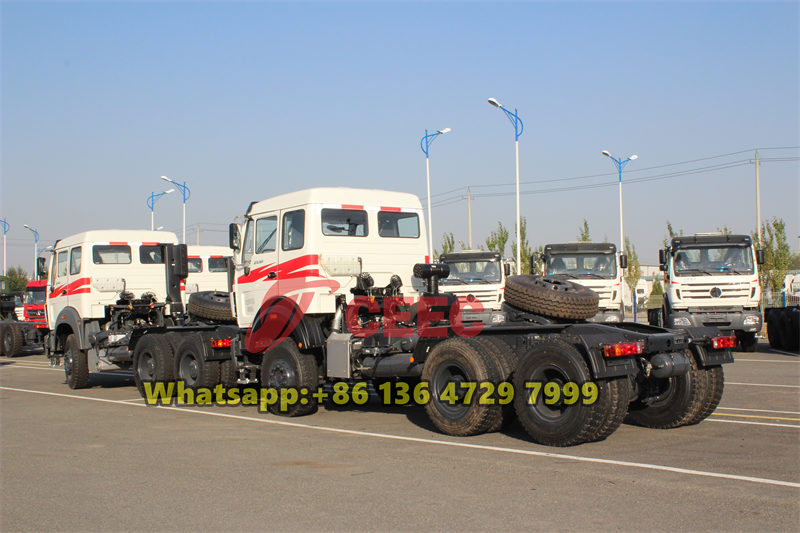

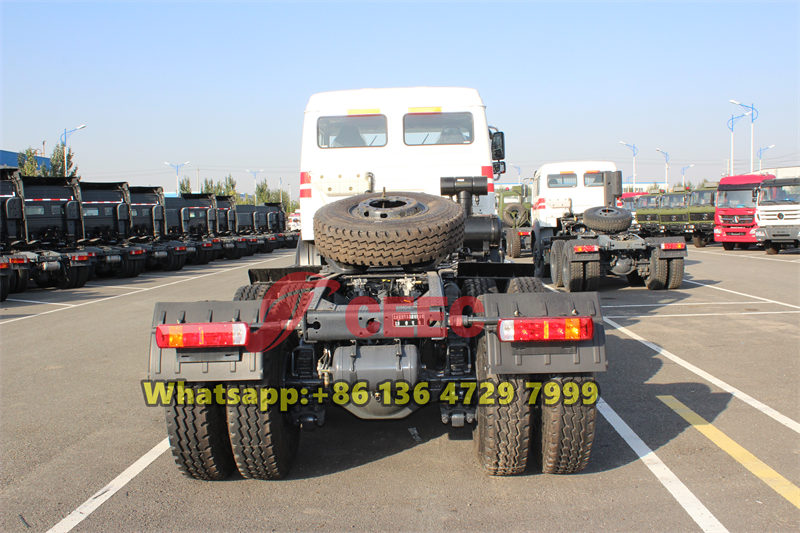

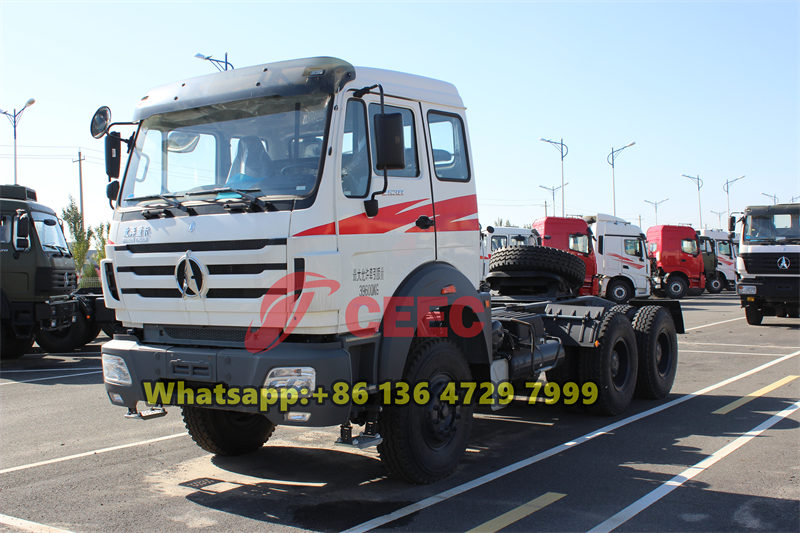

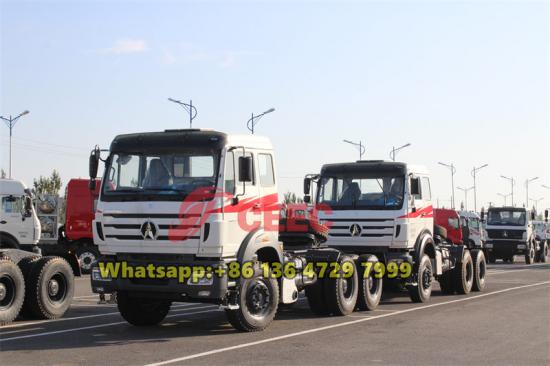

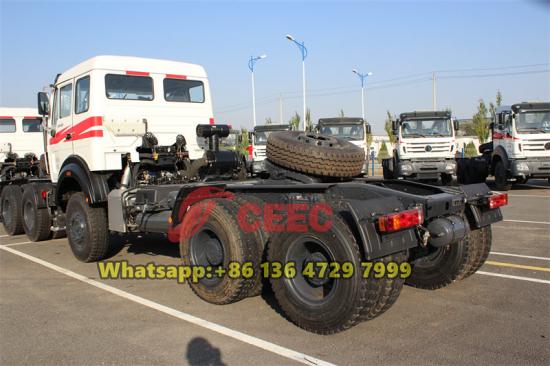

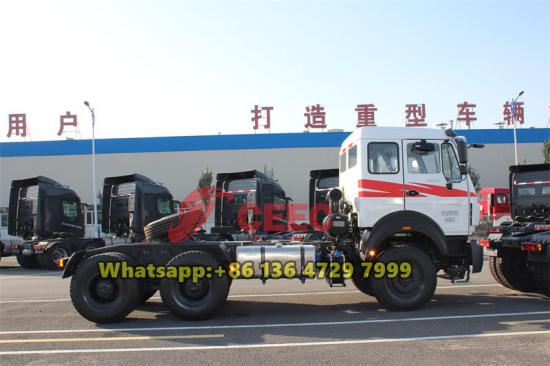

Product Details
