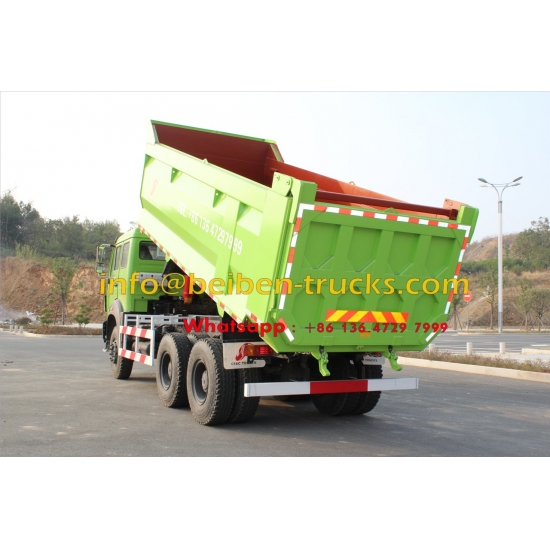

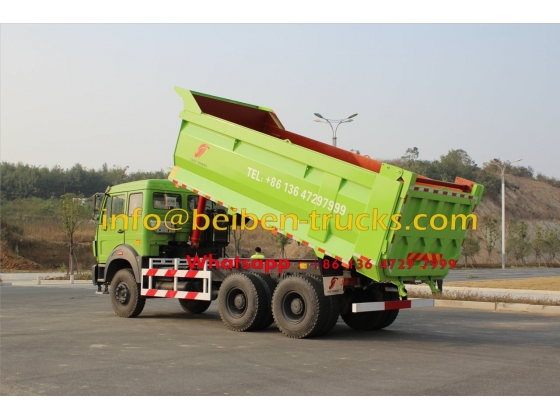

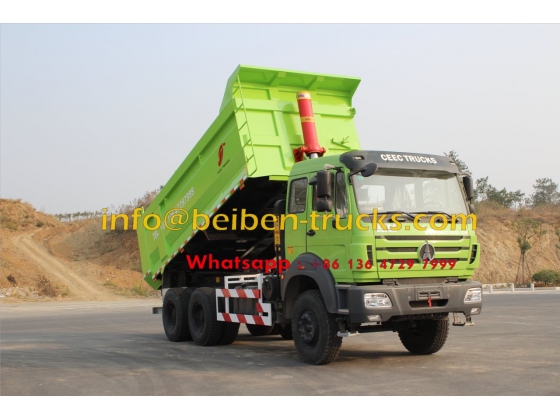

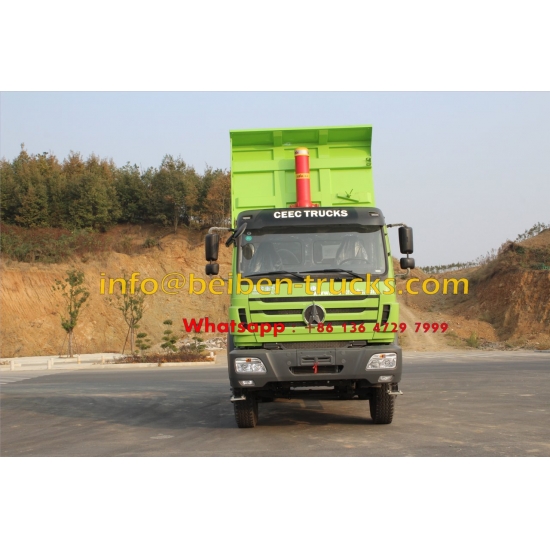

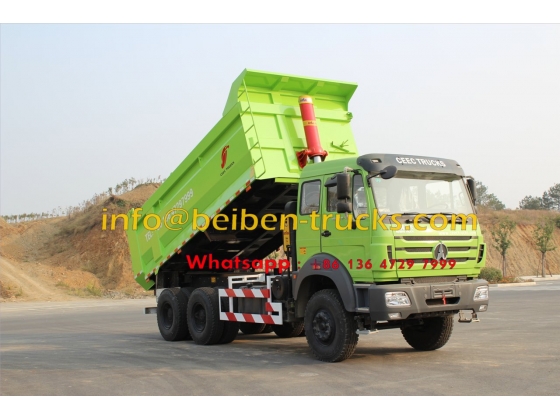

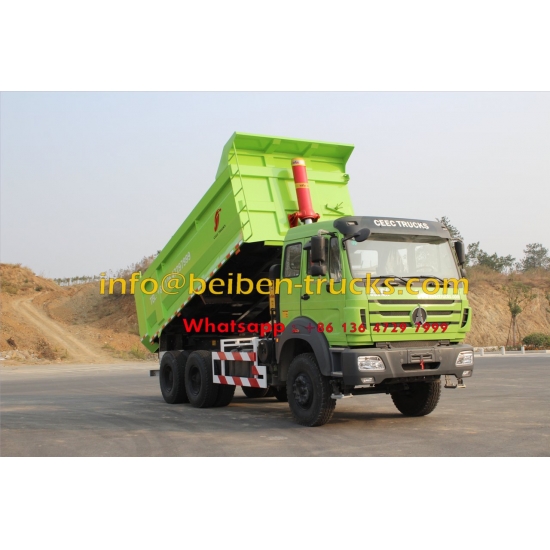

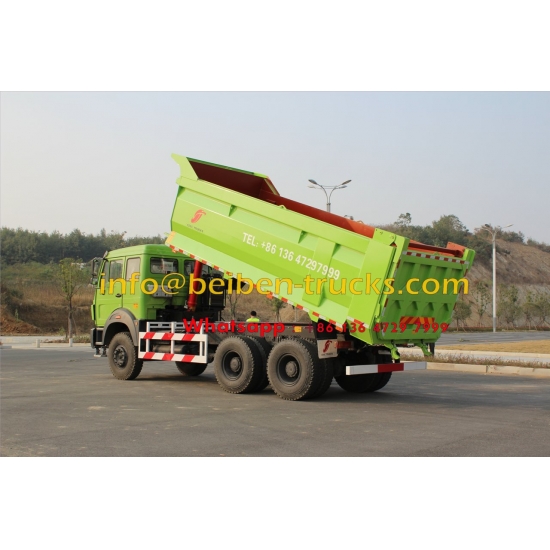

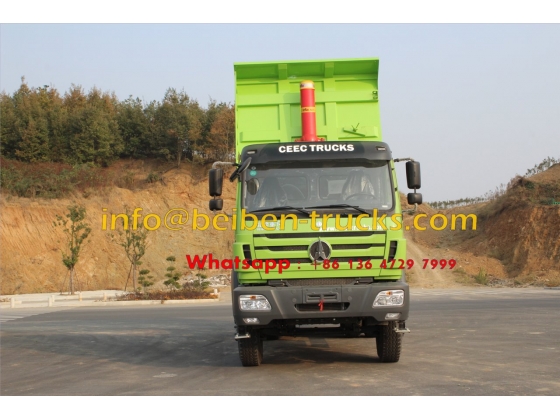

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

china  Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks
china  Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks
china  Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks
china  Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks
china  Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks
china  Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks
china  Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks
china  Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

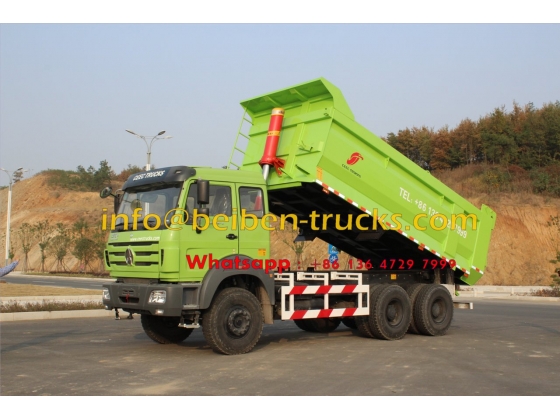

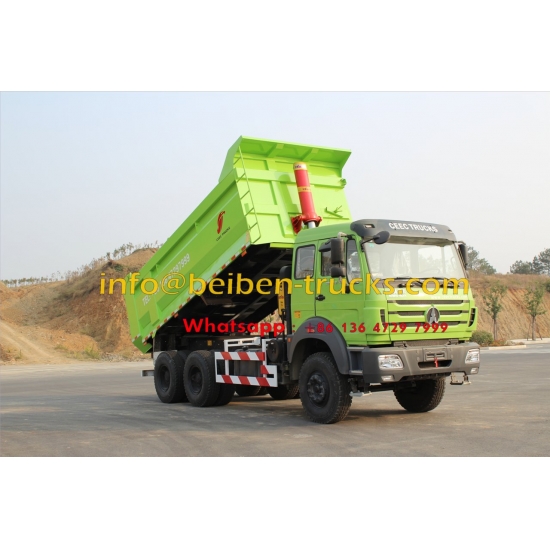

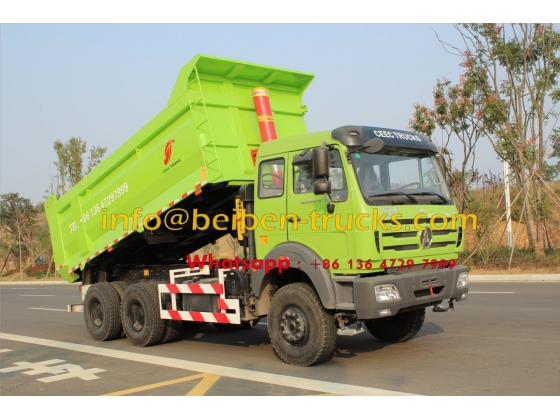

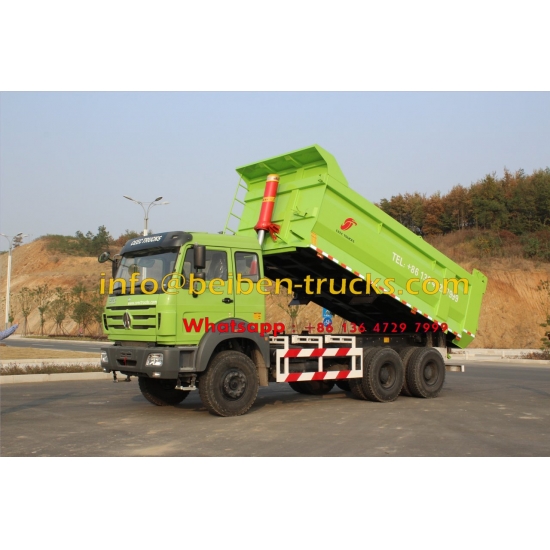

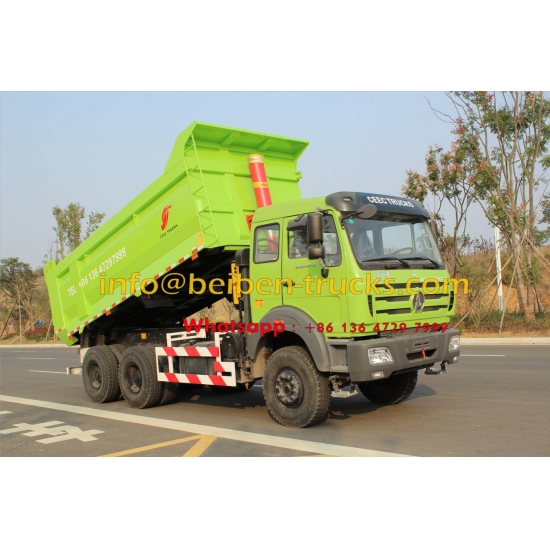

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

North Benz Beiben Dump Truck
WEICHAI engine,Fast Gear box
Parts are available
best after sales service

Traction type: 6X4

Driving type: LHD (RHD is optioned)

  • Order(MOQ):

    1
New Products

Beiben dumper tipper trucks beiben 20 ton dump truck for sale

2015 New Heavy Duty Truck Beiben Dump Truck for Sale In Congo

Specifications

North Benz Beiben Dump Truck
WEICHAI engine,Fast Gear box
Parts are available

best after sales service

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

Factory Low Price Sell North Benz Beiben 6x4 Tipper/dump trucks

Traction type: 6X4

Driving type: LHD (RHD is optioned)



Main Specification

Model

ND3254B38

Condition

New

Drive type

6×4

Brand

Beiben Dump Truck

Steering Wheel Type

LHD(Left hand drive)   (RHD is in option)

Overall Dimension(mm)

8530×2500×3310

The total mass(Kg)

25000

Kerb weight(kg)

12200

Wheel base(mm)

3800+1450

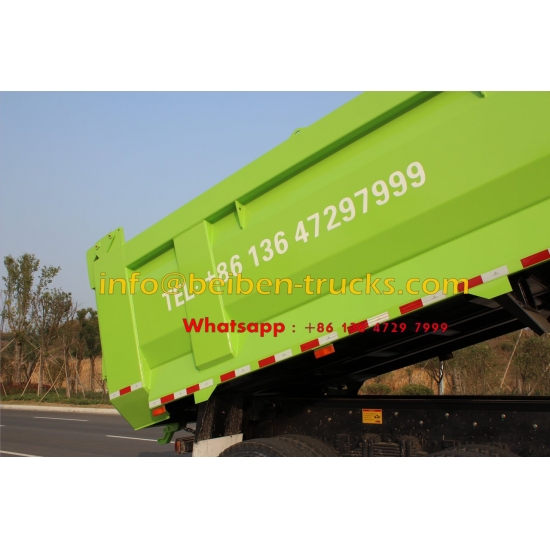

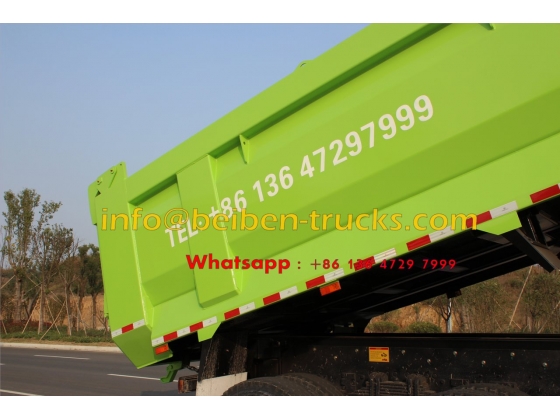

Dimension of cargo body(mm)

L×W×H

5600/5800×2300×1500

Thickness of steel plate

Bottom:   8 Side:6

Capacity



Tipping system

HYVA Front tipping system

Fuel Type

Diesel

Engine

Type

Weichai brand,WP10.340E32

Inline six-cylinder,

water-cooled, four-stroke,

turbocharged inter-cooled

Direct injection

With the exhaust brake

Emission standard

EURO III

Horse power

340hp

Maximum output

250Kw @ 2200 rpm

maximum torque

1250N.m

Displacement(L)

9.726



Full load minimum fuel consumption rate

196g/kW.h

Cabin

 NG80B Flat ceiling and Short Cab,

Without sleeper,

Exterior trim: NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.

Manual glass lift, adjustable steering wheel, manual door locks. with air-conditioning system,

Steering

ZJ120D driver sit at the Left hand side (LHD) ZF8098 is optional

Transmission



FAST mechanical type 12JS160T 12 Speed Transmission,12 forward and 2 reverse

Clutch

Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting

Front axle

 front axle (7.5 ton), plate (disc) brake

Driving axle

 drive axle (13ton) double reduction driving axleinter-wheel differential lock,  axle differential lock.

Speed Ratio:5.921  (5.263 is optional)

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system

Parking brake: Potential springs pressing on middle and reel wheels

Engine brake: Engine exhaust brake(EVB)

TYRE Size

12.00R20  radial  tyre

No. tire: 10+1 spare

Suspension system

 Leaf spring type

Leaf Spring of Front/Rear

10/13

Air condition includes

YES

Fuel tank

300L Iron

Others

Power takeoff, Water tank guardrail, Draw hook, Desert air filter, simple rear axle fender

Color

As the customer request
