Mercedes Benz Technology North Benz WEICHAI Engine 6x4 336hp EURO III Beiben Tipper Truck beiben dump truck for sale
Mercedes Benz Technology North Benz WEICHAI Engine 6x4 336hp EURO III Beiben Tipper Truck beiben dump truck for sale
Order(MOQ):
1Authorized Beiben 12 wheeler dump truck supplier
Best price for north benz 8*4 dumper
Mercedes-Benz Technology
Beiben 3134,3138,3142dump truck
China Heavy Duty Truck North Benz Beiben Dump Truck
1. Best Chinese 6x4/8x4 Dump Truck Beiben NG80 Tipper Truck with low price
2. Mercedes Benz Technology
3. Left handed drive and right handed drive available
4. High quality parts supply
5. Most professional service
1. BeibenSpare parts available for 10 years
2. Engineer is available to make service overseas
3. 24hours online consultation service
1. All the beiben 12 wheeler trucks will be made antirust before shipment
2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking
1. INTRODUCTIONS
From rock, sand or cement, equipment, water, fuel to food product materials and waste, CEEC has you covered.
Since we rolled out Dump Truck No.1 in 1983, we have been providing customers with trucks for loading, conveyance and delivery. With its excellent drive ability, unique comfort, extreme safety and durability, UD dump truck to deliver your material on time, every time.
Front Lift north benz 8*4 Dump Truck

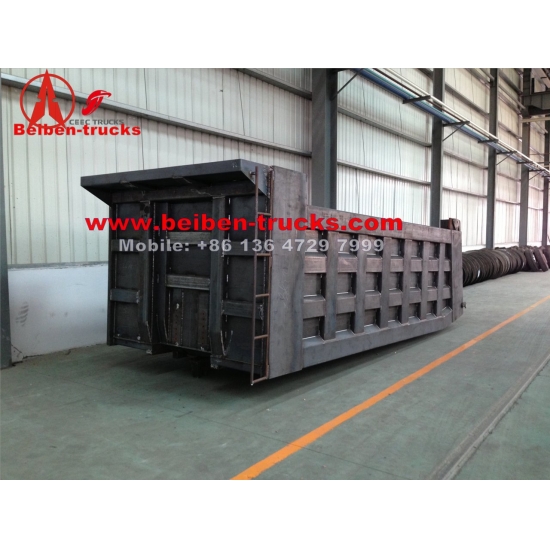

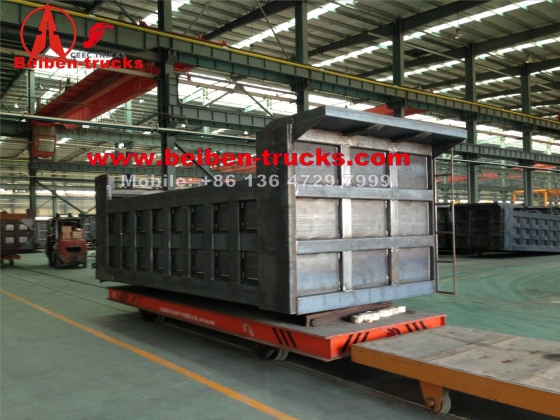

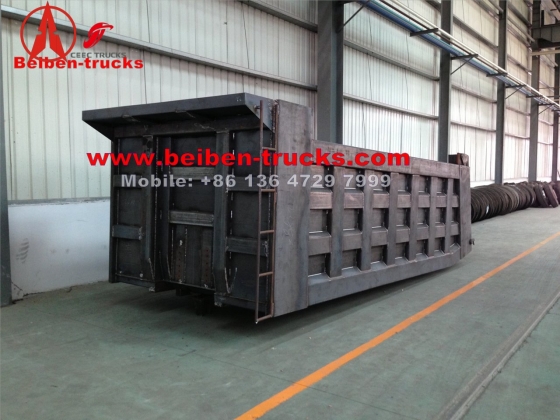

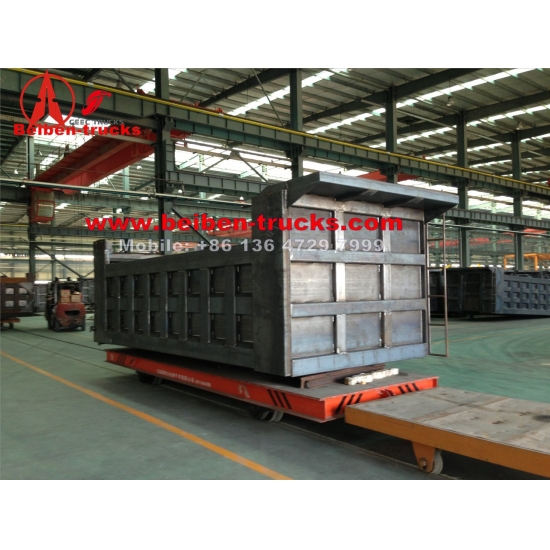

Widened and thickened pillars and ribs of the beiben 3134,3138,3142 dump body are densely distributed to ensure powerful anti-expansion performance of the beiben dump trucks dump body
The thickened channel steel of rear body + full welds guarantee high strength and impact / wear resistance
Ultra-large cast steel lock hook + manual hook feature good sealing performance and high reliability.
.Four longitudinal beams of frame are in matts structure and the heighted and thickened cross beams are densely distributed to achieve a strong and impact resistance frame.
The subframe adopts rectangular tube longitudinal beams and the integral structure features high strength.
Beiben 380 Hp engine 12 wheeler dump truck Powerful pump and large pipes of the hydraulic system realize fast lifting speed, high dumping efficiency, and durability.
CHINA best beiben 3134,4138,3142 dump truck, beiben 8*4 mining dump truck, beiben 8*4 off road dump truck manufacturer.
|
3134KY /8×4/1500+3550+1450/Long Cab |
||
|
Dimension 尺寸 |
9630*2500*3484mm |
|
|
Upper body inner dimension |
7150x2300x1150 sand body, China famous hydralic lifting system, thickness: bottom 8mm, side 6mm |
|
|
Approaching angle/Departure angle |
33/25° |
|
|
Overhang(front/rear) |
1410/1720mm |
|
|
Wheel base |
1500+3550+1450mm |
|
|
Max speed |
80km/h |
|
|
Curb weight |
14765kg |
|
|
Loading capacity |
16105kg |
|
|
Slope climbing capability |
Max.40% |
|
|
Engine |
Model |
WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
|
Displacement |
9.726L/Diesel |
|
|
Stroke |
126/130mm |
|
|
Max. power |
250/2200 (kw/rpm) |
|
|
Max.torque |
1350/1200-1600（Nm/rpm） |
|
|
Emission stantard |
EuroⅢ |
|
|
Fuel tanker capacity |
400L |
|
|
Clutch |
∮430, Single dry frictional disc，Hydraulic boosting |
|
|
Gearbox |
12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated, |
|
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
|
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
|
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
ZF8098,whole circulation in ball, hydraulic booster |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tyre |
12.00R20 Radial |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
NG80B long cabin with
single sleeper ; |
|
More than 15 years on Beiben 2529 tippers,Beiben2534dumper, Beiben 2538dump trucks , beiben 6*4 dump truck,beiben 10 wheeler tipper trucks, ,beiben 10 wheeler tipper,dumpers.We are the best beiben 10 wheeler dump trucks manufacturer in china.
China baotou 2529 dump trucks is totally applied benz truck technology, with CEEC TRUCKS latest design on the 2529 heavy duty dump trucks , to ensure the best work situation of beiben 2529 tippers .
Beiben 2530 dump truck 6*4 driving, with latest technology on beiben 2530 dump truck chassis, china weichai diesel engine and fast 9 shift transmission. we can supply both new beiben 6*4 heavy truck and used beiben 6*4 trucks .
Beiben 6*4 420 hp dump trucks, with china famous 420 horse power diesel engine, we aim at supplying the best quality north benz 420 hp dumper and parts .
Beiben 2534 off road dump truck is with beiben advanced 6*6 driving system, can be suitable for different kinds of working situation. China beiben 6*6 dump trucks can payload at least 25 ton material in very tough road of africa .
Beiben NG80 6x4 dump truck for congo country, we are the authorized and best manufacturer of congo beiben dump trucks supplier, have exported more than 300 units beiben dump trucks to Congo , pointe noire seaport.
Power Star Beiben 6x4 tipper truck With Low Price , we produce and supply power star 6*4 dump trucks, power star left hand drive dump truck and power star right hand drive dump truck.
Beiben Best Performance NG80 Euro2 6x4 dumper, this is the classic cabin of beiben NG80 dump trucks, with benz truck reliable technology, our beiben NG80 dump truck get great reputation in congo country.
Powerful Beiben 420HP 6x4 dump 10 wheeler trucks, this kind of beiben dump trucks with the stronger beiben 420 hp diesel engine, germany benz technology axle and germany zf8098 steering stem .
