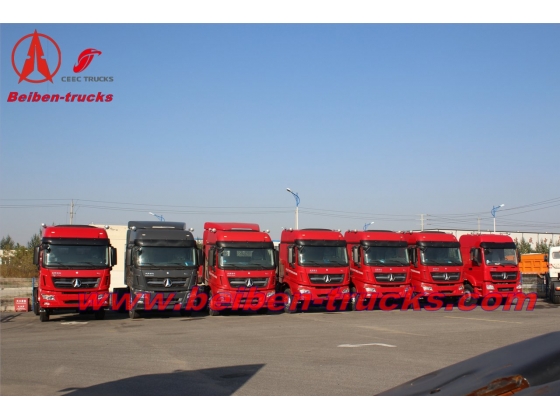

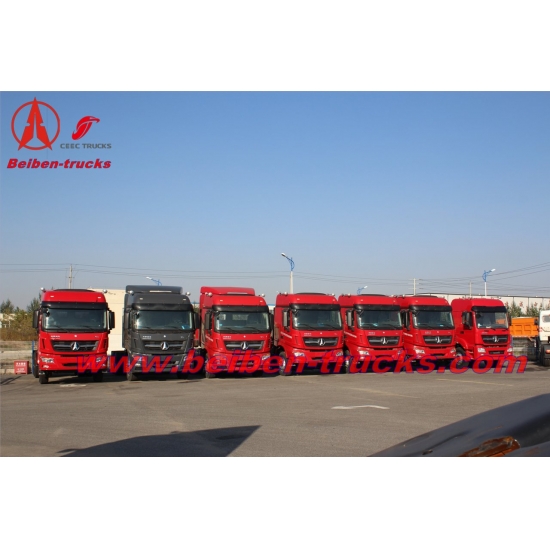

New BEIBEN V3 380hp 6x4 truck head for Tanzania
For HIGHLAND BEIBEN V3
Weichai 380hp,420hp Big Trailer Truck Head
Engine: WEICHAI Driving
type: 6x4
Order(MOQ):
1New BEIBEN V3 380hp 6x4 truck head for Tanzania
For HIGHLAND BEIBEN V3
Weichai 380hp,420hp Big Trailer Truck Head
Engine: WEICHAI Driving
type: 6x4
Traction type |
6×4 |
|
Drive System |
RHD |
|
Cabin |
V3 high cab, air conditioner ,two sleepers |
|
Engine |
Brand |
WEICHAI |
Model |
WD615.38 EuroII |
|
Rated power |
380hp |
|
Engine displacement |
11.596 liters |
|
Gearbox |
12JS200T |
|
Clutch |
430 Diaphragm type |
|
Steering |
TAS85 power steering |
|
Axle |
Front |
BEIBEN 7.5T |
Rear |
BEIBEN 13T, double reduction axle, ratio:5.921 |
|
Max. running speed (km/h) |
85 |
|
Tire |
12.00R20 |
|
Spring |
13/13 |
|
Fuel tank |
400L |
|
Kerb weight (kg) |
8800 |
|
Total mass (kg) |
25000 |
|
Wheel base (mm) |
3450+1450 |
|
Overhang (mm) (front/rear) |
1515/825 |
|
Track (mm) (front/rear) |
1995/1800 |
|
Approach / departure angle(°) |
16/60 |
|
Overall Dimensions(L*W*H)(mm) |
7240×2500×3750 |
|
5th wheel |
90# |
