Order(MOQ):
1Production time:
30 daysPayment terms:
T/T, L/C
Applications:

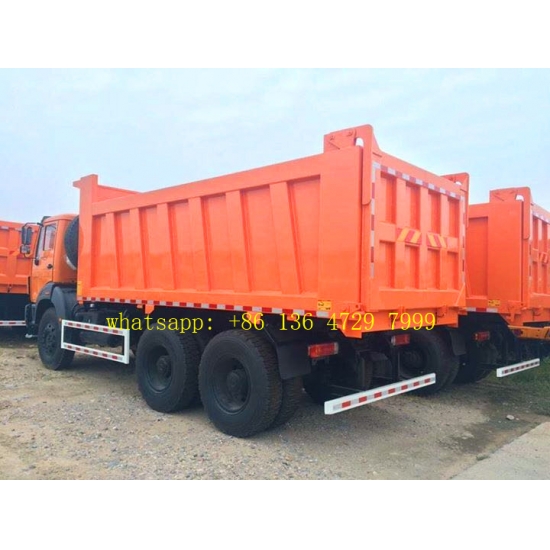

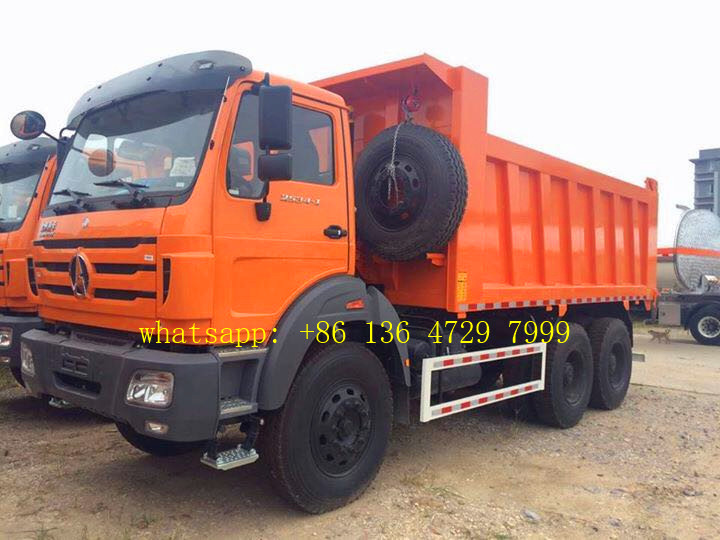

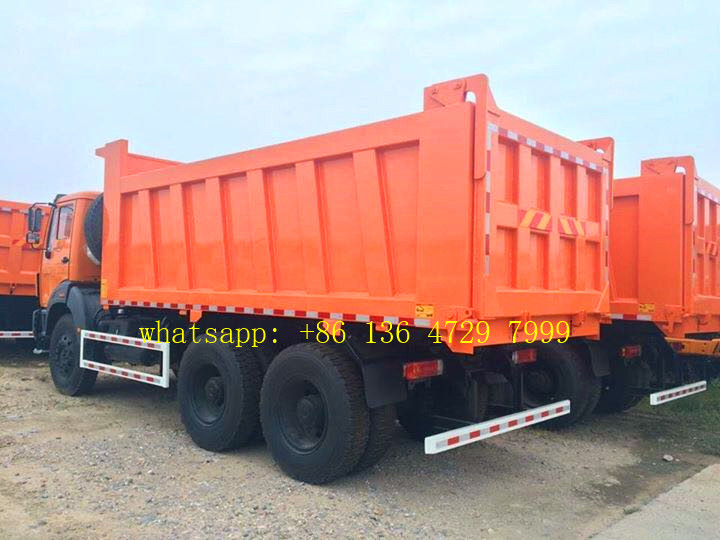

Beiben 2638 dumper, also called as beiben 2638 tipper , beiben 2638 dump truck, beiben 380 hp engine dump truck is designed for loading, transporting and discharging construction material, also can be used in for mine rock delivery.
CEEC TRUCKS dumper trucks all use reliable china famous brand hydraulic lifting device, with Front & Middle lifting optional.
The beiben dump truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- North benz chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dumper body capacity from 15 to 25 CBM .
---- China famous lifting device easy operation and maintenance.
---- Front lifting & middle lifting are available.
Specifications:
| africa Dump Truck Beiben (40 T) |
||
| General |
Vehicle Brand |
CEEC TRUCKS |
| Chassis Brand |
Beiben |
|
| Overall Dimension |
8500*2490*3340 mm |
|
| GVW / Kerb Weight |
45,000 kg / 14,800 kg |
|
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
Heating/cooling air conditioner |
|
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
WEICHAI |
|
| Power |
380 HP (279 KW) |
|
| Displacement |
9726 ml |
|
| Emission Standard |
Euro 2 or 3 |
|
| Chassis |
Drive Type |
6X4, (left hand drive) |
| Transmission |
FAST 9 speed levers with 1 reverse |
|
| Wheelbase/No. of axle |
3800+1450 mm / 3 |
|
| Tire Specification |
12.00R20 |
|
| Tire Number |
10 tires and 1 spare tire |
|
| Max Speed |
90 km/h |
|
| Paint |
Metallic paint |
|
| Superstructure |
Body Capacity |
16 CBM |
| Tilting Device |
Front lifting device |
|
| Hydraulic Cylinder |
China brand |
|
| Discharging model |
Rear discharging |
|
| Dump Body Dimension |
5600*2300*1500 mm | |
| Thickness |
Side Board: 8mm Floor Board: 10 mm
|
|
| Control panel |
English or Your language |
|
| All standard accessories: basic tool kit, English manual…… |
||
| Optional |
** Back alarm and Camera can be equipped. ** Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose. |
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Shanghai seaport shipping within 7 days.
---- 100% quality guarantee.
Beiben 2534 Dump truck: https://www.youtube.com/watch?v=gTKhNj5nP1w
https://www.youtube.com/watch?v=tRwmNi4m9GE
https://www.youtube.com/watch?v=IdII5BkGmuI
https://www.youtube.com/watch?v=p_UouhuDZa0
https://www.youtube.com/watch?v=Smax92Dtmt4
https://www.youtube.com/watch?o=EW96-_ILy9k
https://www.youtube.com/watch?v=FqjDYtpkBdw
China beiben 2534 dump truck chassis, 6*4 drive system, benz technology 7 Ton front axle, double rear 16 T axle with doubel reducer, benz technology NG80B cabin, with A/C, CD player, with HYVA 159 hydraulic cylinder system, whole hyva fuel tanker system. 20 CBM mine cargo box capacity.
beiben 2638 K dump truck , this is the classic cabin of beiben beiben 2638 K dump truck , with benz truck reliable technology, our beiben NG80 dump truck get great reputation in congo country.
Beiben 50 T dump trucks, can be based on beiben 2634,2636,2638,2642 truck chassis, we produce good quality benz technology beiben brand 10 wheeler dump trucks, supply with beiben 40 T, 50 T, 60 T dump trucks.
africa beiben dump truck, with china famous beiben weichai 340 hp euro 2 engine, fast 9 shift transmission, equipped with benz technology 7 T front axle, benz 16 T double rear axle with double reducer, 12.00R20 tyre. 3800+1450 mm wheelbase.
congo beiben 2638 dump truck, with weichai 380 hp engine, fast 9 shift transmission, 3800+1450 mm wheel base, 12.00R20 tyre. 16 CBM capacity cargo box.
Beiben 40T beiben dumper truck, which use benz technology chassis, WEICHAI brand diesel engine, with engine power can be 240HP to 460HP, FAST 9-shift transmission gearbox for safe driving. high strength steel material 8mm thickness dumper body special used for mining rock delivery
Beiben 40T beiben dumper truck, which use benz technology chassis, WEICHAI brand diesel engine, with engine power can be 240HP to 460HP, FAST 9-shift transmission gearbox for safe driving. high strength steel material 8mm thickness dumper body special used for mining rock delivery
cheapest beiben dump truck price, supply best quality beiben dumper, beiben 2534 dumper, beiben 2538 dumper
Africa best beiben dump truck supplier, we are the most professional beiben dumper supplier, supply best quality beiben 30 T dumper, beiben 40 t dumper, north benz earth moving trucks
