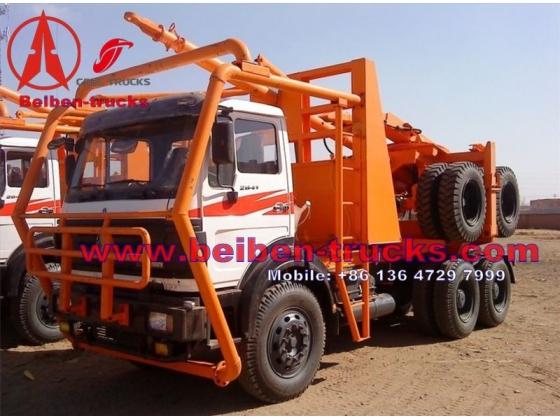

1NOrth benz "CAMEROON TYPE" log trailers with
2.5 bunks with adjustable holding wedges.
North benz "MALAYSIAN TYPE" log trailers with 2 x 3.10 bunks mounted on
JOST turntables. 2 hinged stakes.
Fifth wheel coupling is also available on request
Wheel base (mm) |
4100+1450 |
|
Curb weight kg |
12400 |
|
Engine |
Model |
WD12.375,water-cooled,four strokes,6 cylinders straight in line,turbocharged, |
Power, max kw/rpm |
280/2200 |
|
Emission |
EUROII |
|
Clutch |
Model |
Φ430, Single dry frictional disc,Hydraulic boosting |
Gearbox |
Model |
12JS160T |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
Model |
ZF8098,whole circulation in ball type, hydraulic boosting |
Frame |
Fish belly shape, variable width, variable sections |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Ratio: 6.7 |
|
Tyre |
Radial 12.00R24 |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cab |
Short cab color:White color with strip Full steel skeleton structure, covered with double layer steel plate;Can be tipped forwardly; Seat: shock absorption seat for the driver With inner A/C |
|
Others |
With Tropical thermostat Exhaust pipe upwards With rear trailer brake system Eight U-bolt (Four U-Bolt each side) With differential between axle and wheel Oil tank: 400L+300L With Desert air filter |
