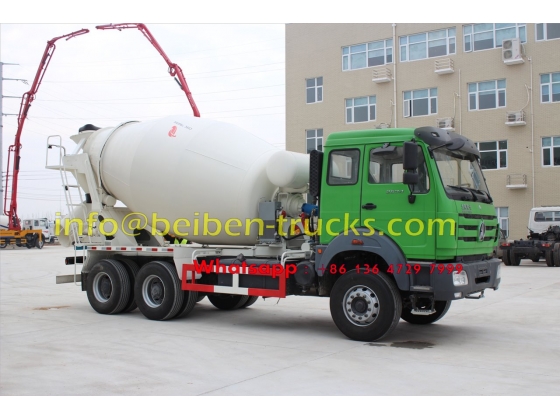

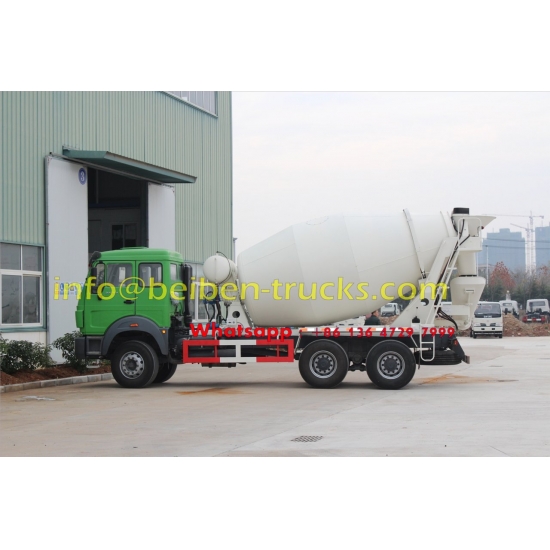

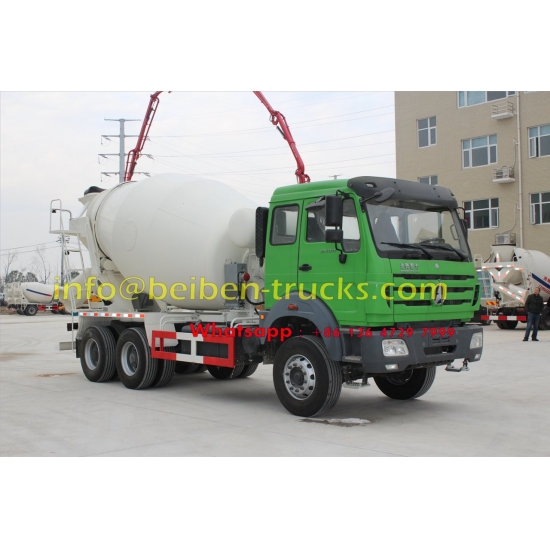

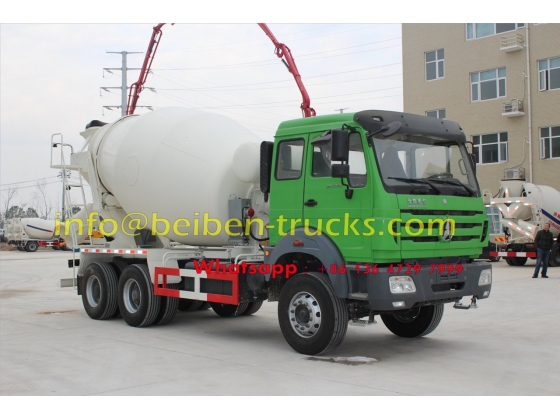

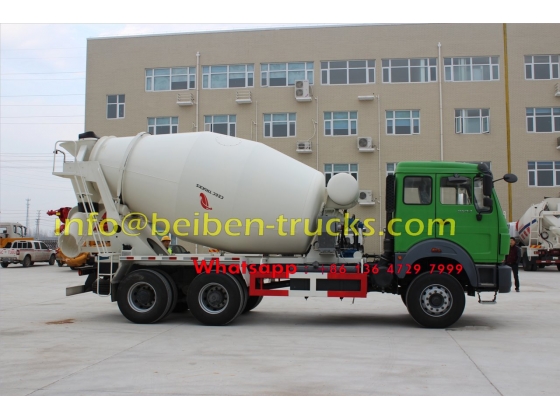

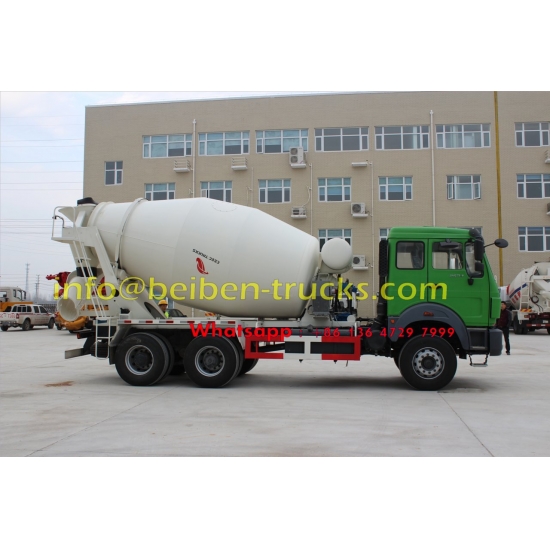

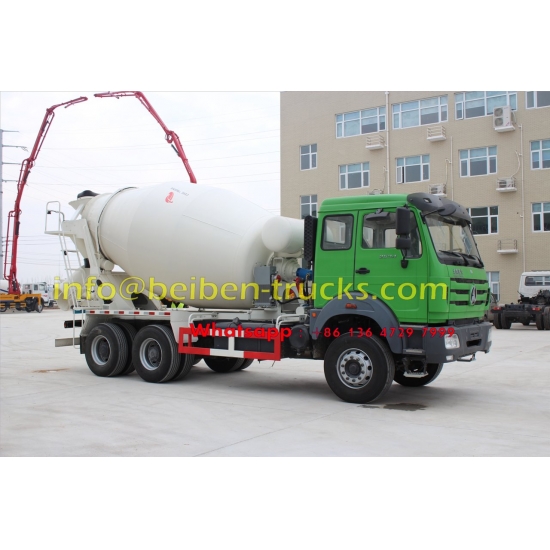

North Benz 6x4 self loading brand new cement mixer truck
Order(MOQ):
1North Benz 6x4 self loading brand new cement mixer truck
Engine: WP10.340hp
Mixing volume: 4--6cbm
Residual ratio: nearly zero
Model |
6x4 4.5m3 concrete mixer truck |
|
Whole Vehicle Performance & Parameters |
Chassis |
BEIBEN |
Curb Weight (Kg) |
12870 |
|
Total Vehicle Weight (Kg) |
25000 |
|
Outline Dimension(L*B*H) (mm) |
9400x2500x3900 |
|
Wheelbase (mm) |
4100+1450 |
|
Front Overhang (mm) |
1410 |
|
Rear Overhang (mm) |
2640 |
|
Max Traveling speed |
85 |
|
Vehicle Configuration |
Clutch |
Dry Single Disc Clutch (φ430) |
Gear Box |
FAST 9T-1680 |
|
Driving Type |
6x4 |
|
Steering Mechanism |
TAS85 |
|
Service Brake |
Dual-circuit Air Brake |
|
Parking Braking |
Spring-powered Air-cut-off Brake |
|
Auxiliary Brake |
Engine Exhaust Brake |
|
Tyre |
12.00R20 radial tyre |
|
Engine Parameters |
Model |
WP10.340E32 |
Type |
Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. |
|
Emission Standard |
Euro 3 |
|
Max Power (KW) |
340HP(2200r/min) |
|
Max Torque |
1500 N.m |
|
Mixing Drum Parameters |
Max Mixing Cubage (m3) |
4.5 |
Feeding Speed (m3) |
≥3.5 |
|
Discharging Speed (≥m3) |
≥3 |
|
Leftover Rate |
Nearly Zero |
|
Max Rotating Speed (r/min) |
14---16 |
|
Mixing Drum Obliquity (°) |
10 |
|
Max Mixing Drum Diameter (mm) |
φ2412 |
|
Driving System |
Hydraulic Pump |
Italian TOP089 |
Hydraulic Motor |
TOP 089 |
|
Speed reducer |
TOP P68 |
|
Water supply mode |
Water pump; pneumatic pump |
|
as the best beiben V3 transit mixer trucks manufacturer in china, we aim at supplying the best quality beiben V3 mixer trucks and beiben V3 8 CBM mixer truck, 10 CBM mixer truck and beiben 14 concrete mixer truck.
beiben 2534 v3 concrete mixer trucks in cheap price and best quality, 100% china beiben V3 6*4 concrete mixer truck supplier.
Beiben NG80B 8 CBM cement mixer trucks, the china best beiben 6*4 concrete mixer truck manufacturer in china.
Beiben 8*4 drive system, germany benz technology 7 T double front axle, benz 17 T double rear axle, fast 12 shift gear box , 12.00R20 tyre. 14 CBM drum capacity with CEEC TRUCKS lastest technology on mixer trucks.
Beiben 2534 transit mixer truck chassis, 340 Hp engine europen technology, fast 9 shift transmission, benz 7 T front axle , benz technology 16 double rear axle, 12.00R20 tyre. 3800+1450 mm wheelbase.
beiben V3 10 CBM concrete mixer trucks, with weichai 340 Hp engine, fast 9 shift transmission, benz technology 7 T front axle, benz technology 13 T rear double axle, V3 cabin with air condition. 10 CBM drum.
Beiben 2534 concrete mixer truck chassis, 6*4 driving system, beiben unique weichai 340 hp engine, fast 9 shift transmission, with benz 7 T front axle, 16 T benz rear axle, with 9 CBM mixer truck drum, America Eaton oil motor and pump, Itlay reducer, china famous radiator
Beiben 9 CBM concrete drum capacity, weichai 340 Hp engine, America Eaton oil pump and motor, fast 9 shift transmission, benz quality assurance.
beiben 2528 cement mixer truck manufacturer , benz quality 2528 cement mixer truck chassis, 280 hp engine, with super quality concrete mixer drum, 3450+1350 mm wheelbase.
