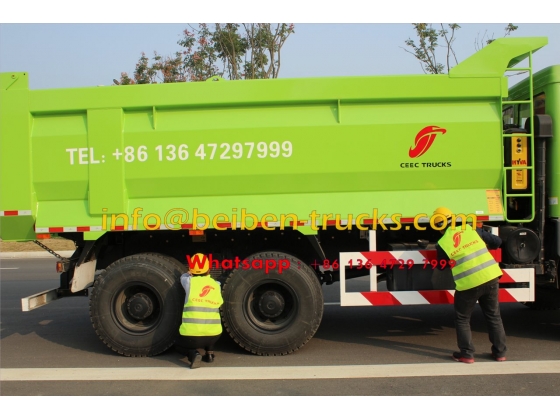

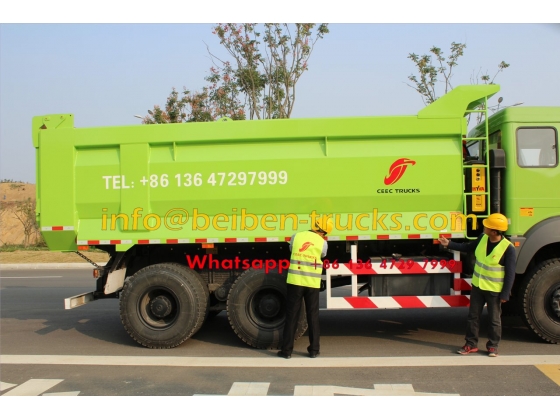

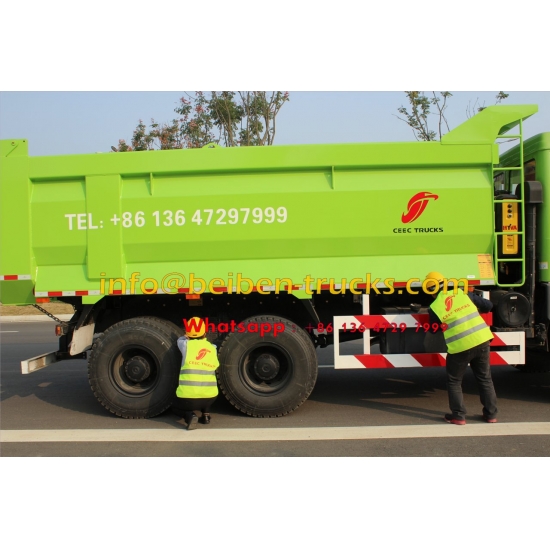

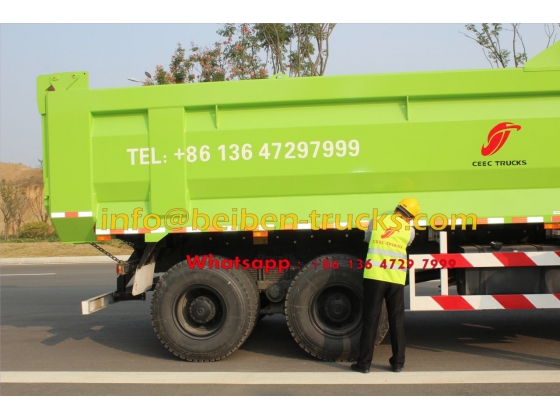

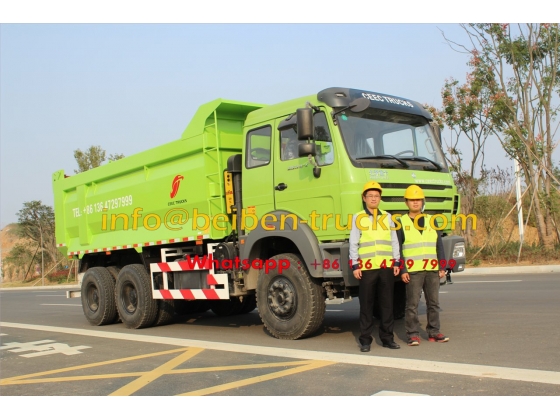

Beiben 6x4 dump truck

Home Beiben Dump Truck Beiben 6x4 dump truck

Using Mercedes-Benz Technology China beiben 30 ton dump truck sale

china Using Mercedes-Benz Technology China beiben 30 ton dump truck sale
china Using Mercedes-Benz Technology China beiben 30 ton dump truck sale
china Using Mercedes-Benz Technology China beiben 30 ton dump truck sale
china Using Mercedes-Benz Technology China beiben 30 ton dump truck sale
china Using Mercedes-Benz Technology China beiben 30 ton dump truck sale
china Using Mercedes-Benz Technology China beiben 30 ton dump truck sale
china Using Mercedes-Benz Technology China beiben 30 ton dump truck sale
china Using Mercedes-Benz Technology China beiben 30 ton dump truck sale

Using Mercedes-Benz Technology China beiben 30 ton dump truck sale

  • Order(MOQ):

    1
New Products



Using Mercedes-Benz Technology China beiben 30 ton dump truck sale

Using Mercedes-Benz Technology China beiben 30 ton dump truck sale

Product Description



Model

6x4 dump truck

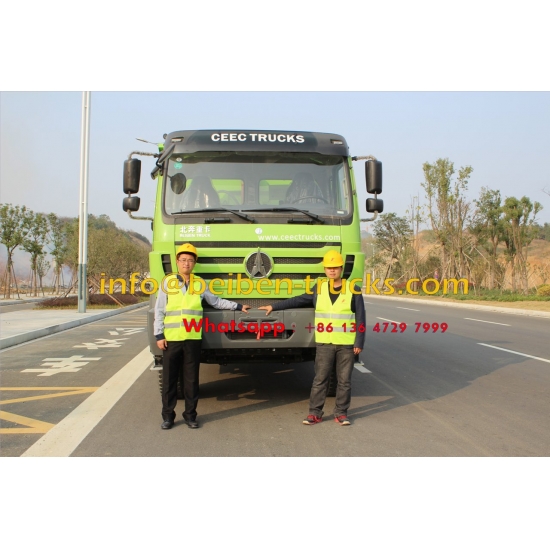

Cabin

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WP10. 380E32

WEICHAI Diesel engine



MAX Horse power:

380HP/280KW



Displacement(L):

9.726liter (Euro 2 standard)



Max torque:

1500NM@1200-1600rpm



Bore/stoke:

126mm/130mm

Gear box



Max torque:2000NM



Model:

12JS200T, mechanism,12gears,2reverse gear, manual, synchronization



Speed:

12speed,2reverse

Axle(front/rear)

Front axle

Double-shoe pneumatic brake, non-driving steering axle

Tandem

Double-shoe pneumatic brake, casting, double reduction driving axle

Clutch

Single dry frictional disc,Hydraulic boosting

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system



Parking brake: Potential springs pressing on middle and rear wheels



Engine brake: Engine exhaust brake(EVB)

Steering

TAS85, driver sit at the left hand side



Electric Equipment



Operating voltage:

24Vnegative grounded



Starter:

24V,5.4KW



Alternator

28V,758W



Battery voltage

12V/135Ah,cigar lighter

Frame

Fish belly, shape, variable width, variable sections, side beam structure.

Tyre

12+1 spare tyre with rim



12.00-R20

Suspension system: strongthen heavy duty Leaf spring type



Front/Rear

12/12/13

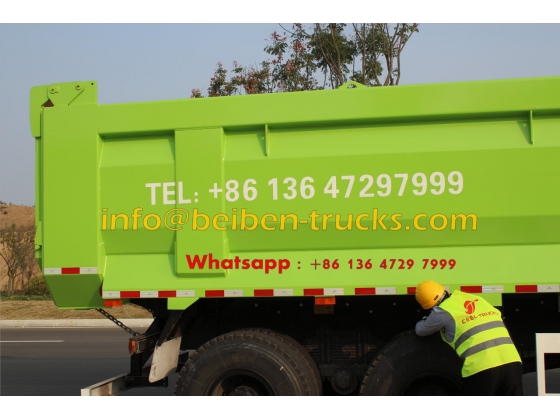

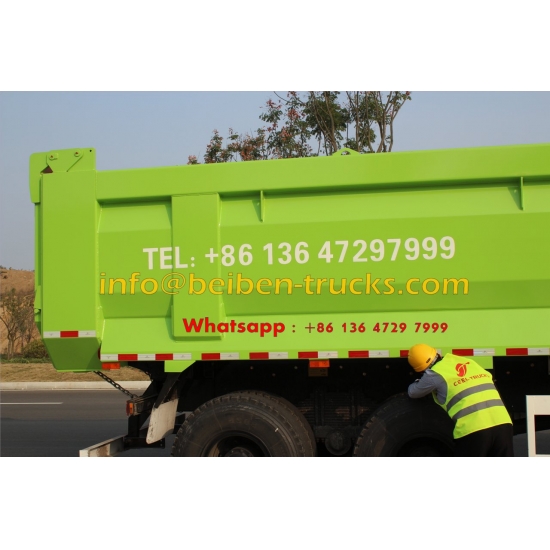

Dump body:

Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel

Lifting type: Front lifter “T” type hydraulic system.

Overall dimension(mm): 11730x2500x3484(Length x width x height)

Wheelbase

1950+4600+1450mm

Track:





Front/Rear

2045/1872



Approach/Departure angle

26/27



Front /Rear overhang

1410/2320



Max speed

90km/h

Kerb weight:

15500kg

Oil tank capacity

300L fuel tank
