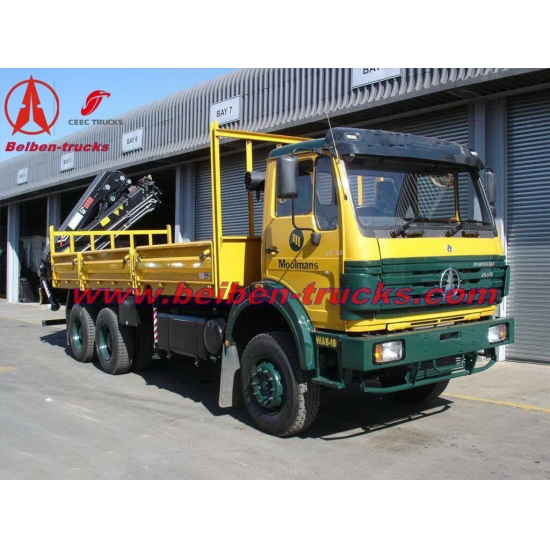

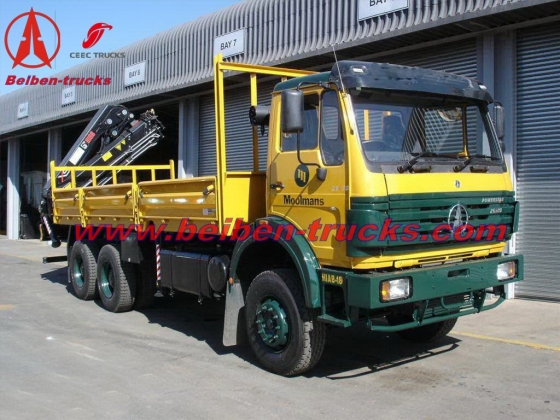

Beiben 16 T knuckle boom crane truck

2538PZ /6×4/5650+1450/Long Cab/LHD

Dimension 尺寸

11586*2500*3340mm

Upper body inner dimension

9400x2300x500 thickness: side 2mm, bottom 3mm

Approaching angle/Departure angle

26/19°

Overhang(front/rear)

1410/3076mm

Wheel base

5650+1450mm

Max speed

90km/h

Curb weight

11470kg

Loading capacity

13400kg

Slope climbing capability

Max.40%

Engine

Model

WP10.375，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

247/2200 (kw/rpm)

Max.torque

1350/1200-1600（Nm/rpm）

Emission stantard

EuroⅢ

Fuel tanker capacity

400L

Clutch

∮430, Single dry frictional disc，Hydraulic boosting

Gearbox

9JS180, mechanism,9 forward gears,1 reverse gear, manual operated,

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

TAS85,whole circulation in ball, hydraulic booster

Frame

Strengthened Streight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long cabin with single sleeper;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver;

With inner A/C
