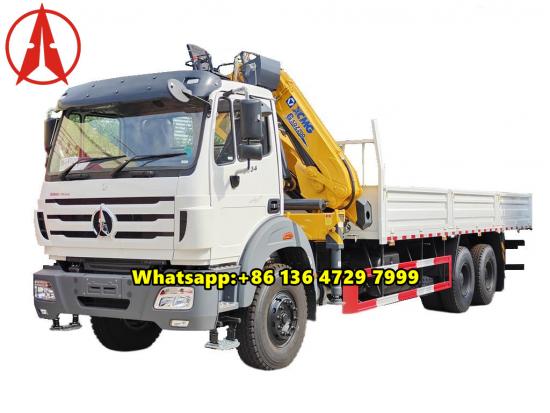

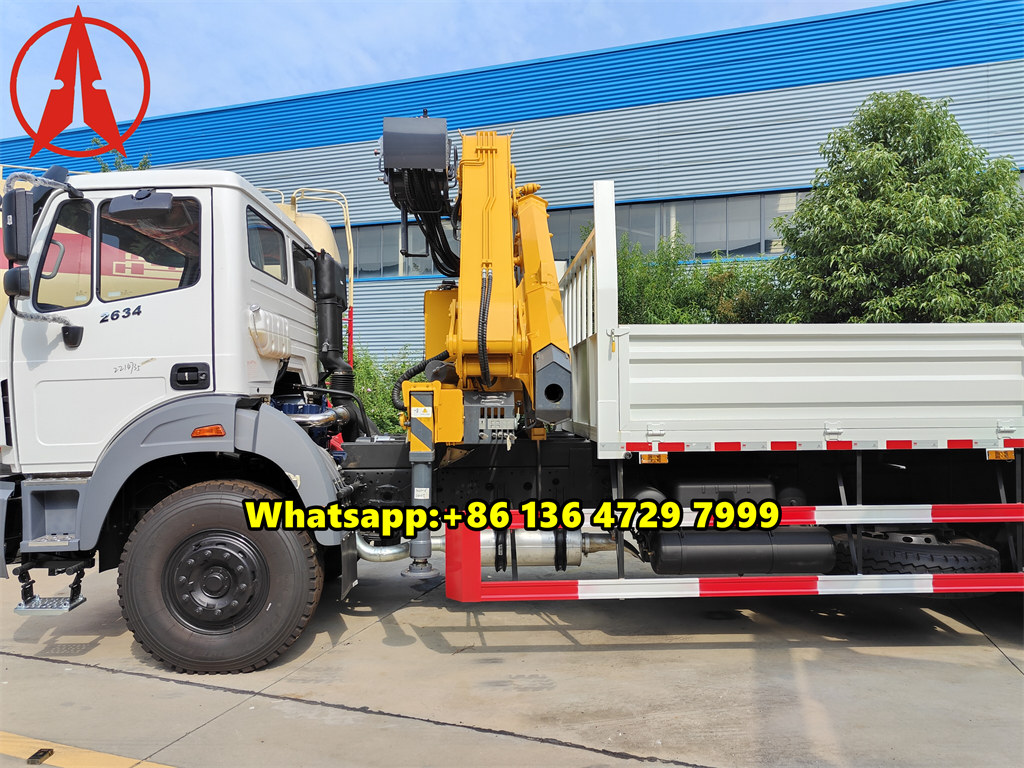

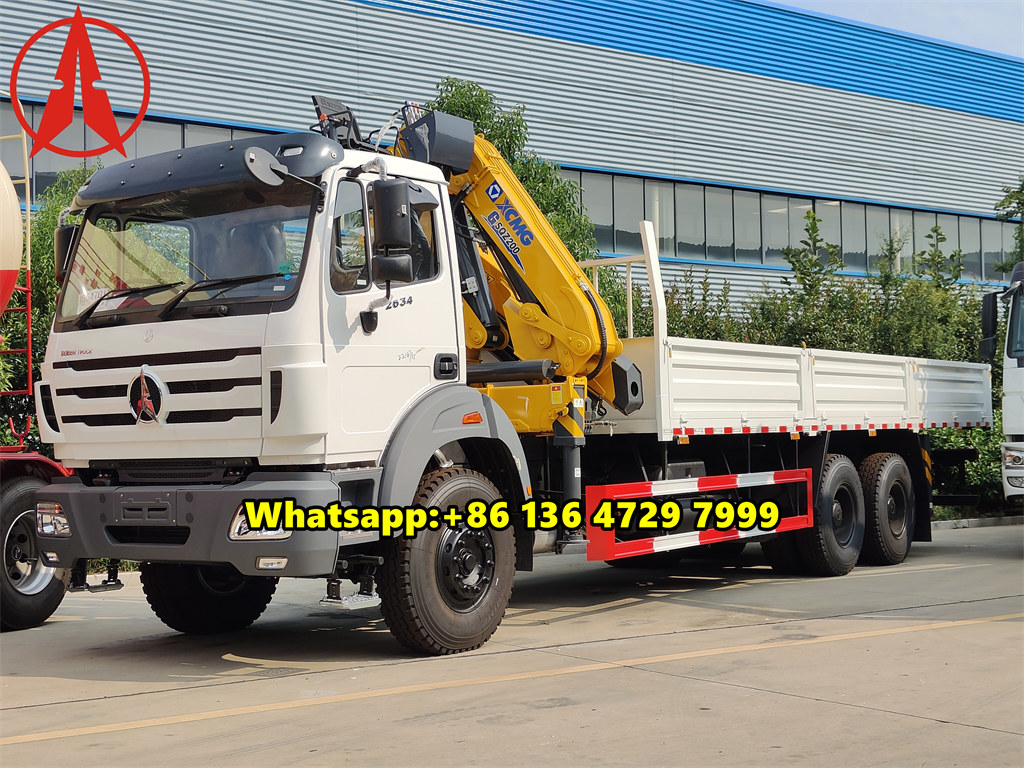

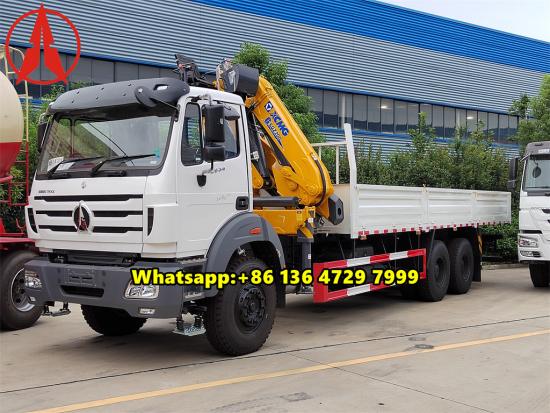

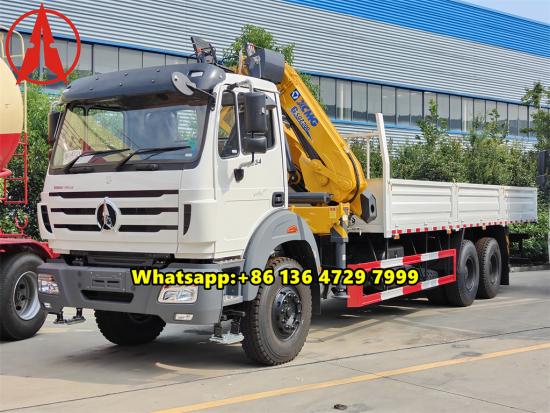

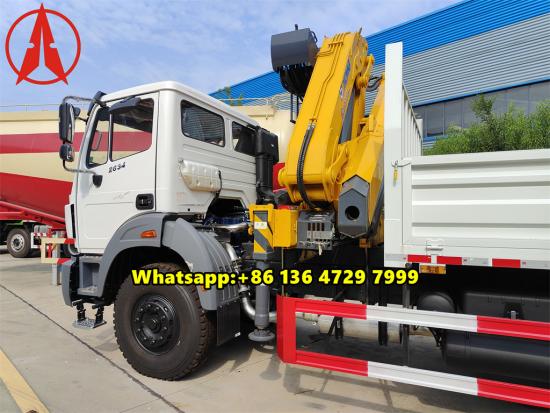

Beiben 2634 dropside cargo truck mounted XCMG 8tons crane
The BEIBEN 6x4 truck-mounted SQZ200 folding arm boom crane, manufactured by CEEC TRUCK, represents a pinnacle of engineering excellence in the realm of heavy-duty lifting equipment. Built on the robust north benz 2634 truck chassis, renowned for its durability and reliability, this crane is folding arm model and boasts an 6x4 drive type, ensuring superior traction and mobility across varied terrains, making it an ideal choice for demanding industrial applications. Powering this formidable machine is the WP10.340E32 engine model, delivering an impressive 340HP of raw power. This potent engine not only ensures efficient operation but also provides the necessary muscle to tackle challenging lifting tasks with ease.
BEIBEN 6x4 truck-mounted SQZ200 Boom crane stands as a testament to innovation and excellence in the realm of heavy lifting equipment. Combining robust construction, powerful performance, and advanced features, it sets a new standard for efficiency and productivity in industrial operations.
Production time:
45 daysPayment terms:
T/TWorking Capcity:
8 TonEngine power:
340HP, WP10.340E32Drive system:
6x4Beiben 2634 truck crane transporter is a special transport vehicle equipped with a truck crane, mainly used for self-loading and unloading of goods. The Beiben crane truck is also called North Benz truck mounted crane, Beiben crane truck, Beiben truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional cargo truck crane supplier in China, we can manufacture the crane boom is from 2 ton to 160 ton. The drive type of our Beiben truck crane for sale are 4x2, 4x4, 6x4, 6x6, 8x4, 8x8, etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be different brand crane, CEEC crane, Palfinger crane, UNIC crane, XCMG crane, etc
Truck crane transporter, referred to as Beiben truck crane, is a device that uses a hydraulic lifting and telescopic system to achieve the lifting, rotation and lifting of goods, usually installed on a truck. Beiben 2634 boom truck mounted crane transporter specifically refers to the truck crane transporter model using Beiben chassis.The North Benz 2634 crane truck transporters can be divided into three types according to chassis differences: single-vehicle type, semi-trailer type and semi-trailer tractor type. Beiben 2634 truck crane transporter is a type of single-vehicle truck crane transporter.
| BEIBEN 6x6 truck mounted 8Ton telescopic boom crane | |||
| Emission Standard | EUR 3 | ||
| Chassis model | ND5250GGSA | ||
| Driving Type | 6×4 | ||
| Dimensions | |||
| Wheelbase(mm) | 5050+1450 | ||
| Overall Dimension(mm) | 9200×2500×3458 | ||
| Cargo box dimension(mm) | 6000x2300x800 | ||
| Weight parameters | |||
| GVW(kg) | 25,000kgs | ||
| Curb weight(kg) | 12,450kgs | ||
| Real load weight(kg) | 12,150kgs | ||
| Chassis parameter | |||
| Front axle | 7 Ton front axle load capacity, Double shoe disc air break | ||
| Rear/middle axle | 18Ton/axle (2 axle combined) Dual-circuit air braking system,driving axle,ductalloy axle cover with wheel side reducer |
||
| Front axle span(mm) | 1940 | ||
| Rear axle span(mm) | 1847/1847 | ||
| Front/rear overhang(mm) | 1410/2530 | ||
| Approach angle(°) | 34 | ||
| Departure angle(°) | 24 | ||
| Max speed(km/h) | 80 | ||
| Suspension | Leaf spring suspension | ||
| Engine performance | |||
| Engine model | WP10.340(From WEICHAI engine) | ||
| Engine type | Straight in-line,6 cylinders,4 strokes,water-cooling Turbo charge with inter-cooling,diesel engine |
||
| No. of cylinders | Straight-6 cylinders | ||
| Displacement(L) | 9.726L | ||
| Max. Output (KW) | 250kw (340hp) | ||
| Fuel type | Diesel | ||
| Max. output (kw/Ps/rpm) | 250kw(340ps)/2200 rpm | ||
| Max torque/Speed(N.m/rpm) | 1250 N.m/1400-1600rpm | ||
| Tire specification | 12.00R20,total 6 units off-road tire+1 spare tire | ||
| Drive Line | |||
| Clutch description | ¢430,dry single plate, hydraulic control booster,mechanical operation with hydraulic assistance |
||
| Transmission | FAST 9 forwarder, 2 reverse gear, synchronous meshing,manual | ||
| Braking system | Service brake:Brake gap can be adjusted automatically double circulation air brake system Assistant brake:WEVB(Engine exhaust brake) Park brake:Spring brake effect to middle and rear tires |
||
| Suspension system | |||
| Front axle | Semi-elliptic leaf springs shock absorbers | ||
| Rear axle | Torsion bar semi-elliptic leaf springs | ||
| Electrical Equipment | |||
| Voltage | 24V | ||
| Batteries | 2X12V/135Ah | ||
| Starter | 6.2Kw/24V | ||

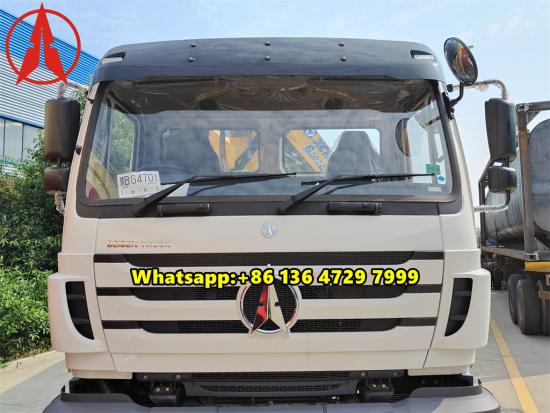

| Cab description | |||
| NG80 short cab,cooling and heating air-conditioner,all steel bumper With FM,AM radio player,with manual windows |
|||
Chassis: The chassis of the Beiben brand is used, which is famous for its strong load-bearing capacity and good stability, providing solid support for the truck crane.

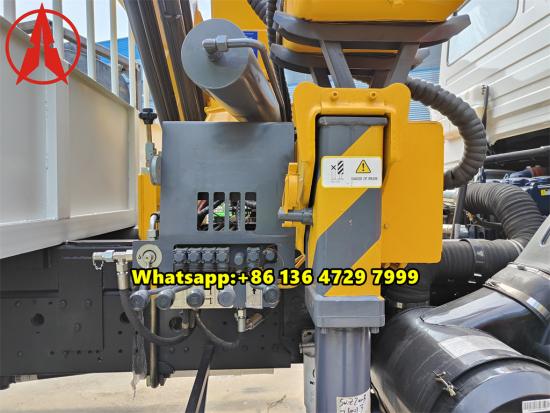

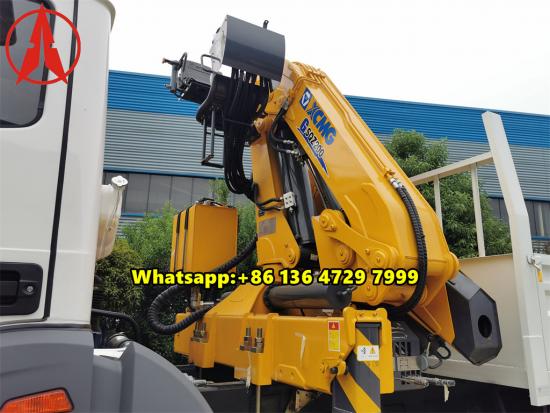

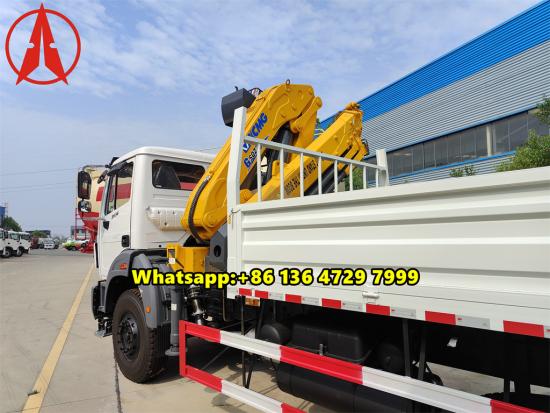

Truck crane: As an upper component, the truck crane (truck crane) is the core part of the Beiben 2634 truck crane transporter, which is used to realize the lifting, lifting and rotation of goods. Truck cranes can be divided into straight arm type and folding arm type according to type, and cranes of different tonnages meet the lifting needs of different weights.
Power take-off: used to obtain power from the chassis engine to drive the truck crane to work.

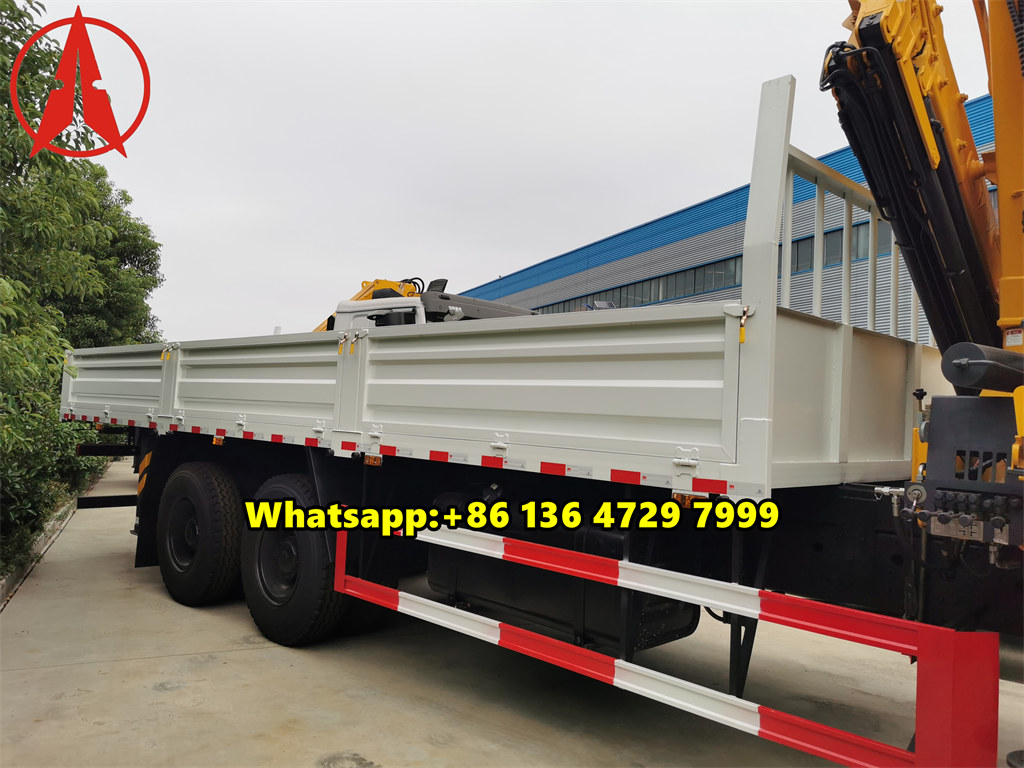

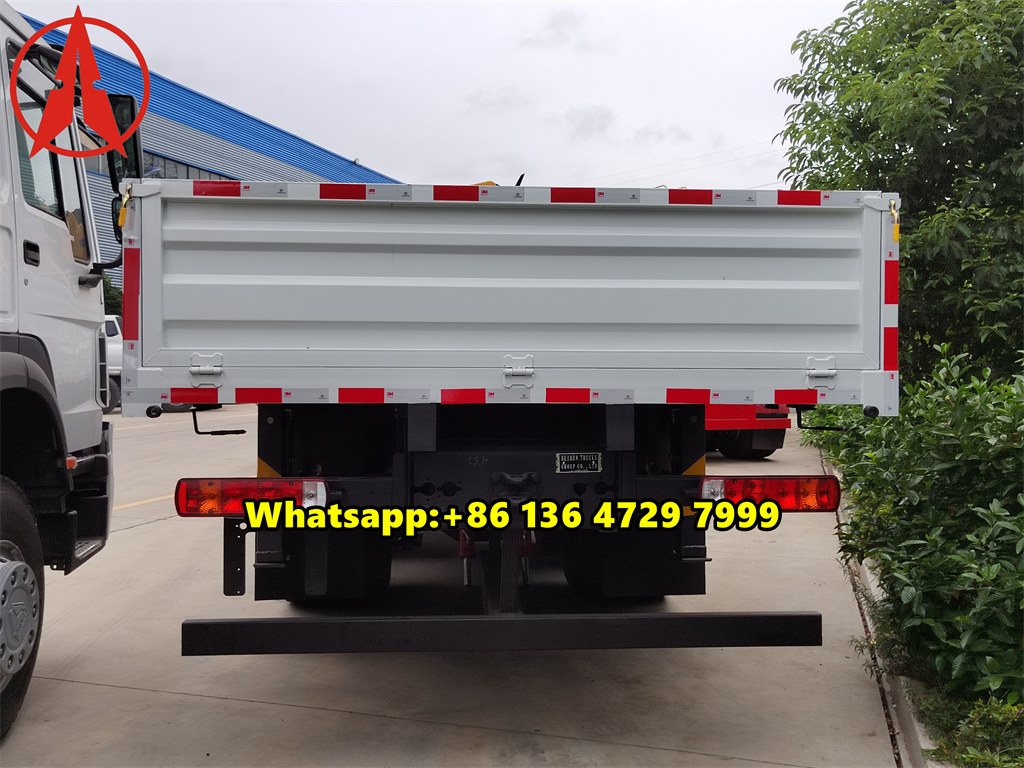

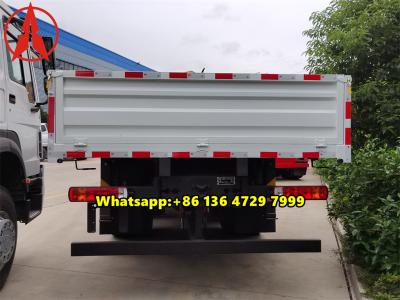

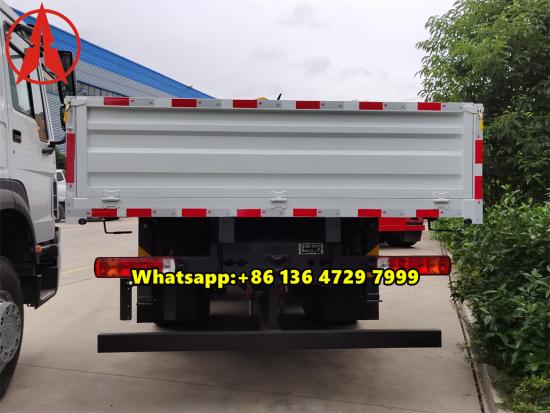

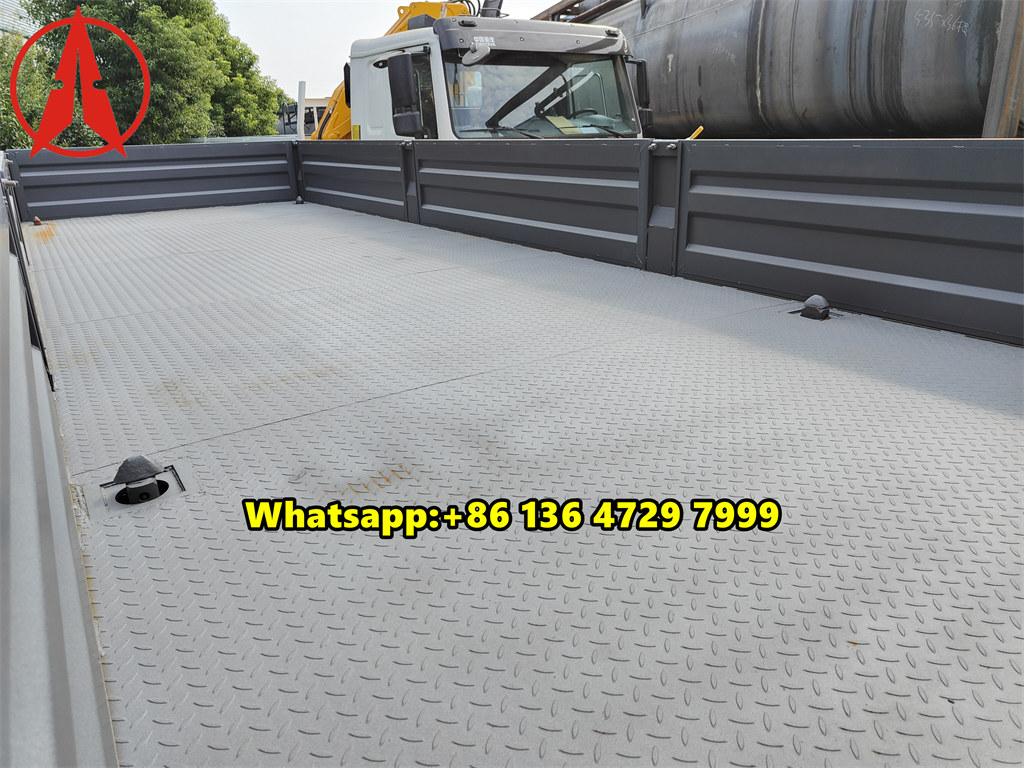

Cargo compartment: Cargo compartments of different lengths can be configured according to needs for loading goods.
The specifications of 10Ton folding arm boom crane specifications
| 10Ton knuckle boom crane specifications | ||
| This type of crane have many advantage than others.The main character of this crane is high speed,and strong grade ability,etc. Crane arm can lift rapidly ,operate easily,high efficient and energy conservation ability. This 10Ton crane is folding boom crane,model:SQ10ZK3Q,with 4 section booms.It can rotation at 360 degree.It with 2 units telescopic all hydraulic support landing gear which guarantee the stability and reliability when at working status |
||
| Crane model | SQ10ZK3Q(4 booms) | Unit |
| Max lifting capacity | 10000 | kg |
| Max lifting moment | 20 | T.M |
| Recommend power | 28 | kw |
| Max Oil Flow of Hydraulic System | 40 | L/min |
| Max Pressure of Hydraulic system | 28 | Mpa |
| Oil Tank Capacity | 140 | L |
| Rotation Angle | All rotation | |
| Crane Weight | 3477 | kg |
| Installation Space | 1150 | mm |
| Max lifting height(m) | 12.5 | m |
| Max.working radius(m) | 9.755 | m |
| Work radius(m) 2.00m 4.17m 5.99m 7.87m 9.75m | ||
| Lifting capacity(kg) 10000kg 4600kg 3050kg 2280kg 1700kg | ||
Performance characteristics for North Benz 340HP crane truck:
Good maneuverability: Beiben 2634 truck crane transporter combines transportation and lifting functions in one, with strong maneuverability and rapid transfer.
High lifting efficiency: Through the hydraulic lifting and telescopic system, the goods can be lifted quickly and accurately, improving the working efficiency.
Wide range of applications: widely used in many fields such as construction, railways, ships, forestry, aerospace, electricity, fire protection, sanitation, measurement, obstacle removal and rescue, and national defense.
Beiben 2634 truck crane transport vehicle is a special vehicle that integrates transportation and lifting functions. It has good mobility, high lifting efficiency, and a wide range of applications. And widely used for transporting, unloading and lifting various construction materials, such as steel bars, concrete, bricks, etc.
Road construction: plays an important role in dismantling and installing roads, moving equipment, lifting bridges, etc.
Logistics warehousing: transporting packages and large goods with heavy weight to improve transportation efficiency and safety.
16ton Beiben truck mounted crane manufacturer, best quality beiben 16 T crane trucks manufacturer.
Beiben 16 T knuckle boom crane truck , with china beiben 6*4 right hand drive chassis,with customer required colour, hiab 8 T crane.
Beiben 2534 wheel drive fuel tanker truck, produced base on china north benz 6*6 wheel drive 340 Hp engine truck chassis, with beiben military truck technology, fast 9 shift transmission.
Model: ND4251B34J7 Traction type: 6x4 Driving type: Left hand drive Cabin: Mercedes Benz (double Sleeper), with A/C, electric window lift. Engine brand: Weichai EURO III Engine model: WP12.480 Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling Displacement: 11.6 liters Max. Output: 480hp@2200rpm Max torque: 1970NM@1200-1600rpm Bore/Stroke (mm):126/155
Beiben 20 CBM water tanker truck with right hand steering system, the most professional beiben RHD water tanker, fuel tanker, dump truck tractor truck for kenya, tanzania and other east africa customers.
Condition: New Horsepower: 351 - 450hp Drive Wheel: 6x4 Transmission Type: Manual Emission Standard: Euro 3 Engine Capacity: > 8L Fuel Type: Diesel Brand Name: Mercedes Benz Size: 7050X2495X3340 Gross Vehicle Weight: 40000 Model: 6x4 Tractor Truck Engine Model: WP10.340NE32 Gear box: FAST FULLER(recommendation), ZF 8098, Clutch: 430 Diaphragm type Tyre: Bias/Radial TYRE 315/80R22.5 / 12.00R20

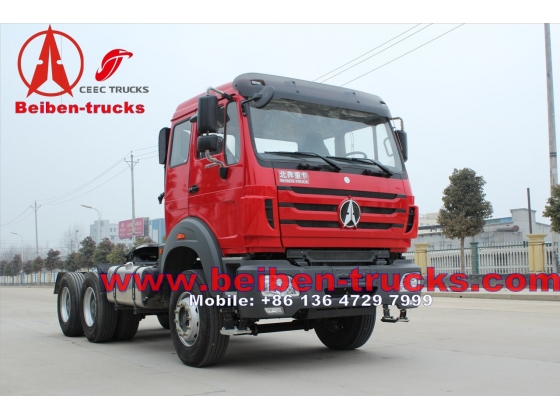

Beiben V3 tractor truck 2642S,420 hp engine, benz technology.
North BENZ BEIBEN 420hp tractor truck & prime mover 3.480hp WEICHAI engine 4.FAST transmission 5.Military axles

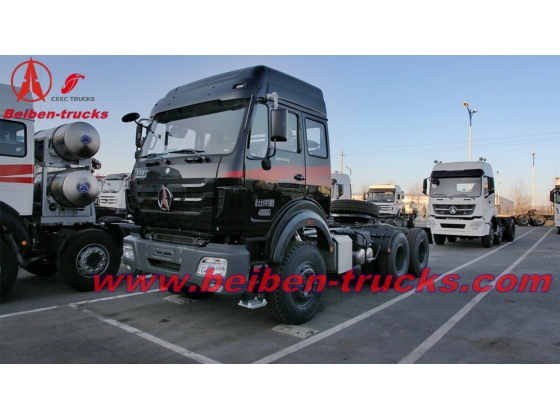

beiben V3 cabin 1840 tractor truck,400 hp weichai diesel engine, Right hand drive system, Beiben latest V3 cabin, Germany actros benz technology 7 T front axle, 16 T double rear axle, 12.00R20 tyre, ZF8098 steering system. Hot sale in kenya, tanzania, ghana, algeria, nigeria, ethopia.
