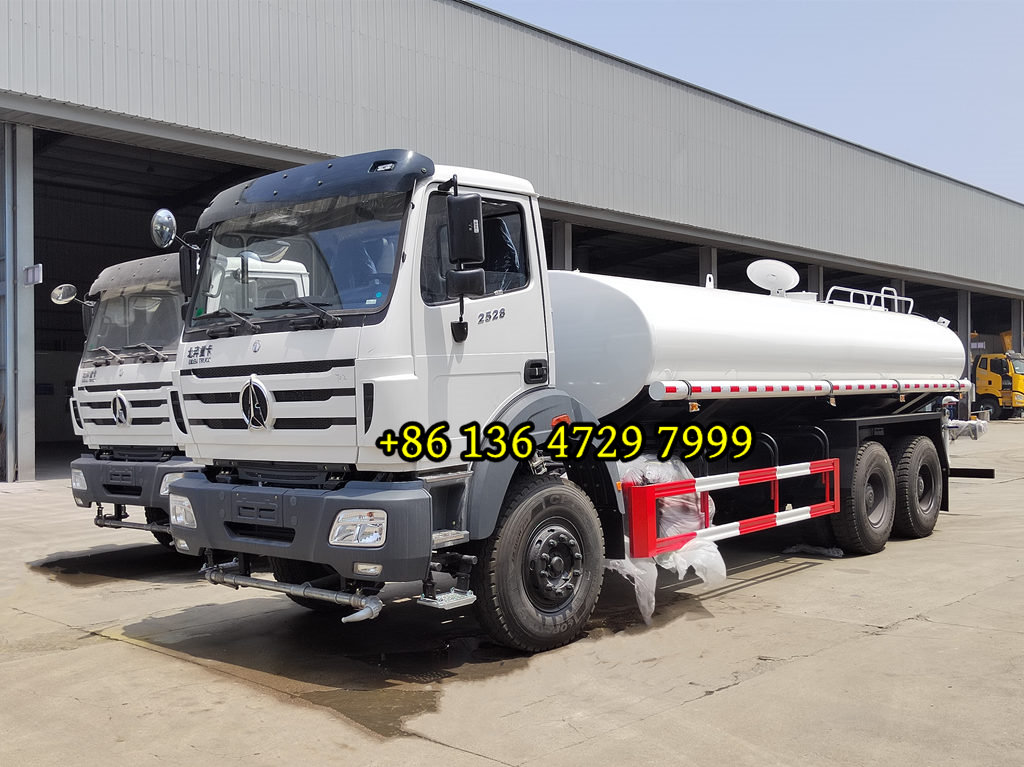

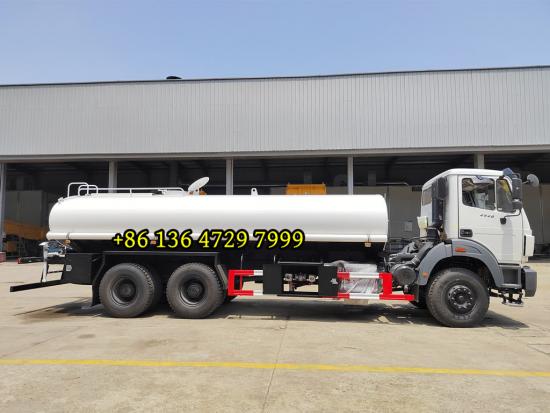

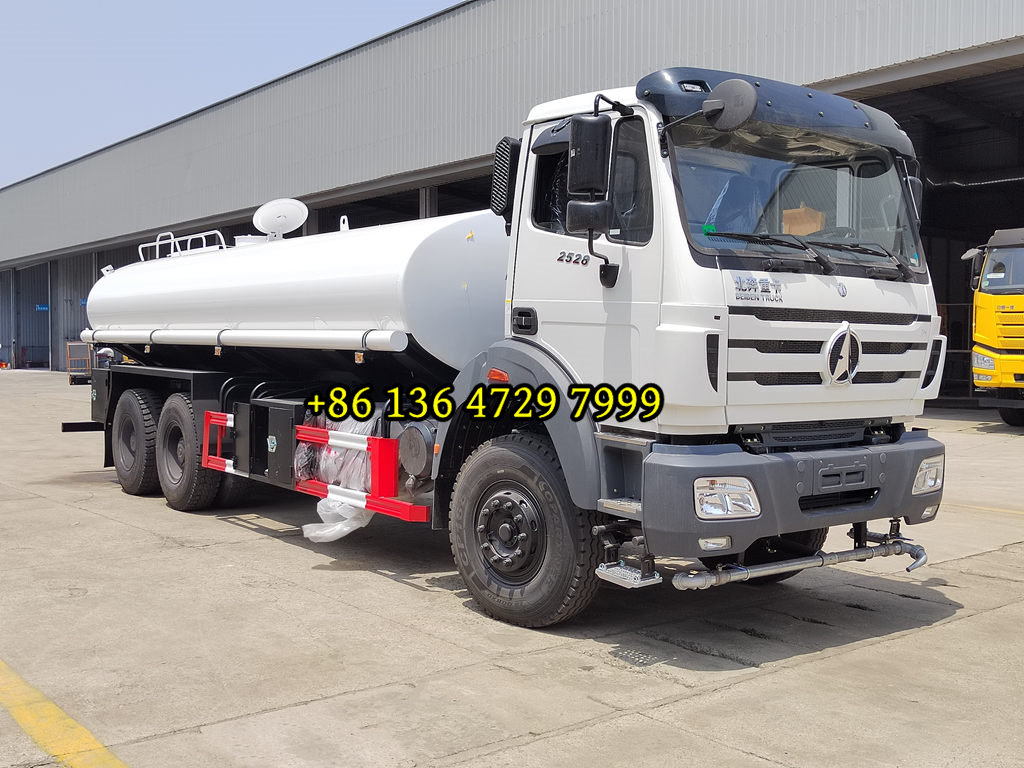

Beiben 2528 15cbm sprinkler truck is a highly efficient sprinkler model with a large-capacity water tank of 15cbm, which can meet the needs of large-area sprinkler. It adopts Beiben 2528 chassis, with strong and stable power, smooth and reliable driving. The key point is the sprinkler system equipped, which can accurately control the water flow and spraying range to ensure uniform and detailed sprinkler effect. Beiben water tanker truck is suitable for various road washing, green belts, roads, factories and mines construction.
Order(MOQ):
1Payment:
T/TProduct Origin:
China BeibenColor:
White; orange, red, yellow is optionalShipping Port:
Shanghai, Qingdao, DalianLead Time:
30 daysProduct Description
Beiben 2528 water tanker truck is also called spray truck, water tanker, water truck. Beiben water tanker truck is suitable for various road washing, green belts, roads, factory and mine construction, and high-altitude building washing. It has functions such as water sprinkling, dust suppression, high and low-position spraying, pesticide spraying, and guardrail washing.
Beiben 2528 water sprinkler truck can also be equipped with special sprayers to achieve front fush, rear sprinkle, side spray, to sprinkle and clean the roads, streets for environmental sanitation and protection, called as water sprinkler, With rear working platform and high cannon.

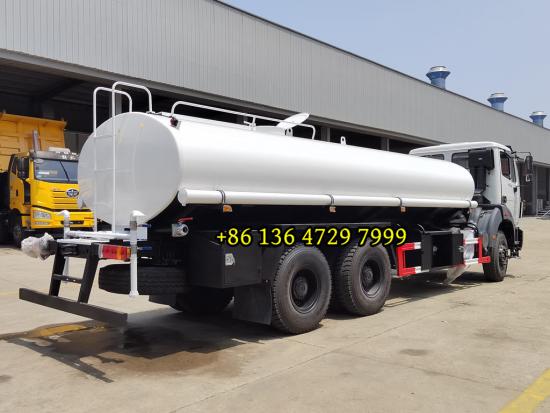

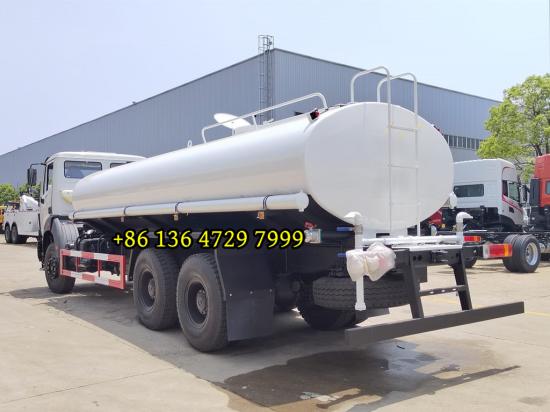

Our products are equipped with front flushing, rear sprinkling, side spraying and rear mounted working platforms as standard. The platform is equipped with high-pressure water cannon (360 ° rotation, which can be adjusted into column shape, with a maximum range of 35m, or fog shape, with a maximum range of 15m, or even direct flushing, heavy rain, moderate rain, light rain and drizzle).

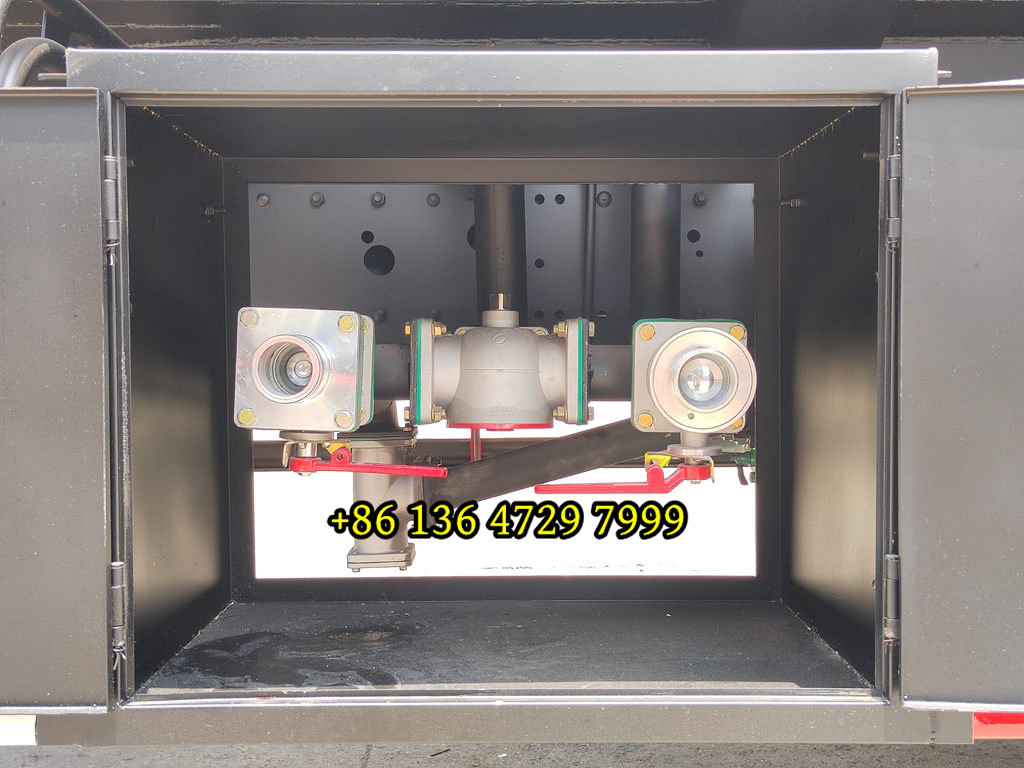

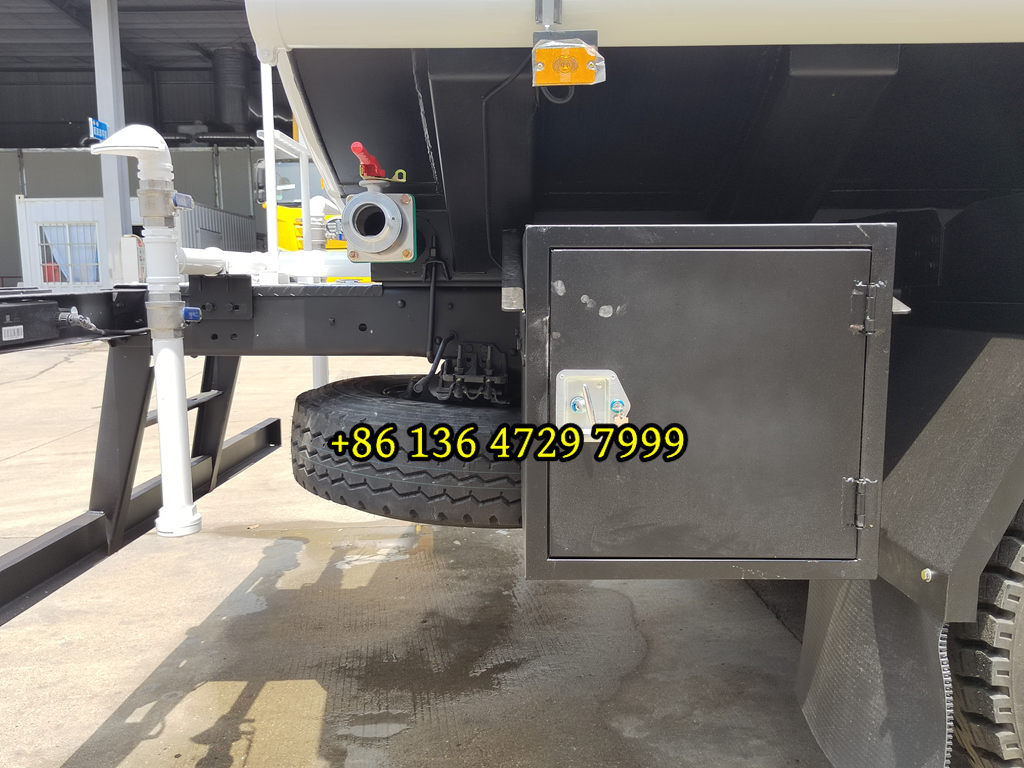

It is equipped with high-quality and high-power special sprinkler pump, power takeoff and sundry filter screen, National standard general 65 type fire fighting interface (water can be added through fire hydrant), a set of self flow ball valve system (self suction and self discharge, water can be pumped from the river or pond to the tank, with a maximum suction lift of 7m), and two water diversion steel wire rubber pipes. The water pump, power take-off, ball valve and filter screen are all national standard products. The main pipeline is thickened, the flange pad and flange plate are thickened, 10000 forward rush and large diameter ball valve. The whole has the characteristics of excellent performance, safety and reliability, high efficiency, large flow and convenient maintenance.
|
Required Technical Specification |
||
|
Basic parameter
|
Model |
2528 / 6×4 |
|
Length×width×height(mm) |
9700x2450x3150 |
|
|
Wheel-base(mm) |
4450+1450 |
|
|
Curb weight(kg) |
9800 |
|
|
Engine parameter
|
Max. Power (HP/rpm) |
280-430 |
|
Max. Torque(Nm/rpm) |
2060/1000～1400 |
|
|
Displacement(lit) |
10L |
|
|
Fuel tank capacity |
400L Al oil tanker |
|
|
Transmission system
|
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical 16JS200T, 16 forward gear, 2 reverse, manual； |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster； |
|
Brake system
|
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake |
|
|
Assisted brake |
Engine exhaust brake |
|
|
Chassis parameter
|
Frame |
Variable width and section 317×70×8.5+7 mm； |
|
Front axle |
7.5T, Non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.263； |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 13/13 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab
|
V3 Long Cabin High roof. Exterior trimming: Road bumper, three steps, outer sun visor, front under-ride bumper, rear view mirror (Electric)，color bar |
|
|
Interior trimming: Air suspension seat, double bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter，back-up alarm, power mirror, curtain, air horn |
||
|
Tank Body |
|
|
Water Tanker Capcity |
15000L |
|
Pump style |
Self-priming centrifugal pump |
|
Tanker body material |
Q235B carbon steel |
|
Water Tank Thickness |
5mm-6mm |
|
Shape of tank |
Elliptic |
|
Spraying Width |
>14 M |
|
Water cannon range |
≥28m |
|
Suction height |
≥6m |
|
Compartment No. |
1(Can be divided according to customer requirements) |
|
Baffle |
1 No,4 mm carbon steel |
|
Standard Configuration |

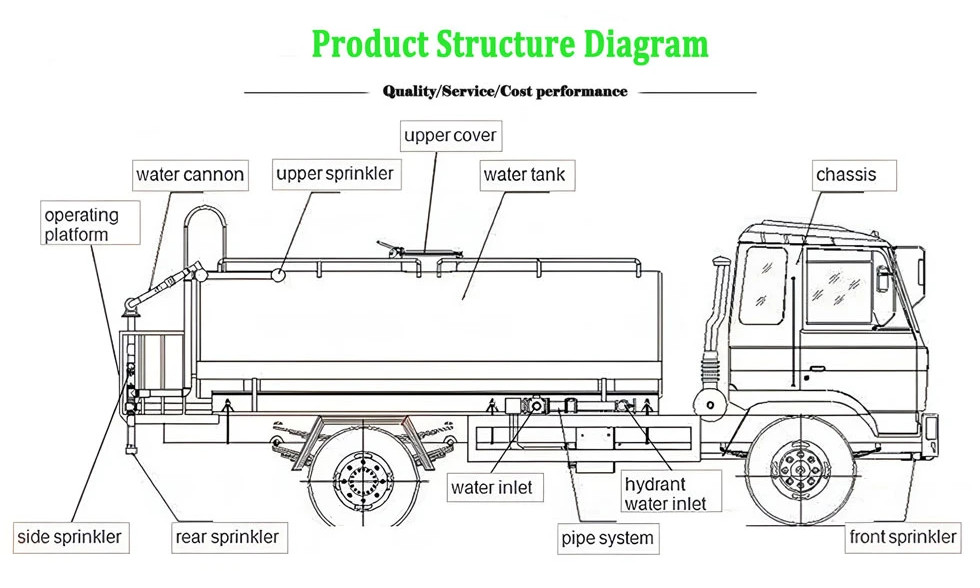

Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.Seat Belts,Side Door Lock Mirror, Heavy-duty Air Compressor,Front Shaft Stabilizer,Room Lamp Key Lock Fuel Tank Cap,Bottom Mounted Spare Wheel Carrier, Halogen Headlamps, Radiator Protector. |
|
Selective Configuration |
Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump,fire pump,fire gun,pesticide plate,cabin gas control operated,Honda pumps,lights,crane,hanging basket,rear spraying device,barrel pesticide spraying device,gasoline pesticide machine,diesel pesticide machine,LED arrow lights. |
|
Water pump |
Water pump model: CLW80QZF-60/90N |
|
Water pump flow rate(L/m): 60m3/h |
|
|
Head of delivery(m): 90m |
|
|
Self-priming function(min/4m):1.5 |
|
|
Efficiency(%):95% |
|
