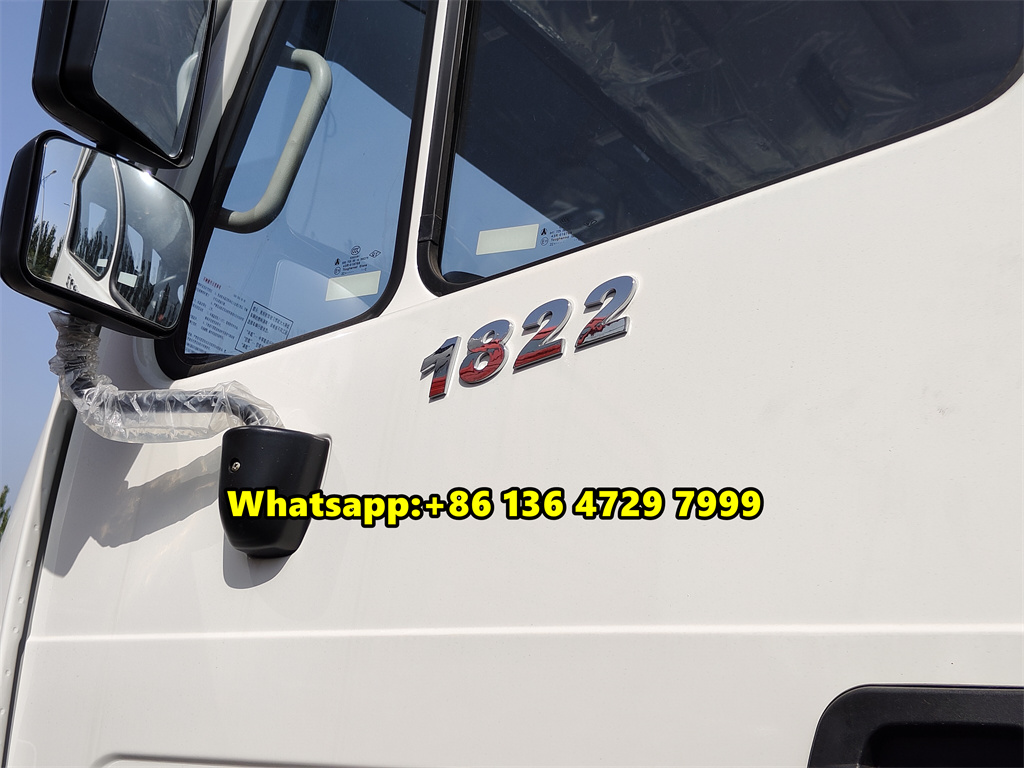

Beiben 4x4 truck chassis is world widely know as Beiben 1822 cargo truck, Beiben 1929 cargo truck. Drive mode 4x4 means four-wheel full drive, which is suitable for use environments that require strong off-road performance and stability. The Beiben 4x4 offroad type of chassis is usually equipped with a high-performance engine WEICHAI diesel type and transmission system FAST brand, as well as good load-bearing capacity with Mercedes Benz technology 7.5tons front axle and 13tons rear axle, and durability to meet the transportation needs of long-distance, heavy-loaded and harsh road conditions. Beiben cargo trucks can customize the chassis according to customer needs, including wheelbase, number of tires, engine model, etc., to meet the specific needs of different customers. Specially Beiben NG80B cabin can be customized as any color as required.
Production time:
20-25daysPayment terms:
TTWorking Capcity:
12-15 tonsEngine power:
220HPDrive system:
4x4Beiben 4x4 cargo truck chassis, Beiben 1822 cargo truck with its four-wheel all-drive, high performance and strong customization, meets the transportation needs of African customers in long-distance, heavy-load and harsh road conditions. At the same time, the advantages of Beiben trucks such as reasonable price, sufficient power, low fuel consumption, strong adaptability and reliable quality also make African customers more inclined to choose Beiben 4x2 truck, Beiben 4x4 truck, Beiben 6x4 truck, Beiben 6x6 truck, Beiben 8x8 truck as their means of transportation.

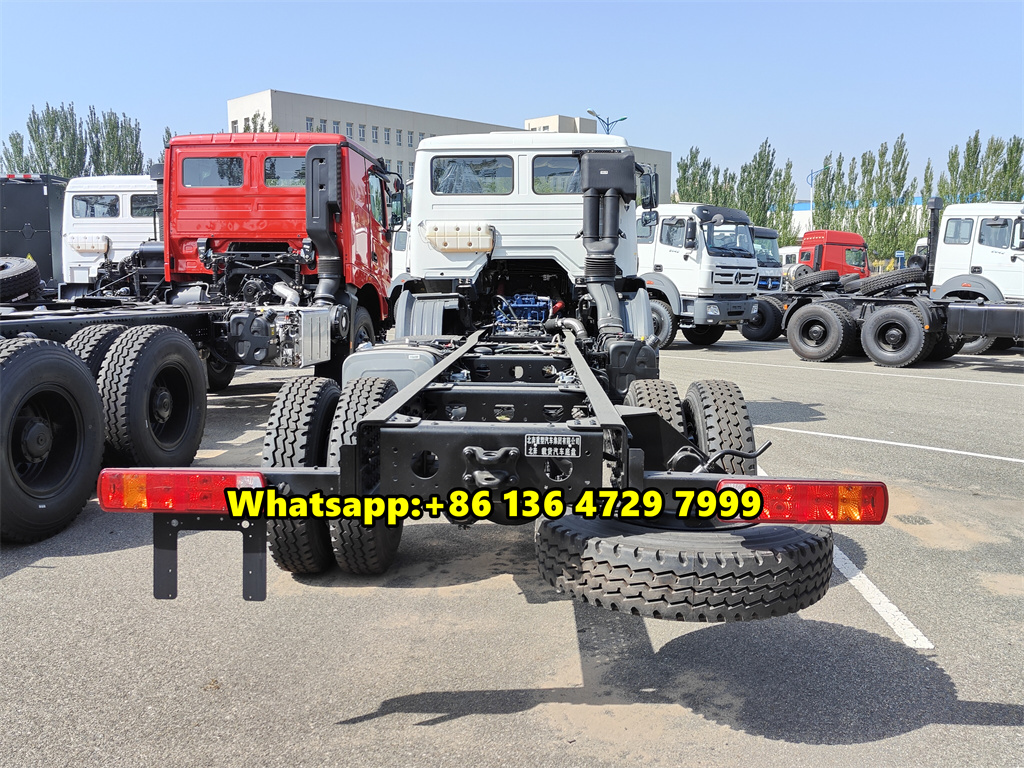

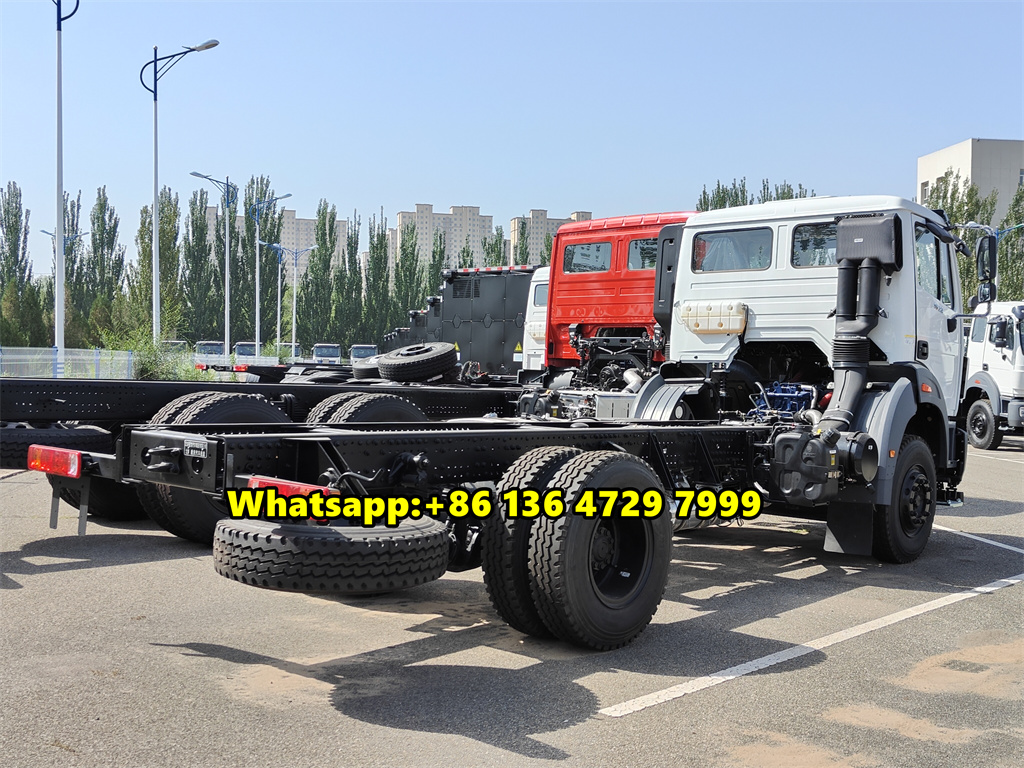

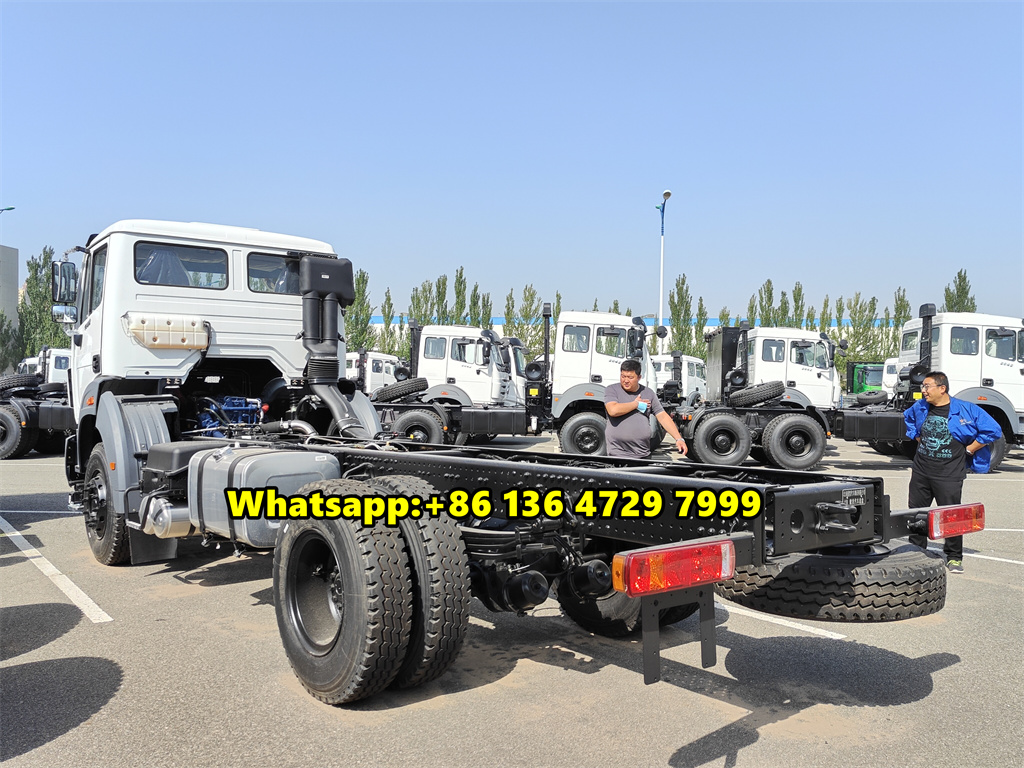

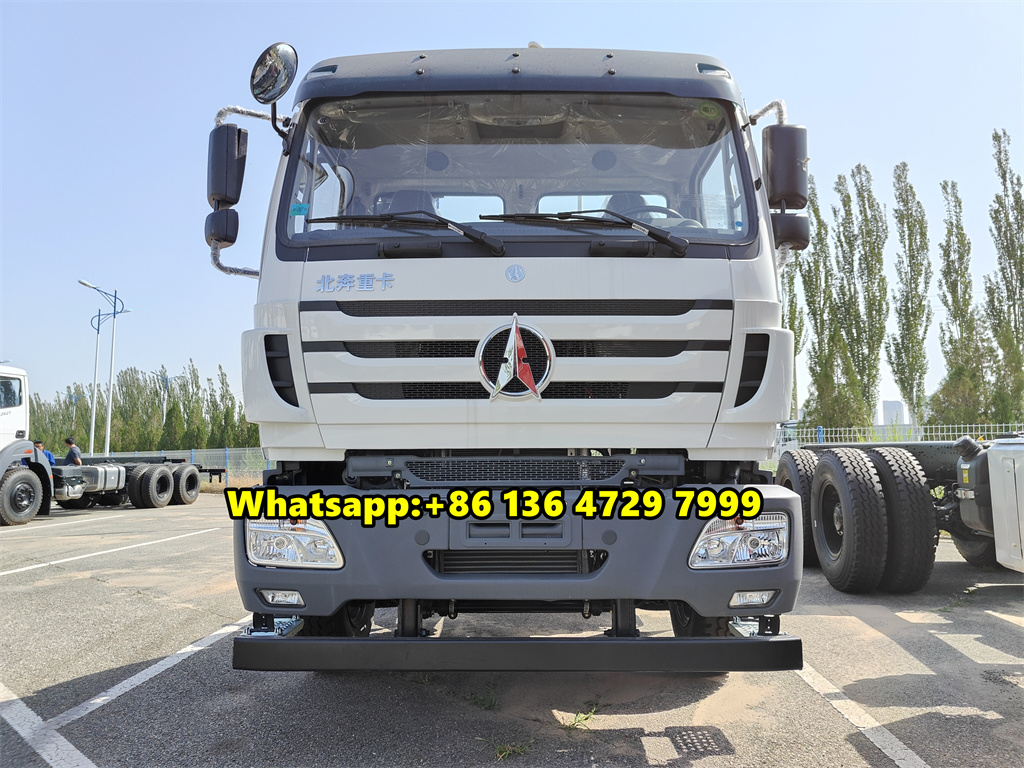

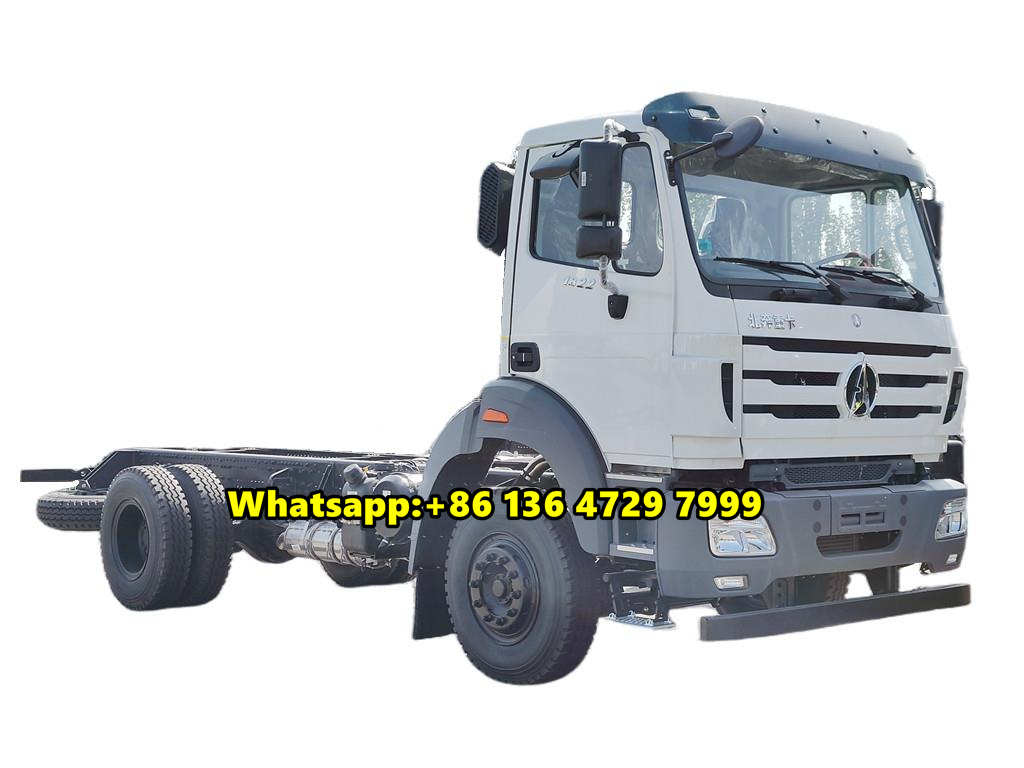

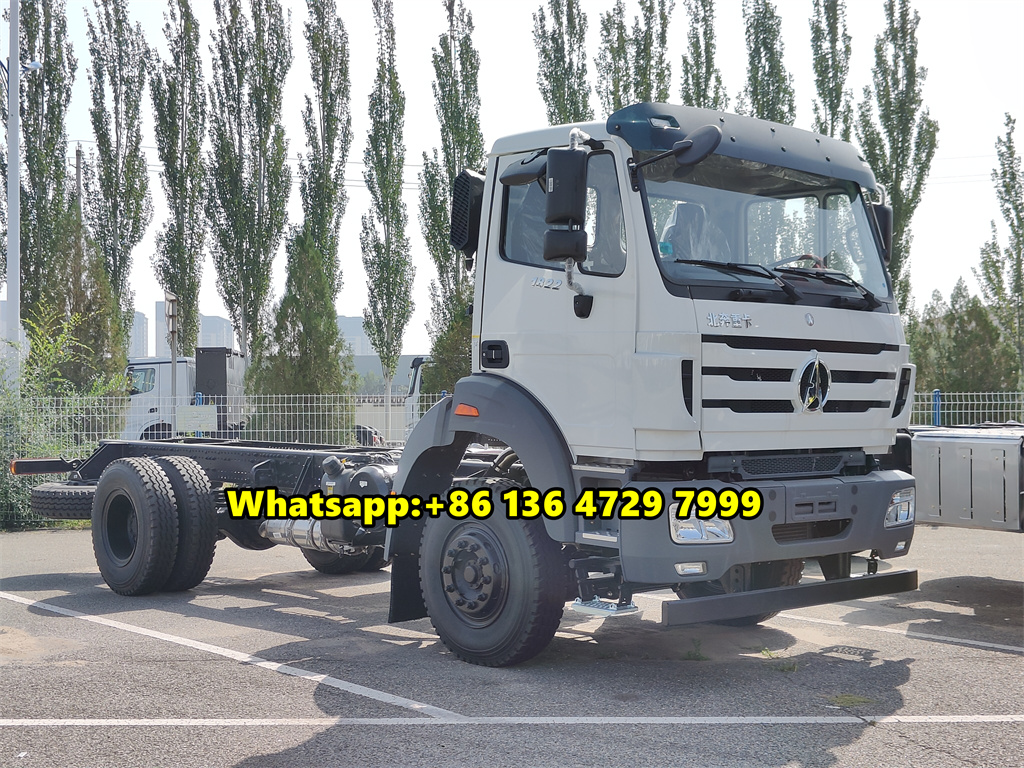

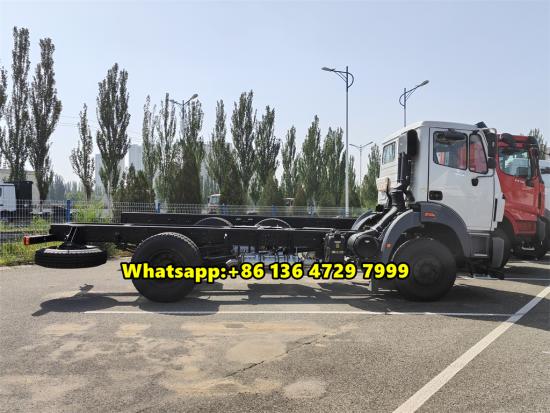

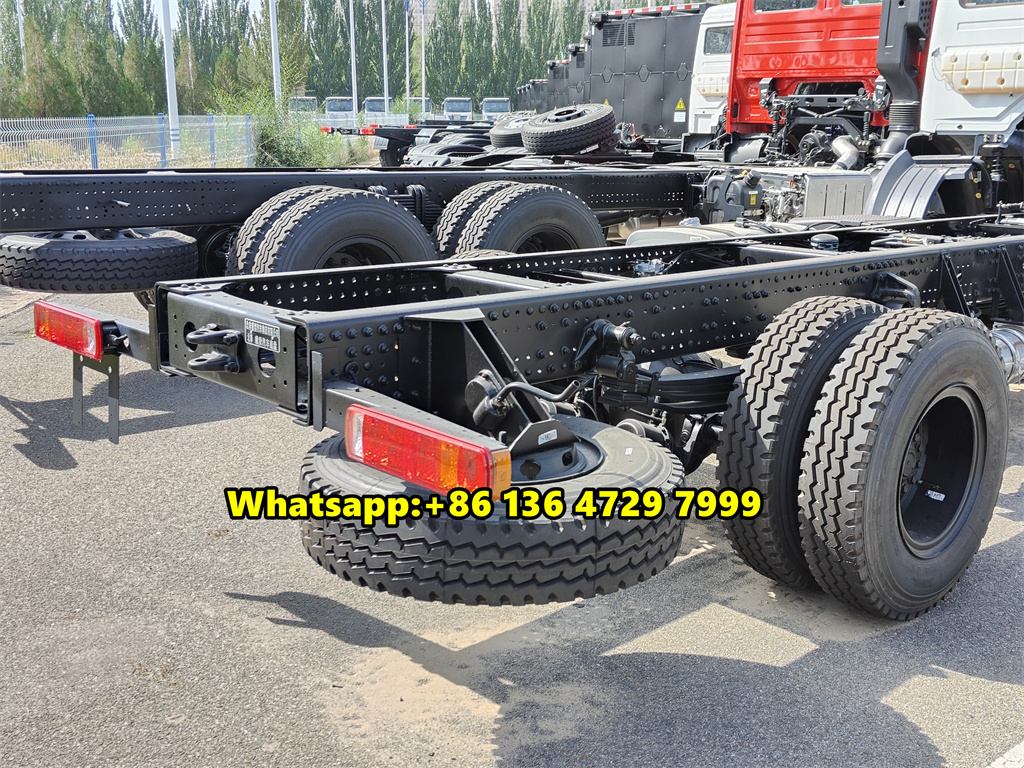

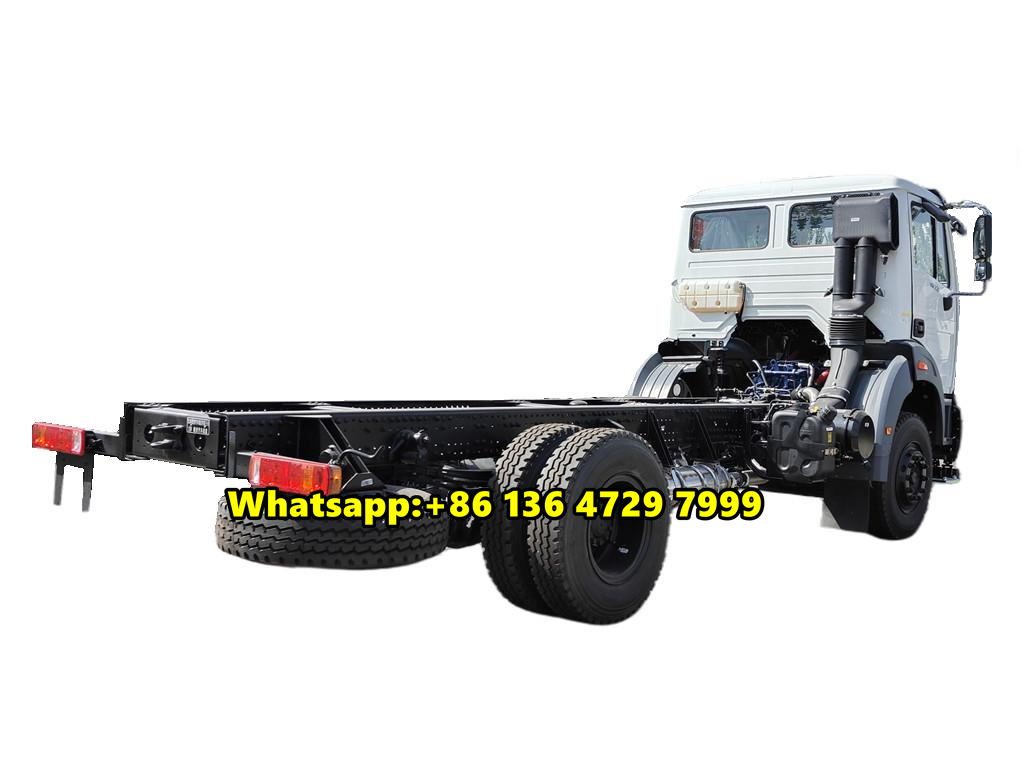

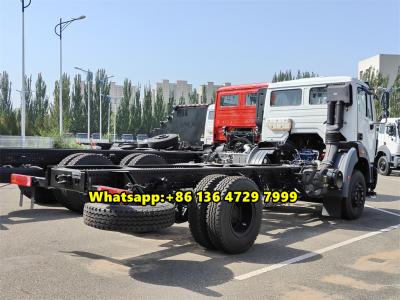

Beiben 4x4 offroad cargo truck chassis supply from www.beiben-trucks.com, the Beiben trucks equipped with China Top 1 WEICHAI 220HP diesel engine, international good quality FAST 9-shift manual gearbox with 9 forward and 1 reverse back, Beiben truck wheelbase 4600mm, with very strong truck chassis and the cross section is 317x70x8.5+7mm, and overall dimension 7790x2500x3200mm, Classical NG80B white cabin with ZF8098 steering system. Beiben military 4x4 offroad truck chassis with Mercedes Benz technology, and front axle 7tons and rear axle 13tons, the durable quality double reduction with speed ration 5.263. Mounted with 12.00R24 radial tires and totally 7 pcs, which is much higher and very suitable for rough road in Africa countries, such as DR Congo, Kenya, Tanzania, Ethiopia, Uganda, Angola, Zambia, Mozambique, Rwanda, Gabon, Zimbabwe, Nigeria, Cameroon, etc.
|
Engine Model:
|
Weichai WP10.220E32
|
Engine Brand:
|
Weichai
|
|
Engine Commonly Known By:
|
Weichai WP10
|
Number of cylinders:
|
6 cylinders
|
|
Fuel Type:
|
diesel fuel
|
Cylinder arrangement:
|
In-line
|
|
Displacement:
|
9.726L
|
Emission Standards:
|
China 3
|
|
Maximum output power:
|
220HP
|
Maximum horsepower:
|
220 hp
|
|
Maximum torque:
|
1390N·m
|
Maximum Torque Speed:
|
1200-1500RPM
|
|
Rated speed:
|
1900RPM
|
Engine type:
|
Water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercoolant
|
|
Cargo box form:
|
Steeplechase type
|
Cargo length:
|
6.23 meters
|
|
Cargo box width:
|
2.3 meters
|
Cargo box height:
|
0.6 meters
|
|
Cab:
|
Flattened
|
Number of passengers:
|
2 people
|
|
Number of seats:
|
Row in half
|
|
|
|
Transmission model:
|
Fast 9JS150A
|
Transmission brand:
|
Fast Priest
|
|
Gear Shifting Method:
|
Manual
|
Forward gear:
|
9 gears
|
|
Number of reverses:
|
1 pc
|
|
|
|
Fuel Tank Material:
|
Aluminum alloy
|
Fuel Tank Capacity:
|
300L
|
|
Front axle description:
|
7 tons
|
Permissible load on the front axle:
|
6000KG
|
|
Rear axle description:
|
13 tons of double reduction bridge
|
Permissible load on rear axle:
|
10000KG
|
|
Ratio:
|
5.263
|
Number of springs:
|
10/8+6
|
|
Tire Specifications:
|
12.00R20
|
Number of tires:
|
6 pcs
|
|
Announcement Model:
|
ND2163E48J
|
Type:
|
Trucks
|
|
Drive type:
|
4X4
|
Wheelbase:
|
4800mm
|
|
Box length level:
|
6.2 meters
|
Motor:
|
Weichai WP10.300E40
|
|
Gearbox:
|
Fast 9JS150A
|
Rear axle ratio:
|
5.263
|
|
Body length:
|
8.82 meters
|
Body width:
|
2.5 meters
|
|
Vehicle Height:
|
3.34 meters
|
Front track:
|
1990mm
|
|
Rear track:
|
1800mm
|
Vehicle weight:
|
7.92 tons
|
|
Rated load:
|
7.95 tons
|
Total mass:
|
16 tons
|
|
Maximum speed:
|
90KM/h
|
Origin:
|
Shandong |
|
Tonnage Class:
|
Heavy trucks
|
Driving license:
|
A1,A2,B2
|
|
Approach Angle:
|
32 degrees
|
Departure Corner:
|
23 degrees
|
|
Market Segments:
|
Transportation of building materials, transportation of agricultural and sideline products
|
Front/rear overhang:
|
1.41/2.61 meters
|
|
Fuel Type:
|
diesel fuel
|
|
|
