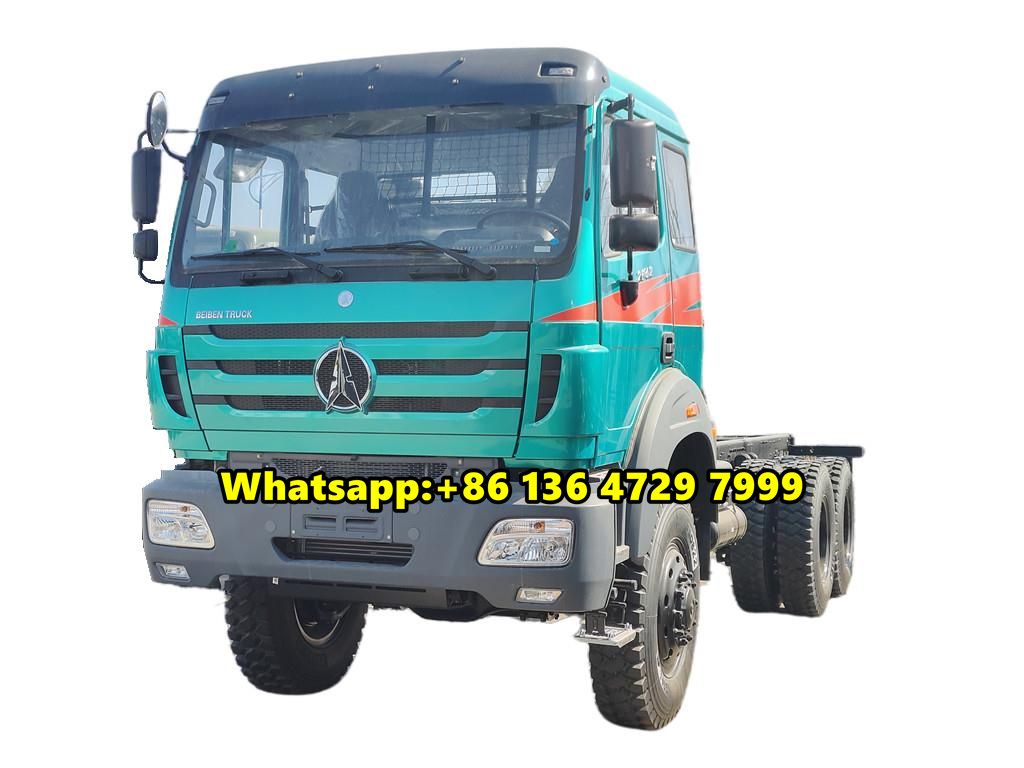

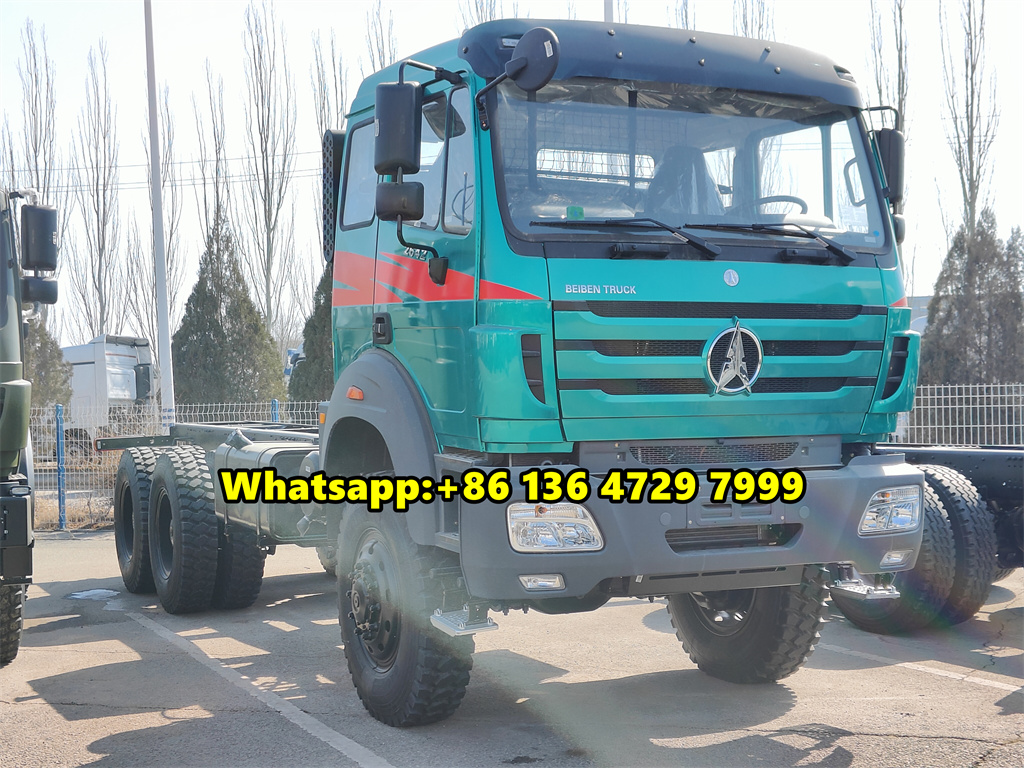

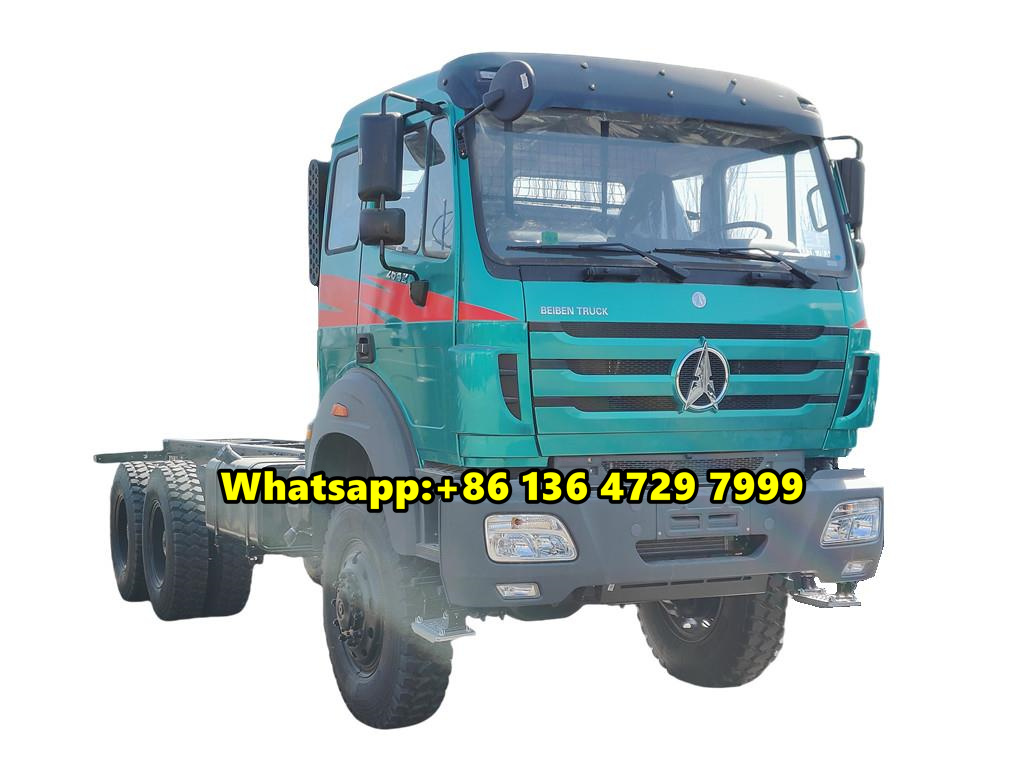

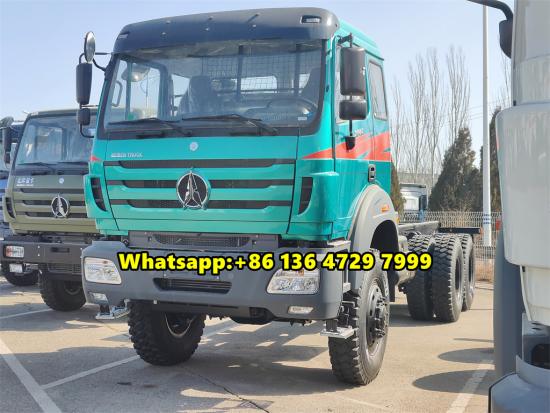

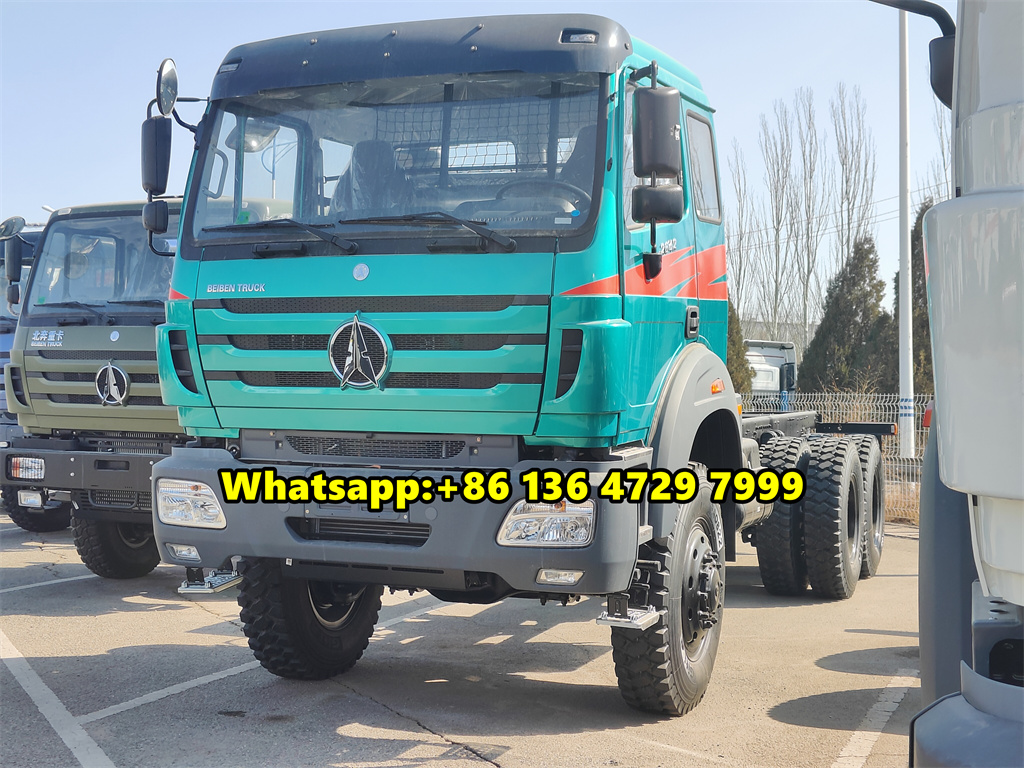

Beiben 6x6 offroad cargo truck chassis supply from us, the Beiben trucks equipped with Top 1 WEICHAI WP12.420E32 diesel engine, which have 420HP and 15681cc emission, international good quality FAST 12-shift manual gearbox with 12 forward and 2 reverse back, Beiben truck wheelbase 4450+1450mm, with very strong truck chassis and the cross section is 317x70x8.5+7mm, and overall dimension 9500x2500x3200mm, Classical NG80B cabin with ZF8098 steering system. Beiben military 6x6 offroad truck chassis with Mercedes Benz technology, and front axle 7tons and rear double axle 13tons, the durable quality double reduction with speed ration 5.263. Mounted with 12.00R24 radial tires, which is much higher and very suitable for rough road in Africa countries.
Production time:
30-35daysPayment terms:
TTWorking Capcity:
30-40 tonsEngine power:
420HPDrive system:
6x6Beiben AWD chassis is a high-performance chassis design, known for its unique all-wheel drive technology and excellent vehicle performance. Beiben 6x6 offroad cargo truck also know as Beiben 2642 cargo truck, Beiben offroad 6WD truck, Beiben 420HP cargo truck, Beiben 6x6 truck NG80 cabin. The following is a summary of Beiben AWD chassis:
All-wheel drive technology: Beiben AWD 6x6 offroad truck chassis adopts all-wheel drive (AWD) technology from Mercedes Benz technology to evenly transmit power to the four wheels of the vehicle through the front, rear and center differentials. This design ensures that the vehicle can obtain stable and strong power output under various road conditions.
Technical configuration: The Beiben offroad truck is equipped with advanced technologies such as parabolic variable stiffness leaf springs, maintenance-free design, and rubber balanced suspension bearings, making the chassis more durable and improving the comfort and handling of the vehicle.
Powerful power: The Beiben NG80 truck mounted with WEICHAI diesel engine, which used in the chassis has the characteristics of high power and low fuel consumption, which can provide a steady stream of power for the vehicle. The frame design adopts a heavy-duty variable-section I-type frame, the rear suspension is a non-equal height form, and a reinforcement plate is added to increase the force strength of the frame.
Global positioning: Beiben 2642 cargo truck takes European heavy trucks as a benchmark, and through lightweight design and comfort development, it achieves high efficiency, energy saving, environmental protection and safety of the vehicle. In terms of vehicle reliability, the chassis has strong advantages, long vehicle life and low failure rate.
Beiben 6x6 offroad cargo truck has become a representative of high performance and high reliability with its all-wheel drive technology, advanced configuration and global positioning, meeting the high requirements of modern vehicles for performance, comfort and safety.
CAMION 420hp 6x4 10 wheel high quality NG80B 6x6/2642 beiben cargo truck DRC CONGO Chassis specification
Driving type:6x6 LHD
Wheel base (mm) : 4450+1450
Fuel tank capacity: 400L

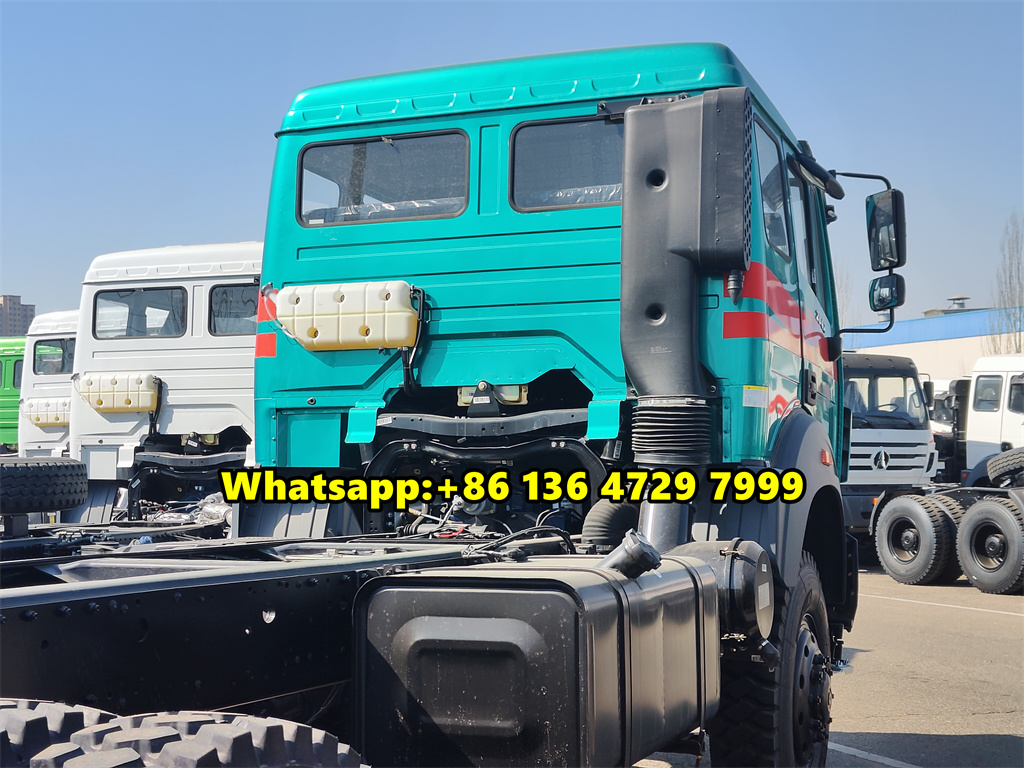

Cab

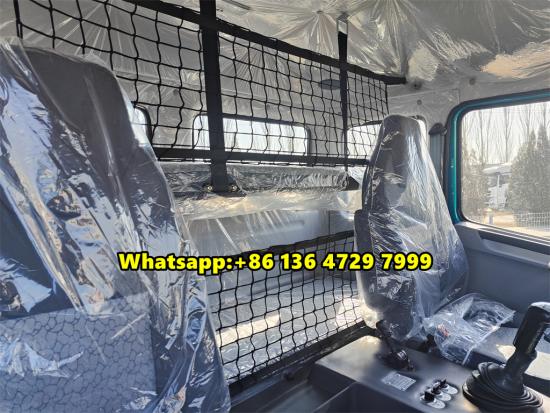

Tippable, two doors, Long cab with double sleeping berth, can be tippable forwardly, with Air condition.

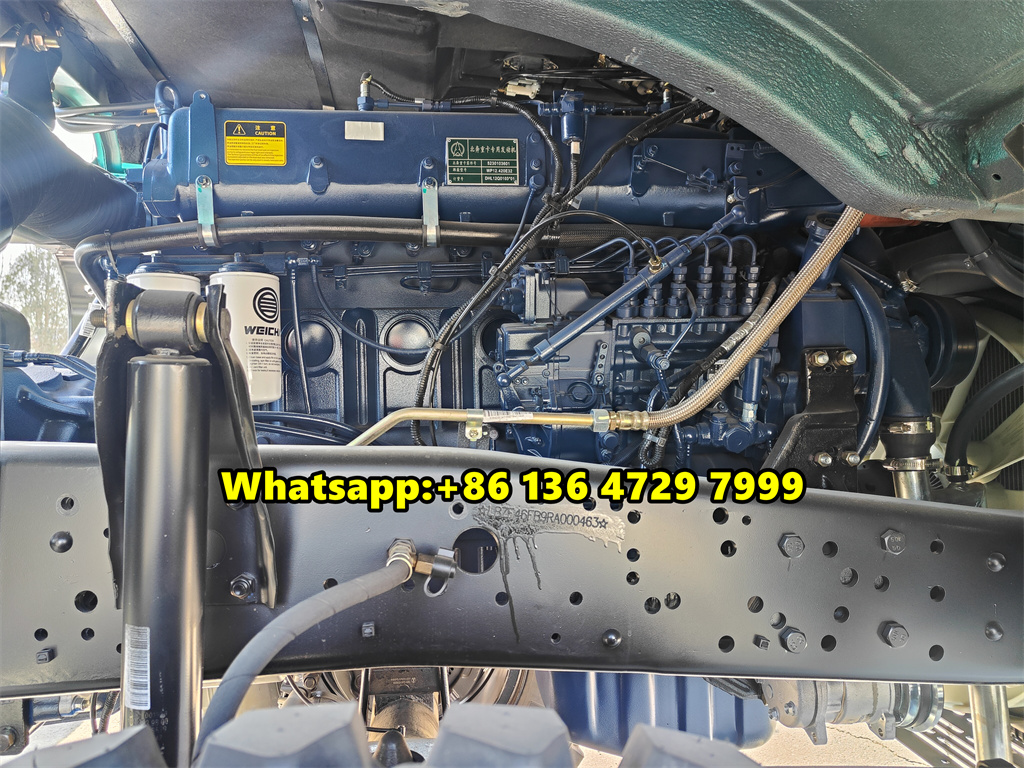

Engine
Engine model:WP12.420E32
12JS200T(With 12 forward gears,2 reverse gear)
Steering system
ZF8098

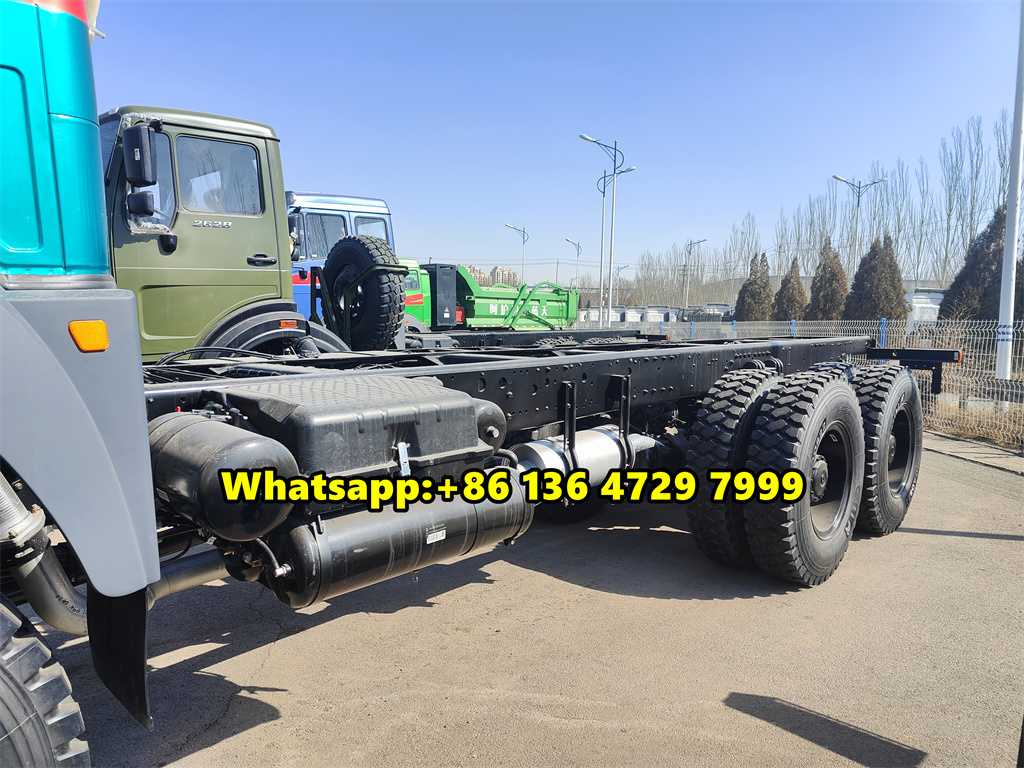

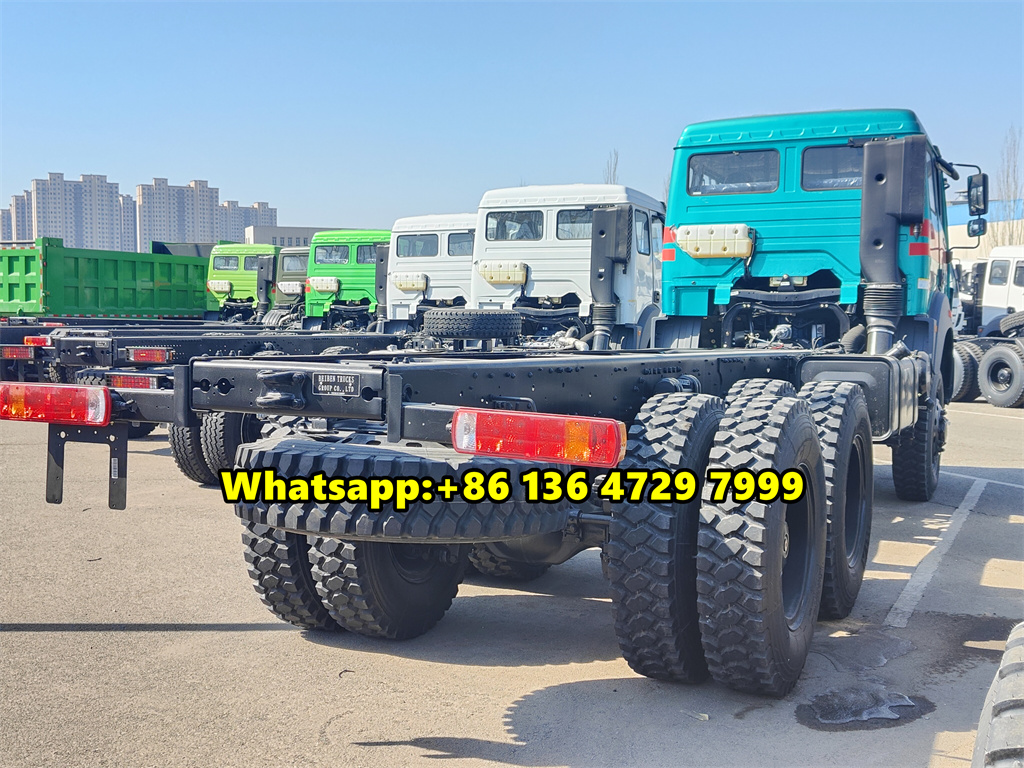

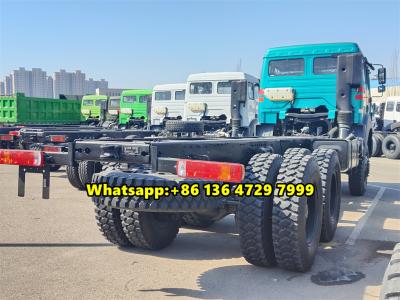

Frame of vehicle:fish belly shape, variable width, variable section side beam structure.
Brake system
Service brake: Dual-circuits air brake
Auxiliary brake: Exhaust braking
Parking brake:Hand manipulation , role in rear axle
Clutch:Φ430
Axles:
Front axle (Mercedes Benz Technology)
7.5ton Mercedes Benz technology pneumatic brake, non-driving steering axle

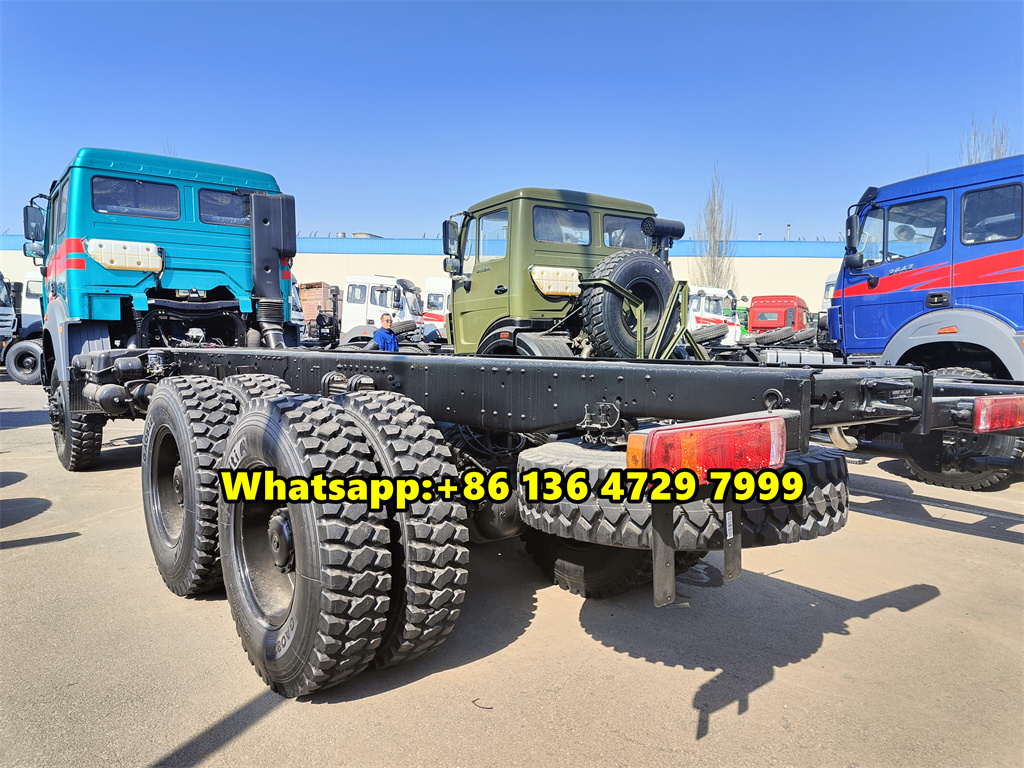

Middle and Rear axle (Mercedes Benz Technology)
13Tx2 Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Frame:317*70*8.5+7+12
Number of spring:13/13
Approach/Departure angle:26/64
Front/Rear overhang:1410/825
Tyre
12.00R24 (11units tire)
Dimension: 9800×2500×3480(mm)
Beiben 8*4 drive chassis, with benz NG80B cabin, 8*4 drive, benz 7 t double front axle, double 13 t rear axle with wheel reducer, 12.00R20 tyre. with CEEC TRUCKS latest bulk cement tanker technology.
The Beiben 2642 6×6 cargo chassis is equipped with a WP12.420E32 engine, boasting a maximum power of 309 kW (420 horsepower) and a maximum torque of 1750 Nm, while complying with EURO 3 emission standards. Featuring a fish-belly variable-width and variable-section frame design, with both front and rear axles utilizing Mercedes-Benz technology and a gear ratio of 5.263, it ensures stable driving under complex road conditions. The dual-circuit air brake system is equipped to guarantee driving safety. The interior design is humanized, with a full steel frame and double-layer steel plate for sound insulation, providing a spacious and comfortable driving environment.
The Beiben 2642 heavy duty off road truck is a powerhouse on wheels, designed to tackle the most challenging terrains with ease. With a massive 6x6 configuration and impressive ground clearance, this off road truck is built to conquer any off-road obstacle in its path. The Beiben 2642 is equipped with WP12.420 powerful engine that provides the necessary torque and 420 hP horsepower to conquer steep inclines, rocky surfaces, and uneven terrain without breaking a sweat. Its advanced 4 U-bolt spring suspension system and sturdy chassis ensure stability and control, allowing the driver to maneuver with confidence and precision.
The Russia Beiben 6x6 off-road cargo truck is also utilized for emergency and rescue operations in Russia. Its robust construction and high ground clearance allow it to navigate through disaster-stricken areas, such as floods, snowstorms, and rugged terrains, to provide essential aid and support to affected communities. The truck is equipped with various features, such as winches, towing capabilities, and cargo space, making it a versatile and reliable vehicle for emergency response teams. The truck is often used to transport heavy machinery, materials, and equipment to remote construction sites, mining operations, and oil and gas fields. Its rugged design and off-road capabilities make it an indispensable vehicle for industries that require reliable transportation solutions in harsh and remote locations.
The Congo Beiben 6 Wheeler Drive 2642 truck is an essential vehicle in the Democratic Republic of Congo for various purposes due to its durability, versatility, and reliability. This truck is known for its robust construction and powerful engine, making it suitable for navigating the challenging terrain and harsh conditions often encountered in the country. In the Democratic Republic of Congo, the Beiben 6 Wheeler Drive 2642 truck is widely used for transporting goods, materials, and supplies to remote and hard-to-reach areas. Its 6-wheel drive capability allows it to traverse rough and unpaved roads, ensuring that essential items can be delivered to communities in need.
The Congo Beiben 2642 AWD off-road truck is a robust and reliable vehicle specially designed for the rugged terrain and challenging conditions of the Democratic Republic of Congo. With its strong and durable construction, powerful engine, and advanced all-wheel-drive system, this truck is capable of conquering even the most difficult off-road obstacles. In the Congo, where infrastructure is often poor and traditional roads are scarce, the Beiben 2642 AWD off-road truck is an essential tool for transportation and logistics. Whether navigating muddy tracks, rocky paths, or dense forests, this vehicle is up to the task, providing reliable and efficient transportation of goods and people in the remote and hard-to-reach areas of the country.
The Beiben 2629 all wheel drive military truck is a highly versatile and robust vehicle designed to meet the demanding needs of military operations. With its powerful engine and all-wheel drive capability, this truck is capable of navigating through rough terrain and harsh environmental conditions with ease. The Beiben 2629 is equipped with a robust chassis and suspension system, allowing it to carry heavy loads and withstand the rigors of off-road driving. Its all-wheel drive system ensures maximum traction on various surfaces, making it an ideal choice for military missions in challenging environments.
The Beiben 2629 all wheel drive military truck is a off road heavy duty vehicle designed to meet the demanding needs of military operations. With its powerful WP10.290 diesel engine and military 6x6 off road drive capability, this beiben military all wheel drive truck is capable of navigating through rough terrain and harsh environmental conditions with ease. The Beiben 2629 is equipped with 6x6 drive chassis and 4 Ubolt suspension system,Fast 12JS200T transmission allowing it to carry heavy loads and withstand the rigors of off-road driving. Its benz technology all-wheel drive system ensures maximum traction on various surfaces, making it an ideal choice for military missions in challenging environments.
Beiben 6x6 offroad 290hp Cargo Truck Lorry Truck, classical NG80B truck Benz cabin, long cab with one sleeper, WEICHAI Brand new Model WP10.290E32 model 290hp diesel engine with 9726cc emission. Gear box is FAST brand with 9 speeds (9JS150). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Customized super Tyres model is 12.00R24 with 6+1 pcs, tire is higher and stonger and very suitable for tough road in DRC. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30.
