Order(MOQ):
1 6x4 drive, 440 Hp engine, 12 shift
transmission，ERU 3
GERMAN QUALITY DNA
Beiben trucks thanks to German and Mercedes Benz technology and heritage are manufactured to the highest international standards and the strictest military quality controls. Our prices are considerably lower than European, American and Asian competitors; including Mercedes Benz Actros sold in africa.
The decision to buy a truck takes into account many factors, but most important
is the confidence to deliver consistent service over many years with little
down time and expense, all while delivering excellent fuel mileage. Beiben is
the only Asian heavy duty truck company capable of providing the quality found
among European and American manufacturers. This is because Beiben is
actually a truck with German technology and heritage, but produced in Asia..
Beiben trucks are designed to support over 70% overload while traveling at
80km/h and at over 5,000 meters high. Beiben trucks and Mercedes Benz trucks
share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego
models. They both share familiar gearboxes - ZF and Fuller Fast. Beiben trucks
are offered with these engines - Mercedes Benz and Weichai WD615, WP10 and
WP12. They comply with Euro 2, 3 and 4; have displacements of 10 and 12 liters
and HP of 270 to 480. Bosch Common Rail injection, the Euro 2 with linear pump,
motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.
Construction, Mining and quarries, Liquid transport
Dry Bulk, Building Material, Waste
Agriculture, Freight
Plant
Hire, Military
|

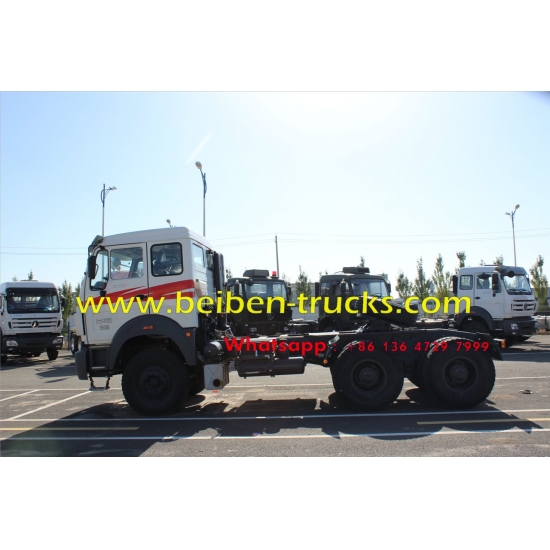

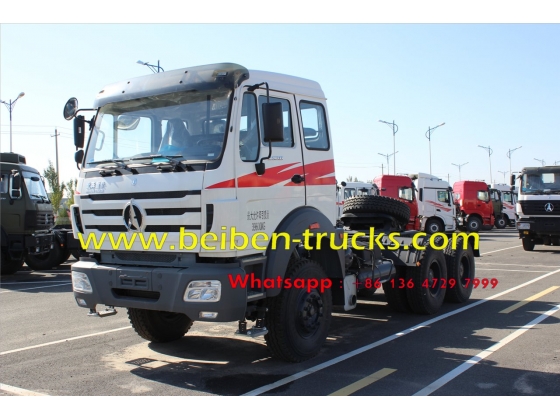

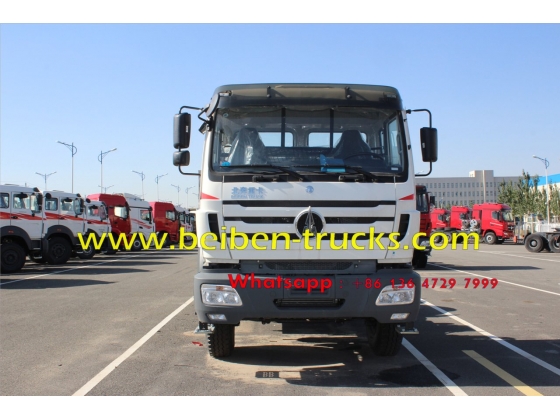

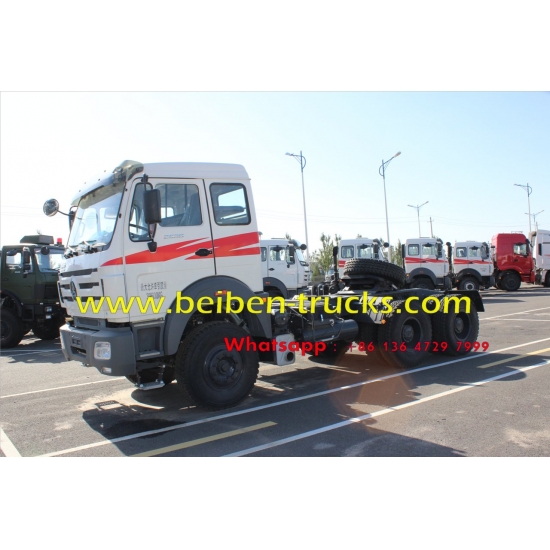

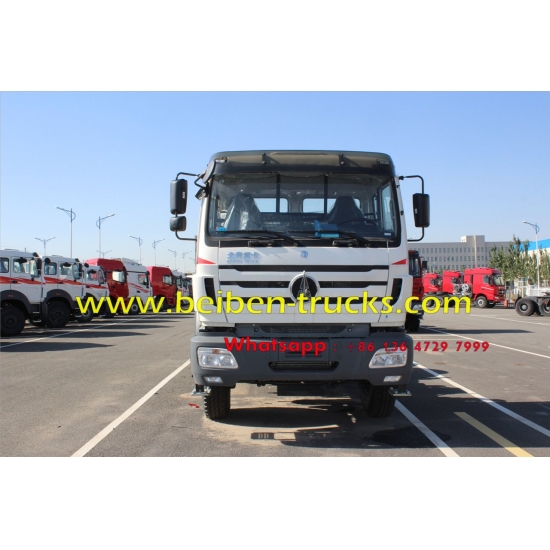

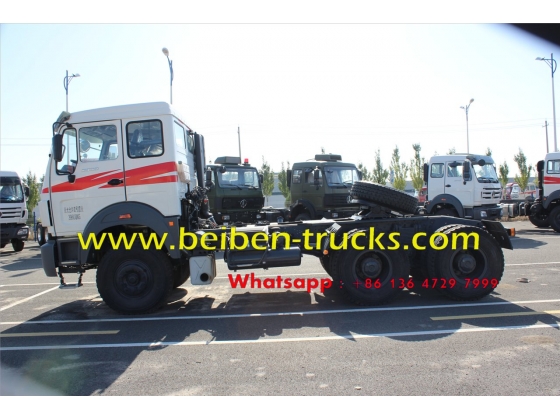

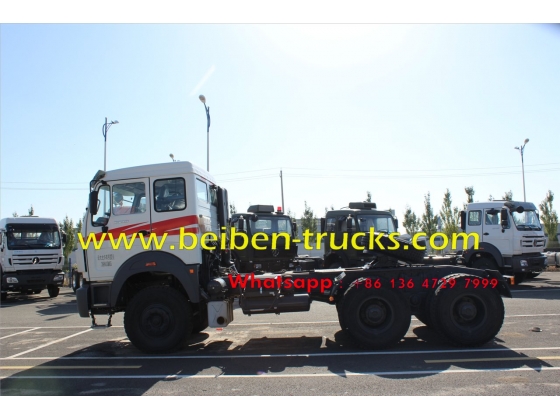

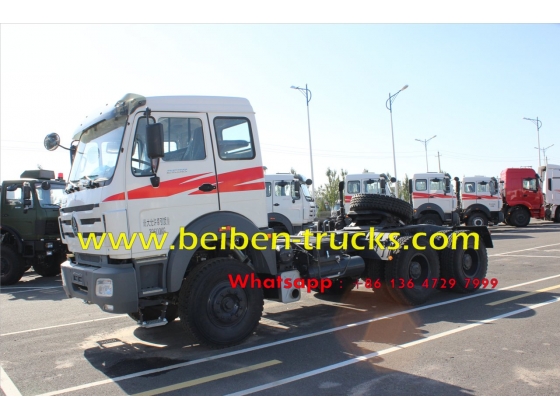

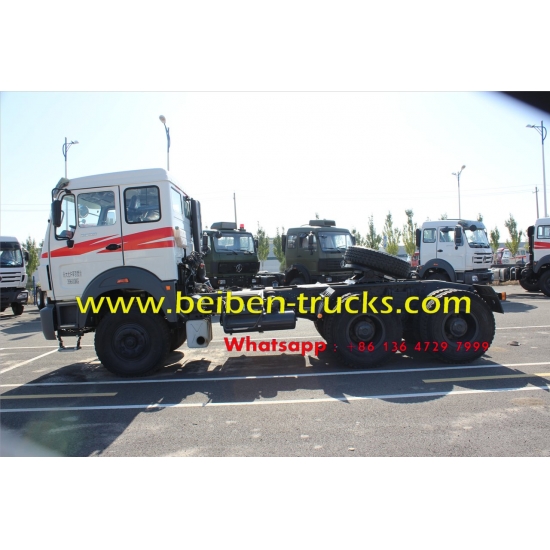

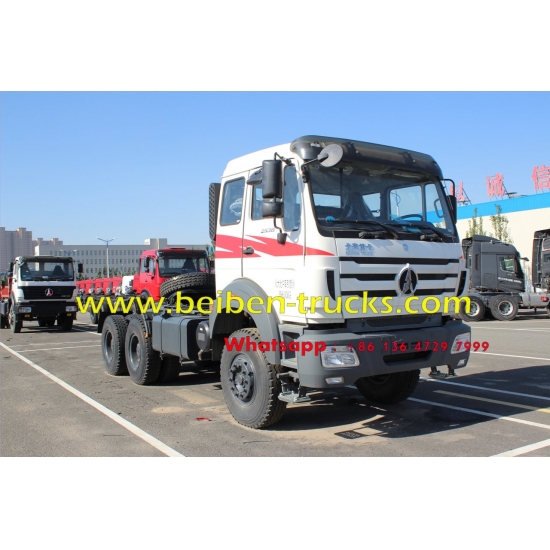

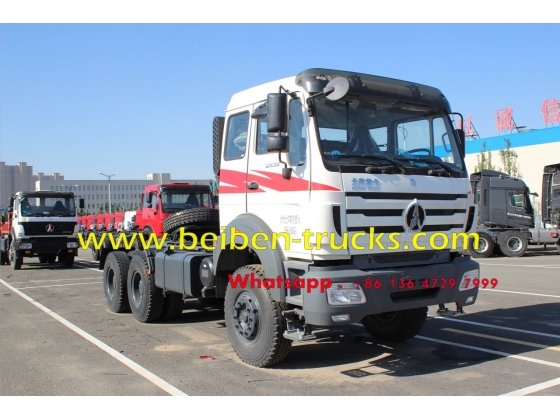

Beiben NG80 440 HP 2544SZ /6×4/3450+1450/Long Cab/LHD |
||
|
Dimension |
7136*2495*3180mm |
|
|
Approaching angle/Departure angle |
26/64° |
|
|
Overhang(front/rear) |
1410/825mm |
|
|
Wheel base |
3450+1450mm |
|
|
Max speed |
90km/h |
|
|
Curb weight |
9200kg |
|
|
Max towing weight |
36900kg |
|
|
Max loading on fifth wheel, Permitted(kg) |
15670kg |
|
|
Slope climbing capability |
Max.40% |
|
|
Engine |
Model |
WP12.440，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
|
Displacement |
11.926L/Diesel |
|
|
Stroke |
126/130mm |
|
|
Max. power |
308/2200 (kw/rpm) |
|
|
Max.torque |
1460/1200-1600（Nm/rpm） |
|
|
Emission stantard |
EuroⅢ |
|
|
Fuel tanker capacity |
400L |
|
|
Clutch |
∮430, Single dry frictional disc，Hydraulic boosting |
|
|
Gearbox |
Fast 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 |
|
|
Suspension system |
Front |
Mercedez benz Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |
|
Rear |
Mercedez benz Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
TAS85,whole circulation in ball, hydraulic booster |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Model |
JOST ∮90 single direction |
|
|
Height of fifth wheel(mm) (unload) |
1410 |
|
|
Radius of front gap (mm) |
2300 |
|
|
Radius of rear slew (mm) |
2600 |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tyre |
12.00-R20 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
NG80B
Long-Flat roof cabin with single sleeper |
|
|
More details, Please visit beiben NG80B 420 Hp 2542 tractor truck webpage： |
||
SERVICE AND REPAIR
We offer a state of the art repair and service facility for all our customers. For customers with road side emergency issues, we have two mobile service and repair teams’ available 24hours/7days/365days to meet our customer’s needs. We are establishing service and repair centers in all regions within Nigeria.
SPARE PARTS
Availability of spare parts "will never be a problem” as we always have a large stock of spares which will cover our entire customer needs. Beiben and Mercedes trucks share several interchangeable parts meaning that Beiben trucks can use original Mercedes Benz Actros and Atego (SK/NG) spare parts or alternatives to the Mercedes Benz SK / NG ranges. Cataloging and ordering of these parts are the same for both brands, making it easy to search and buy.
