Order(MOQ):
1Goods Stock:
1Production time:
30 daysPayment terms:
T/T
Applications:

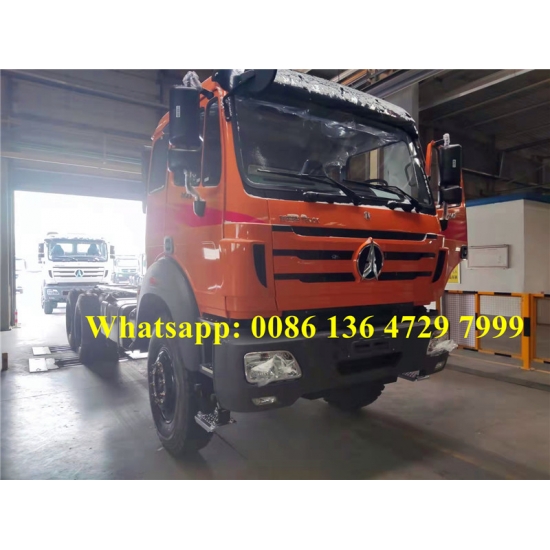

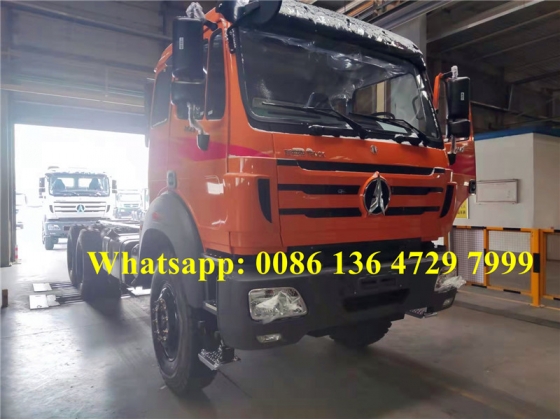

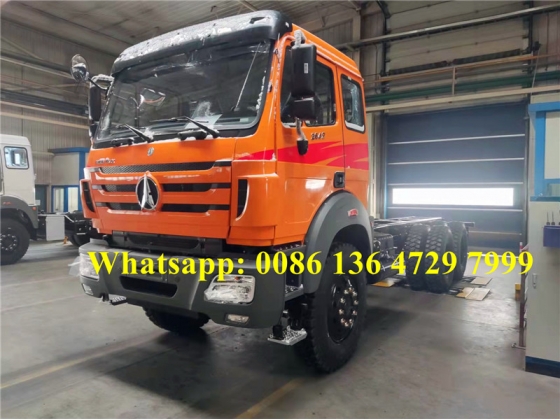

China beiben 2642 truck chassis, also called as china 2642 truck chassis, china beiben 6*4 drive truck, beiben 10 wheeler drive truck. This beiben heavy duty truck 6*6 drive chassis can loading, transporting and discharging heavy duty
material , also can
be used in for extremely road and weather situation, can be used in wild area, off road area.
Congo beiben 2642 truck chassis apply germany benz technology device, with extremely work performance.
The north benz 6*4 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- Beiben 2642 chassis, 6*4 drive system
---- Military quality , Mercedes benz technology
---- 12JS200T transmission, super combination.
---- Original benz technology axle
---- 12.00R24 tyre, suitable for congo road
Specifications:
|
Model |
ND1255B44J |
|
Driver's cab |
Long cabin, one sleeper |
|

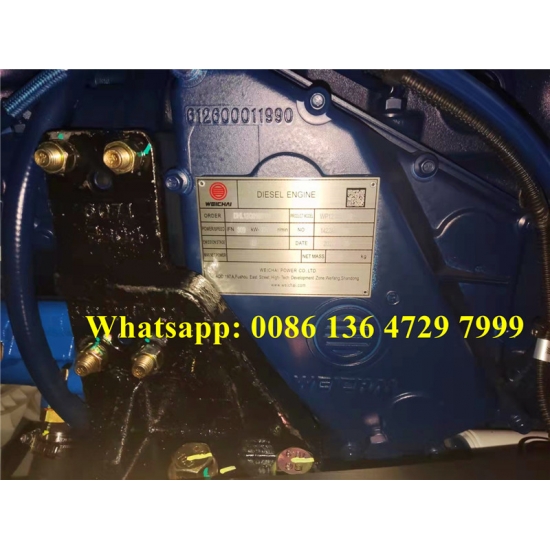

Engine |
Maker: North Benz |
|
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling |
|
|

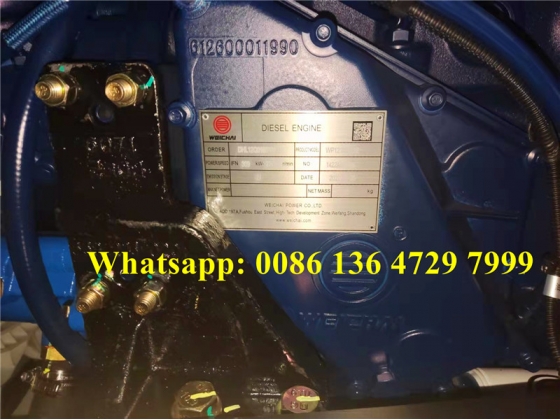

Engine model: WP12.420NE32 |
|
|
Maximum output:420hp@2200rpm |
|
|
Number of cylinder:6 |
|
|
Displacement: 11.726L |
|
|
Clutch |
Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
|
Transmission |
Fuller 12JS200T transmission. |
|
Front Axle |
Mercedes Benz, drum brake |
|
Rear Axle |
Mercedes Benz double reduction drive axle, ratio=5.2 |
|
Steering |
ZF8098 |
|

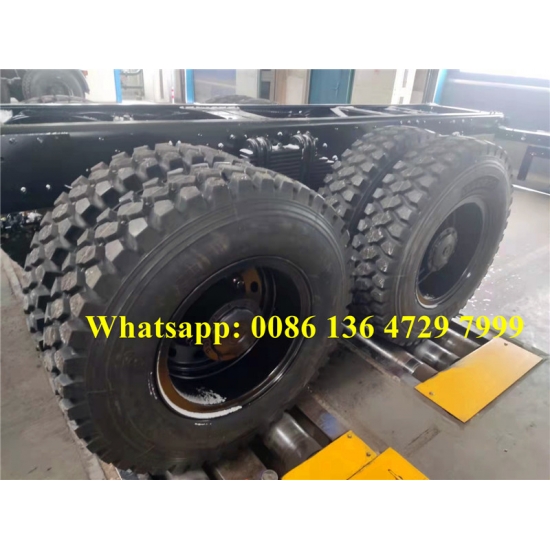

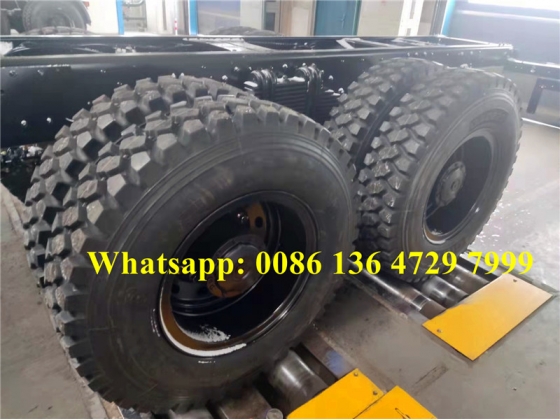

Wheel & Types |
Rims:8.5-20 |
|
Tyre:12.00R24 |
|
|
Optional: 12R22.5//315/80R22.5 |
|
|
Radial tire is optional |
|
|
Electrics |
Operating voltage: 24V,negative grounded |
|
Dimensions in mm |
Wheel base : 4450+1450 |
|
Overall size: 10250x2500x3385 |
|
|
Weight in kg |
Kerb. mass: 9800 kg |
|
Total mass: 25000kg |
|
|
Performance |
Maximum driving speed(km/h) 85 |
|
Body in mm |
7000x2300x800 |
|
The manufacture reserves the right of technical alteration/change for better improvement prior notice |
|

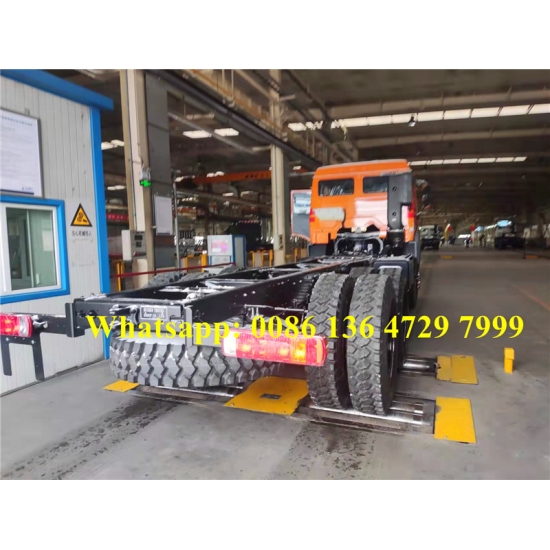

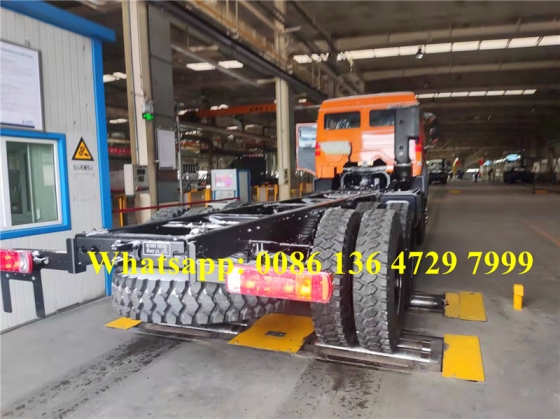

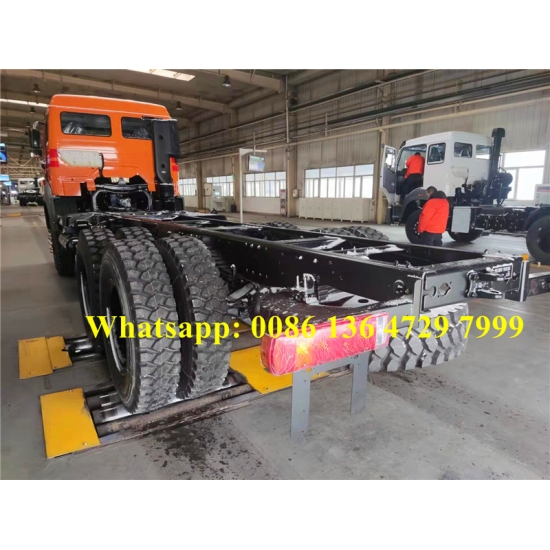

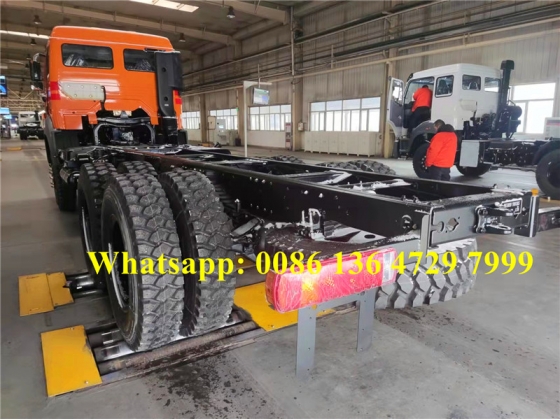

Beiben 2642 truck system, 6*4 drive system.
ds

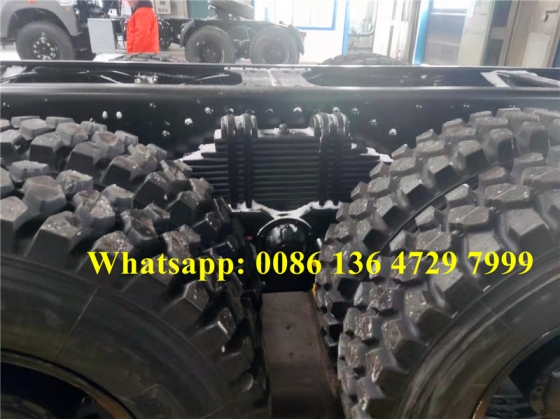

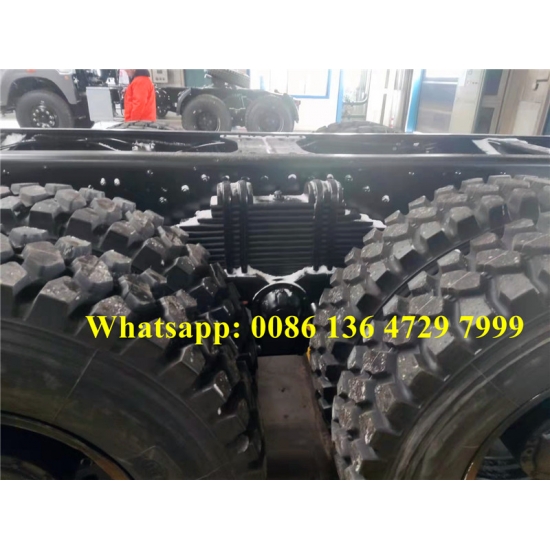

beiben heavy duty suspension system, 4 U-BOLT system for overloading.
we are china best beiben 6*6 wheel drive trucks supplier, can provide customer with the best quality beiben 6*6 drive truck chassis, beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
Best beiben 6 wheel drive trucks with super benz trucks quality , beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
CEEC beiben 25 CBM bulk cement truck are equipped with chinese weichai engine and TAS steering. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors and earthmoving projects.
Logging semi-trailers in confirmity with regulations, and matching specifi conditions encountered by foresters. Bogie with reinforced axles, 30 to 50 Tons loading capacity. Width capacity RANGING from 2.5 to 3.5 meters.
"GABON TYPE" log trailers with 2 x 3.10 or 3.5 m wide bunks, mounted on JOST turntables. 1 fixe stake and 1 hinged stake.
The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
north benz 4*4 drive military truck chassis, based on china benz technology ND1921 military truck , original from baotou beiben heavy duty trucks co.,limited.
baotou beiban left hand drive 4*4 wheel military truck chassis supplier , based on china benz technology ND1921 military truck , original from baotou beiben heavy duty trucks co.,limited.
The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
