Order(MOQ):
1Production time:
30 daysPayment terms:
T/T, West union
Function:
Heavy duty Construction, Mining
and quarries,
Heavy duty material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Axles from Mercedes Benz technology

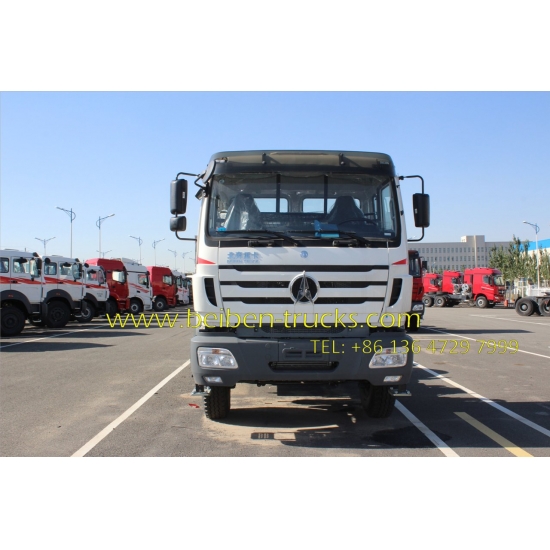

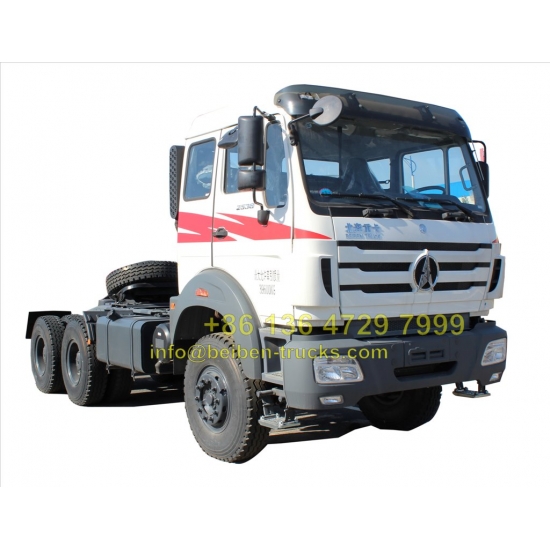

all beiben NG80B tractor truck are equipped with double-layer reinforced frames
Ease of use, simple and reliabl
Advantage:
★ CEEC TRUCKS 20 years experience on beiben 2538 tractor trucks exporting.
Specification:
Similar key words congo beiben 2542 tracteur camions, beiben 2542 tracteur camions, north benz 2546 tracteur camions, china beiben tracteur 420 hp engine camions supplier.
China famous brand beiben 2534 tractor truck,for using in logistic, seaport, airport, fuel transporation.
Baotou beiben 2542 tractor trucks are widely applied for high way , seaport, logistic, fuel oil project transportation. With reliable benz technology, benz 420 hp engine tractor truck are well accepted in congo, kenya, tanzania and nigeria.
Our prices are considerably lower than European, American and
Asian competitors; including Mercedes Benz Actros 2542tractor trucks.. Congo best beiben tractor truck supplier, supply the best quality beiben 6*4 tractor truck, beiben 4*2 tractor trucks.
| Dimension | 7240*2500*3600mm | |||||
| Approaching angle/Departure angle | 16/60° | |||||
| Overhang(front/rear) | 1515/825mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 120km/h | |||||
| Curb weight | 8800kg | |||||
| Max towing weight | 40000kg | |||||
| Max loading on fifth wheel, Permitted(kg) | 16070kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP12.430E40，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 11.596L/Diesel | |||||
| Stroke | 126/155mm | |||||
| Max. power | 316/2200 (kw/rpm) | |||||
| Max.torque | 2060/1000—1400（Nm/rpm） | |||||
| Emission stantard | EuroIV with OBD | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated | |||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension 13PCS | ||||
| Rear | Non-free standing stablization spring, balance suspension system 13PCS | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | D50,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| The Fifth wheel | Model | JOST ∮90 single direction | ||||
| Height of fifth wheel(mm) (unload) | 1410 | |||||
| Radius of front gap (mm) | 2300 | |||||
| Radius of rear slew (mm) | 2600 | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 315/80R22.5 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |
NG80B Long-high roof cabin with double sleepers Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
Beiben 40 T , 50 T, 60 T, 70 T tractor truck
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 1834S |
WD615.34 | 340Hp | 40Ton | 4x2 |
| Beiben 2538 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2634 | WP10.340 | 340 Hp | 40Ton | 6x4 |
| Beiben 2642 | WP12.420 | 420 Hp | 48 Ton | 6x4 |
| Beiben 2642 | WP10.420 | 420 Hp | 50 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 48 T | 6x4 |
| Beiben 2638 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 50 T | 6x4 |
| Beiben2642 | WP 10.420 | 420 Hp | 60 T | 6x4 |
| Beiben 2542S | WP12.420E32 | 420 Hp | 50 T | 6x4 |
| Beiben 1630A | WP10.300N | 300 Hp | 30 T | 4x4 |
| Beiben 2534 | WP 10.336 | 336 Hp | 50 Ton | 6x6 |
| Beiben 2638 | WP10.380 | 380 Hp | 50 Ton | 6x4 |
Beiben tractor truck and semitrailer
Beiben Construction trucks

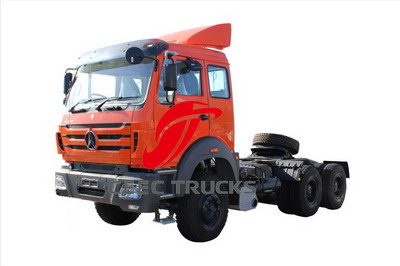

beiben 1927 tractor trucks, also called as beiben 1827 towing truck, with benz technology 270 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.

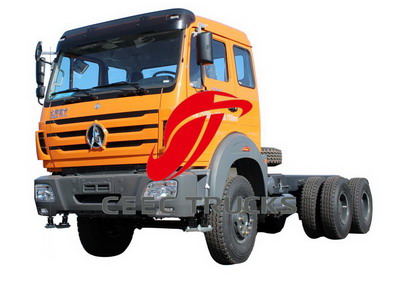

Beiben 2638 tracteur camions, weichai WD613.38 type 380 hp diesel engine, fast 12JS180T 12 shift manual transmission, World famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre. Africa best Beiben 2638 tracteur camions supplier, for supply congo brazzaville, pointe noire customer.

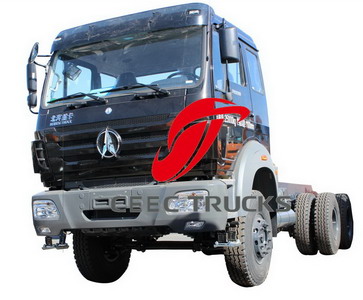

North benz 2538 tractor truck , applied germany benz technology , weichai 380 hp Euro 3 diesel engine, fast 12 shift manual transmission, famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre.
beiben 1834 tractor trucks, also called as beiben 1834 towing truck, with benz technology 340 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.
beiben 1834 tractor head, also called as beiben 1834 trailer truck, with benz technology 340 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.
China beiben 2638 tractor truck, with extremely weichai diesel 6 cylinder strong engine, ZF8098 steering system with fuller technology, front axle is benz technology with double wheel reducer, rear axle with wheel reducer.12.00R24 tyre.

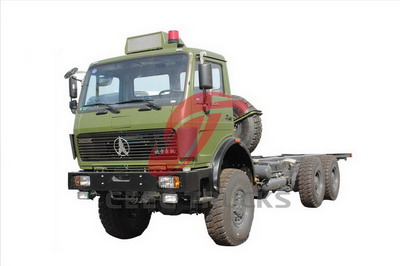

North benz 2636 tractor truck , benz 6*6 military drive system , weichai WD615.38 hp Euro 2 diesel engine, fast 9 shift manual transmission, famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre.
1.BEIBEN Euro2, 3 dump truck 2.6x6 driving type 3.WEICHAI engine 4.FAST transmission 5.Mercedes benz technology chassis
congo beiben 2638 dump truck, with weichai 380 hp engine, fast 9 shift transmission, 3800+1450 mm wheel base, 12.00R20 tyre. 16 CBM capacity cargo box.
