Order(MOQ):
1Production time:
30 daysPayment terms:
T/T, West union
Function:
Construction, Mining
and quarries,
Heavy duty material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Advantage:
★ CEEC TRUCKS 20 years experience on beiben 2538 tractor trucks exporting.
Specification:
Similar key words congo beiben 2534 tracteur camions, beiben 2538 tracteur camions, north benz 2538 tracteur camions, china beiben tracteur camions supplier.

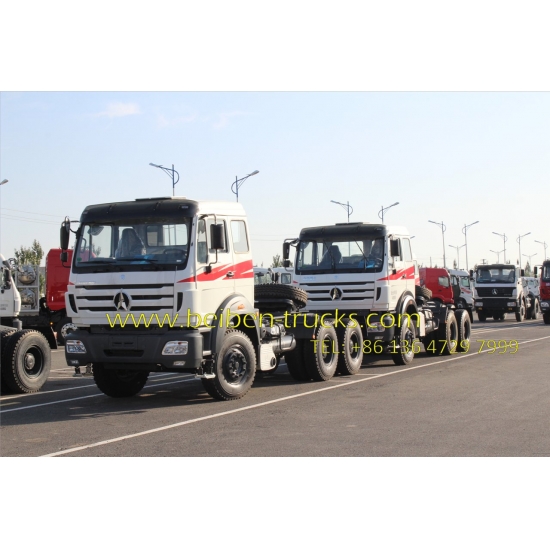

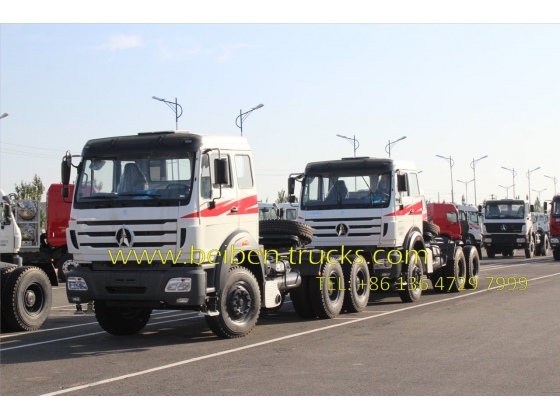

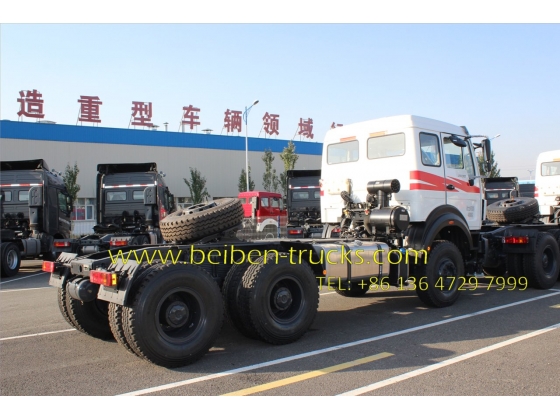

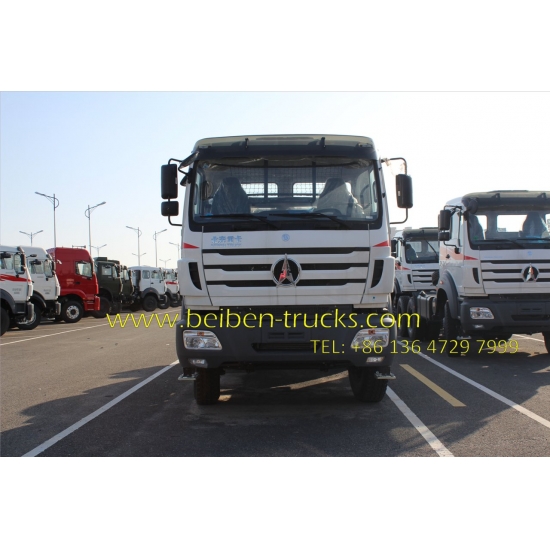

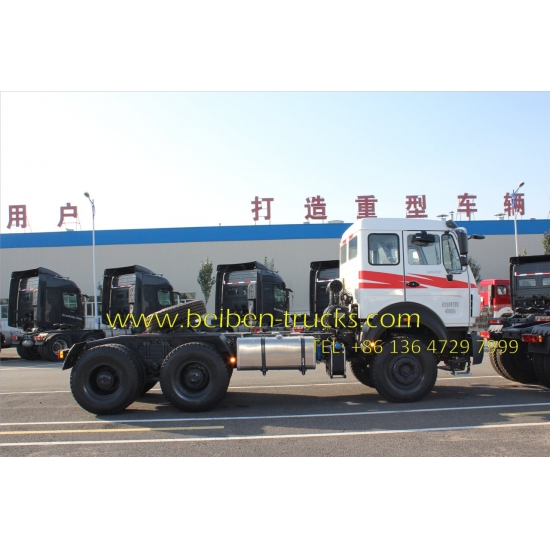

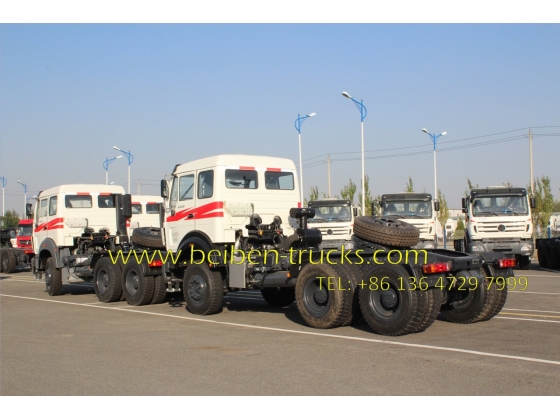

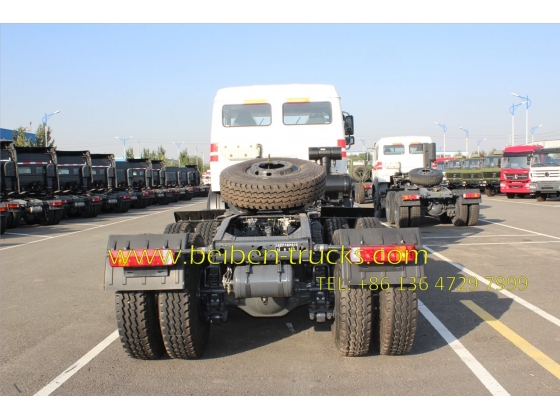

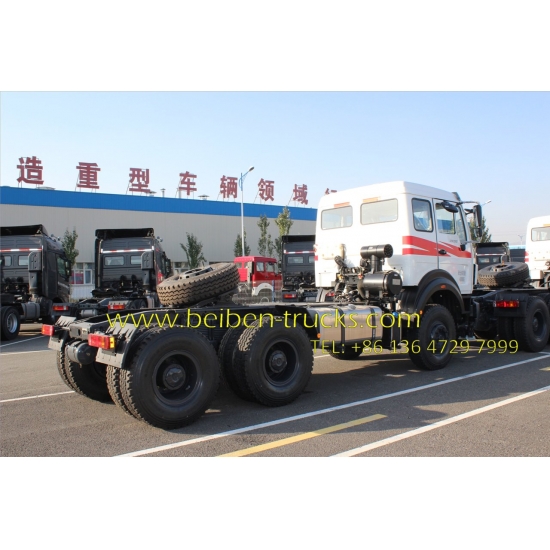

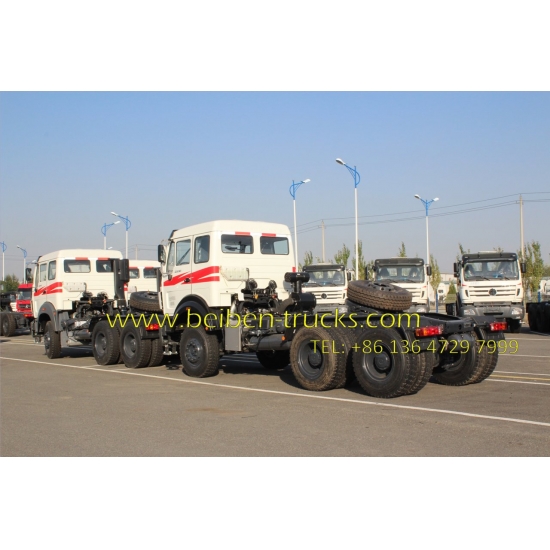

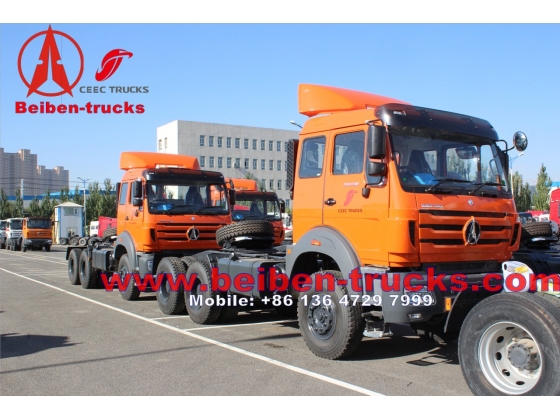

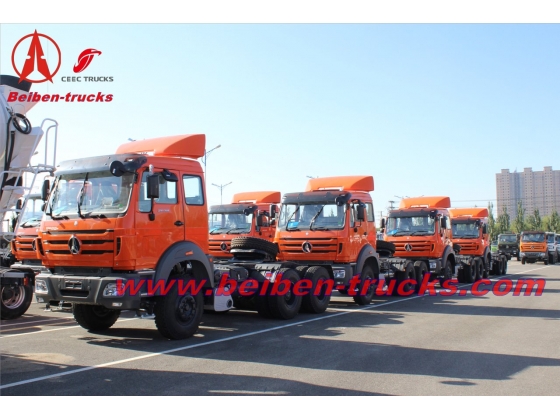

China famous brand beiben 2534 tractor truck,for using in logistic, seaport, airport, fuel transporation.

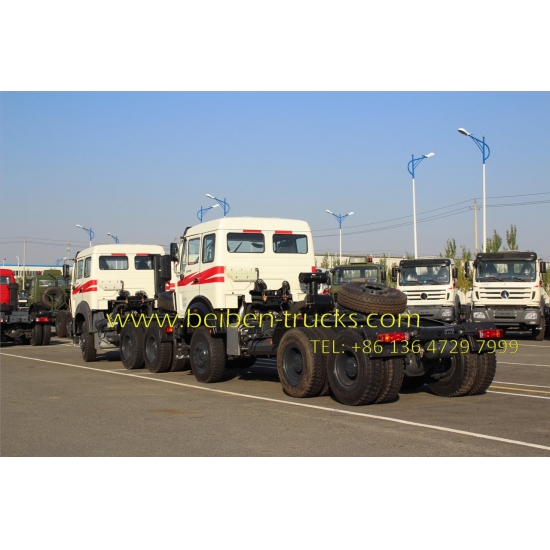

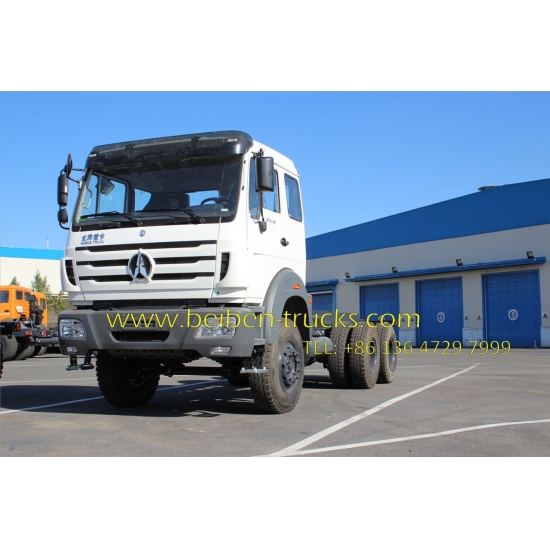

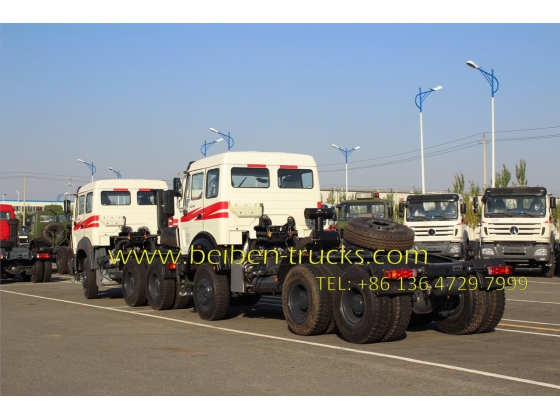

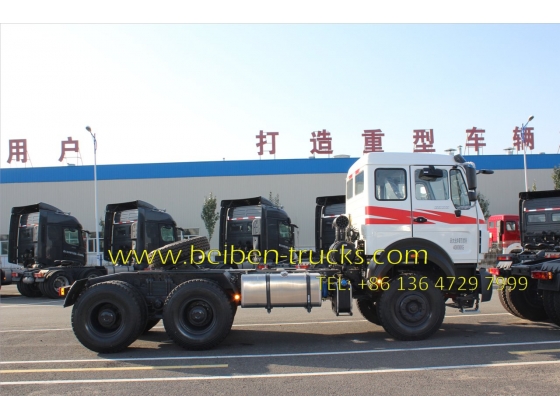

Baotou beiben 2538 tractor trucks are widely applied for high way , seaport, logistic, fuel oil project transportation. With reliable benz technology, benz 6*4 tractor truck are well accepted in congo, kenya, tanzania and nigeria.
Our prices are considerably lower than European, American and Asian competitors; including Mercedes Benz Actros 2538tractor trucks..

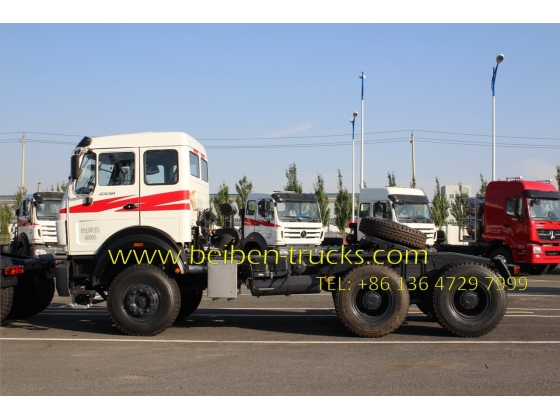

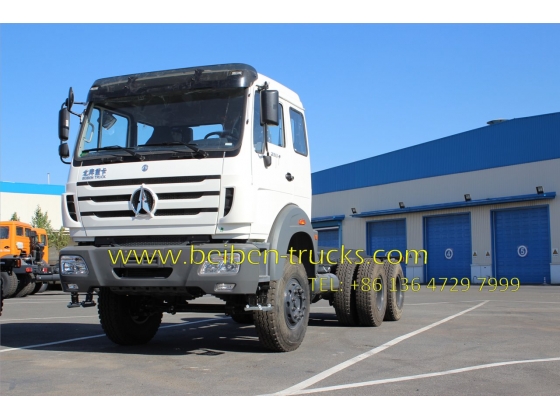

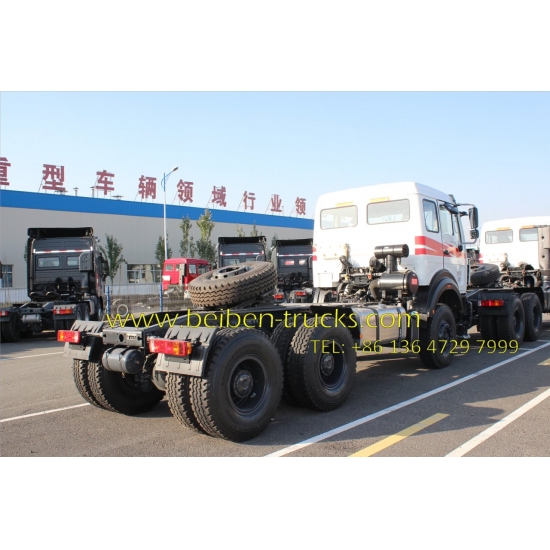

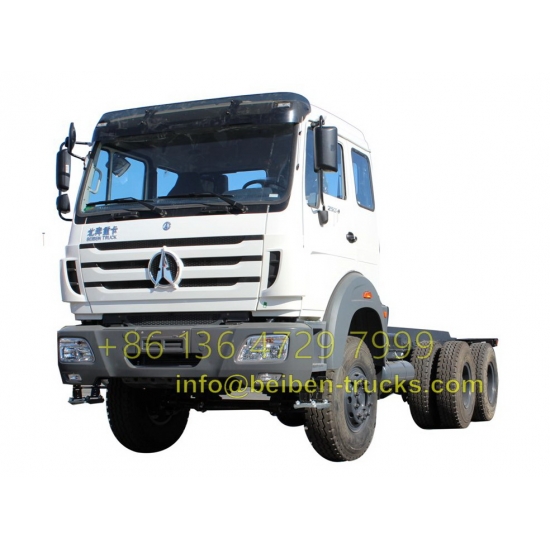

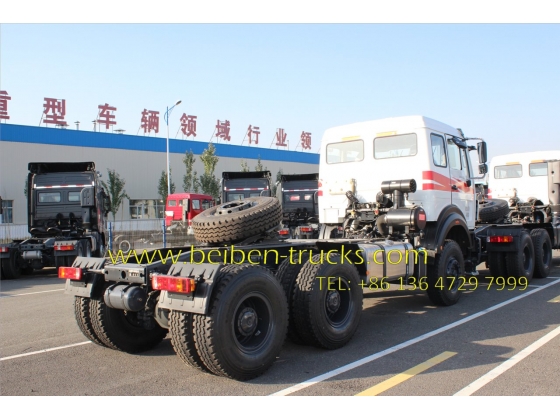

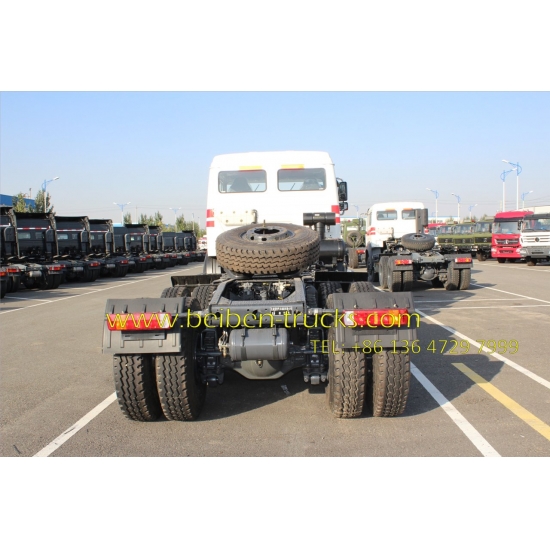

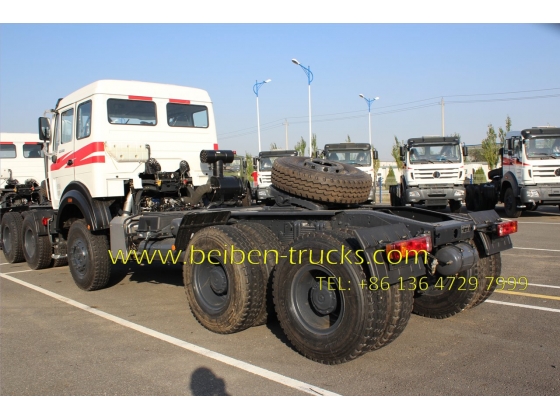

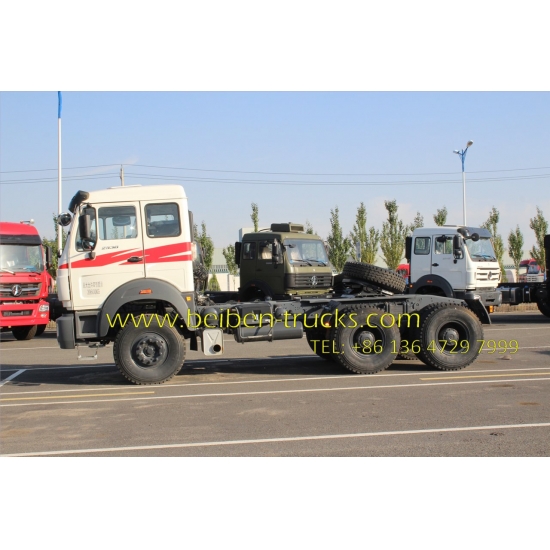

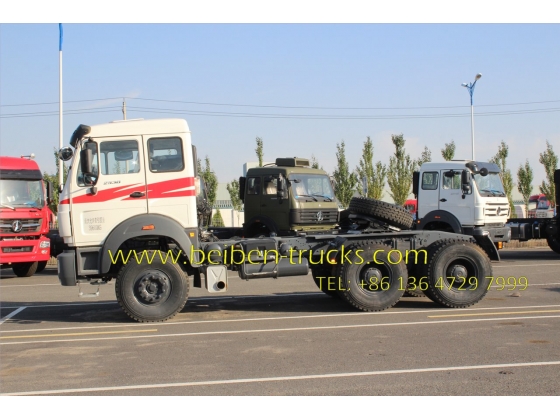

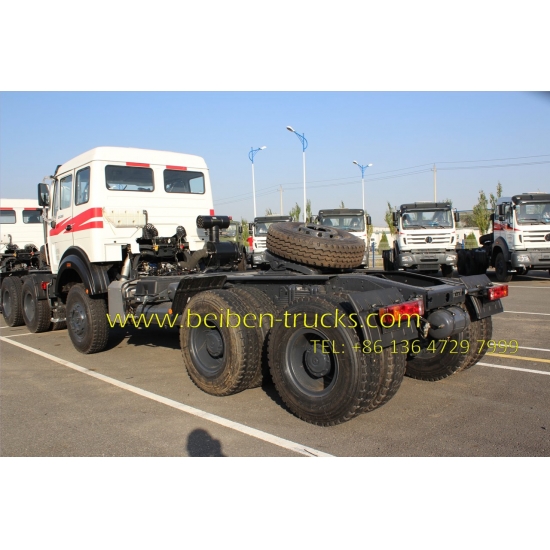

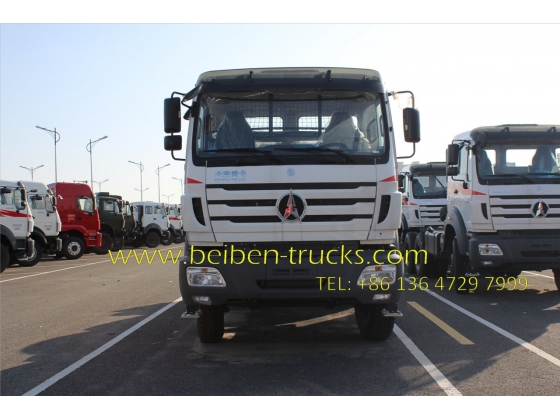

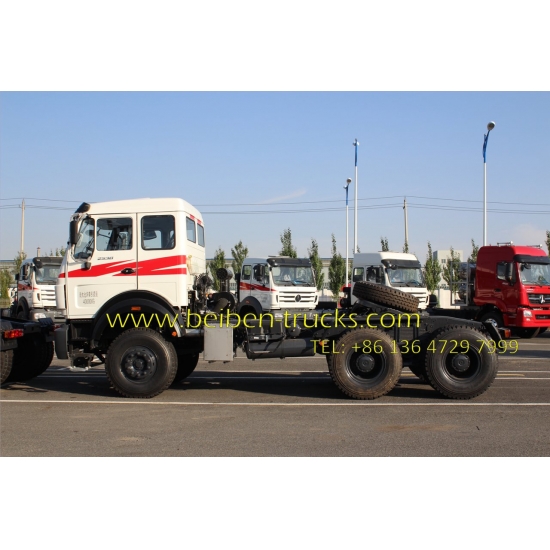

| Beiben 2638SZ tractor truck /6×4/3450+1450/Long Cab/LHD | ||||||
| Dimension | 7136*2495*3180mm | |||||
| Approaching angle/Departure angle | 26/64° | |||||
| Overhang(front/rear) | 1410/825mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 9200kg | |||||
| Max towing weight | 36900kg | |||||
|
Max loading on fifth wheel, Permitted(kg) |
15670kg |
|||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.380E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 280/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
|
Model |
JOST ∮90 single direction |
|||||
|
Height of fifth wheel(mm) (unload) |
1410 |
|||||
|
Radius of front gap (mm) |
2300 |
|||||
|
Radius of rear slew (mm) |
2600 |
|||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-R20 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |
NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
Beiben 40 T , 50 T, 60 T, 70 T tractor truck
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 1834S |
WD615.34 | 340Hp | 40Ton | 4x2 |
| Beiben 2538 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2634 | WP10.340 | 340 Hp | 40Ton | 6x4 |
| Beiben 2642 | WP12.420 | 420 Hp | 48 Ton | 6x4 |
| Beiben 2642 | WP10.420 | 420 Hp | 50 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 48 T | 6x4 |
| Beiben 2638 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 50 T | 6x4 |
| Beiben2642 | WP 10.420 | 420 Hp | 60 T | 6x4 |
| Beiben 2542S | WP12.420E32 | 420 Hp | 50 T | 6x4 |
| Beiben 1630A | WP10.300N | 300 Hp | 30 T | 4x4 |
| Beiben 2534 | WP 10.336 | 336 Hp | 50 Ton | 6x6 |
| Beiben 2638 | WP10.380 | 380 Hp | 50 Ton | 6x4 |
beiben 1927 tractor trucks, also called as beiben 1827 towing truck, with benz technology 270 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.
Beiben 2642 trailer truck , to be equipped with 60 T bogie suspesion container semitrailer , 420 hp strong diesel engine, fast 12 shift manual transmission, famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre.
North benz 2538 tractor truck , applied germany benz technology , weichai 380 hp Euro 3 diesel engine, fast 12 shift manual transmission, famous benz technology 7 T front axle, benz technology double reducer axle 16 T , 3450+1450 mm wheelbase,12.00R20 tyre.
beiben 1834 tractor trucks, also called as beiben 1834 towing truck, with benz technology 340 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.
beiben 1834 tractor head, also called as beiben 1834 trailer truck, with benz technology 340 Hp diesel engine, mercedes benz front axle and rear axle, with wheel reducer, 12.00-20 nylon tyre. 3500 wheel base.
China beiben 2638 tractor truck, with extremely weichai diesel 6 cylinder strong engine, ZF8098 steering system with fuller technology, front axle is benz technology with double wheel reducer, rear axle with wheel reducer.12.00R24 tyre.
China beiben 2642 truck chassis, 6*6 all wheel drive system, military quality assurance, extremely reliable china weichai WP12.420 engine, 4450+1450 mm wheelbase, benz front axle and rear axle, 12.00R24 tyre
BEIBEN NG80 6x4 Truck Tractor Truck For Sale
Beiben dump truck 2527K Weichai engine Military quality Favorable price, Drive Wheel: 6x4 Capacity (Load): 11 - 20t Horsepower: 251 - 350hp Condition: New Transmission Type: Manual Emission Standard: Euro 3 Fuel Type: Diesel Engine Capacity: > 8L Gross Vehicle Weight: 25000
