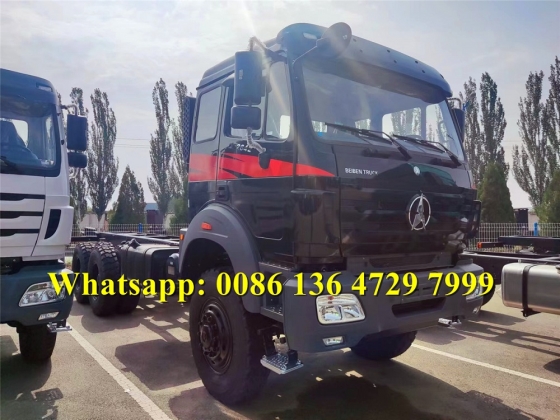

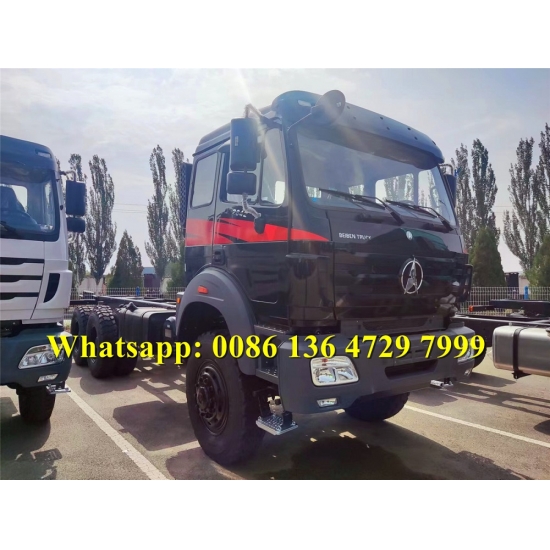

beiben 2642cargo truck

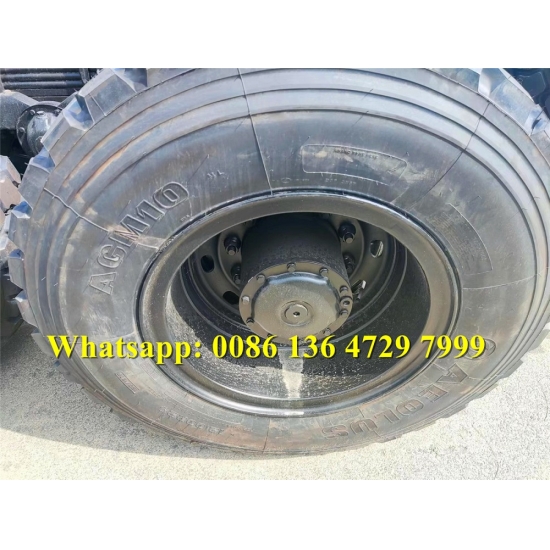

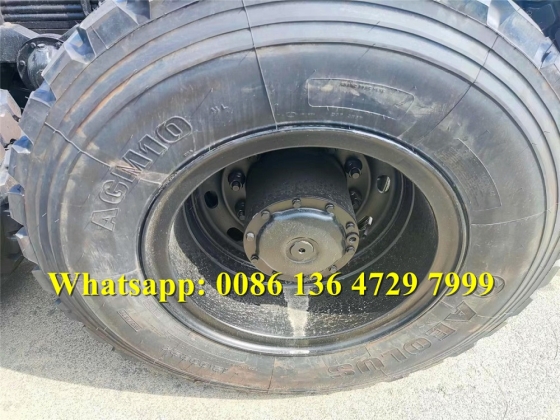

China 2642cargo truck chassis, 6*6 drive all wheel drive system, China famous 420 hp strong diesel engine, with Germany benz technology7 T  front axle and rear 16 T rear axle. With reinforced china beiben patented benz technology chassis beam , full equipped with  wheel reducer. off road 12.00R24 tyre
  • Order(MOQ):

    1
  • Goods Stock:

    1
  • Production time:

    30 days
  • Payment terms:

    T/T
New Products
Product Details

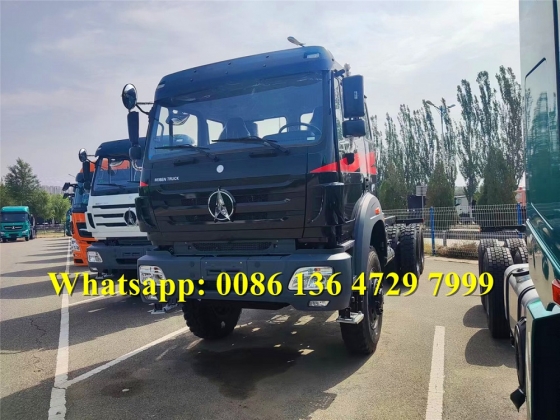

                                                              beiben 6*6 drive 2642 truck chassis

 beiben 2642 truck chassis




 Applications:

Beiben 2642 truck chassis, also called as beiben 2642 truck 6*6 drive, beiben 6*6 drive 420 hp truck chassis, beiben off road truck chassis , also can be used in for extremely road and weather situation, can be used in wild area, off road area.



Congo beiben 2642 truck chassis apply germany benz technology device, with extremely work performance.



The north benz 6*6 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- Beiben 2642 chassis, 6*6 drive system

---- Military quality , Mercedes benz technology

---- 12JS200T transmission, super combination.

---- Original benz technology axle

---- 12.00R24- tyre, suitable for congo road



 Specifications:



                                                       Beiben 6*6 truck chassis

Model

ND1255B44J,  6x6 drive truck chassis

Driver's cab

Long cabin, one sleeper

Engine

Maker: North Benz

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

Engine model: WP13.420NE32
EURO II/EUROIII emission standard

Maximum output:380hp@2200rpm

Number of cylinder:6

Displacement: 11.726L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

Fuller 12JS200T transmission.

Front Axle

Mercedes Benz, drum brake

Rear Axle

Mercedes Benz double reduction drive axle, ratio=5.2

Steering

ZF8098

Wheel & Types

Rims:8.0-20

Tyre:12.00R24

Optional: 12R22.5//315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base : 4450+1450

Overall size: 10250x2500x3385

Weight in kg

Kerb. mass: 9800 kg

Total mass: 25000kg

Performance

Maximum driving speed(km/h) 85

Body in mm

7000x2300x800

The manufacture reserves the right of technical alteration/change for better improvement prior notice

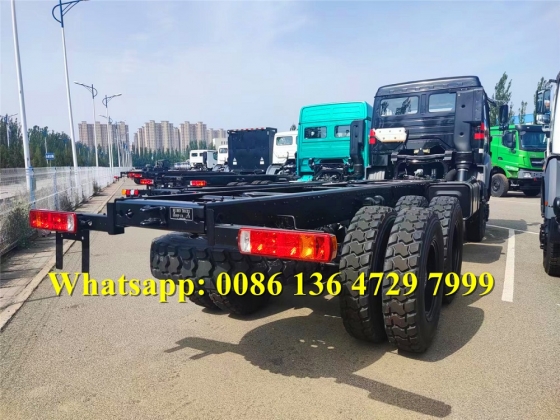

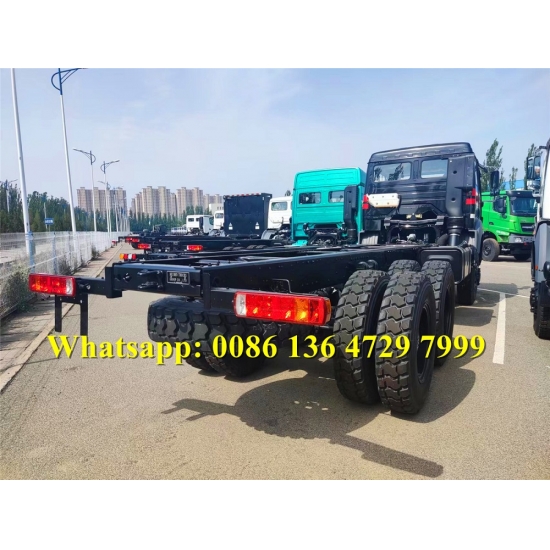

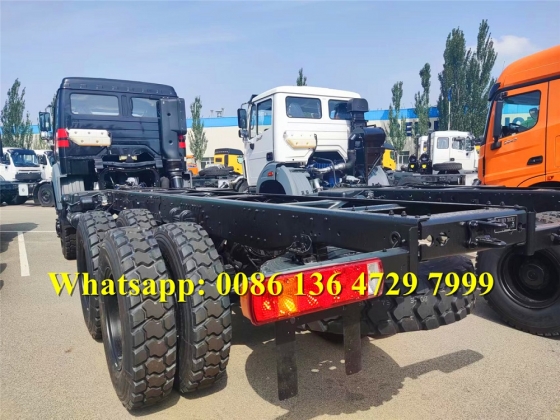

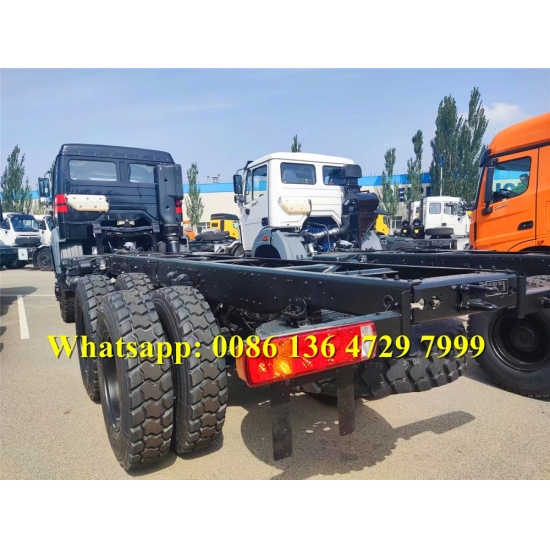

beiben 2642 truck chassis

6*6 drive beiben 2642 truck chassis

beiben 2642 truck chassis

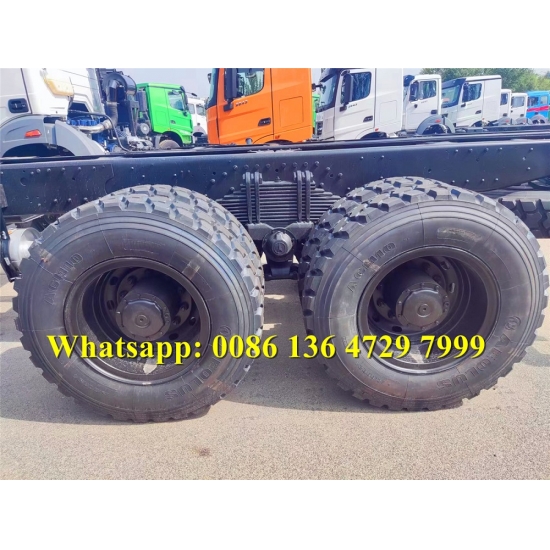

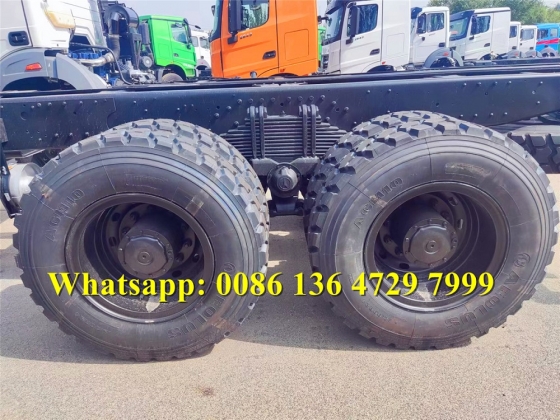

Off road suspension system.

beiben 2642 truck chassis
