Order(MOQ):
1Weight:
12000Production time:
40 daysPayment terms:
T/T, L/C
Beiben 2646 towing tractor truck
Applications:
Beiben prime mover chassis with V3 cabin, also called as beiben 2646 prime mover, Beiben 2646 towing head, beiben 2646 trailer tractor, beiben 2646 cabin tractor truck.
This beiben tractor truck is equipped with V3 long cabin, with 4450+1450 mm wheelbase , germany benz technology NG80B cabin .
The cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- Germany benz V3 cabin, safety and convenience
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- ZF8098 steering system
---- extremely heavy duty suspension, maximum payload 80 ton
---- Military Germany mercedes benz technology axle.
Specifications:
|
Dimension |
7240*2500*3600mm |
|
|
Approaching angle/Departure angle |
16/60° |
|
|
Overhang(front/rear) |
1515/825mm |
|
|
Wheel base |
3450+1450mm |
|
|
Max speed |
110km/h |
|
|
Curb weight |
8800kg |
|
|
Max towing weight |
40000kg |
|
|
Max loading on fifth wheel, Permitted(kg) |
16070kg |
|
|
Slope climbing capability |
Max.40% |
|
|
Engine |
Model |
WP12.460N，water-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU Common Rail |
|
Displacement |
11.596L/Diesel |
|
|
Stroke |
126/155mm |
|
|
Max. power |
338/1900 (kw/rpm) |
|
|
Max.torque |
2110/1000-1400（Nm/rpm） |
|
|
Emission stantard |
EuroIII |
|
|
Fuel tanker capacity |
400L |
|
|
Clutch |
∮430, Single dry frictional disc，Hydraulic boosting |
|
|
Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 |
|
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |
|
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
TAS85,whole circulation in ball, hydraulic booster |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
The Fifth wheel |
Model |
JOST ∮90 single direction |
|
Height of fifth wheel(mm) (unload) |
1410 |
|
|
Radius of front gap (mm) |
2300 |
|
|
Radius of rear slew (mm) |
2600 |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tyre |
12.00-R20 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
V3 Long-high roof cabin with double
sleepers |
|

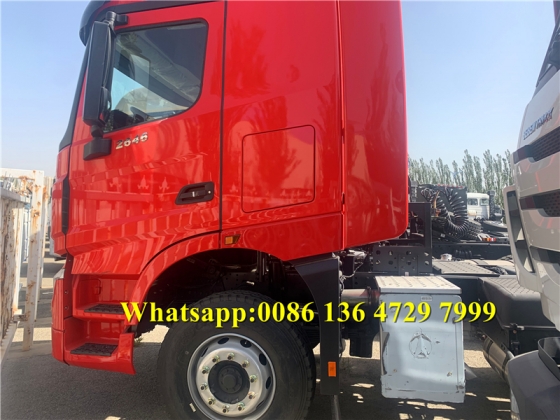

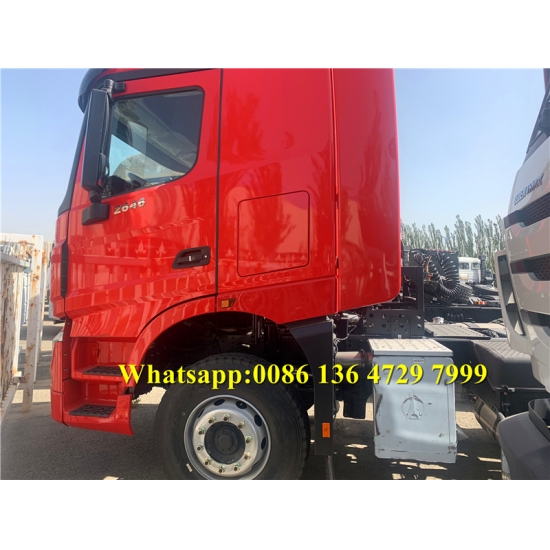

Beiben V3 cabin truck, with sleeper bed .
Beiben 10 wheeler cargo truck chassis
China beiben V3 strongest 460 Hp engine, extremely suitable for heavy duty logistic transportation, project logistic, beiben V3 2546 tractor truck, germany benz technology, we supply best quality price for beiben V3 2546 prime mover.
Beiben 2646 truck chassis with V3 cabin, 460 hp diesel strong engine , Good performance and more convenient, China beiben latest V3 cabin , with double bed inside , easily maintenance and repair, mercedes benz 7.5 T front axle and mercedes benz 13 T double rear axle,3450+1450 mm, 12.00R20 tyre.
Beiben 2646 prime mover with V3 cabin, 460 hp diesel strong engine , Good performance and more convenient, China beiben latest V3 cabin , with double bed inside , easily maintenance and repair, mercedes benz 7.5 T front axle and mercedes benz 13 T double rear axle,3450+1450 mm, 12.00R20 tyre.
Beiben Tractor Truck China Heavy Truck Engine Weichai 380hp Gear box Fast 12JS200T Mercedes Benz Technology ISO CCC SGS BV
Military quality hot sale Beiben 6x4 8 m3 capacity concrete mixer truck, using benz military truck axle, Germany 13 T front axle, benz 16 T rear axle, china best quality military type beiben transit mixer truck manufacturer
China heavy truck Beiben V3 380hp prime mover 10 wheels truck head,China heavy truck Beiben V3 380hp 1. weichai engine 2. fast transmission 3. tubeless tires 4. Professional service
BEIBEN 9042KK Mining Dump Truck,china beiben beiben mining truck supplier, beiben 60 T mining and 70 T mining dump trucks.
china best beiben 340 hp engien 10 wheeler dumper manufacturer, provide the super quality north benz 2542 dumper for sale, china best quality 420 hp engine tipper truck in congo country.
Traction type 6x4 Driving type LHD Engine brand WEICHAI Engine model WP12.400 Engine type Liquid cooled, 4-stroke, direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling, with exhaust valve brake. Electronic controlled high pressure common rail.
