The Beiben 2642 chassis is equipped with a Weichai WP12.420E32 engine, delivering a maximum output of 309 kilowatts, and paired with a FAST 12-speed manual transmission, boasting a powerful engine system and stable performance. It is widely used in engineering transportation, logistics, and specialized vehicle modifications, adapting to complex road conditions and urban daily transportation. The spacious cab and humanized design enhance driving comfort, making it an ideal choice in the heavy-duty truck sector.
Production time:
30 daysPayment terms:
30% TT deposit and balance before deliveryWorking Capcity:
30 tonsEngine power:
420 HPDrive system:
6×4Product Description
In the heavy-duty truck sector, the Beiben 2642 chassis has become the preferred choice for many industry users due to its exceptional performance and wide applicability. This vehicle is equipped with an NG80 long cab, offering a spacious and well-organized interior. Drivers can enjoy a comfortable driving experience while also having ample space for personal items and work tools.
The Beiben 2642 truck is powered by a WP12.420E32 engine produced by Weichai Power. This engine features six cylinders, a displacement of 11.596 liters, and compliance with the Euro III emission standards. With a maximum output power of 309 kw (approximately 420 hp) and a peak torque of 1750 Nm at a rated speed of 2100 rpm, this engine adopts a water-cooled, four-stroke, direct injection, turbocharged, and intercooled design. It not only delivers robust power output but also exhibits excellent fuel economy and low emissions.
The Beiben 2642 truck chassis is equipped with a FAST 12-speed manual transmission, which ensures smooth gear shifting and high transmission efficiency, fully harnessing the engine's performance. Additionally, the transmission offers a wide range of gear ratios, allowing the vehicle to maintain optimal power output and fuel economy under various road conditions. Furthermore, the chassis features a 7.5-ton front axle and 13-ton dual rear axles with a main reduction ratio of 5.263, ensuring stability and passability under various loads.
Thanks to its outstanding performance and diverse configurations, the Beiben 2642 chassis is widely used across various fields. It supports multiple modification options, such as dump trucks, water sprinklers, garbage compression trucks, and more. Users can select suitable modification solutions based on their actual needs, achieving customized vehicle production.
Product Specifications
|
Chassis model |
Beiben 2642 |
Drive Type |
6x4, LHD |
|
Wheelbase |
3800+1450mm |
Gross vehicle weight |
25000 kg |
|
Cab |
NG80, long cab with sleeper |
||
|
Overall length |
8715 mm |
Overall width |
2500mm |
|
Overall height |
3170 mm |
Fuel type |
Diesel |
|
Track |
Front track: 1995 Rear track: 1800/1800mm |
||
|
Front / rear overhang |
1410/2055 (mm) |
||
|
Approach angle |
26 degrees |
Departure angle |
26 degrees |
|
Engine |
Engine Model: Weichai WP12.420E32 |
||
|
Number of cylinders:6 |
|||
|
Fuel type: Diesel fuel |
|||
|
Displacement: 11.596L |
|||
|
Emission standard: Euro III |
|||
|
Horsepower:420hp |
|||
|
Maximum output power:309KW |
|||
|
Max. Torque:1750 N.m |
|||
|
Rated Speed: 2100 rpm |
|||
|
Engine Type: Water-cooled, four-stroke with the exhaust valve brake, mechanical injection, direct injection, turbocharged and intercooled |
|||
|
Transmission |
Transmission Type: FAST 12-speed, manual |
||
|
Chassis |
Front Axle:7.5ton |
||
|
Drive Axle:13Ton double rear axle |
|||
|
Ratio:5.263 |
|||
|
Steering |
TAS85 |
||
|
Tire |
Number of tires:10+1(spare tire) |
||
|
Tire Size:12.00R20 |
|||
|
Tank |
Fuel tank capacity:400L |
||
|
Suitable for modified vehicles |
Beiben dump truck, Beiben water truck, Beiben garbage compactor truck, Beiben cargo truck, Beiben fire truck, Beiben vacuum tank truck, etc. |
||

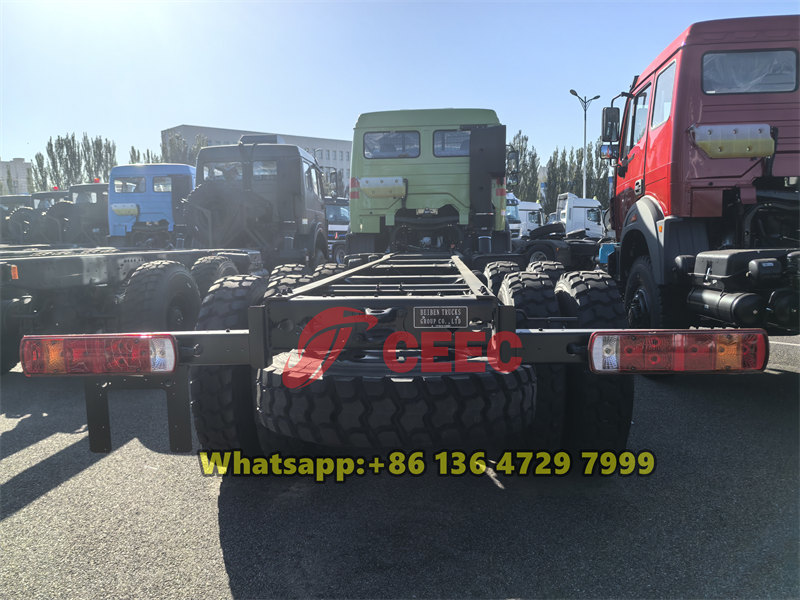

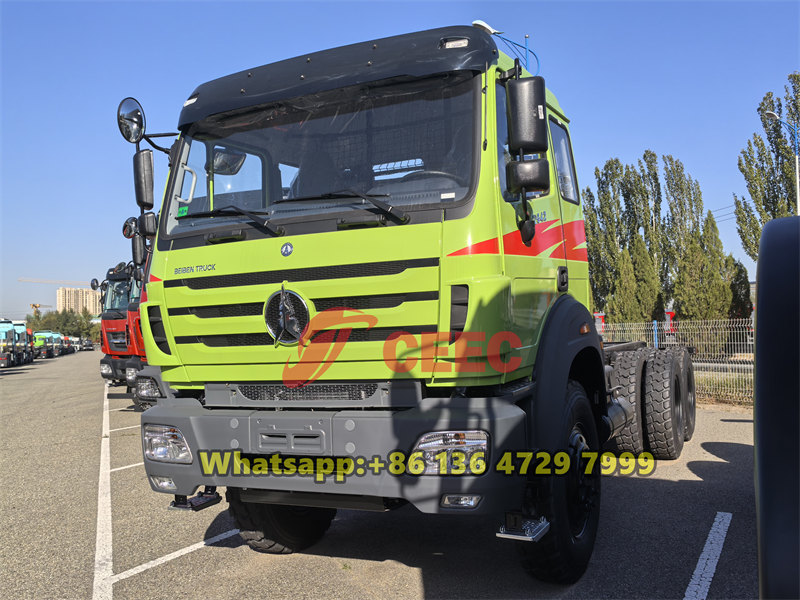

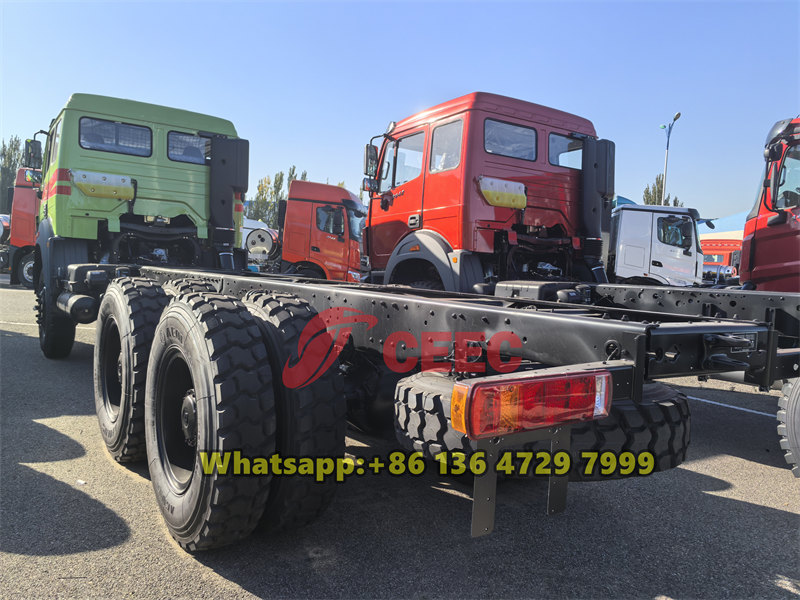

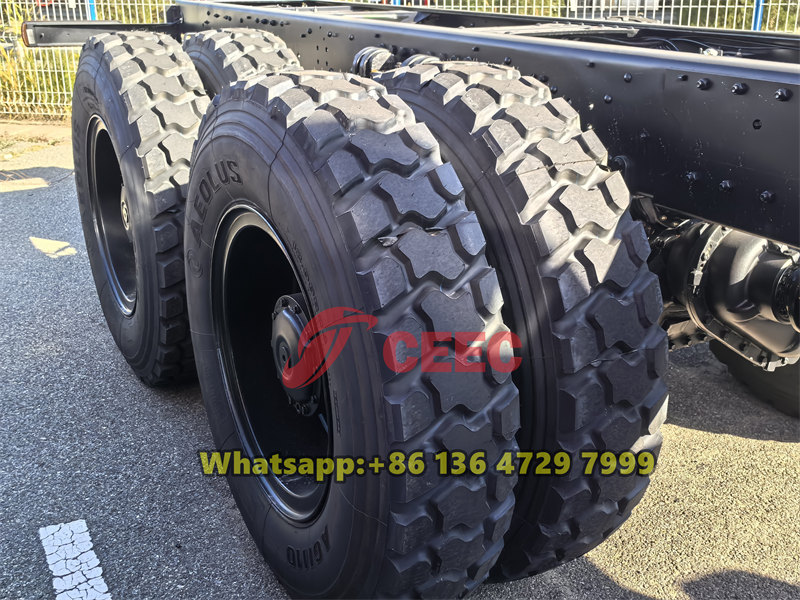

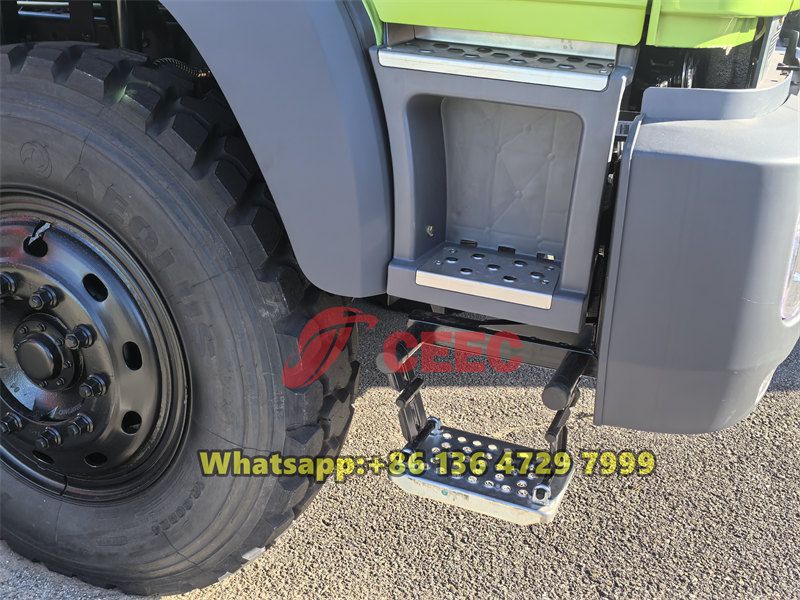

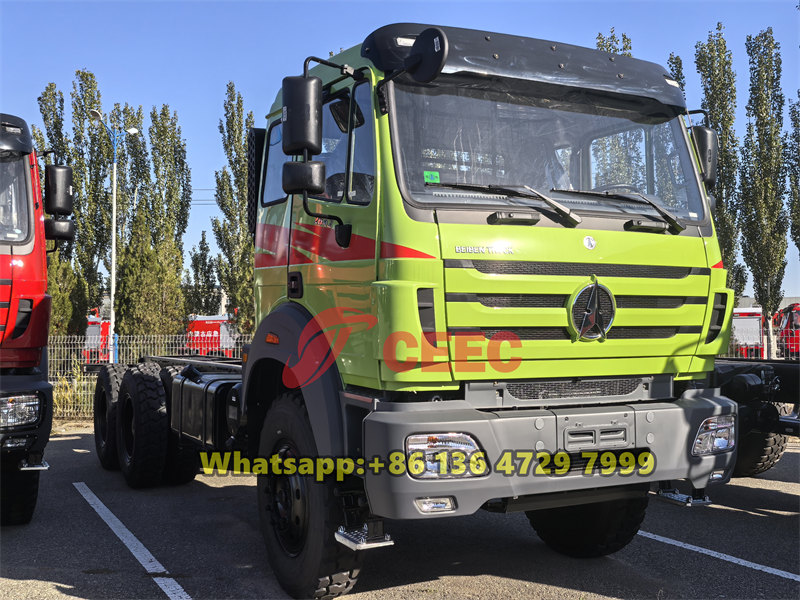

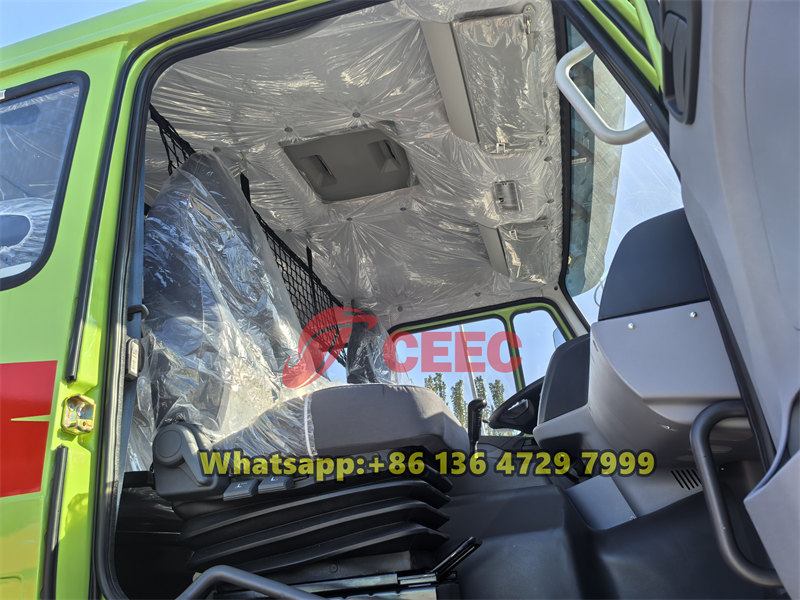

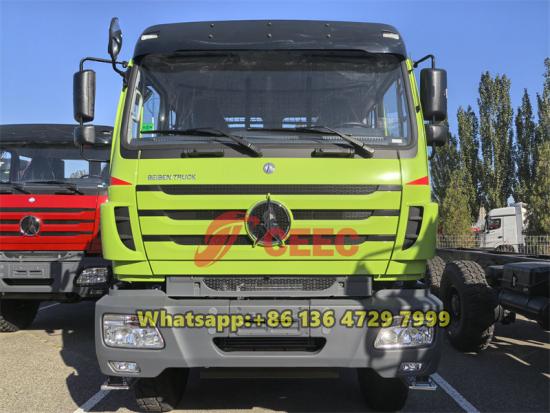

Product Detailed Pictures
