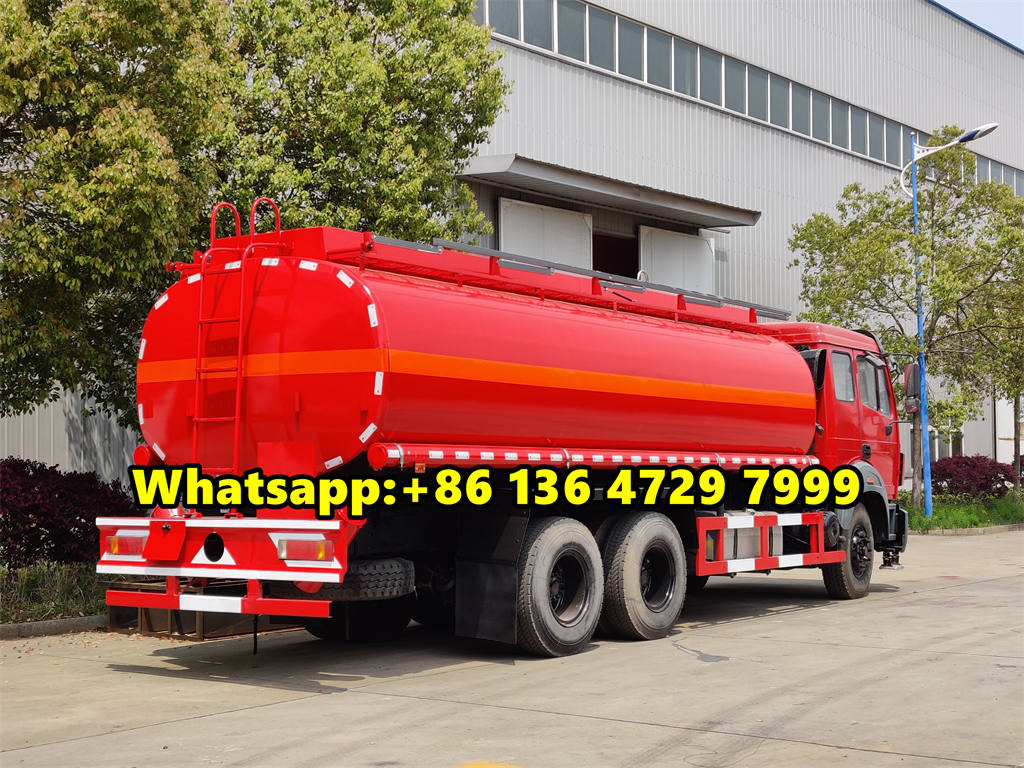

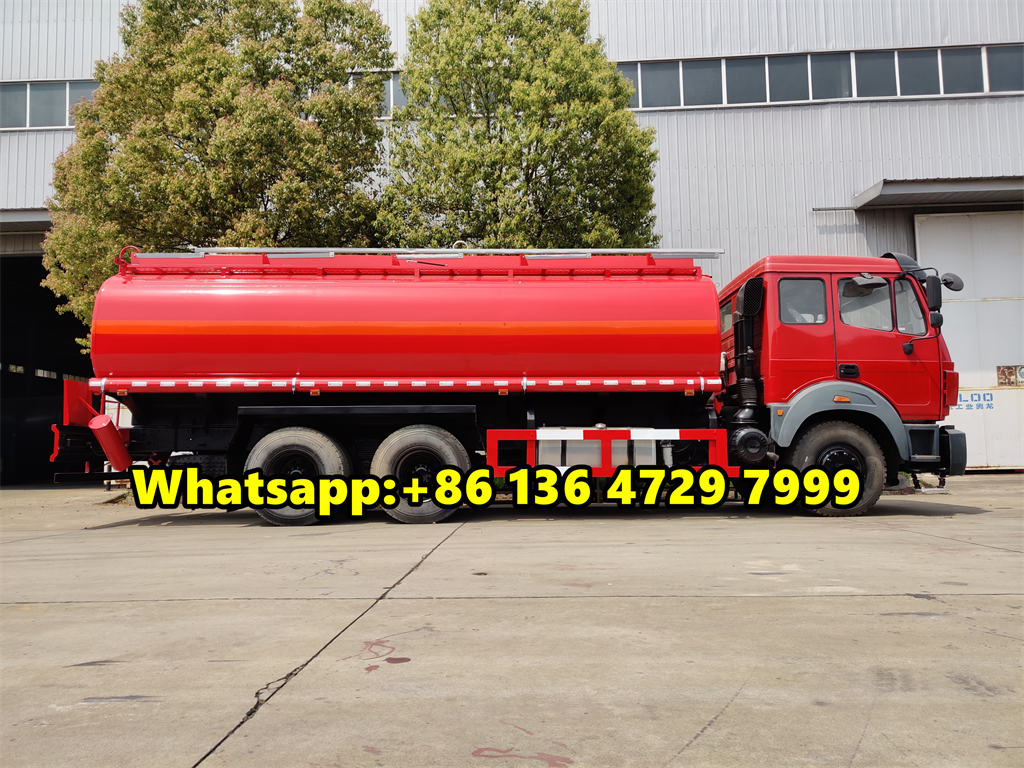

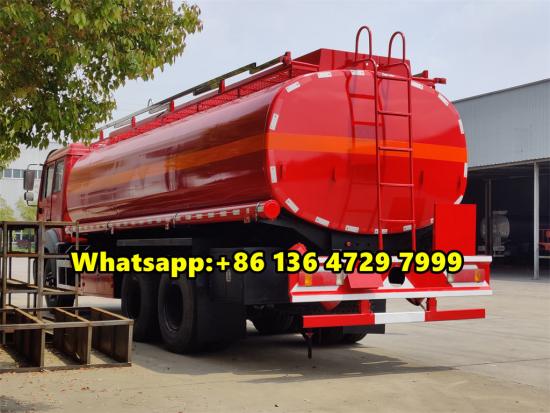

Beiben 20000L tanker truck is a professional fuel transporter, equipped with a powerful 380 horsepower engine and a 9-speed gearbox to ensure efficient transportation. Its 20,000-liter carbon steel tank body, with a thickness of 5mm, is designed to be stable and durable. The vehicle also uses air brake system and is equipped with a leaf spring suspension to ensure driving safety. In addition, a wealth of standard and optional configurations, such as the European safety system, meet the diverse transportation needs, making it the preferred model in the oil transportation industry.
Production time:
35 daysPayment terms:
TTWorking Capcity:
20000 litersEngine power:
380 HPDrive system:
6×4Product Description
Beiben 20000L tanker truck is a professional oil transport vehicle built on the Benben 2638 chassis. Its strong carrying capacity and stable structural design enable it to perform well in various complex environments. The vehicle is 9450mm long, 2500mm wide and 3050mm high, with a majestic appearance and ample interior space to ensure transportation efficiency. The gross vehicle weight (GVW) reaches 25000kg, while the curb weight is only 11735kg, which means it can carry a large amount of oil without affecting the stability and handling of the vehicle.
This Beiben fuel tanker is equipped with a WP10.380E32 engine with a displacement of 9726ml and an output power of 280kw, equivalent to 380 horsepower, which fully guarantees the power demand during transportation. At the same time, the vehicle is also equipped with a FAST 9-speed gearbox with 9 forward gears and 1 reverse gear, which can adapt to complex driving needs.
Beiben oil tanker truck is equipped with a 20,000-liter oil tank made of carbon steel. The thickness of the tank body and end cover is 5mm, which ensures its sturdiness and durability. The square design maximizes the space utilization and is also easy to clean and maintain. The interior of the oil tank can be set as a single-compartment or multi-compartment structure to meet the needs of different customers. The standard configuration of the Beiben fuel truck includes manhole, double discharge valves and valve boxes, wave-breaking plates, ladders, roof panels, anti-skid walkways and tool boxes, etc., ensuring convenience and safety during use.
Product Specifications
|
Vehicle Description |
||
|
Overall dimensions |
9450*2500*3050 |
|
|
GVW |
25000kg |
|
|
Curb weight |
11735kg |
|
|
Chassis brand |
NORTH BENZ |
|
|
Chassis Description |
||
|
Driving type |
6×4 |
|
|
Cab |
NG80 long cabin, flat roof with single sleeper, with A/C |
|
|
Wheelbase |
3450+1450 |
|
|
Tire specification |
12.00R20 |
|
|
Tire quantity |
10+1 units |
|
|
Engine |
Engine model |
WP10.380E32 |
|
Emission level |
Euro 3 |
|
|
Displacement/output |
9726ml/280kw |
|
|
Horse power |
380hp |
|
|
Gear box |
Model |
FAST 9-speed |
|
Number of gears |
9 forward gears & 1 reverse |
|
|
Brake system |
Full air brake system |
|
|
Axle |
Front |
7T |
|
Rear |
13T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Steel tanker, with lockable cap |
|
Capacity |
400L |
|
|
Tanker Description |
||
|
Tank capacity |
20000 liters |
|
|
Tanker material |
Carbon steel |
|
|
Thickness |
Tanker body |
5mm |
|
End cover |
5mm |
|
|
Tanker shape |
Square |
|
|
Tanker compartment |
1 compartment (optional: several compartment) |
|
|
Standard configuration |

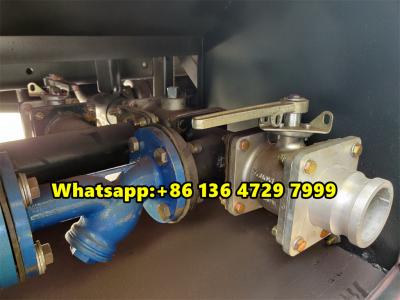

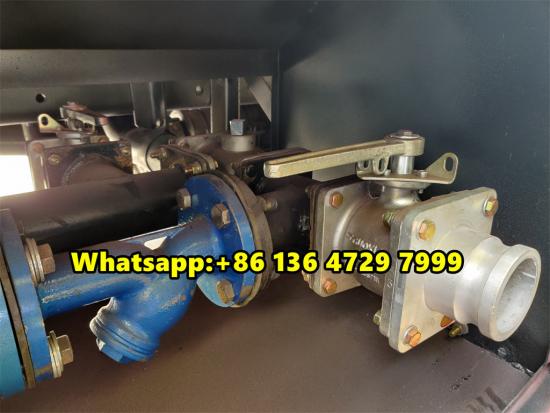

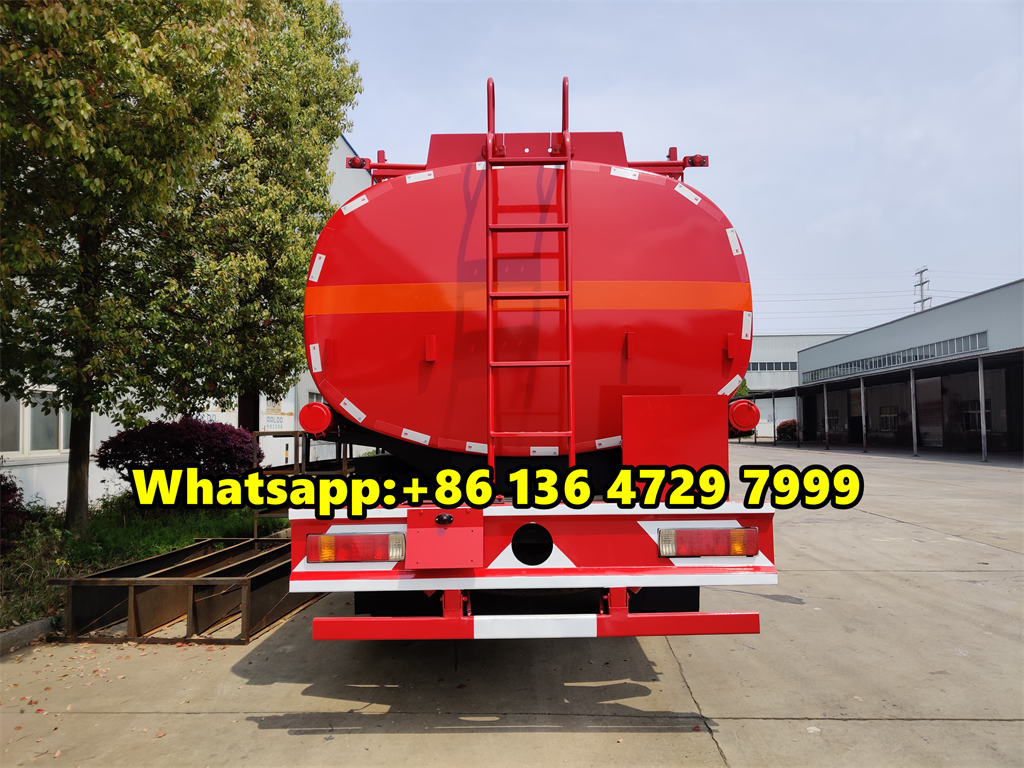

1. 1 set manhole (2 sets manhole for the capacity more than 12000L). 2. Equipped with double discharge valve and valve box. 3. Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. 4. Electrostatic conducting tape and double fire extinguishers. |
|
|
Optional |

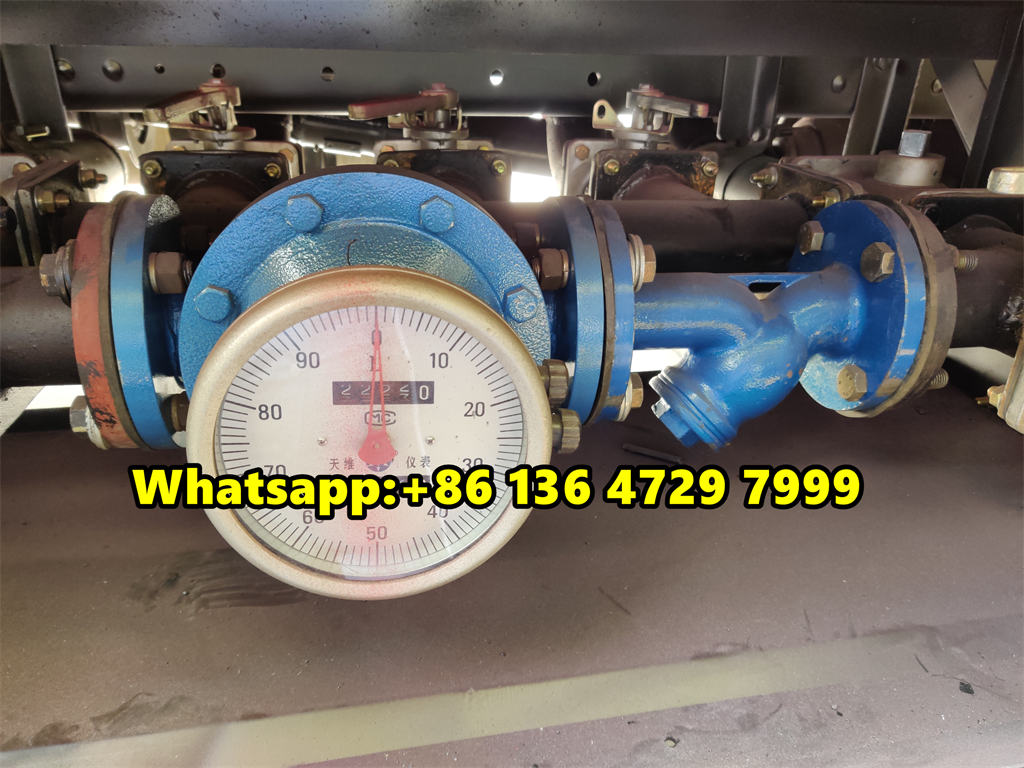

1. Tanker material: aluminum alloy; stainless steel 2. Chinese standard configuration is available, or other world famous fuel configuration. 3. The whole set of European configurations for each compartment: European type manhole, over flow probe system, vapor recovery system, bottom valve, API adaptors. 4. Emergency bottom valve and foldable aluminum handrail. 5. Others: fuel pump, refueling dispenser, flow meter, dipstick, etc. |
|
Product Details
Product Advantages
The advantages of the Beiben 20000L oil tanker are mainly as follows:
1. Large capacity and high efficiency
The Beiben 20000L fuel tanker has a tank capacity of up to 2000 liters, which means it can load and transport a large amount of oil at one time. This large-capacity design significantly improves transportation efficiency and reduces the number of round trips, thereby saving time and cost.
2. Strong carrying capacity
The vehicle has a chassis gross weight (GVW) of 25000kg and a curb weight of 11735kg, so it has a strong carrying capacity and can carry several tons of oil. This strong carrying capacity enables the Beiben 20000L oil tanker to meet the needs of large-scale oil transportation.
3. Stable structural design
The Beiben fuel tank truck has a stable chassis and cab design, as well as high-quality body steel plate integral stamping forming technology, which makes the vehicle extremely stable and safe during transportation. This structural design can ensure the safety of oil during transportation and reduce the risk of leakage and damage.
4. Efficient power system
The Beiben 10 wheeler oil tanker truck is equipped with a powerful engine and transmission system, such as the WP10.380E32 model engine with an output power of up to 280kw (380HP), and a FAST 9-speed transmission. These efficient power systems enable the vehicle to travel quickly and smoothly, improving transportation efficiency.
5. Rich configuration options
The Beiben 20000L fuel tanker offers a wealth of optional configurations, such as aluminum alloy or stainless steel tank materials, European standard safety configurations, etc. These optional configurations make the vehicle more flexible and can be customized according to different needs to meet the diverse needs of customers.

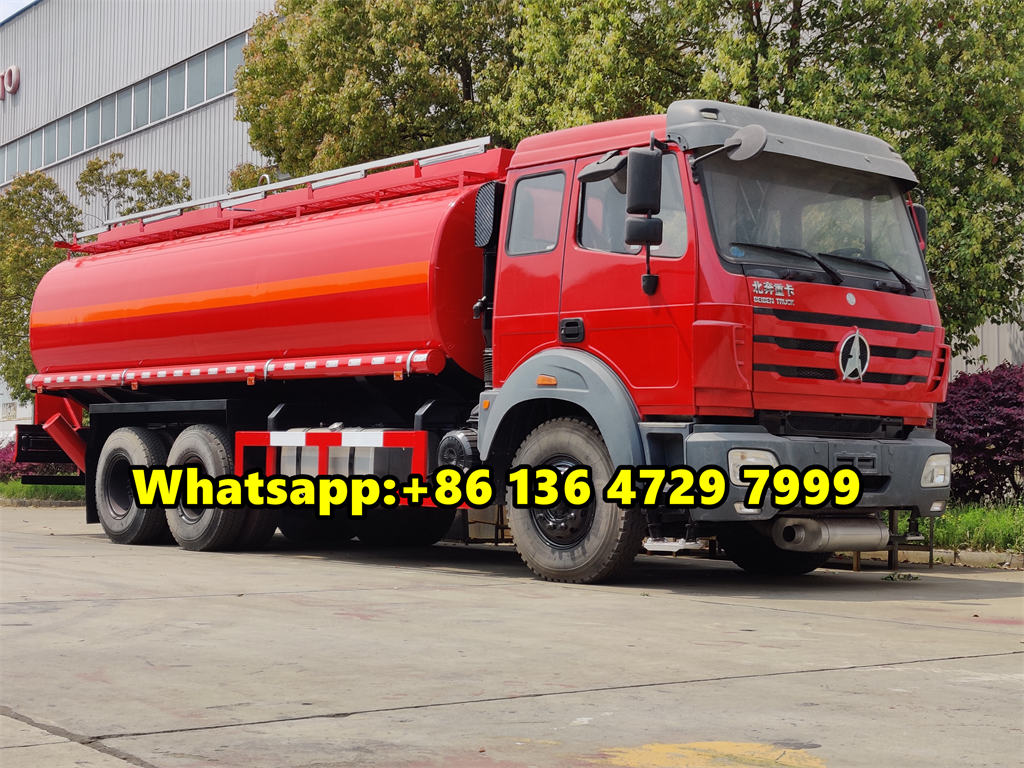

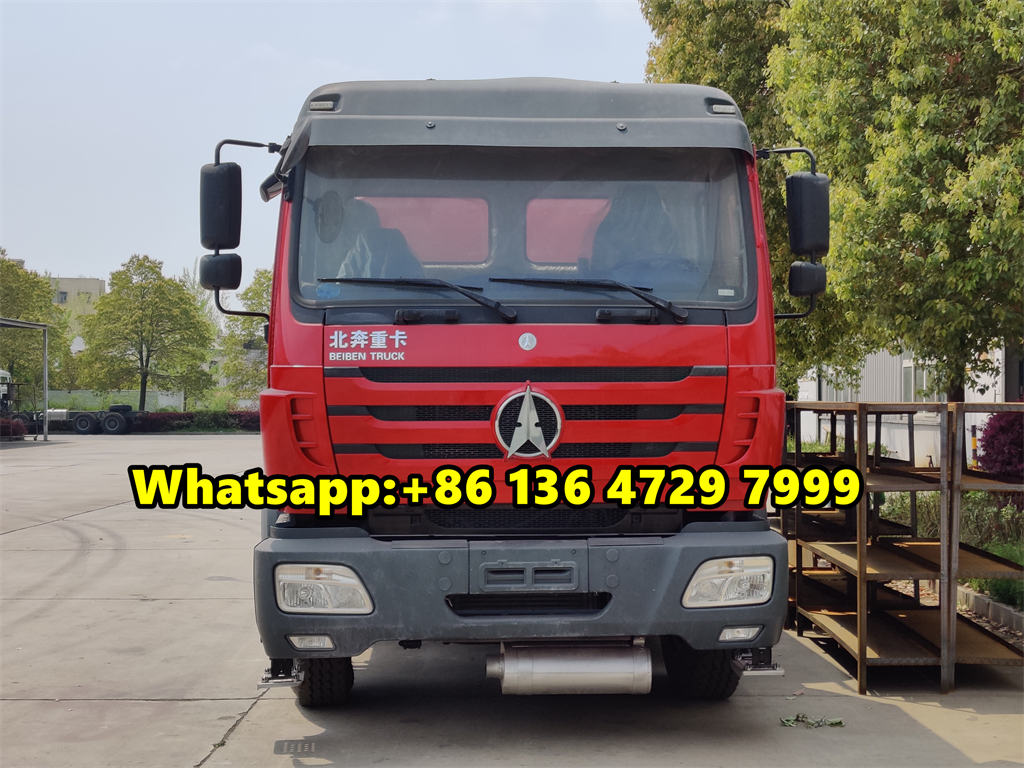

The beiben oil tanker truck features a 20,000-liter tank body, ensuring that it can carry a substantial amount of fuel at once. This large capacity makes it ideal for long-distance transportation and refueling operations, reducing the need for frequent trips to refuel. The Beiben 2638 fuel bowser truck is built with a durable and sturdy Beiben NG80B cab, providing a comfortable and ergonomic driving experience for the operator. The cab is designed with the driver's needs in mind, offering ample space and visibility to ensure safe and efficient operation.
Beiben 2638 fuel tanker truck is a specialized fuel tanker truck designed to transport petroleum products, such as gasoline, diesel fuel, and jet fuel, from refineries to distribution centers, airports, and gas stations. These Beiben 2638 fuel tanker trucks generally have large tanks, ranging in size from 5,000 to 11,000 gallons. The tanks are made of steel or aluminum and are heavily reinforced to withstand the weight and pressure of the fuel.Beiben 2638 oil Fuel tanker trucks use various types of suspension systems, such as air suspension or spring suspension, to ensure a smooth ride and to minimize the risk of spills or accidents. They are equipped with advanced safety features, including electronic brake systems, roll stability control, and anti-lock braking systems, to enhance driver safety and reduce the chances of accidents while on the road.
