Order(MOQ):
1Goods Stock:
1Production time:
30 daysPayment terms:
T/T
Applications:

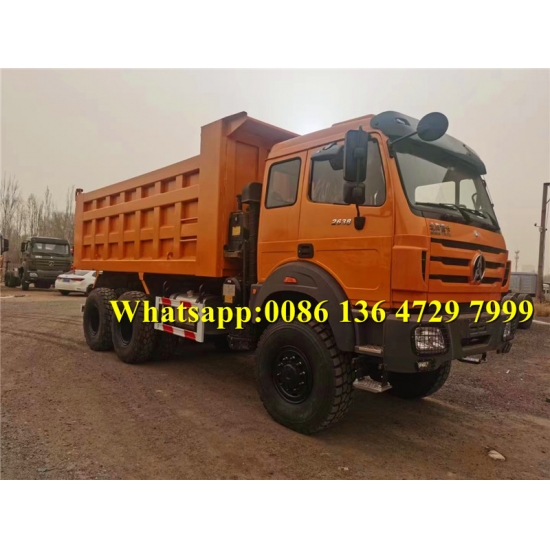

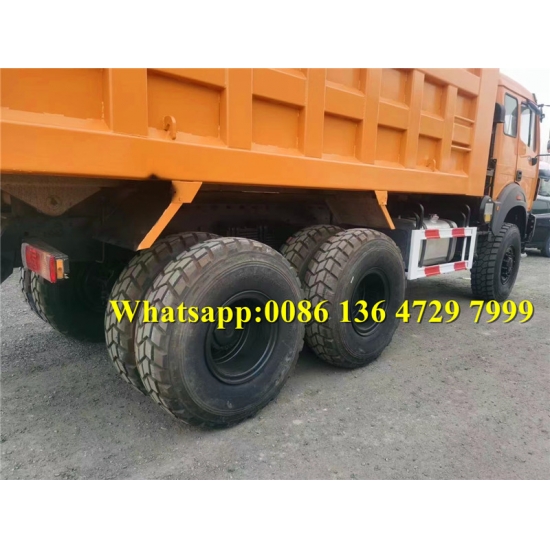

The Beiben 2638 off-road dump truck, it is also called as beiben 2638 off road dump truck, beiben 2638 off road tipper truck, It is a heavy-duty vehicle designed for tough terrains with 6 wheeler off road driving system.
It is powered by a 12.8L engine with 380 horsepower and 1500 Nm of torque, coupled with a 16-speed manual transmission. The truck has 6x6 drive and a gross vehicle weight of up to 50 tons. The Beiben 2638 off-road dump truck has a robust chassis and suspension system, designed to provide excellent durability and stability on rough terrains. It also features a hydraulic steering system with a variable displacement pump, enabling precise control and maneuverability.
Key Features:
---- BEIBEN NG80B cabin, benz technology
---- ZF8098 fuller steering system, convenient.
---- 9JS150A transmission, super combination.
---- 6*6 drive system , off road drive
---- Off road tyres, 12.00R24 big tyre.
Specifications:
|
Required Technical Specification 参数 |
||
|
Basic parameter 基础参数 |
Model 型号 |
2638PZ/6×6 |
|
Length×width×height(mm) 长×宽×高 |
9526×2500×3385 |
|
|
Wheel-base(mm) 轴距 |
3800+1450 |
|
|
Curb weight(kg) 底盘整备质量 |
12400 |
|
|
Engine parameter 发动机参数 |
Model (six cylinder in line) 型号（六缸） |
WP10.380E32 |
|
Max. Power (HP/rpm) 最大马力 |
380 |
|
|
Max. Torque(Nm/rpm) 最大扭矩 |
1600/1400～1600 |
|
|
Displacement(lit) 排量 |
9.726 L |
|
|
Fuel tank capacity 油箱容量 |
400L Iron oil tanker 400L铁 |
|
|
Transmission system 传动系统 |
Clutch 离合器 |
430 Single disc, dry type, friction clutch； 430单片，干式摩擦离合器，液压辅助可调式； |
|
Gearbox 变速箱 |
Mechanical, 9JS150A |
|
|
Steering system 转向系统 |
Steering gear 转向机 |
8098 Circulating ball steering gear, hydraulic booster；循环球式，液压助力； |
|
Brake system 制动系统 |
Service brake 行车制动器 |
Double circulation air brake system equipped； 双回路气压制动； |
|
Parking brake 驻车制动器 |
Energy storage spring brake 弹簧储能制动； |
|
|
Assisted brake 辅助制动 |
Engine exhaust brake 发动机排气制动； |
|
|
Chassis parameter 底盘参数 |
Frame 车架 |
Variable width and section 317×70×8.5+7+8.5 mm； 不等宽，变截面 317×70×8.5+7+8.5 mm； |
|
Front axle 前桥 |
7.5 T, no-driving steering axle, drum brake； 7.5吨驱动转向桥，鼓式制动； |
|
|
Middle & Rear axle 中后桥 |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263； 双蹄片式气压制动，双减速驱动桥，差速锁，速比5.263 |
|
|
Front and rear suspension 前悬挂/后悬挂 |
Front/rear: Leaf spring, 13/13 pieces； 前/后板簧：13/13片簧； |
|
|
Tire 轮胎 |
12.00R20 |
|
|
Cab 驾驶室 |
NG80B Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). NG80B长驾平顶/左驾带双卧 外饰：金属保险杠、三步软车梯、外遮阳板、手动天窗、手动调节后视镜。 |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument 内饰：气悬浮主座椅、单卧铺、冷暖空调、可调方向盘、手动门锁、收放机（带MP3功能）、数字仪表。 |
||
|
Offer 报价 |
1.工厂自提含税价格：以具体核算为准。 2.支付方式：30%现金定金，70%现金尾款，款到发车。 3.交货期：收到30%定金后，正常交货期为45天交付货物。交货期需要在签订合同前再次确认。 4.报价有效期：1个月 。有效期过后，需要重新报价。 5.该车辆不含质保，如需质保，需要另行商议。 |
|
Off road suspension system.
we are china best beiben 6*6 wheel drive trucks supplier, can provide customer with the best quality beiben 6*6 drive truck chassis, beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
Best beiben 6 wheel drive trucks with super benz trucks quality , beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
CEEC beiben 25 CBM bulk cement truck are equipped with chinese weichai engine and TAS steering. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors and earthmoving projects.
Logging semi-trailers in confirmity with regulations, and matching specifi conditions encountered by foresters. Bogie with reinforced axles, 30 to 50 Tons loading capacity. Width capacity RANGING from 2.5 to 3.5 meters.
"GABON TYPE" log trailers with 2 x 3.10 or 3.5 m wide bunks, mounted on JOST turntables. 1 fixe stake and 1 hinged stake.
The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
north benz 4*4 drive military truck chassis, based on china benz technology ND1921 military truck , original from baotou beiben heavy duty trucks co.,limited.
baotou beiban left hand drive 4*4 wheel military truck chassis supplier , based on china benz technology ND1921 military truck , original from baotou beiben heavy duty trucks co.,limited.
The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
