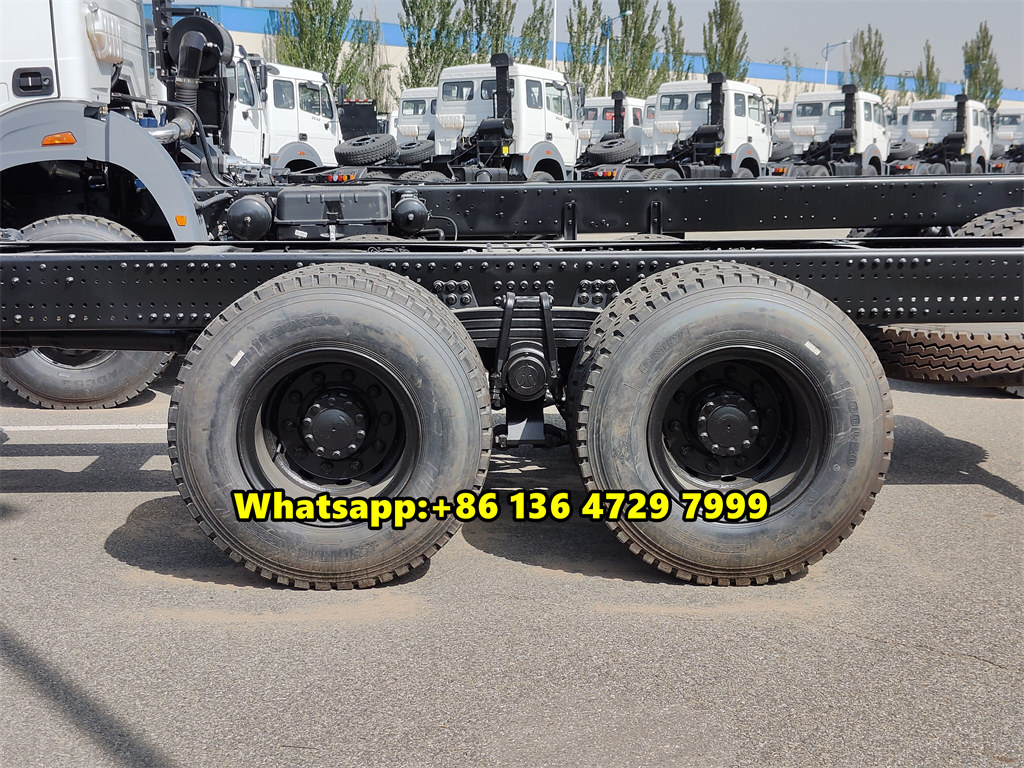

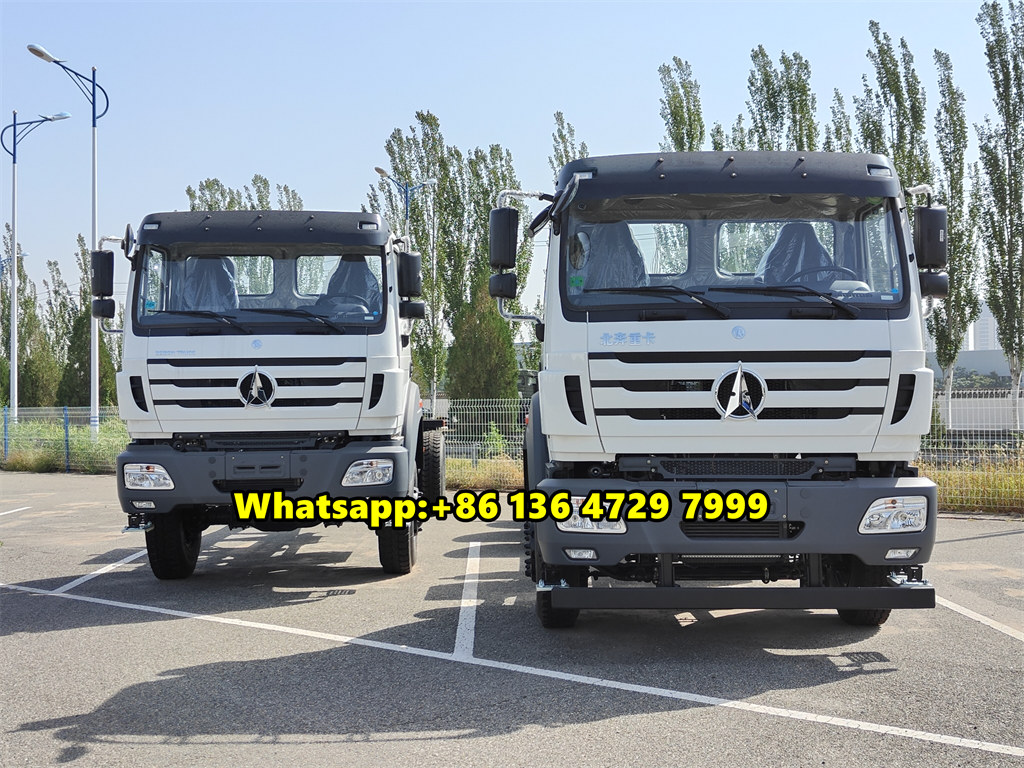

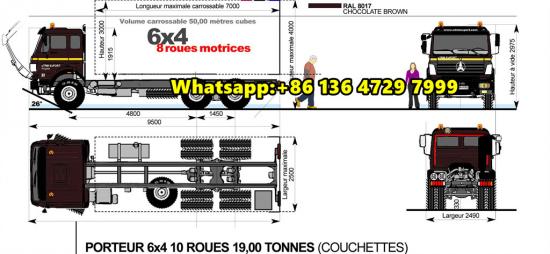

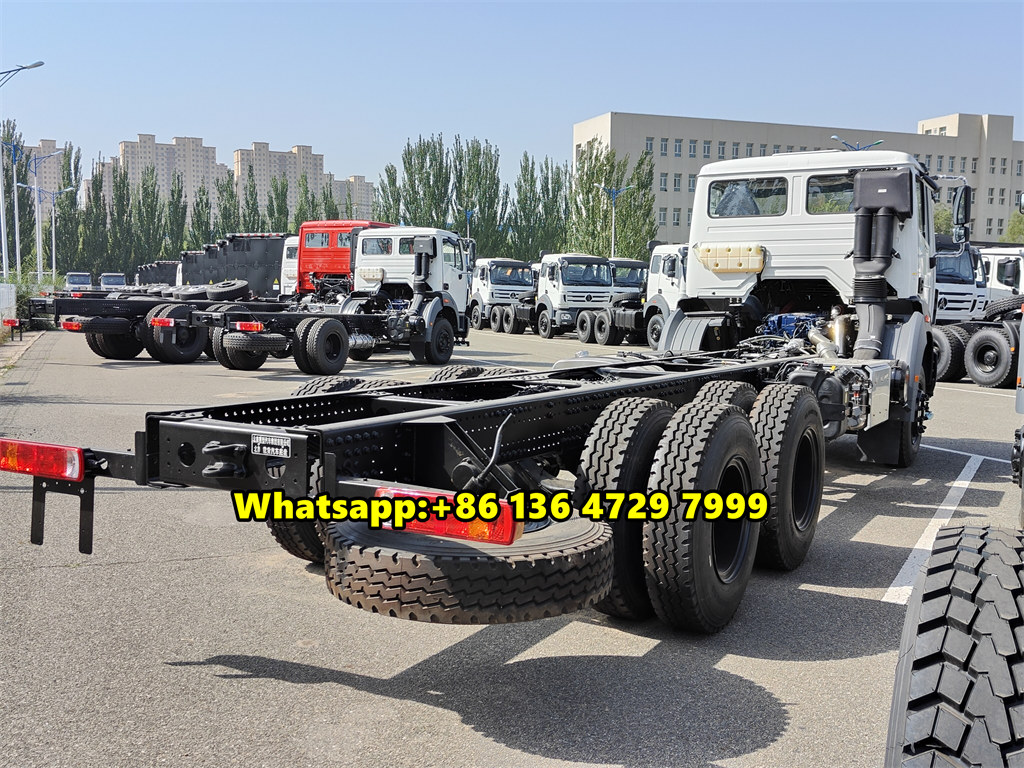

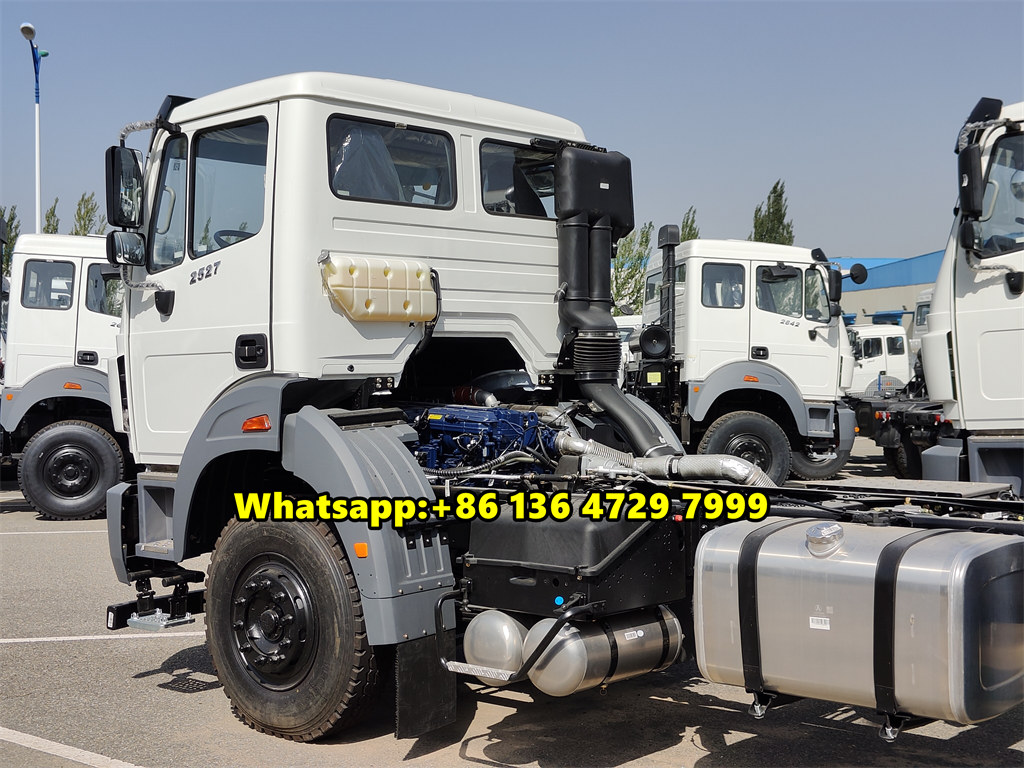

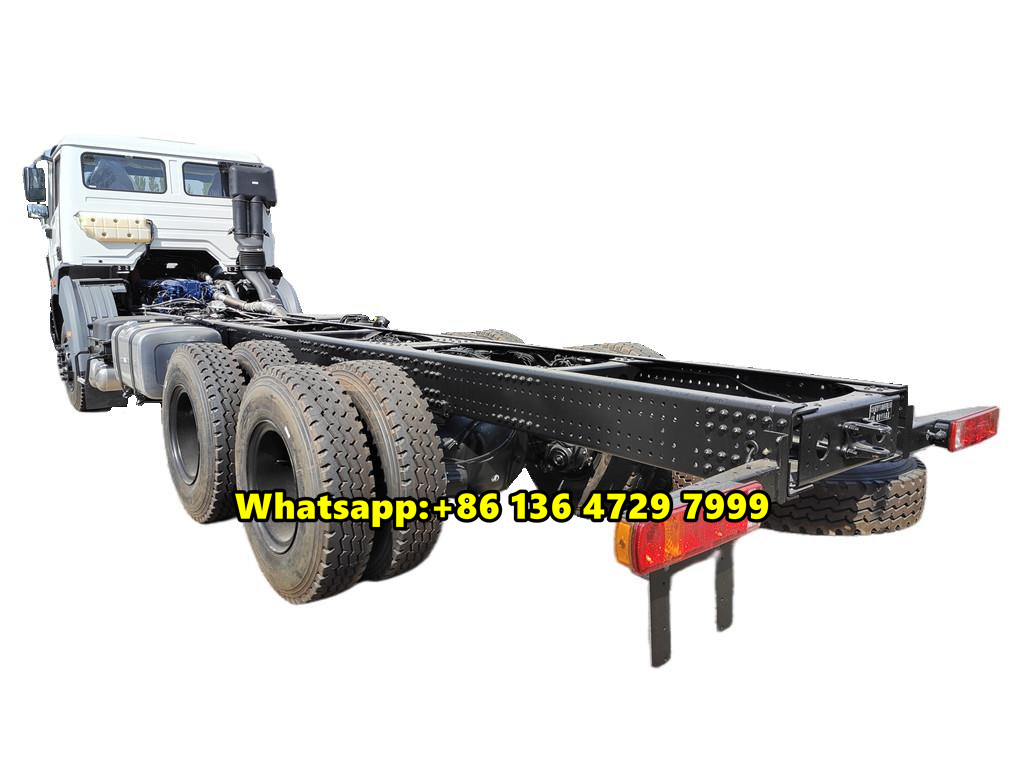

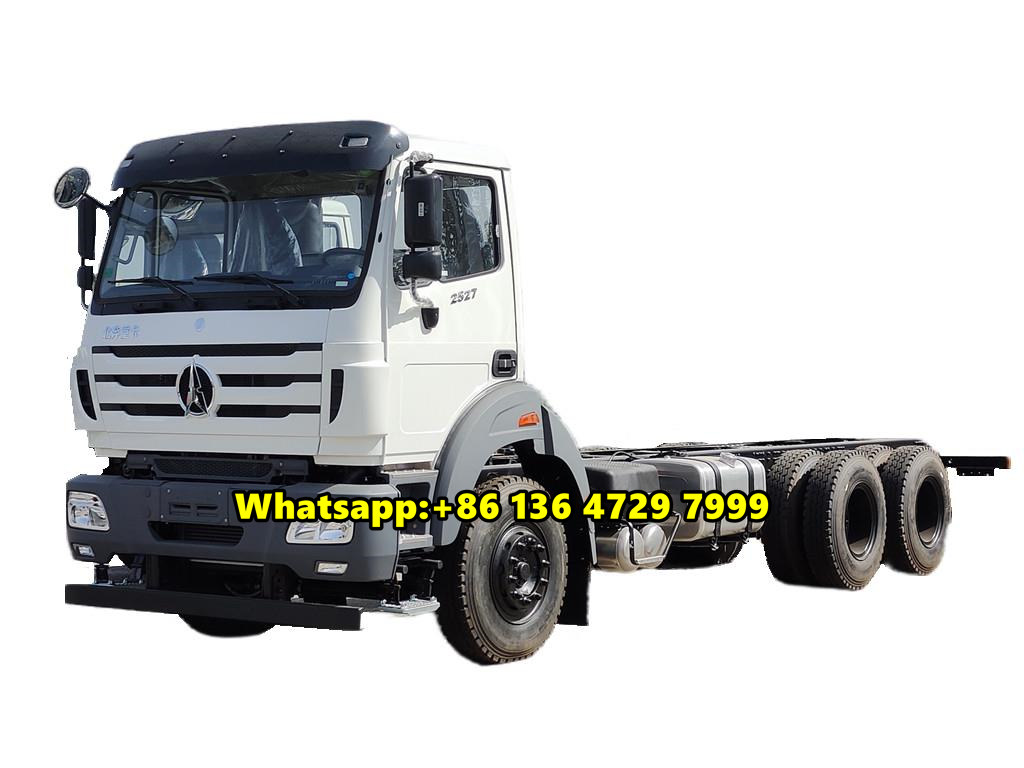

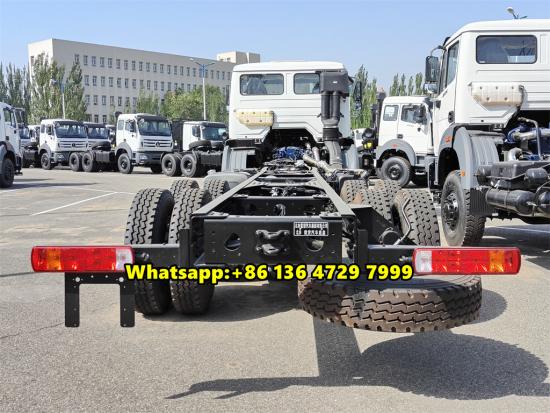

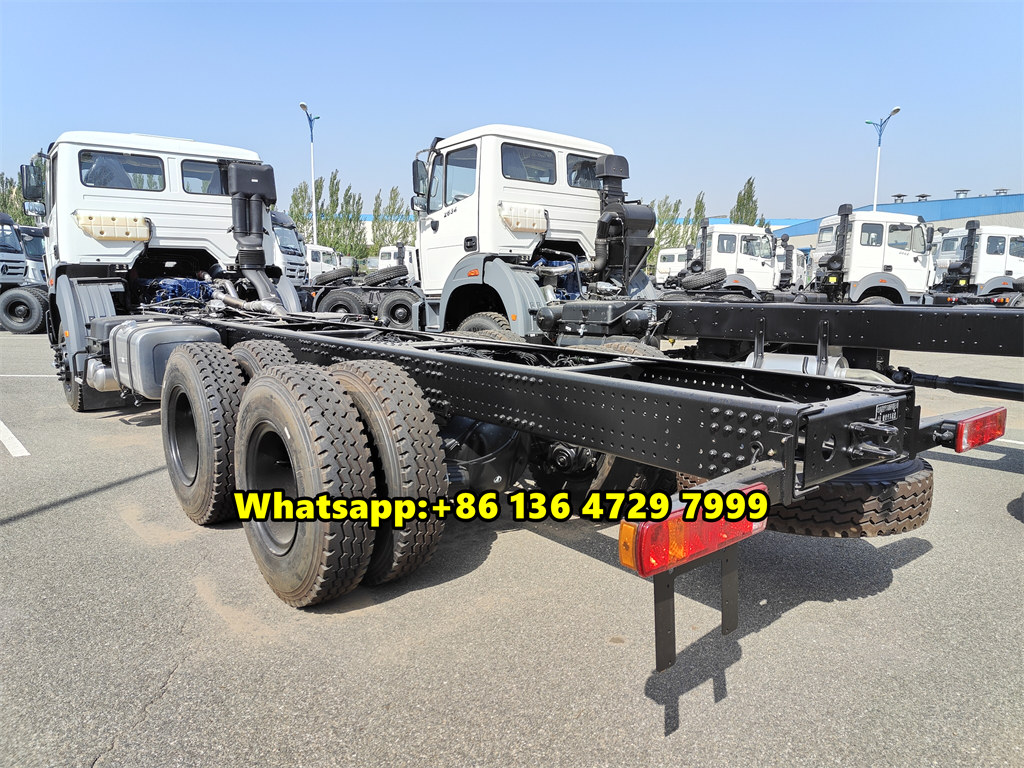

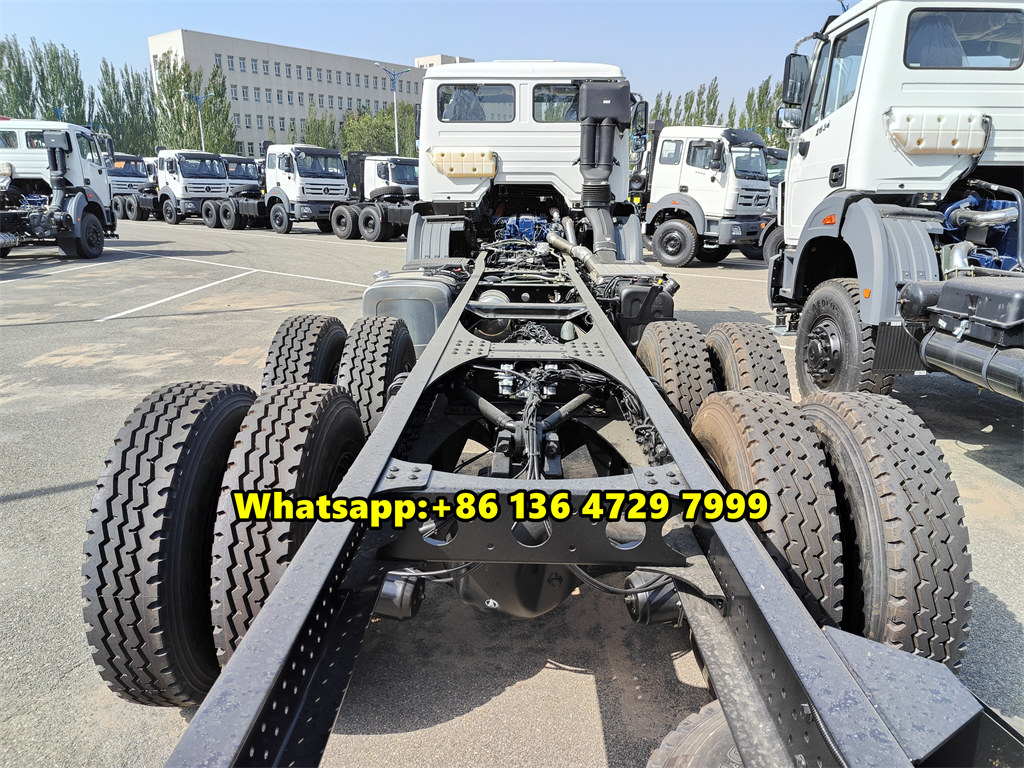

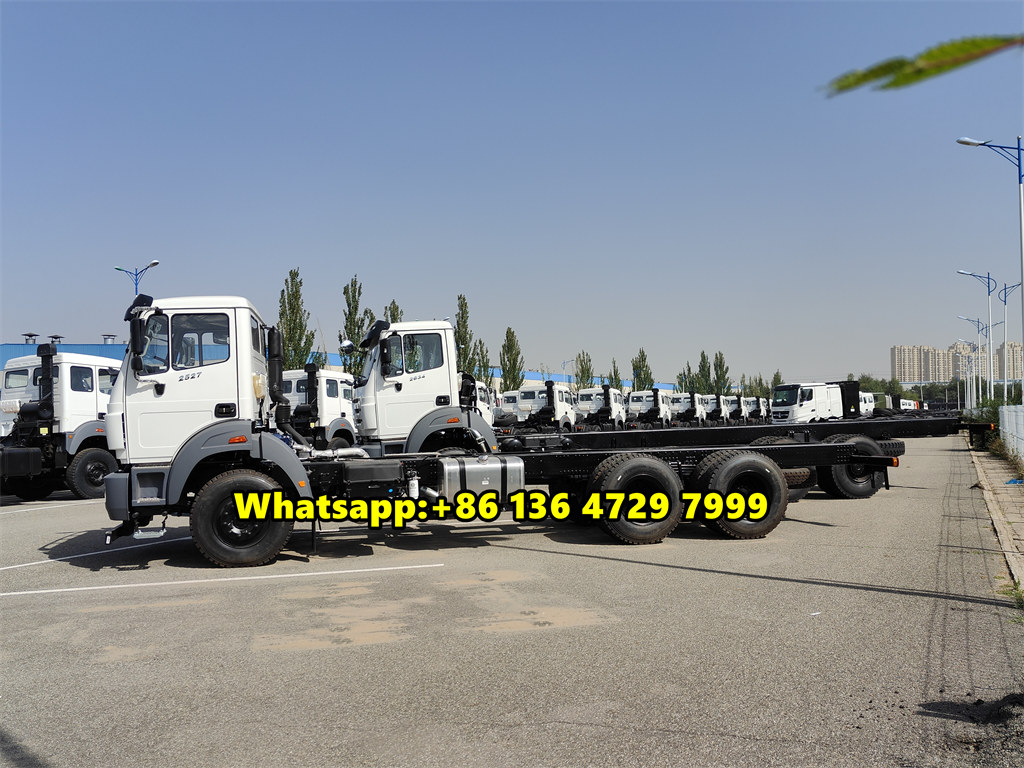

Beiben 6x4 LHD RHD 290hp Cargo Truck Lorry Truck, classical NG80B truck cabin, long cab with one sleeper, WEICHAI Brand new Model WP10.290E32 model 280hp diesel engine with 9726cc emission. Gear box is FAST brand with 9 speeds (9JS180). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Tyres model is 12.00R20 with 10+1 pcs. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30, Overall dimension(mm)8900x2500x3500.
Production time:
30-35daysPayment terms:
TTWorking Capcity:
30-40 tonsEngine power:
290HPDrive system:
6x4Beiben 6x4 cargo truck chassis is a specific product in the automotive manufacturing industry, mainly used to build the basic structure of heavy-duty cargo vehicles. The following is a detailed definition of Beiben 6x4 cargo truck: Chassis type is 6x4, which means that the vehicle has three axles, two of which are facing the front of the vehicle and one axle facing the rear of the vehicle.And the "6" in 6x4 means that the vehicle has 2 tires in the front and 8 tires at rear, of which "4" means that there are 4 tires supporting the single axle at the rear and the other 2 tires supporting the driving single axle at the front.

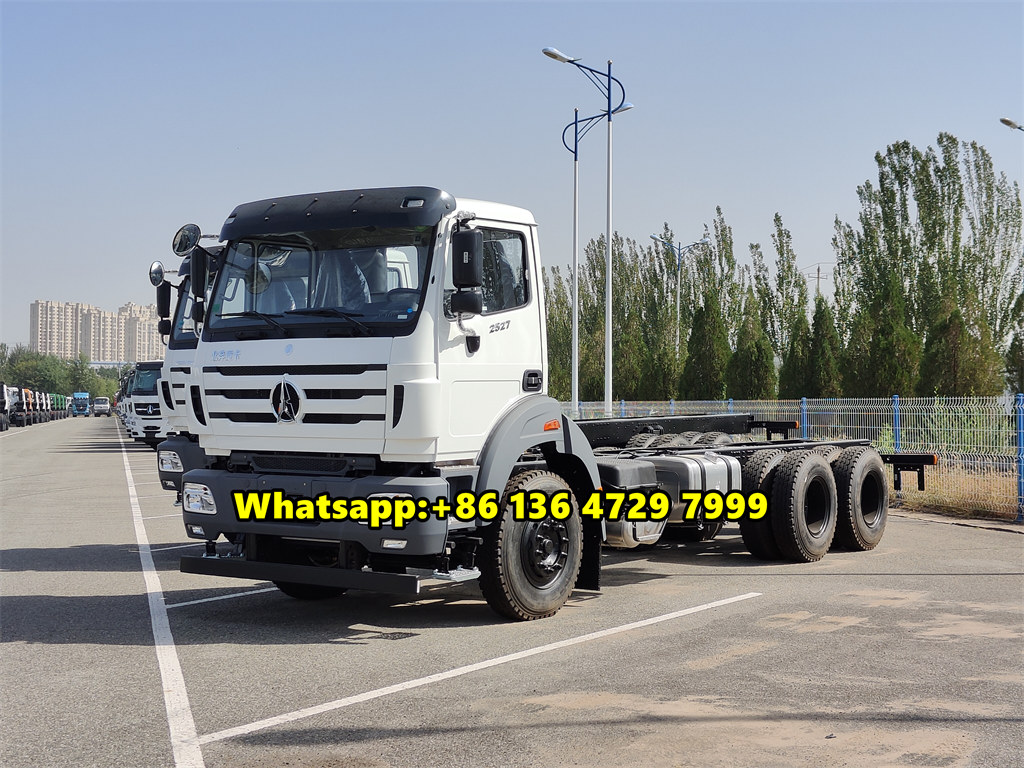

Structural features for Beiben 2527 LHD 6x4 cargo trucks as below showing:
1. Number of axles and tires: The configuration with three axles and six tires provides strong load-bearing capacity and stability.
2. Drive mode: Usually a front dual-drive axle design to ensure the vehicle's driving capacity and stability under heavy loads.
3. Chassis model: Beiben trucks can be customized all as required, Beiben 2527 cargo truck, Beiben 2638 cargo truck, Beiben 2642 cargo truck.
4. Wheelbase: The wheelbase will vary depending on the model and purpose, but is usually designed to support high loads and stability.
5. Engine: It may be equipped with a high-power diesel engine to meet the needs of heavy loads and long-distance transportation.
6. Transmission: A multi-speed transmission FAST 9-shift and 12-shift is used to adapt to driving needs under different road conditions and load conditions.
7. Suspension system: Equipped with a suspension system with strong load-bearing capacity and good stability to ensure the smooth operation of the vehicle under various road conditions.
Logistics industry: Due to its high load-bearing capacity and stability, Beiben tractor trucks and Beiben cargo trucks has a wide range of applications in the logistics industry, such as long-distance cargo transportation, container transportation, etc.
Construction industry: Beiben 6x4 cargo truck, Beiben 6x6 cargo truck can be used to transport heavy items such as building materials and equipment.
Mining: In mining, it is used to transport materials such as ore and waste rock.
Beiben 6x4 cargo truck is a heavy truck chassis with strong load-bearing capacity and stability, which is widely used in logistics, construction, mining and other fields. It adopts a three-axle six-tire configuration, a front dual drive shaft design, and is equipped with advanced technologies such as a high-power diesel engine and a multi-speed transmission to ensure the excellent performance of the vehicle under various road conditions and load conditions.
| Heavy Duty Beiben 6X4 Cargo Lorry Truck Chassis | |||
| Wheel base (mm) | 4450+1450 | ||
| Curb weight (kg) | 9200 | ||
| Gross towing trailer weight (kg) | Overloading up to 100 tons | ||
| Max Speed:(Km/h) | ≤90 | ||
| Dimension(Length*Width*Height) | 9200×2500×3200mm | ||
| Front overhang/rear overhang (mm) | 1410/740 | ||
| Approach angle/Departure angle | 26/64 | ||
| Engine(WEICHAI) |
Model | WP10.290E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged | |
| Fuel type | Diesel | ||
| Emission | EUROIII | ||
| Displacement(L) | 9.726 | ||
| Fuel tanker capacity (L) | 400L Carbon Steel |
||
| Clutch | Φ430, Diaphragm Spring,Hydraulic boosting | ||
| Gearbox | FAST 9JS150, mechanical type,9 Forward speed gear. | ||
| Steering system | ZF8098 | ||
| Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake,7.5tons non-driving steering axle | ||
| Middle and Rear axle (Mercedes Benz technology) |
Middle axle: HD7/016DGS-13/5.263 Rear axle: HL7/015DS-13/5.263 |
||
| Tire | 12.00R20 radial tire 11 (10+1) | ||
Cab |
NG80B Long cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
||
| Painting & Logos |
100% customized |
||
Beiben 6x4 cargo truck, based on special beiben 6*4 cargo truck chassis.
The series products of Beiben trucks are ideal transport with outstanding performance and high quality, Beiben 2638 2642 cargo trucks are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now Beiben 6x4 6x6 cargo trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth. Beiben heavy-truck originate from Mercedes-Benz,Gremany,The Chinese local manufacturers, technical performance properties index and conform to the state and military standard.
Beiben V3 6×4 chassis is a heavy-duty vehicle chassis with rich configuration and excellent performance. It is equipped with WEICHAI WP10.380E32 engine with a displacement of 9.726L and a maximum torque of 2000NM@1400-1600rpm. It adopts FAST 9-speed manual transmission, and the gear shifting is smooth. The front/rear axle adopts BENZ technology, with a load capacity of 7000kg and 13000kg respectively. The cab is equipped with air conditioning and air suspension seat to provide a comfortable driving environment.
Beiben 420HP NG80B cargo truck chassis, customized fire red painting NG80 cabinet, WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, mounted with 12.00R24 tires and 11 pcs. The Beiben 6x4 LHD truck chassis with long cabin, can be mounted as Beiben 2642 dump truck, Beiben 2642 water truck, Beiben 2642 fuel bowser, Beiben 2642 crane truck, etc. Africa customers from DR Congo, Tanzania, Nigeria, Mozambique, etc prefer to purchase and use Beiben 6x4 cargo truck and Beiben 6x6 offroad cargo truck, due to international realiable BENZ technology.
north benz 20 CBM water wagon, 6*4 driving system, Europen technology diesel 340 Hp engine, fast 9 shift transmission, 12.00R20 tyre. Mercedes benz technology full equipped with beiben 2530 water tanker truck technology.
Model: ND4251B34J7 Traction type: 6x4 Driving type: Left hand drive Cabin: Mercedes Benz (double Sleeper), with A/C, electric window lift. Engine brand: Weichai EURO III Engine model: WP12.480 Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling
Beiben(North Benz) dump truck/6*4 /right hand drive Model: ND3251B38J Power STAR With Benz technology and produced under the liscence of Benz. Can work under varying environmental conditions.

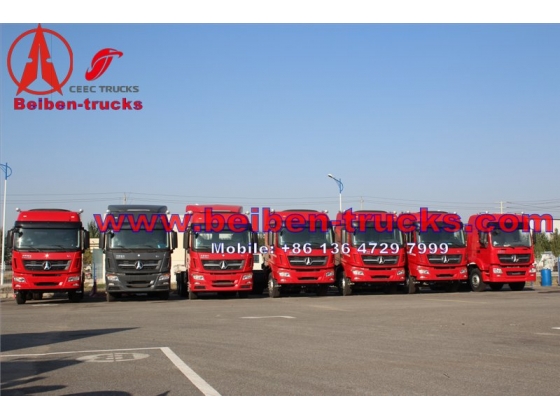

Beiben NG80 tractor 6x4 truck head north benz, best supplier for Beiben NG80 tractor 6x4 truck head north benz in china.

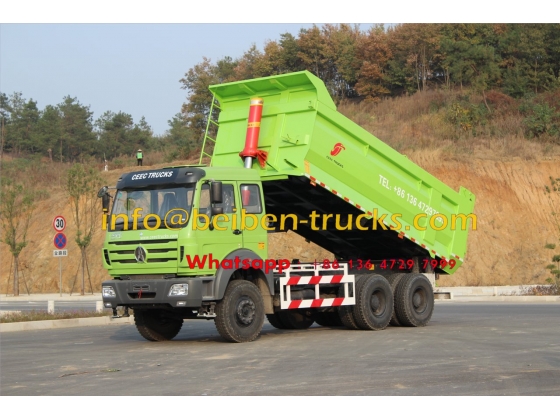

china 50 Ton heavy duty dumper beiben brand , best quality china 50 T heavy duty dump truck supplier for congo country. Benz unique axle technique High EFFICIENCY
