The series products of Beiben trucks are ideal transport with outstanding performance and high quality, Beiben 2638 2642 cargo trucks are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now Beiben 6x4 6x6 cargo trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth. Beiben heavy-truck originate from Mercedes-Benz,Gremany,The Chinese local manufacturers, technical performance properties index and conform to the state and military standard.
Production time:
30-35daysPayment terms:
TTWorking Capcity:
30-40 tonsEngine power:
280HPDrive system:

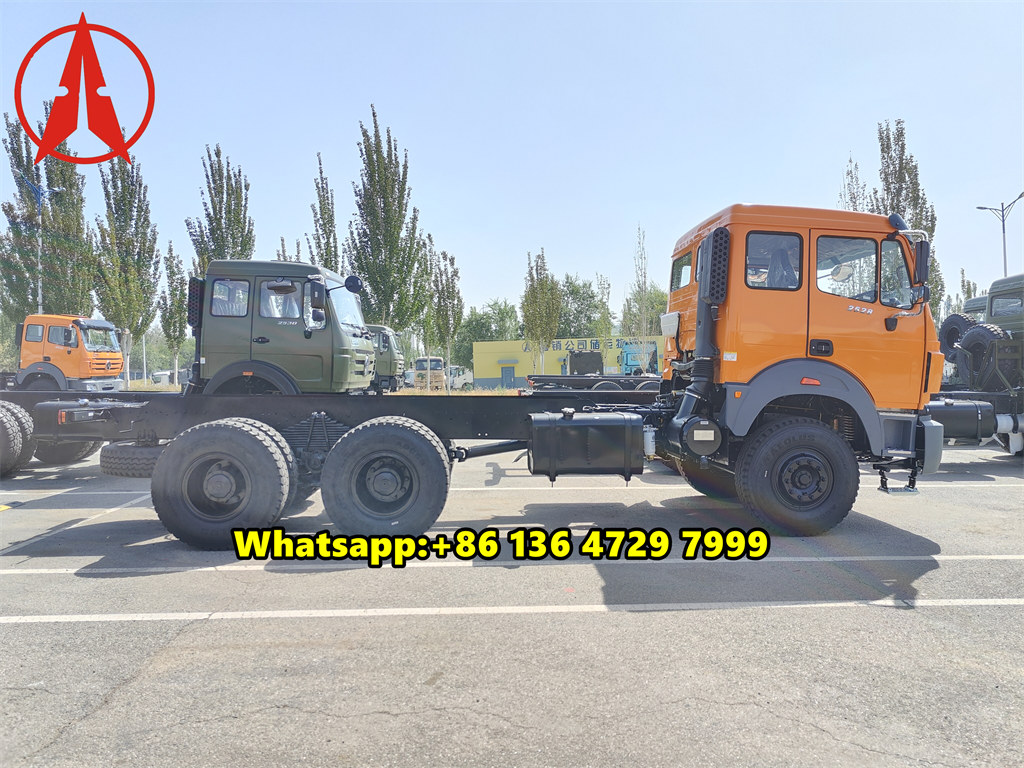

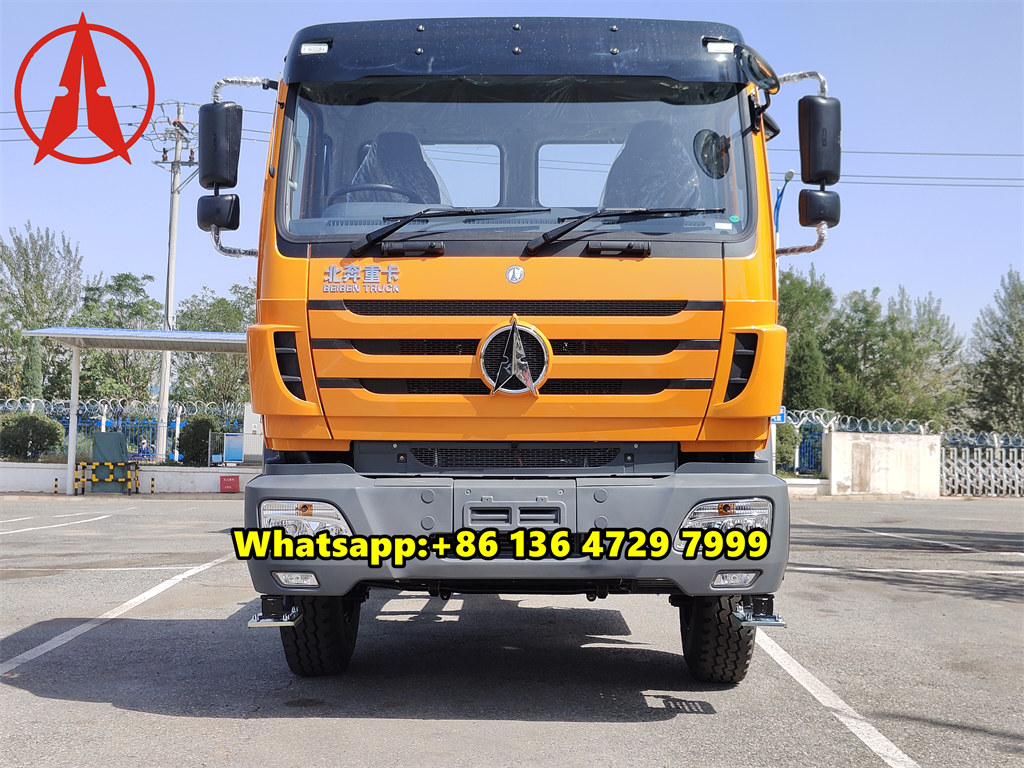

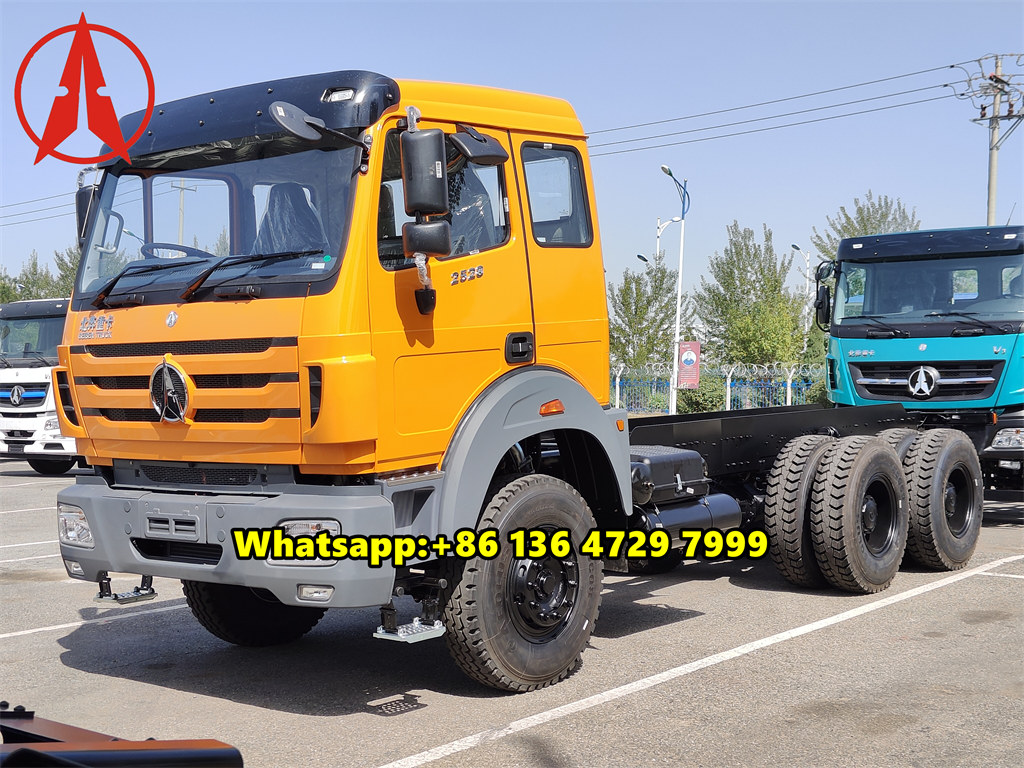

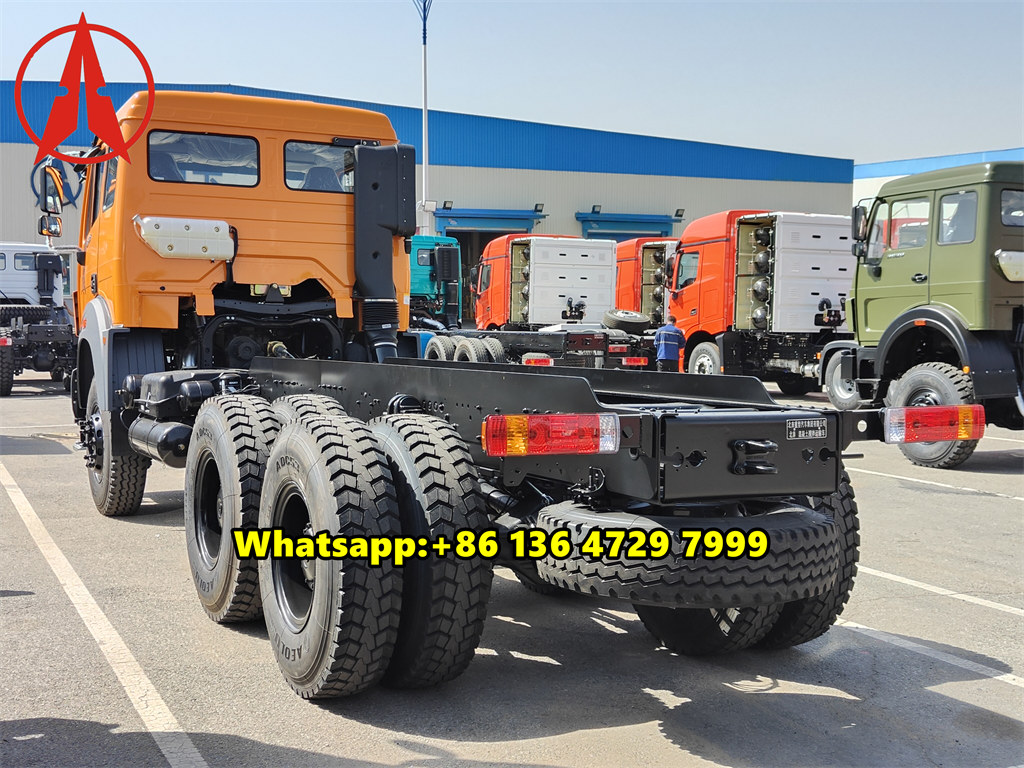

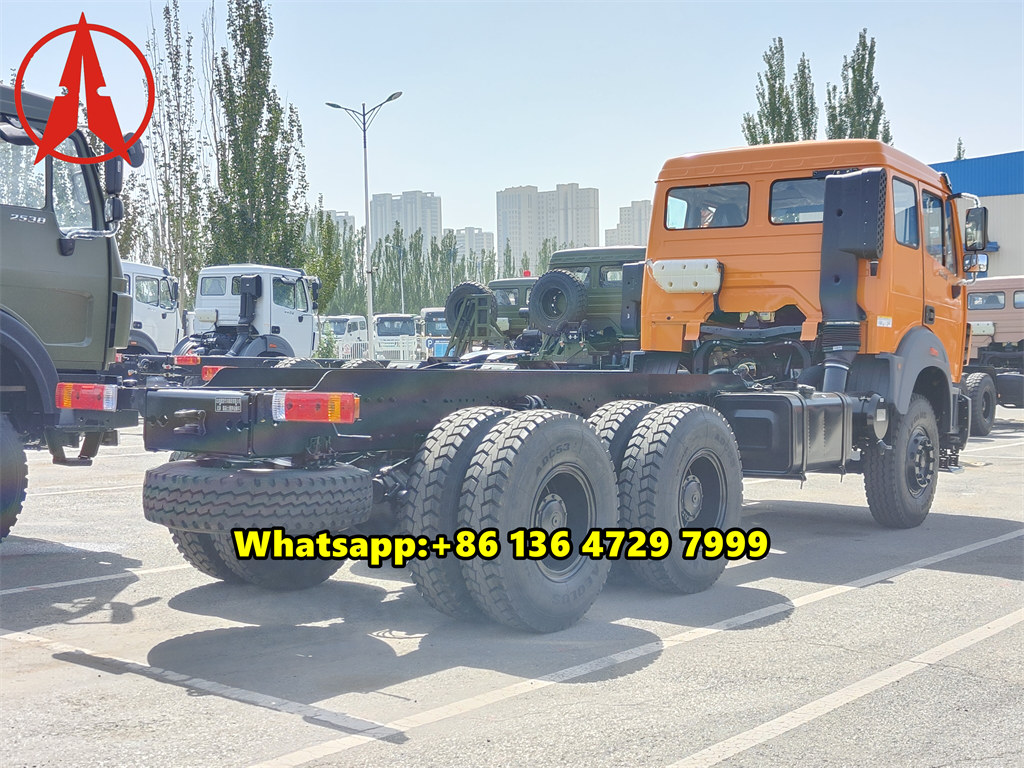

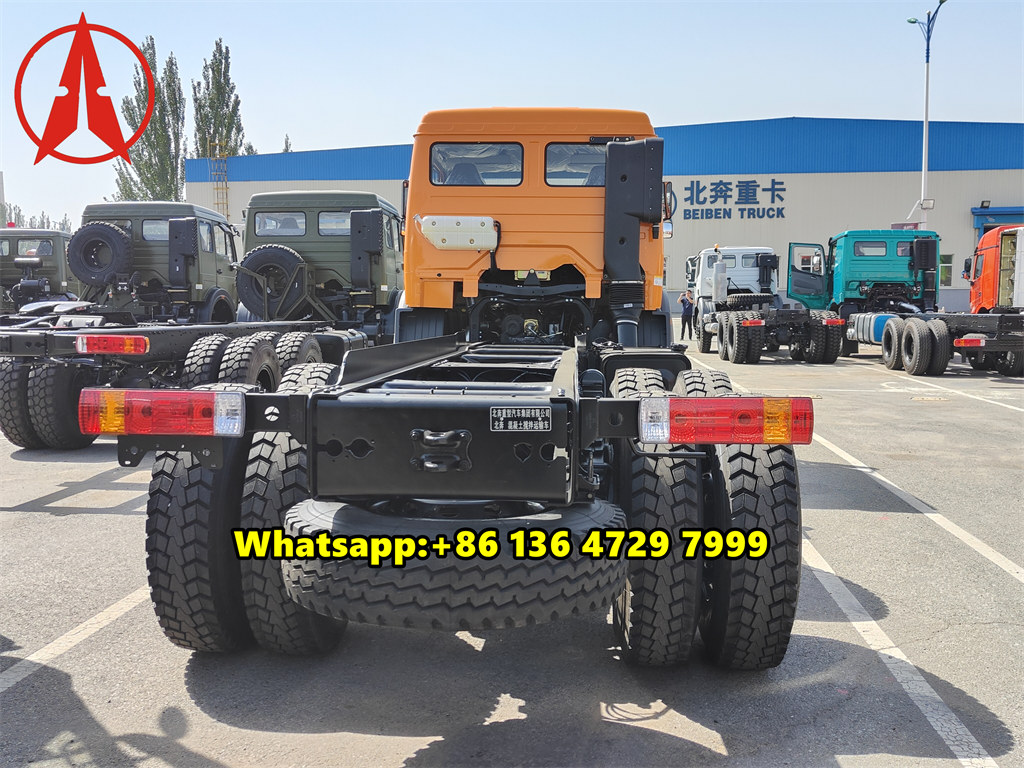

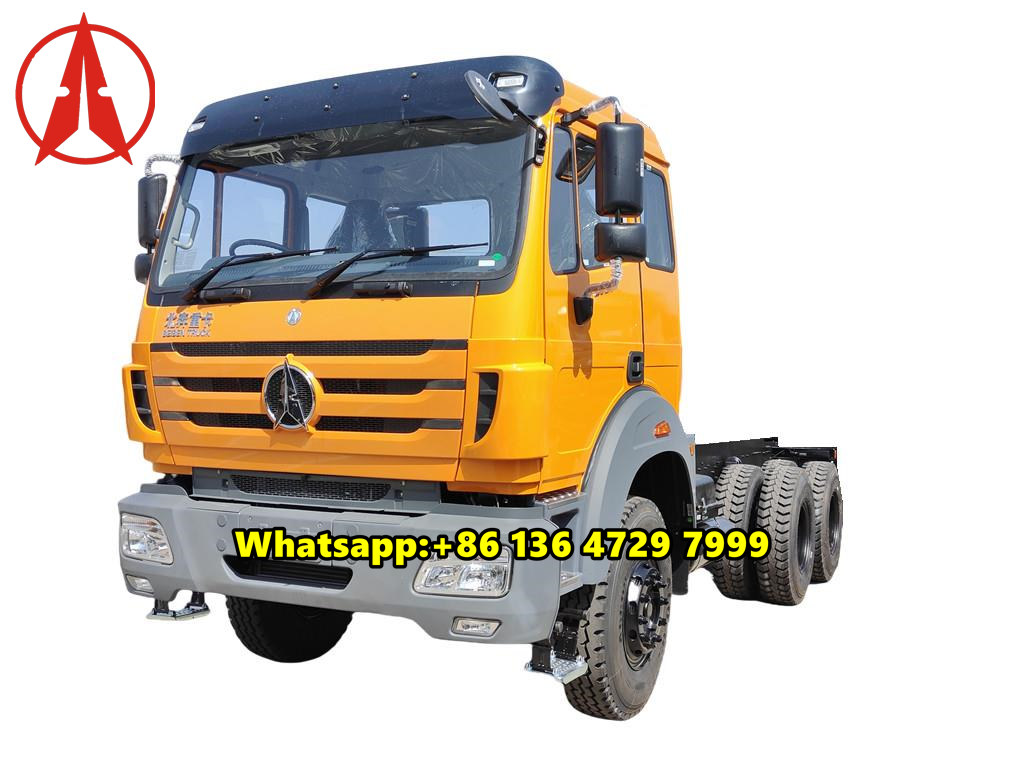

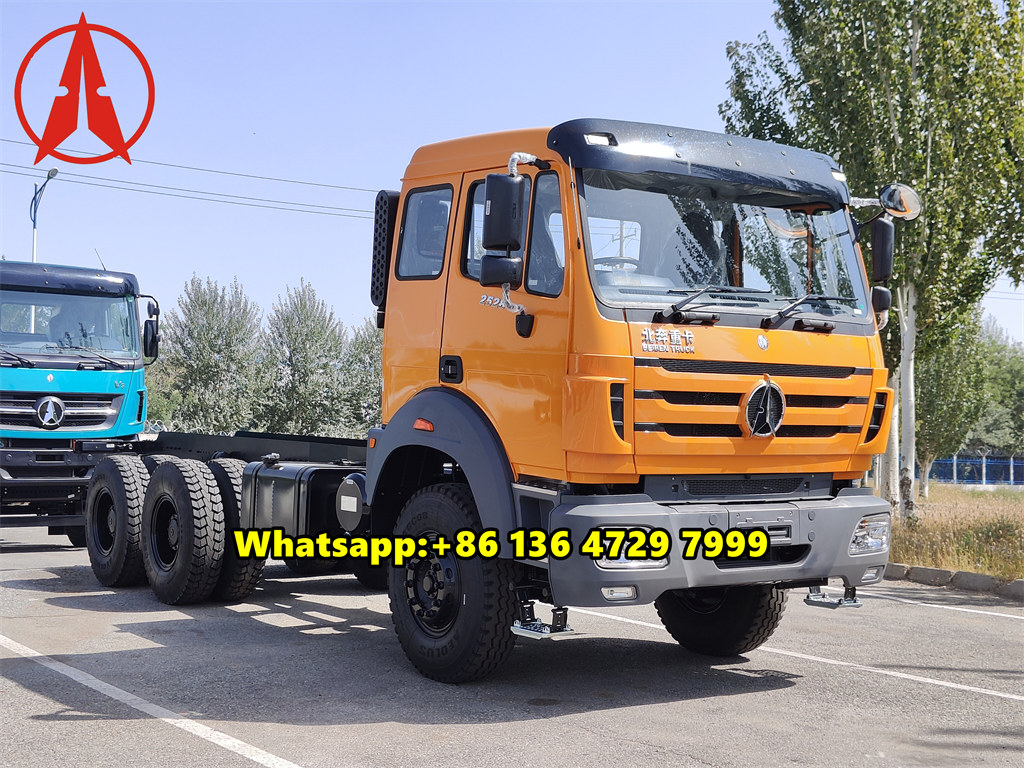

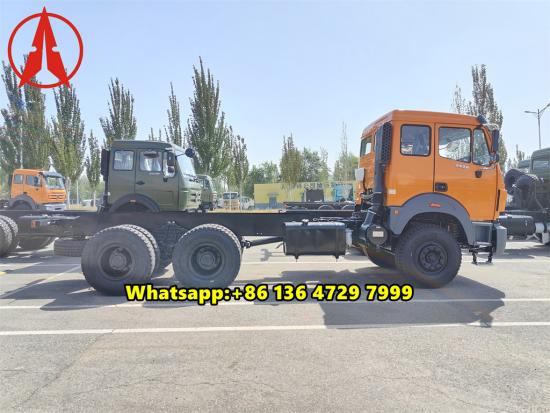

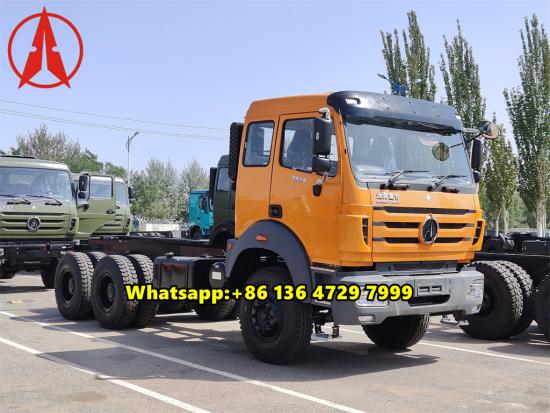

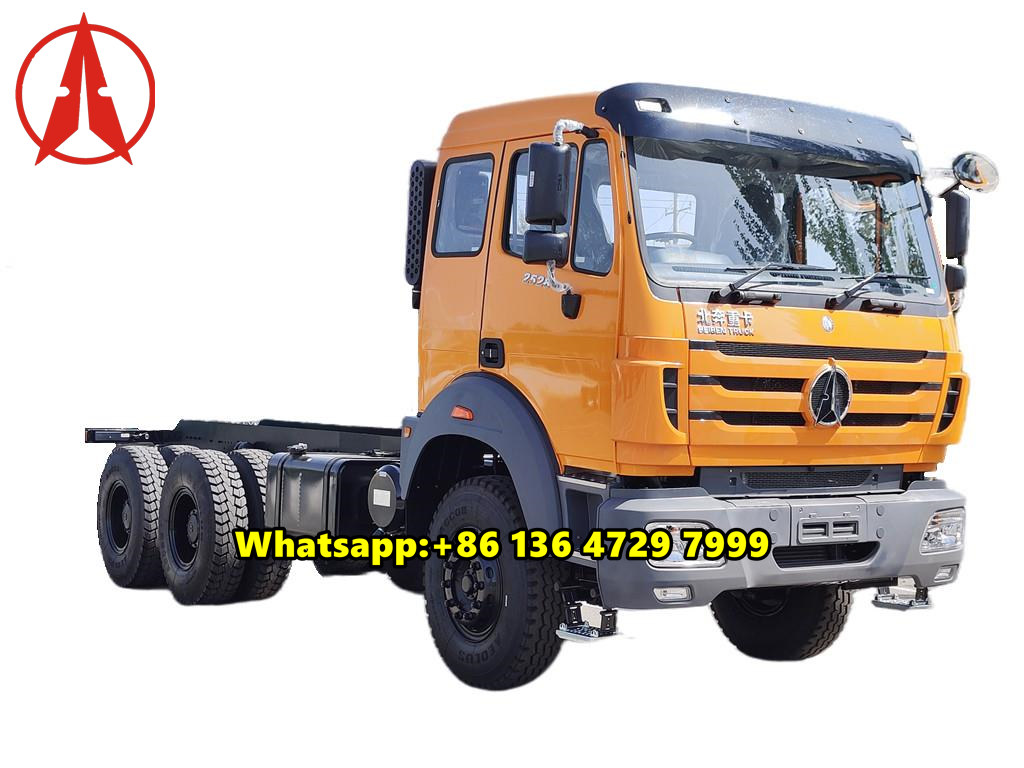

6x4Beiben 6x4 cargo truck also called Beiben 2528 truck chassis, China benz 6x4 cargo truck, which is a heavy truck chassis produced by Beiben Motor. As a large heavy duty cargo truck chassis, it plays an important role in the overall structure of the vehicle. It is usually composed of Mercedes Benz technology frame, a suspension system and benz axles, providing sufficient support and stability for the vehicle during travel. The design and manufacturing process of the Beiben 2528 cargo truck chassis affect the overall performance of the vehicle, especially its high strength, stability and carrying capacity, which can meet the needs of large trucks or trailers for heavy loads and long-distance transportation.

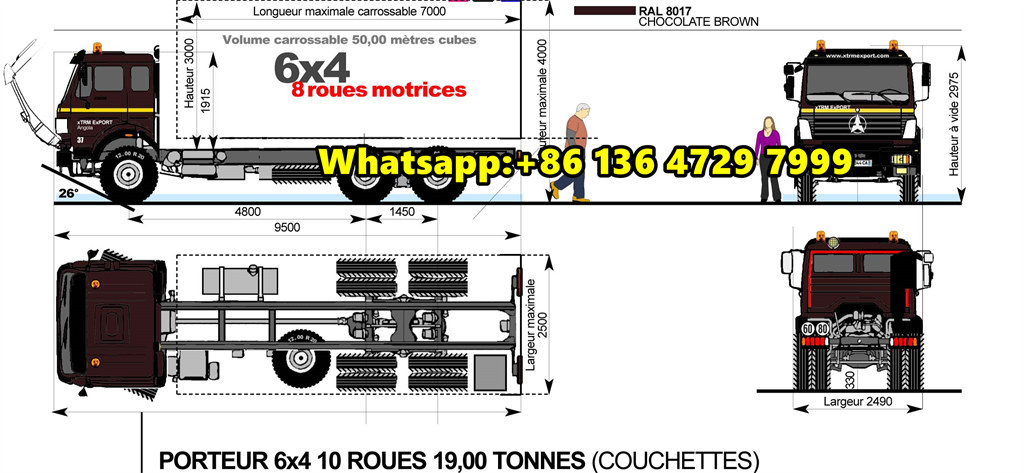

Beiben 6x4 LHD RHD 2528 Cargo Truck, equipped with classical NG80B truck cabin, long cab with one sleeper, WEICHAI Brand new Model 280hp diesel engine. Gear box is FAST brand with 9 speeds (9JS150). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Tyres model is 12.00R20 with 10+1 pcs. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30, Overall dimension(mm)8900x2500x3500.
Beiben 2528 cargo truck chassis is widely used in the field of heavy trucks and special vehicles due to its high strength, stability and carrying capacity. Whether it is a sanitation vehicle, engineering vehicle or logistics vehicle, Beiben 2528 lorry truck chassis can provide stable support and efficient transportation capacity, and is an ideal choice for modifying various special vehicles.
Sanitation vehicles: Due to its high load-bearing capacity and stability, the Beiben 2528 truck NG80 chassis is suitable for modification into sanitation vehicles, such as beiben garbage compactors, Beiben watering trucks, Beiben hook loader, Beiben garabbge truck, Beiben skip lifting garbage truck, etc. These vehicles need to carry a large amount of equipment and water sources, and often need to travel under complex road conditions. The China benz 2528 chassis can provide stable support and efficient transportation capacity.
Engineering vehicles: For engineering vehicles that require heavy loads and off-road capabilities, such as beiben 6x6 excavator self loader truck, Beiben 6x6 concrete mixer trucks, Beiben 6x6 dumper truck, etc., the Beiben 2528 chassis is also an excellent choice. Its powerful power and stable suspension system can ensure the efficiency and safety of the vehicle in complex construction site environments.
Logistics vehicles: In the logistics industry, fast, efficient and reliable transportation vehicles are required. The large load capacity and excellent fuel economy of the Beiben 2528 cargo truck can meet the needs of the logistics industry, and it is particularly suitable for modification into various types of logistics vehicles, such as vans, refrigerated trucks, etc.
|
Required Technical Specification |
||
|
Basic parameter |
Model |
2528PZ/6×4 |
|
Length×width×height(mm) |
9526×2500×3385 |
|
|
Wheel-base(mm) |
4450+1450 |
|
|
Curb weight(kg) |
11400 |
|
|
Engine parameter |
Model (six cylinder in line) |
WP10.280E32 |
|
Max. Power (HP/rpm) |
280 |
|
|
Max. Torque(Nm/rpm) |
1600/1400～1600 |
|
|
Displacement(lit) |
9.726 L |
|
|
Fuel tank capacity |
400L Iron oil tanker 400L |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 9JS150A |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, no-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263； |
|
|
Front and rear suspension |

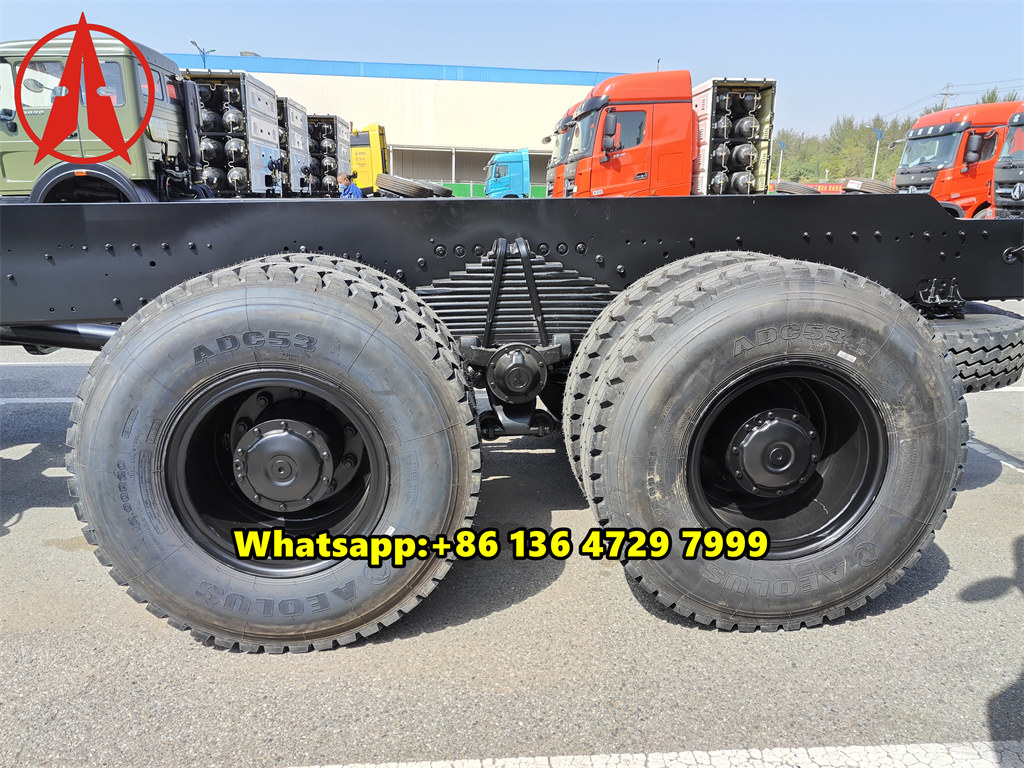

Front/rear: Leaf spring, 13/13 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80B Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
Beiben 6x4 cargo truck, based on special beiben 6*4 cargo truck chassis.
Beiben 6x4 LHD RHD 290hp Cargo Truck Lorry Truck, classical NG80B truck cabin, long cab with one sleeper, WEICHAI Brand new Model WP10.290E32 model 280hp diesel engine with 9726cc emission. Gear box is FAST brand with 9 speeds (9JS180). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Tyres model is 12.00R20 with 10+1 pcs. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30, Overall dimension(mm)8900x2500x3500.

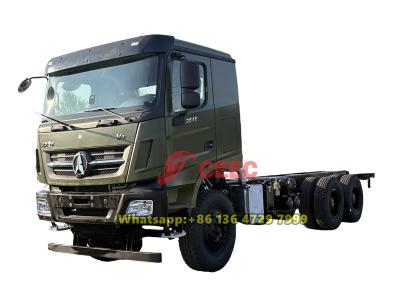

Beiben V3 6×4 chassis is a heavy-duty vehicle chassis with rich configuration and excellent performance. It is equipped with WEICHAI WP10.380E32 engine with a displacement of 9.726L and a maximum torque of 2000NM@1400-1600rpm. It adopts FAST 9-speed manual transmission, and the gear shifting is smooth. The front/rear axle adopts BENZ technology, with a load capacity of 7000kg and 13000kg respectively. The cab is equipped with air conditioning and air suspension seat to provide a comfortable driving environment.
Beiben 420HP NG80B cargo truck chassis, customized fire red painting NG80 cabinet, WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, mounted with 12.00R24 tires and 11 pcs. The Beiben 6x4 LHD truck chassis with long cabin, can be mounted as Beiben 2642 dump truck, Beiben 2642 water truck, Beiben 2642 fuel bowser, Beiben 2642 crane truck, etc. Africa customers from DR Congo, Tanzania, Nigeria, Mozambique, etc prefer to purchase and use Beiben 6x4 cargo truck and Beiben 6x6 offroad cargo truck, due to international realiable BENZ technology.
Beiben 1929 RHD AWD water truck, specially built for Tanzania, is equipped with WEICHAI WP10.290E32 diesel engine, providing 290 horsepower. Equipped with FAST 9JS150A gearbox, it supports 9 forward gears and 1 reverse gear, adapting to various operation requirements. It has a 12,000-liter large-capacity water tank and an efficient water pump, providing excellent watering performance.
The Beiben 6x6 drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions. Under the hood, the Beiben truck boasts a high-performance WP12.420 diesel engine, delivering plenty of torque and horsepower to conquer steep inclines and rough terrain. The engine is paired with a Fast 12 shift transmission, providing smooth and efficient gear changes for optimal performance and fuel efficiency. The truck features an NG80B full steel cabin, offering a comfortable and secure environment for the driver to operate in.
North Benz, V3 cabin, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure, high back and shock absorption seat for the driver, with One Sleeper
China beiben 20 CBM fuel truck manufacturer is ceec trucks plant, we are 100% beiben 6*4 fuel tanker truck manufacturer, the most professional beiben 20 cbm fuel trucks supplier in china.
congo beiben 2642cargo truck chassis, equipped with 12.00R24 off road tyre, with Germany benz technology7 T front axle and rear 16 T rear axle. With reinforced china beiben patented benz technology chassis beam , full equipped with wheel reducer. off road 12.00R24 tyre
