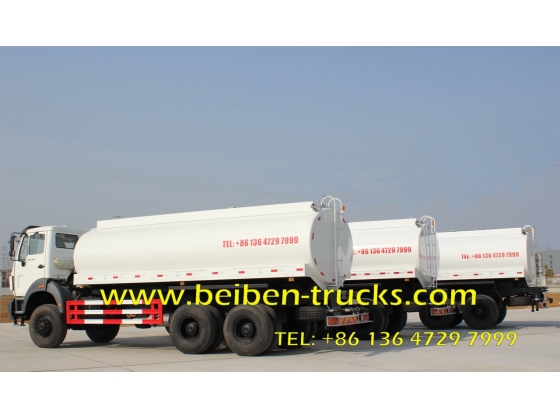

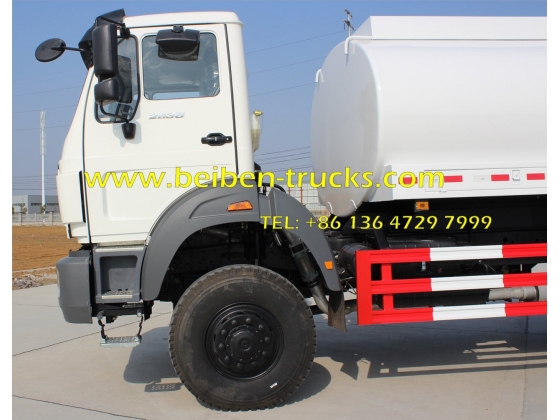

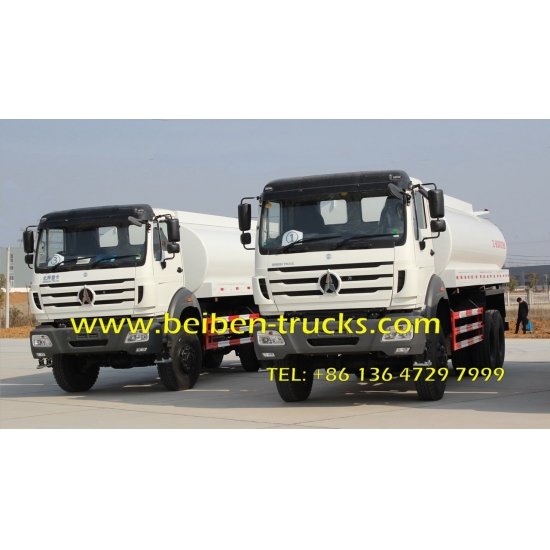

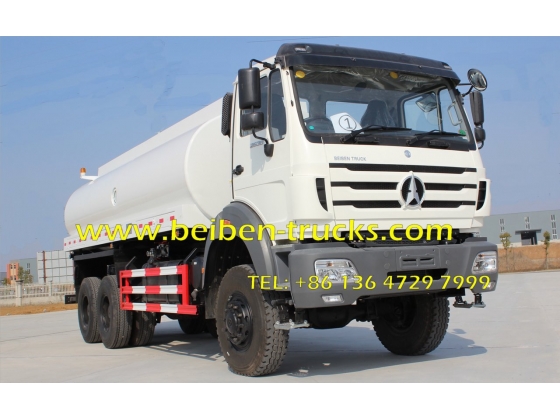

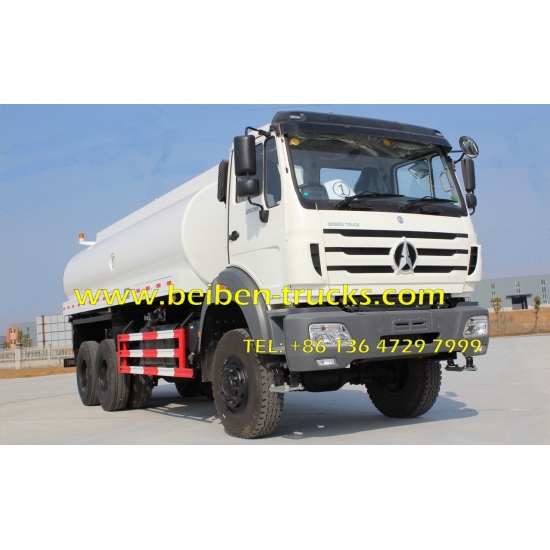

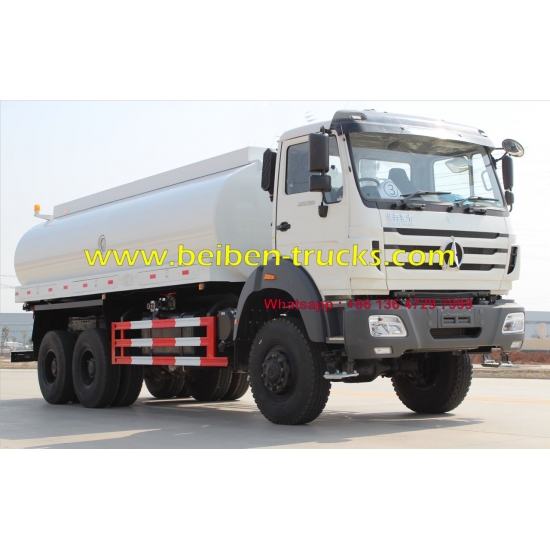

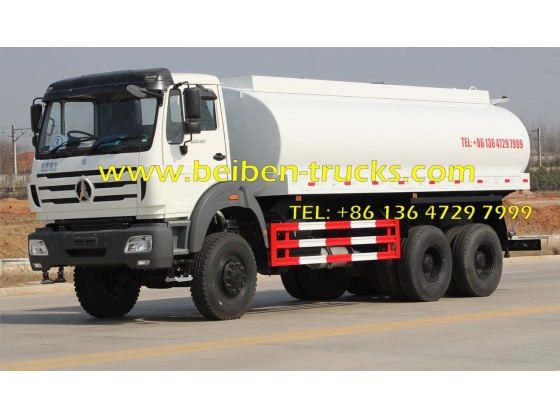

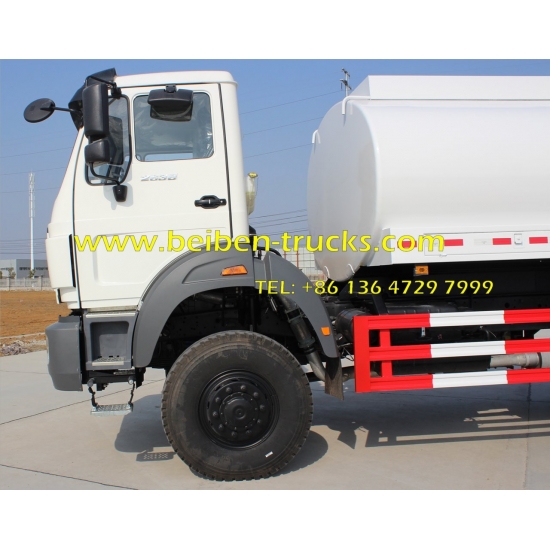

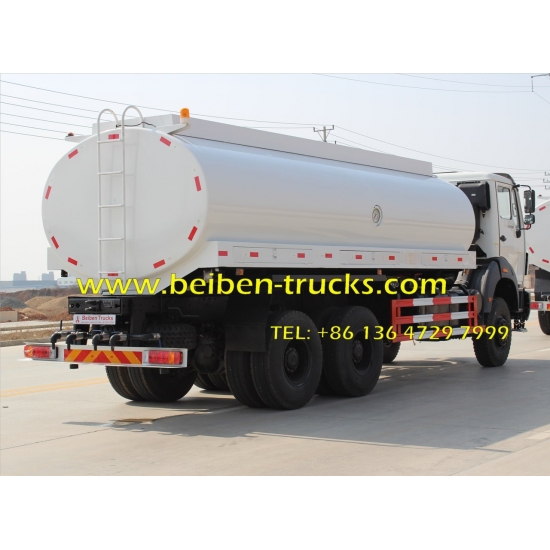

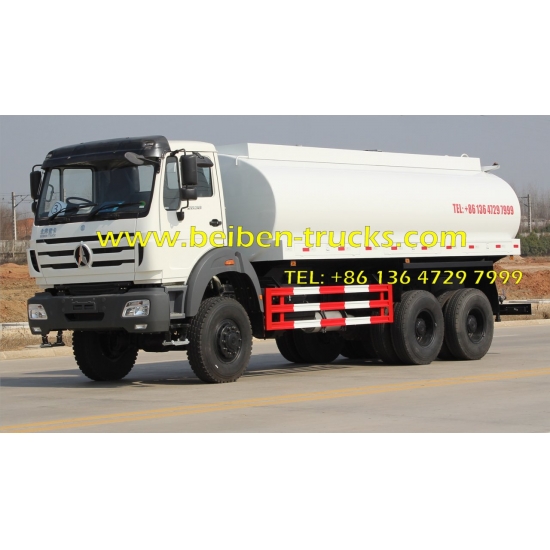

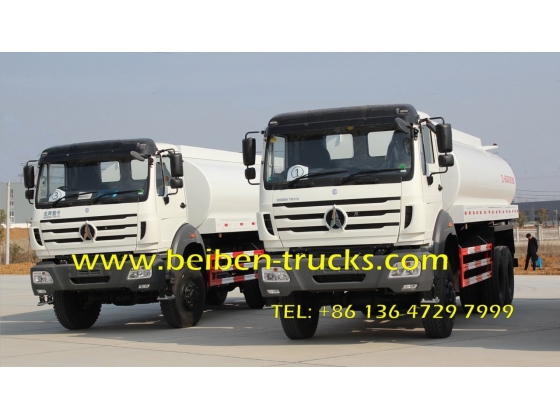

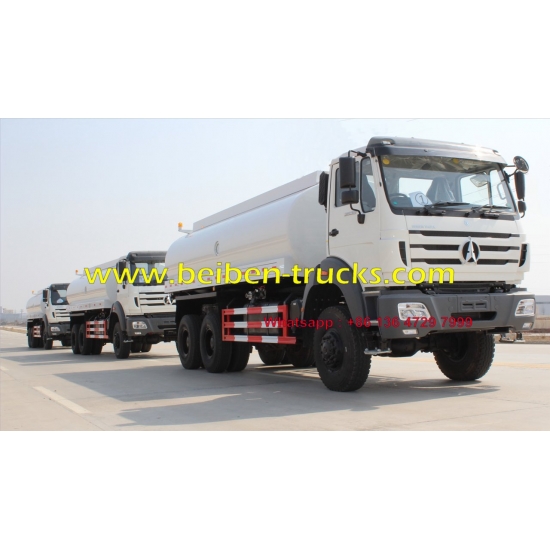

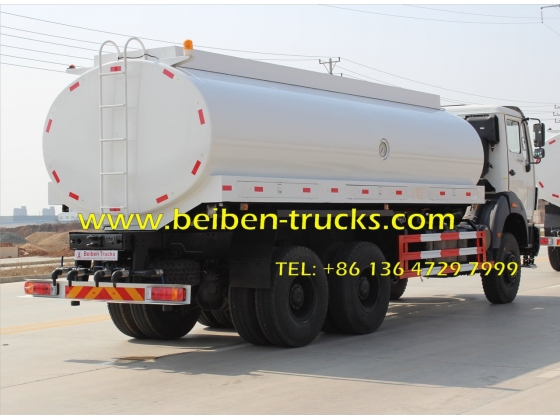

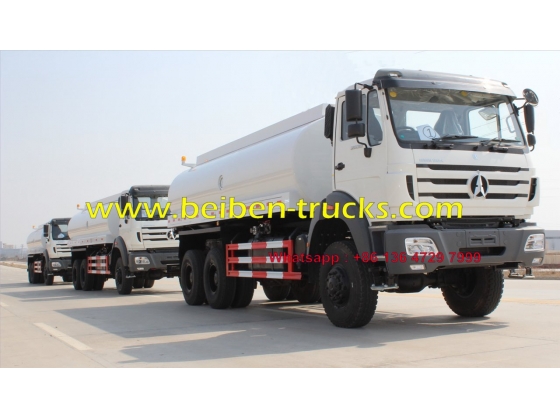

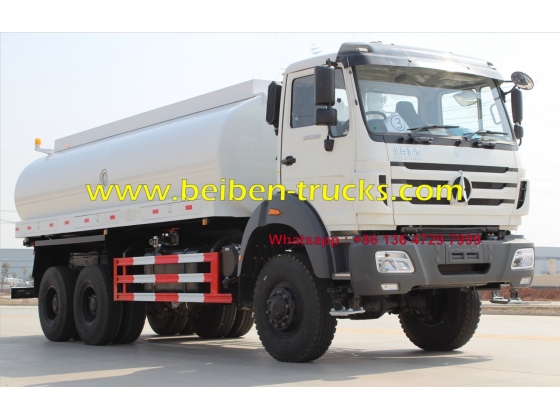

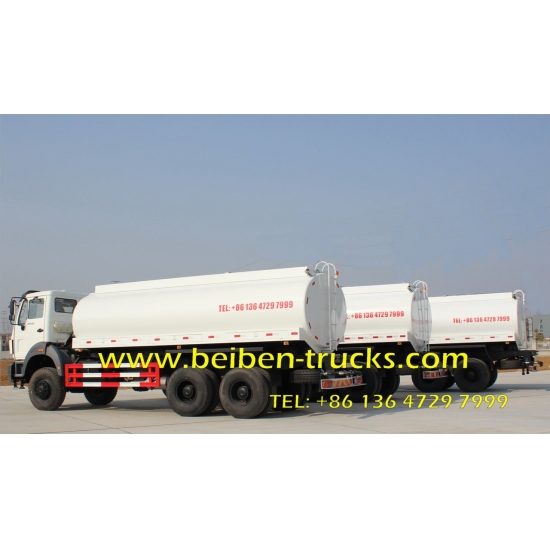

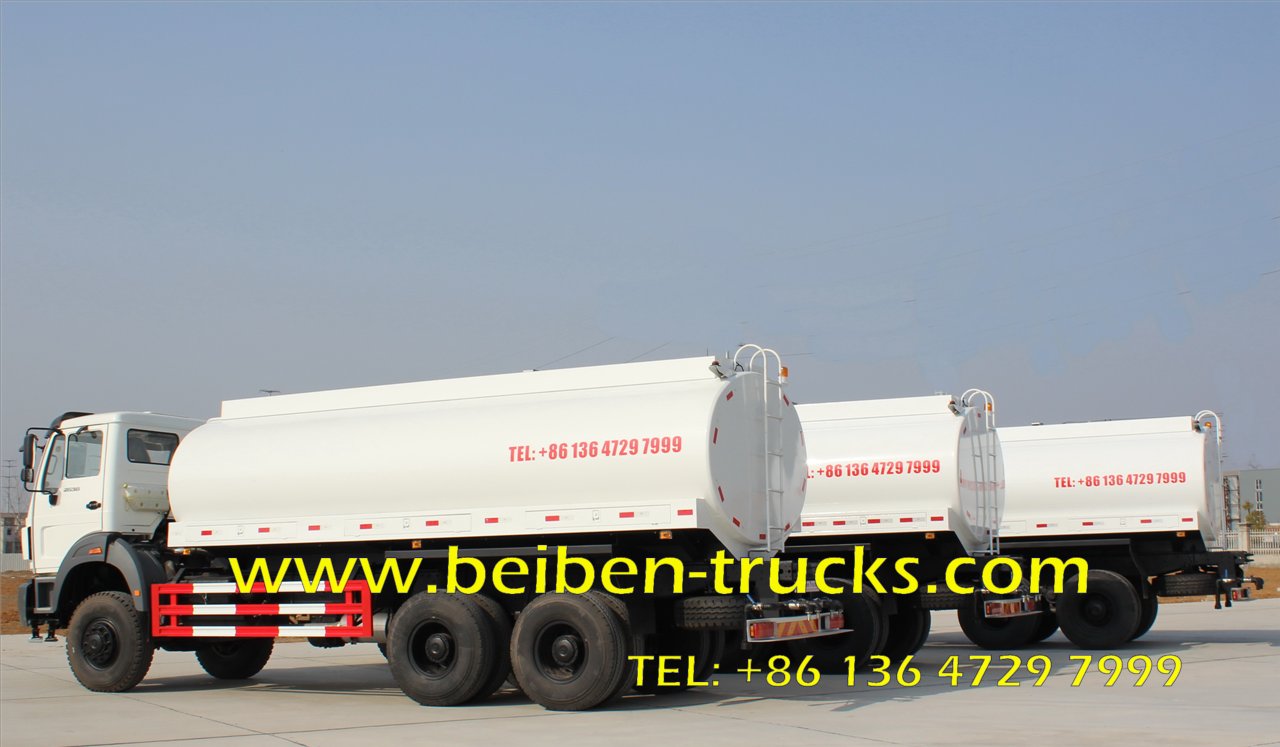

1Beiben 6x4 water carrier truck water spray truck for sale
Beiben 6x4 water carrier truck water spray truck for sale
1 Powerful ability
2 Famous brand engine
3 Long history
SGS,BV,CCIC
----Beiben 4*4,6*6,8*8 drive water tanker trucks in hot sales!
Description:
Traction type |
6X4 |
||||
Driving type |
Left hand driving |
||||
Dimension(Lx W xH)(unloaded) |
10576×2500×3130 |
||||
Approaching angle/Departure angle(°) |
26/20 |
||||
Overhang(front/rear) (mm) |
1410/2666 |
||||
Wheel base (mm) |
5050+1450 |
||||
Max speed (km/h) |
90 |
||||
Curb weight (kg) |
12000 |
||||
Loading Weight (kg) |
15,000-20,000 |
||||
Engine Steyr technology, made in China |
Model |
WD12 336,water-cooled,four strokes, 6 cylinders in line, turbocharged, directly injection With the exhaust valve brake |
|||
Displacement (L) |
11.596/Diesel |
||||
Bore X stroke (mm) |
126/155 |
||||
Max power (kw/rpm) |
248/2200 (336hp) |
||||
Max torque (Nm/rpm) |
1350/1300-1600 |
||||
Emission |
EURO III |
||||
Fuel tanker (L) |
400 |
||||
Clutch |
Model |
430 Diaphragm type |
|||
Gearbox |
Model |
9JS150A (Fuller) mechanism,9gears,1reverse gear, manual, |
|||
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|||
Assistant brake |
Engine exhaust brake |
||||
Park brake |
Potential springs pressing on middle and rear wheels |
||||
Steering system |
Model |
TAS85 |
|||
Frame |
Fish belly, shape, variable width, variable sections, side beam structure |
||||
Front axle |
Double-shoe pneumatic brake, non-driving steering axle
|
||||
Middle and Rear axle |
Double-shoe pneumatic brake, casting, double reduction driving axles
|
||||
Tyre |
12.00-20 bias tyre Number of tyre:10+1 spare |
||||
Electrical system |
Battery |
2X12V/135Ah |
|||
Generator |
28V-35A |
||||
Starter |
5.4Kw/24V |
||||
Water tank |
|||||
Steel quality |
Q304 stainless steel |
||||
Compartment |
Single |
||||
Loading valve |
1 |
||||
Discharge valve |
1 |
||||
Pump |
1 |
||||
Tube |
10meters |
||||
Tank capacity (Liter) |
20m3 |
||||
Thickness of the tanker body |
the thickness of the shell is 4mm approx; |
||||
Dish ends |
the thickness of the shell is 5mm approx; |
||||
north benz 15 CBM water tanker truck manufacturer, ceec trucks plant aim at supplying and manufacturing the best quality north benz water tanker trucks, north benz 15,000 liters water wagon.
we can supply the best quality Beiben 4*2 water tanker trucks, beiben 6*4 water tankers, beiben 8*4 water wagons and different kinds of beiben water trucks.
Beiben tank truck for drinking water, 20 CBM water tanker based on famous china beiben 2527 truck chassis, Condition: New Storage: Water Drive Wheel: 6x4 Horsepower: 251 - 350hp Transmission Type: Manual Fuel Type: Diesel Tank Volume: 15001 - 30000L Engine Capacity: 8 Dimensions (L x W x H) (mm): 8000x2500x3200
north benz water carrier truck, for tranporting drinking water, portable water, industrial water , we can produce beiben 2534 water carrier truck, beiben 2538 water carrier truck, beiben 2542 water carrier truck.
Beiben 6X4 /6X6 off Road Water Trucks, nornally based on beiben 2529,2534,2538 cargo truck chassis, can be used for transporting water in many africa countries. Beiben water truck, benz technology.
ransmission Type:Manual Power:Diesel Load Capacity:25T Emission Standard:Euro 2 Drive Wheel:6x4 Seats:3 Tire Type:Inner Tube Tire Certification:CCC, ISO Tire Design:Radial Condition:New Truck Type:Tanker Truck Type:Tank Truck Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia
1. beiben NG80B 2638 6X6 water tank truck 2. Flat roof cabin,single sleeper, auto-air conditioner 3. High quality and competitive price 4. Quick delivery time 5. Best after-sales
20000 Liter beiben Water Spray Tank Truck , mostly on beiben 2534,2538 truck chassis, the beiben 10 wheeler 20,000 liters beiben water spray tanker trucks get good reputation in africa countries.
China manufacture New Brand 20 m3 beiben water tank truck for sale, mostly on beiben 2534,2538 truck chassis, the beiben 10 wheeler 20,000 liters Water pump model: 80QZF-60/90N Water pump flow rate(L/m): 60m3/h Head of delivery(m): 90m Self-priming function(min/4m):1.5 Efficiency(%):95%
