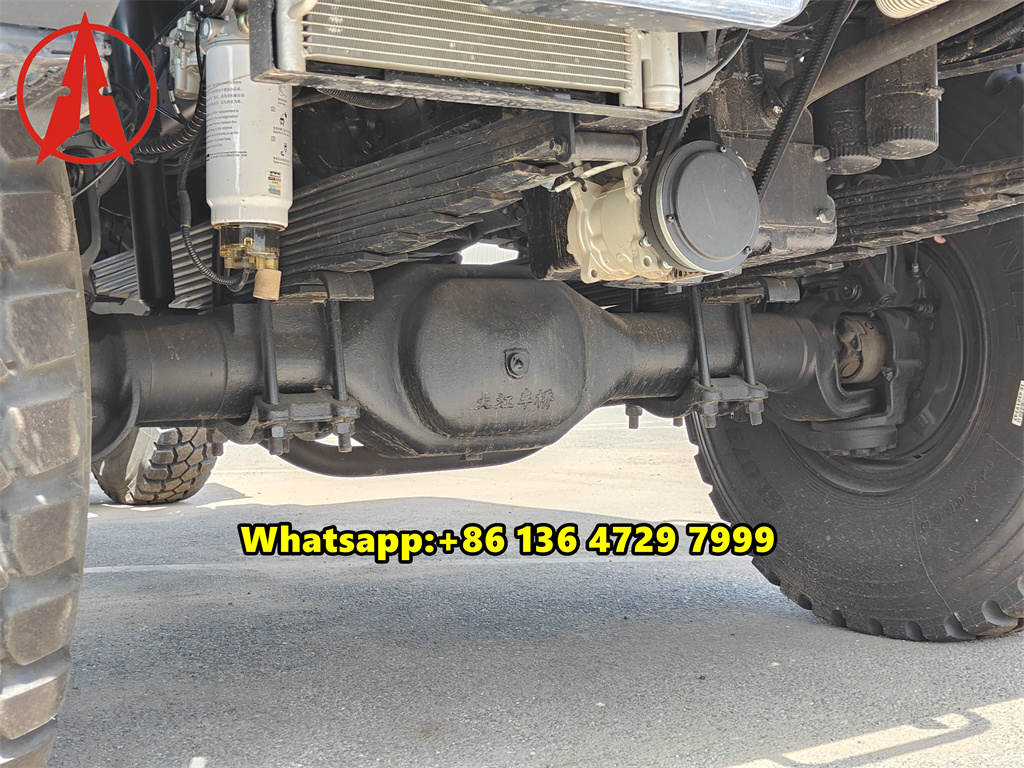

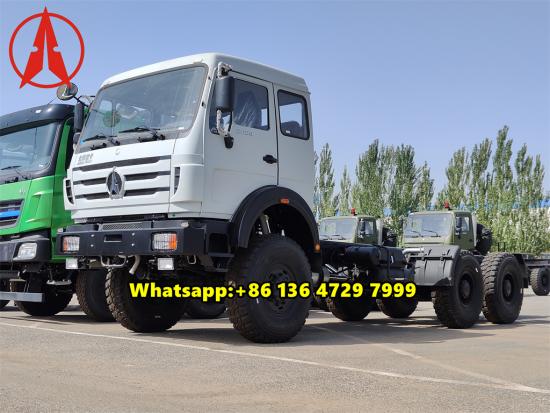

Beiben 6x6 offroad 290hp Cargo Truck Lorry Truck, classical NG80B truck Benz cabin, long cab with one sleeper, WEICHAI Brand new Model WP10.290E32 model 290hp diesel engine with 9726cc emission. Gear box is FAST brand with 9 speeds (9JS150). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Customized super Tyres model is 12.00R24 with 6+1 pcs, tire is higher and stonger and very suitable for tough road in DRC. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30.
Production time:
30-35daysPayment terms:
TTWorking Capcity:
20-25 tonsEngine power:
290HPDrive system:

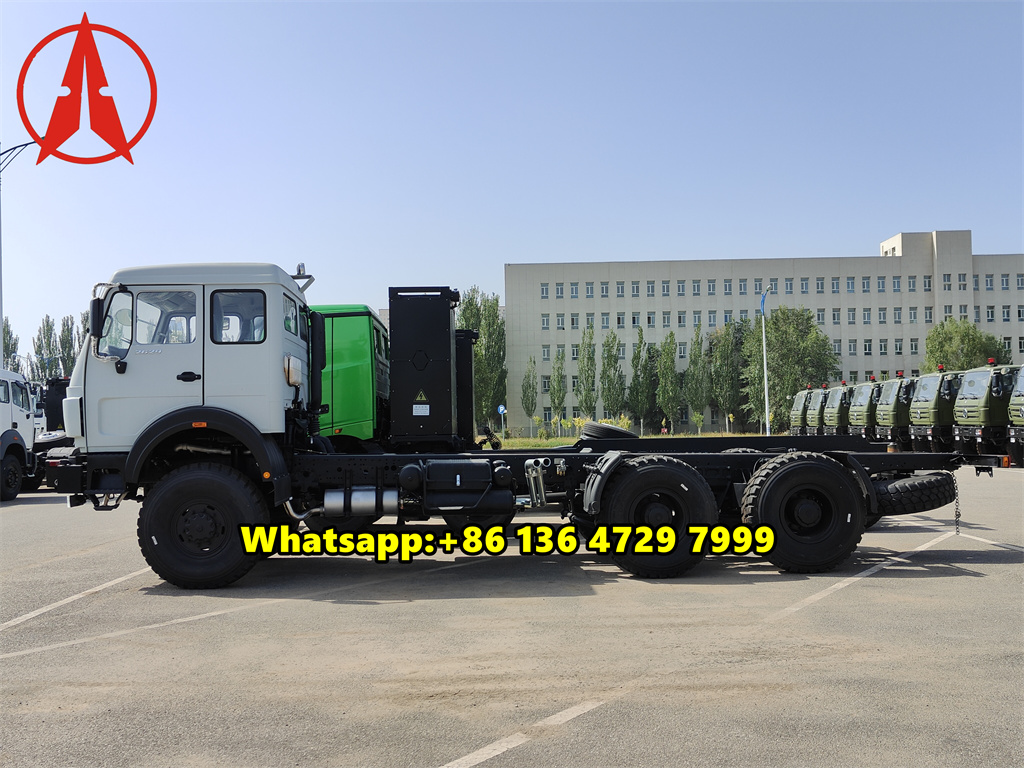

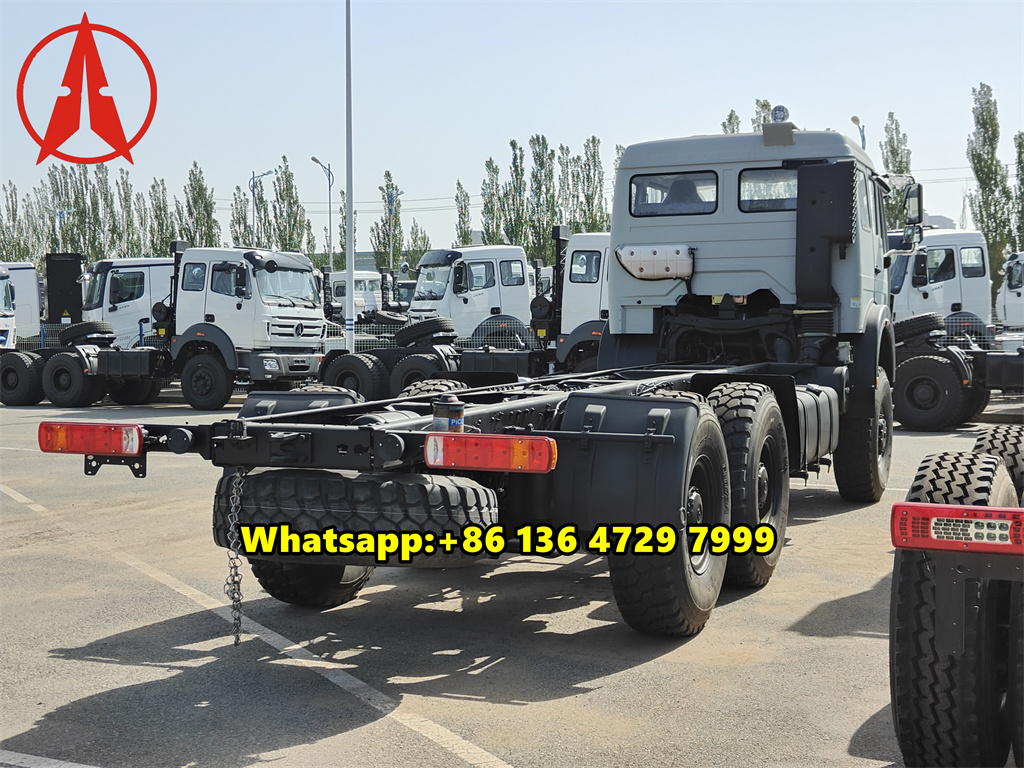

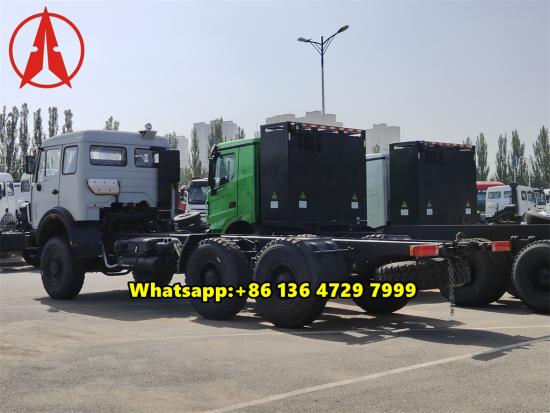

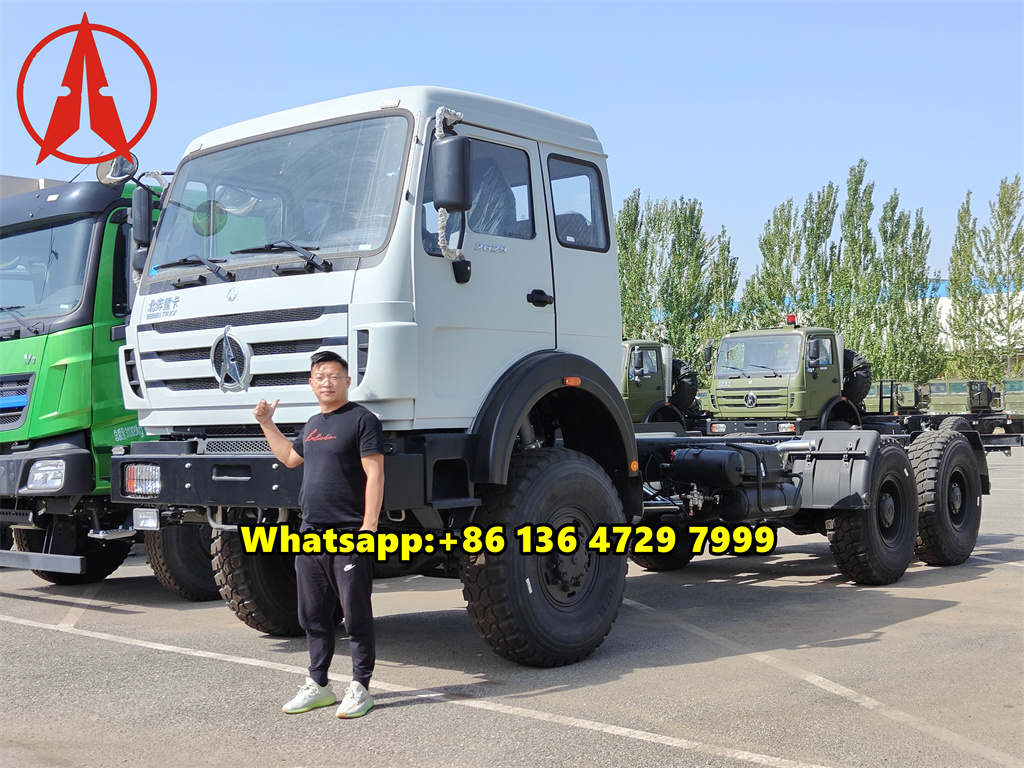

6x6Beiben 6x6 single-wheel all-wheel drive truck chassis, also widely know as beiben offroad cargo truck, Beiben 6x6 6WD cargo truck, North bbenz heavy duty chassis, China benz 2629 cargo truck. Beiben 6x6 cargo truck with all-wheel drive, this drive mode ensures the vehicle's strong passability and traction in complex terrain and harsh conditions. According to the general 6x6 configuration, the chassis should have 3 axles and 10 tires (3 tires each on the front 2 axles and 4 tires on the rear axle), but the specific configuration may vary depending on the model and customer requirement. Especially for this one beiben 6 wheeler cargo truck, which based on Benz technology axles totally 3 sets, front axle capacity 7500kg and rear double axles capacity 13000kg, each side only equipped one tire. As for the tire configuration, which is customized 12.00R24 model, considering the needs of off-road and heavy loads, tires usually choose large-size, high-load capacity models.
The Beiben 6x6 single-wheel all-wheel drive truck chassis is suitable for scenarios that require strong passability and traction, such as mines, construction sites, and complex terrain transportation. Which mounted with China Number 1 brand diesel engine WEICHAI WP10.290E32 type, powerful 290HP and emission 9726cc, with below chart showing details of the WEICHAI diesel engine of Beiben 6x6 AWD 2629 cargo truck
Engine Model |
WEICHAI |
Engine Manufacturer |
BEIBEN |
Application |
Beiben 2629 Cargo Truck |
Air Intake |
Turbocharged and Inter-cooling |
Cylinder |
6 |
Fuel Type |
Diesel |
Cylinder Arrangement |
Inline |
Displacement |
9.726L |
Emission Standard |
EURO 3 |
Max. Power Output |
213kW |
Rated Speed |
2200rpm |
Max. Engine Power |
290 HP |
Max. Torque |
1500N.m |
Max. Torque Speed |
1100-1600rpm |
Min. Fuel Consumption at Full Loading |
≤193g/kW.h |
Engine Model |
Water cooled, 4 stroke, exhaust brake, direct injection, turbocharged and Inter-cooling |
Engine Weight |
850kg |
Compression Ratio |
17:01 |
Noise 1m Away |
≤98dB |
Bore x Stroke |
126x130mm |
Number of Valves per Cylinder |
2 units |
Ignition Order |
1-5-3-6-2-4 |
