Beiben V3 560HP tractor head

Product Specifications

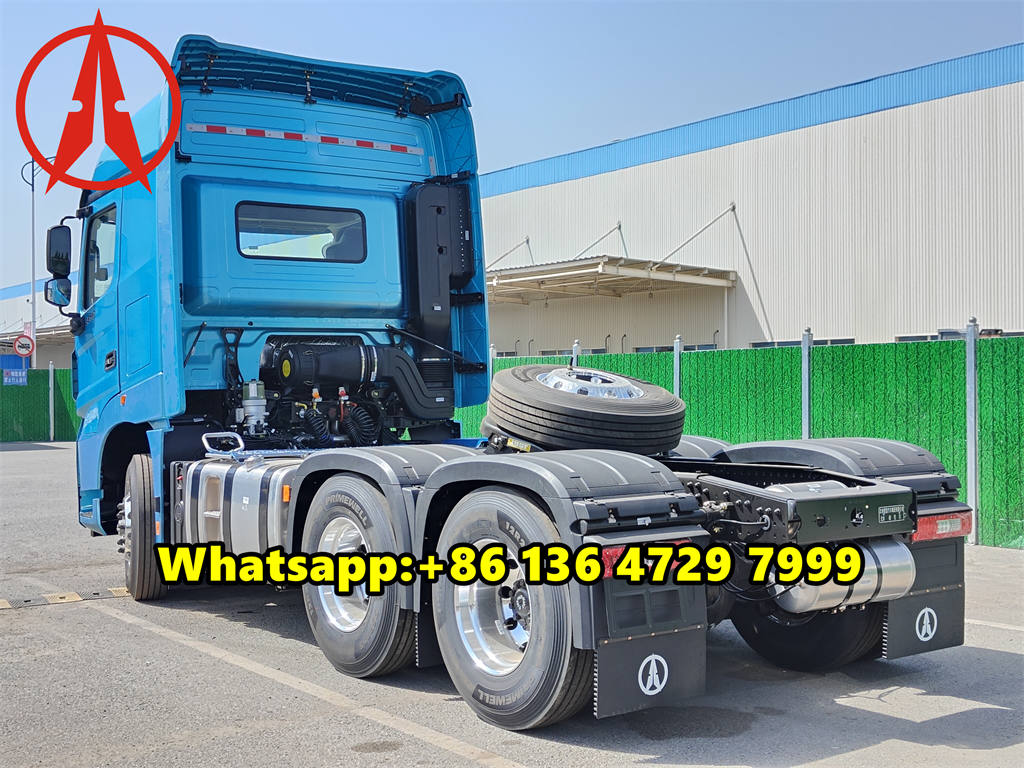

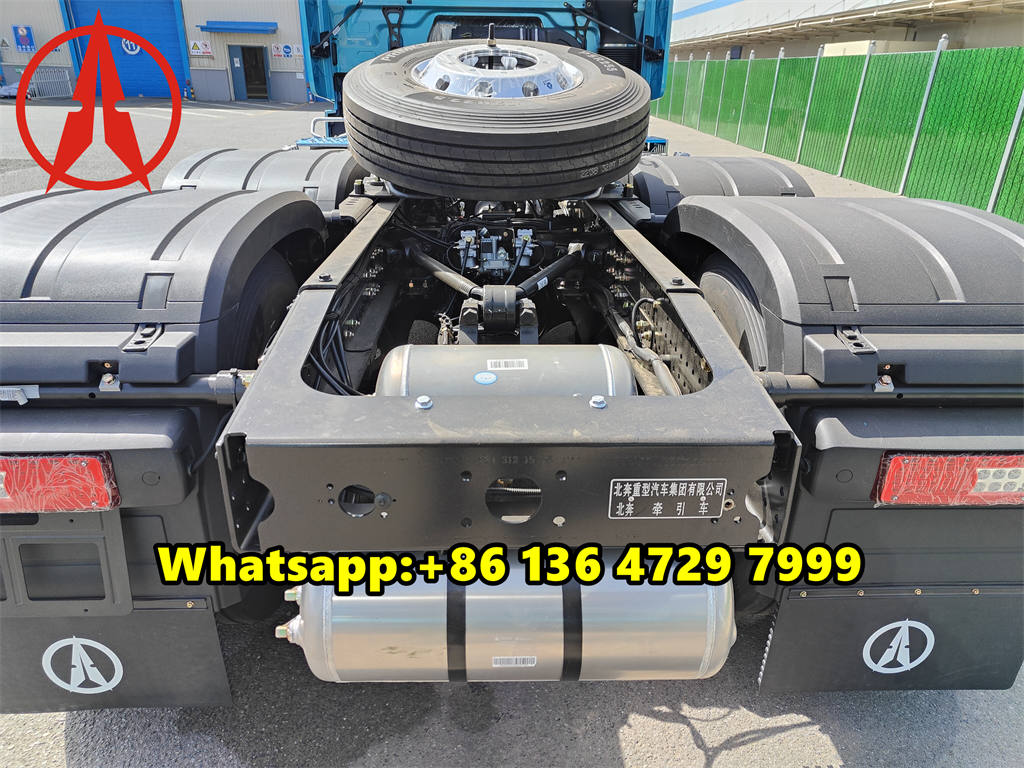

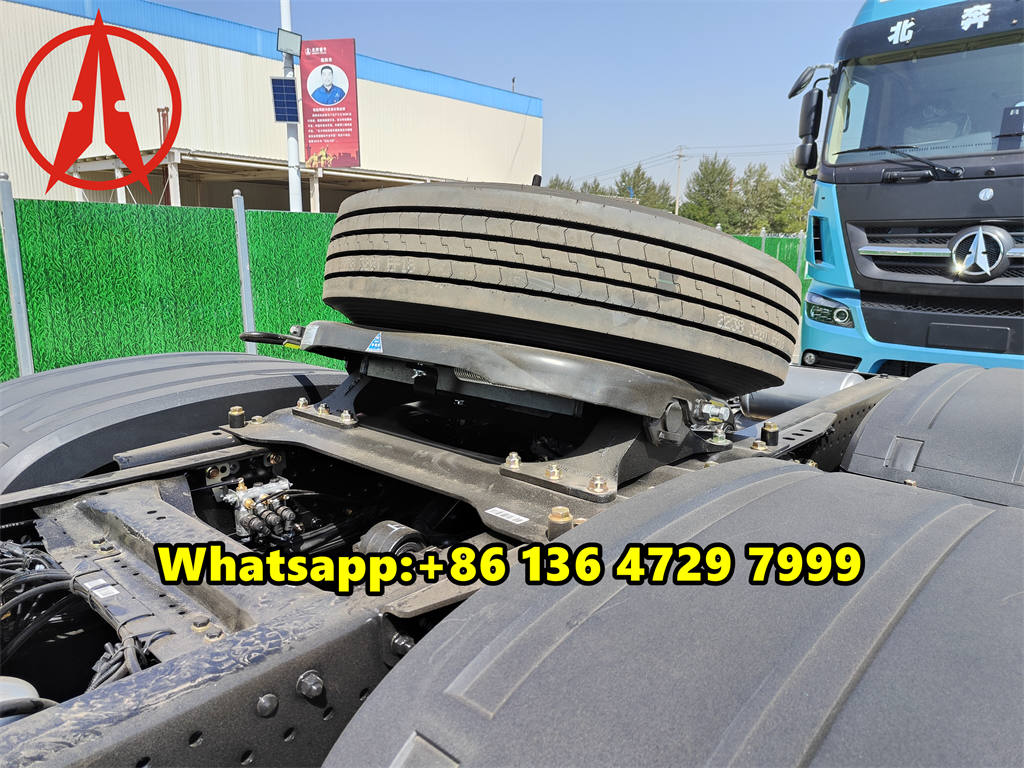

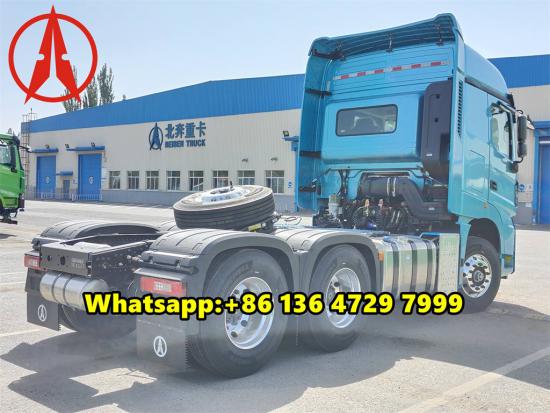

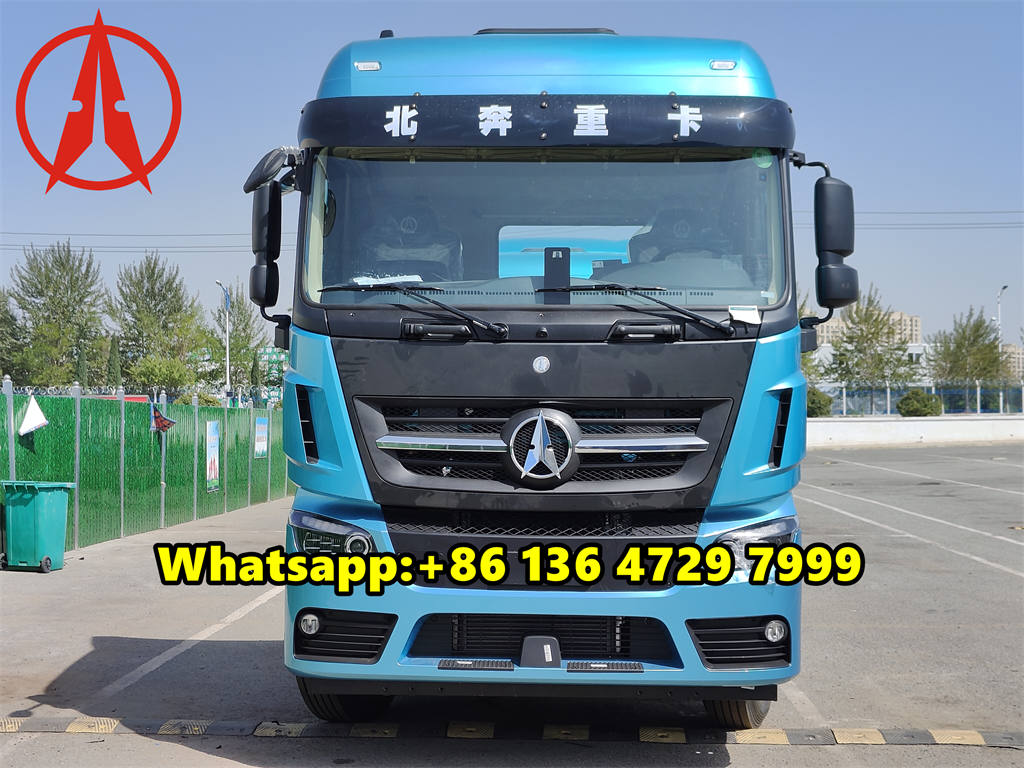

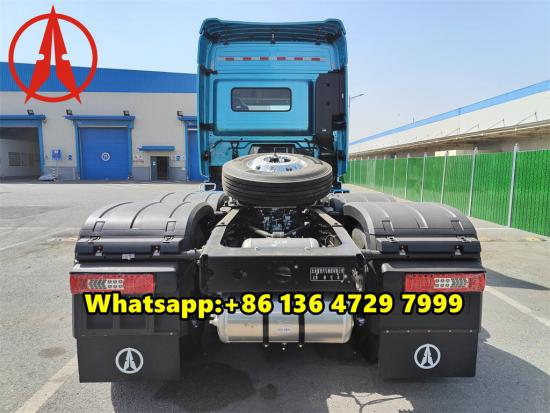

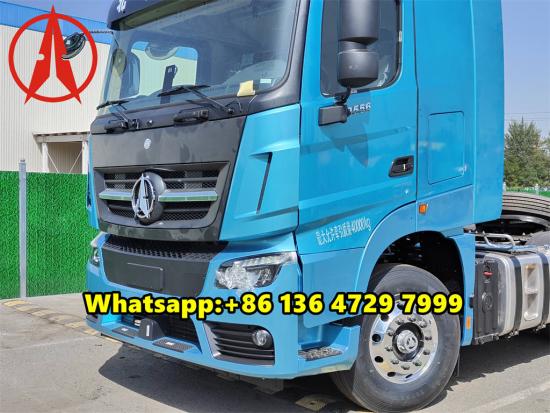

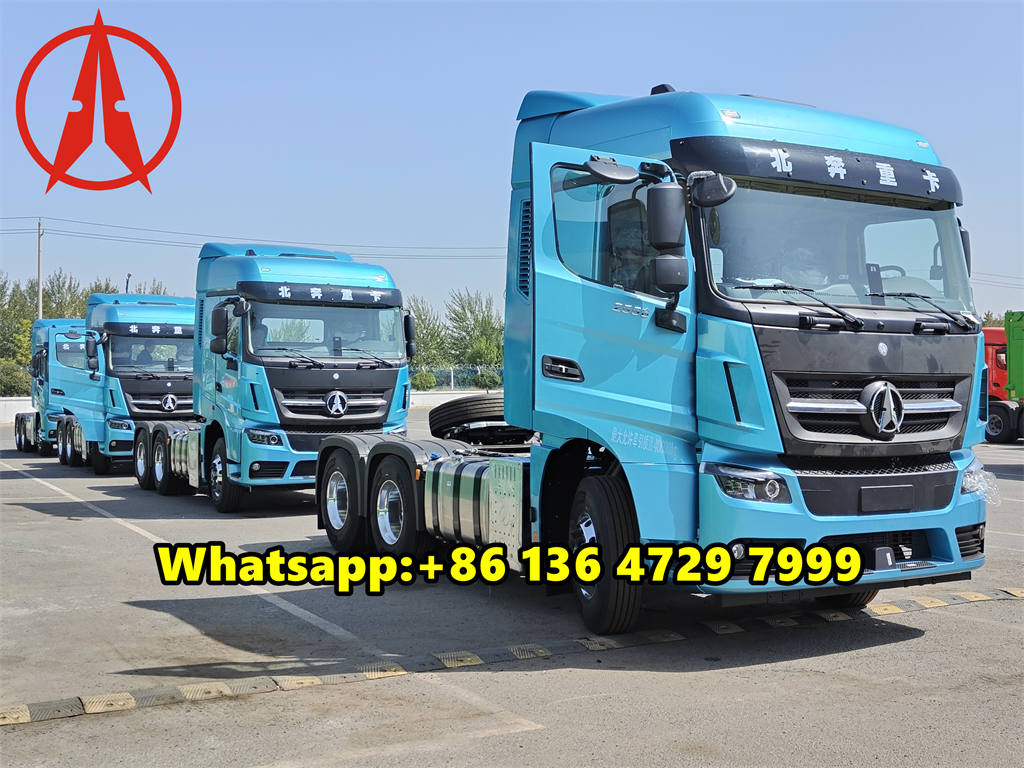

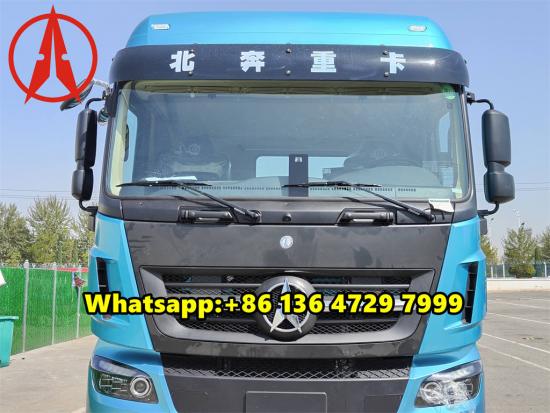

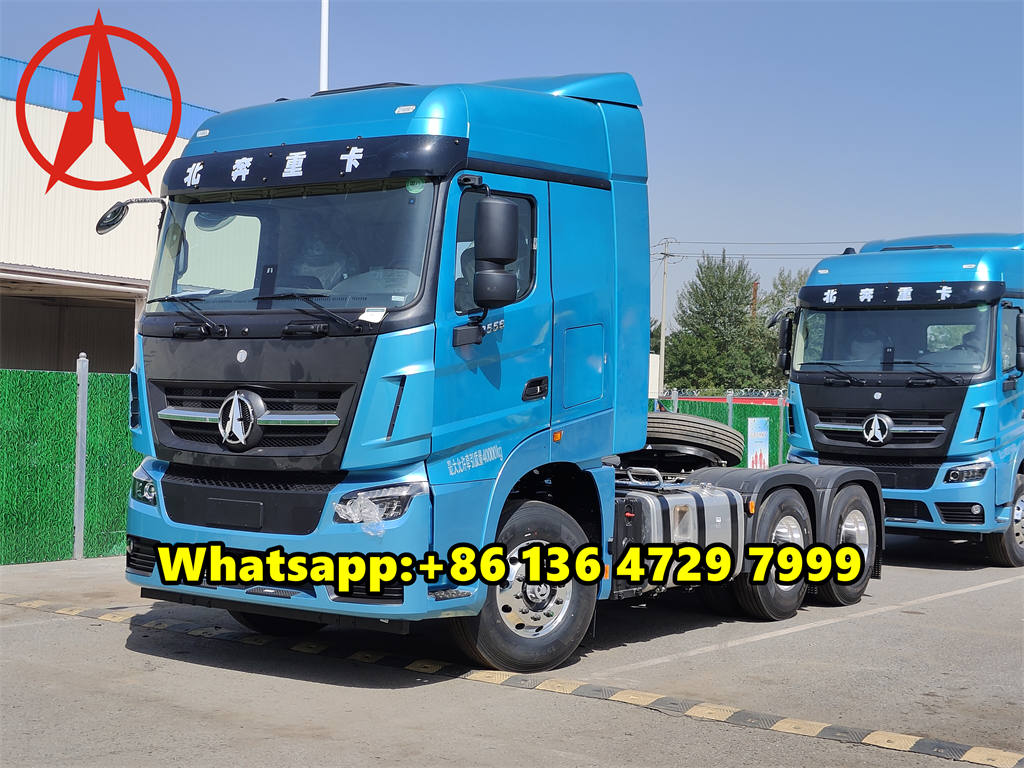

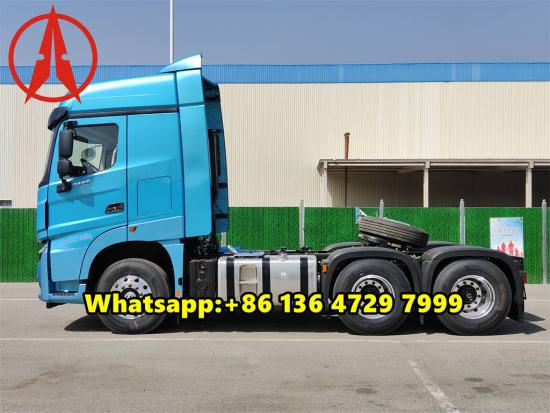

Beiben V3 tractor truck is a powerful model designed for long-distance transportation and heavy-duty operations. Its 6x4 drive form and left-hand drive (LHD) provide drivers with excellent handling and stability. This tractor is equipped with a V3 model cab, which not only has a modern appearance, but also has complete internal facilities, providing a comfortable working environment for the driver. There are two air-conditioned berths in the cab to ensure that the driver can get enough rest during long-distance driving. The vehicle's curb weight is 9200kg, and the total mass reaches 9200kg+80000kg, showing its strong carrying capacity and stability. In particular, its fifth wheel height is 90mm and the maximum traction mass reaches 40000kg, further highlighting its strength in the field of heavy-duty transportation.

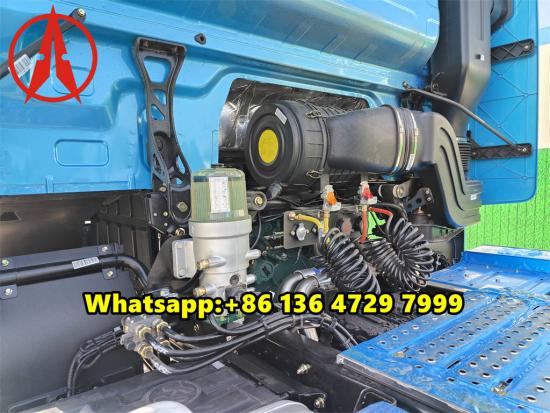

Beiben V3 10 wheeler tractor is equipped with WEICHAI brand WP13H560E61A model engine, with an output power of 560 horsepower, a maximum torque of 2600N.M, and a displacement of 12.9 liters, meeting the Euro 6 emission standards, which not only ensures strong power output, but also meets environmental protection requirements. In terms of transmission system, the vehicle adopts FAST brand 12JS200T model gearbox, manual control, with 12 forward gears and 2 reverse gears, smooth gear shifting and convenient operation. The clutch is a single-piece, diaphragm spring type with a diameter of Φ430mm. It is hydraulically operated and assisted by air pressure to improve the reliability and service life of the clutch.

The steering system of Beiben V3 prime mover truck adopts ZF brand TAS85 model steering gear, which is flexible and responsive. The chassis adopts a trapezoidal structure with parallel straight beams, with a size of 317x70x8.5+7+8mm, providing solid support and a stable driving platform.

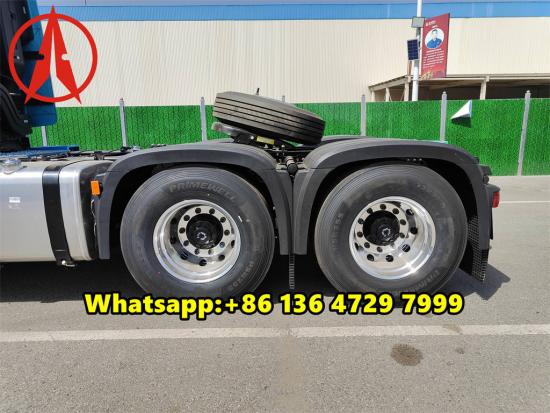

The front suspension of Beiben V3 tractor head adopts a longitudinal leaf spring design, and the rear suspension adopts an inverted leaf spring stabilizer bar suspension system to ensure the stability and comfort of the vehicle during driving. The front and rear axles are BENZ brand 6.5-ton front axle and 13-ton rear axle respectively. The rear axle adopts a double-stage reduction design with optional speed ratios of 5.921, 5.2 and 4.7 to meet different transportation needs.
