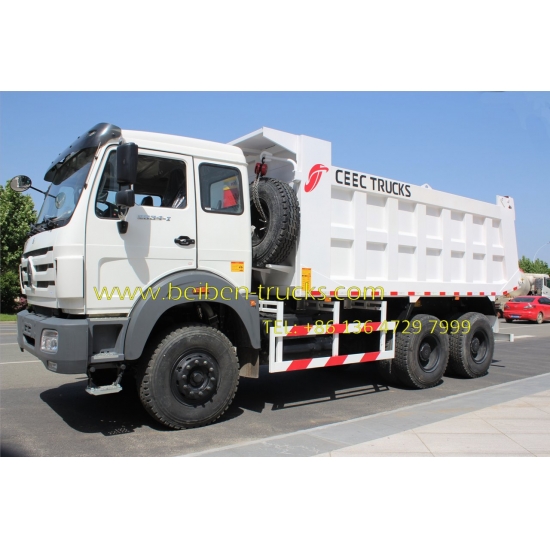

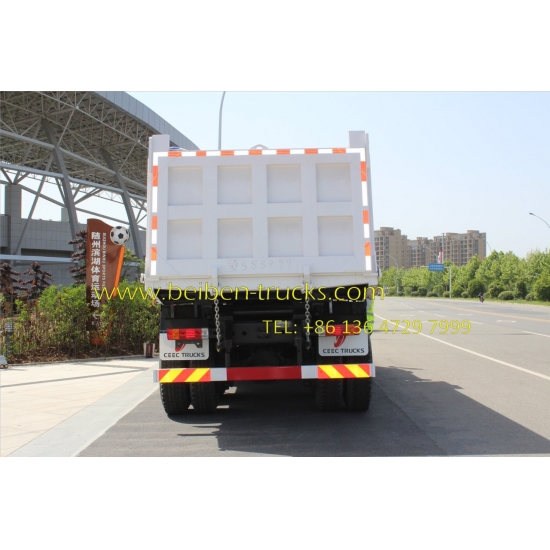

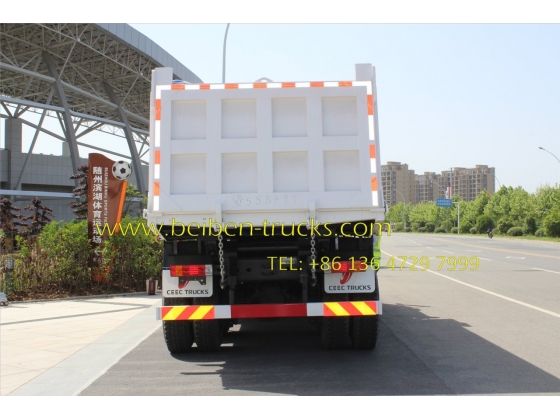

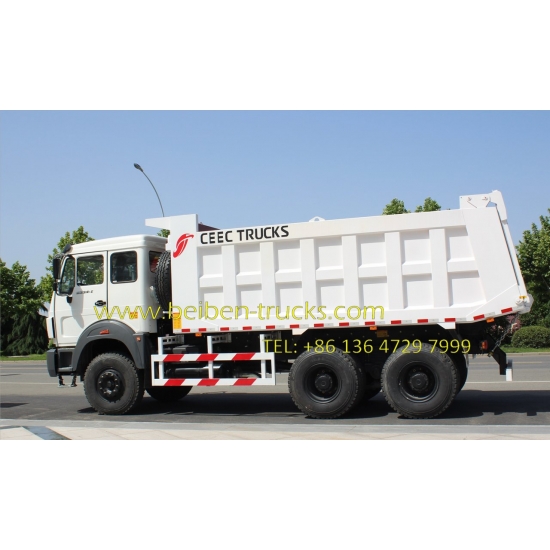

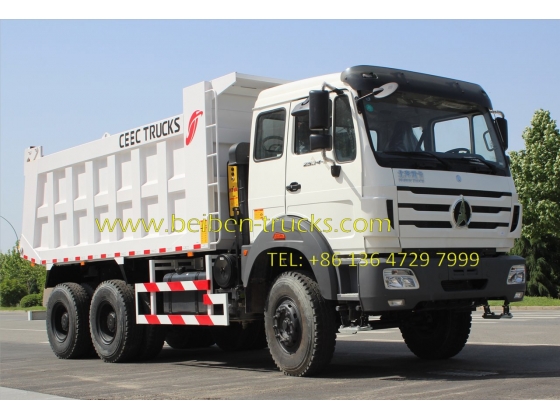

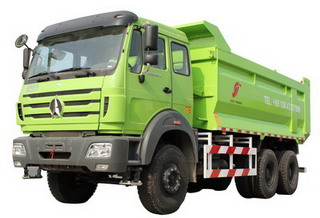

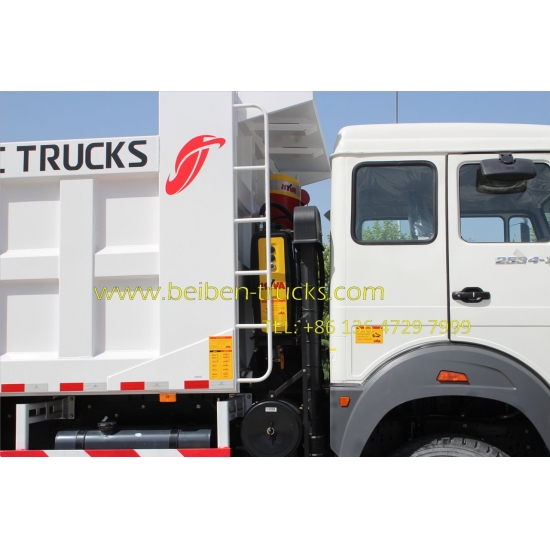

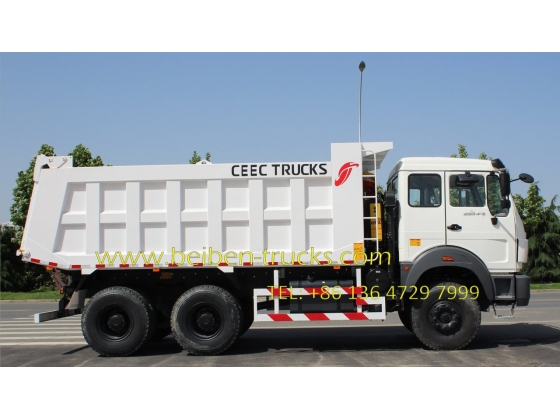

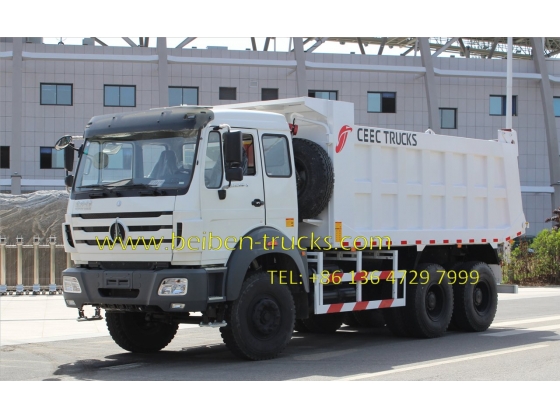

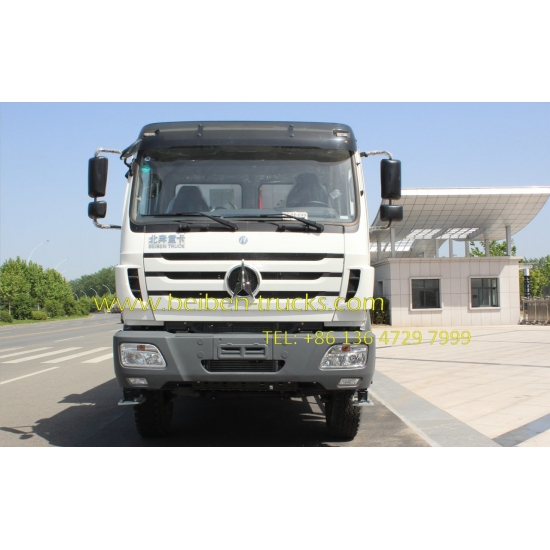

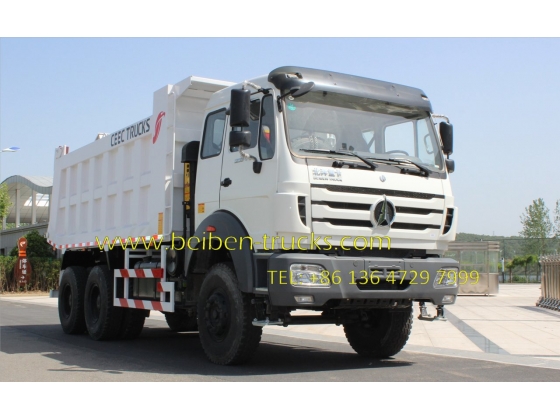

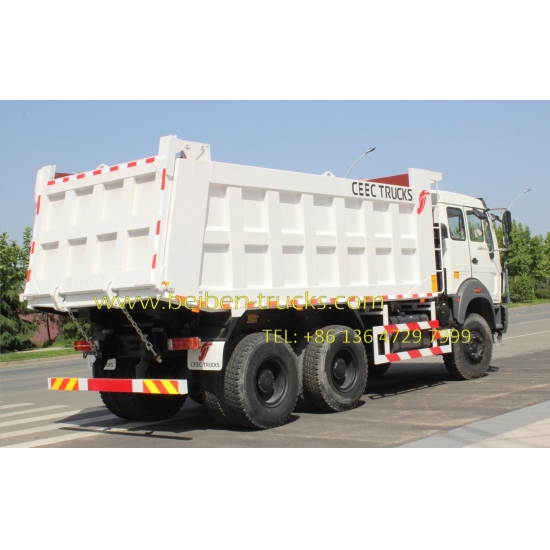

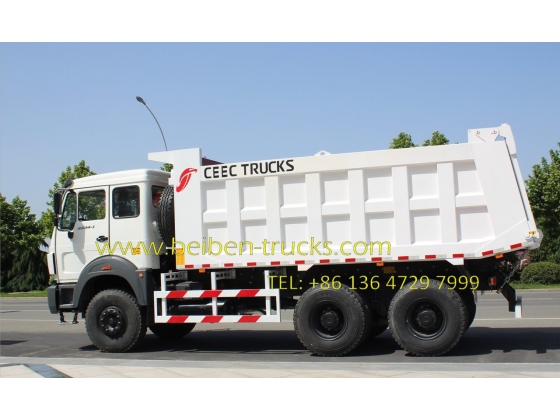

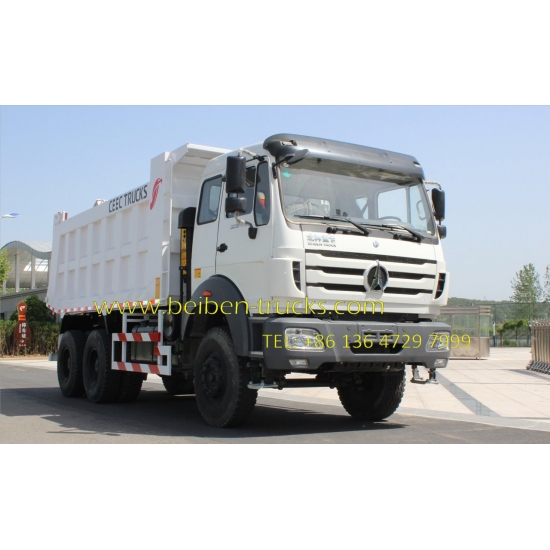

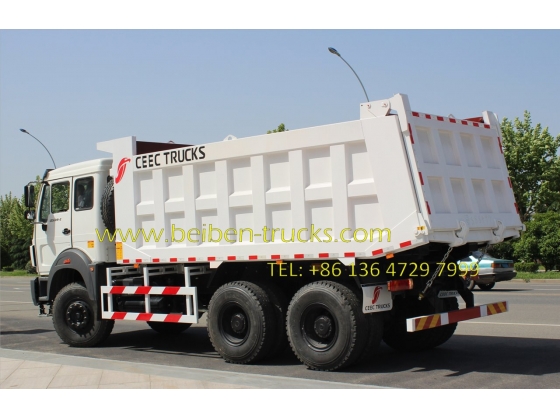

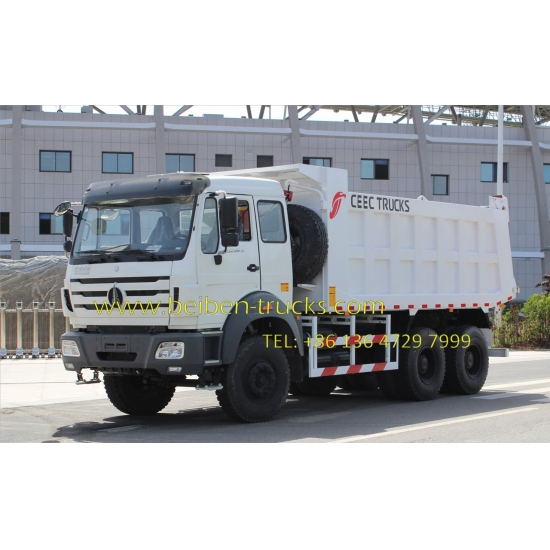

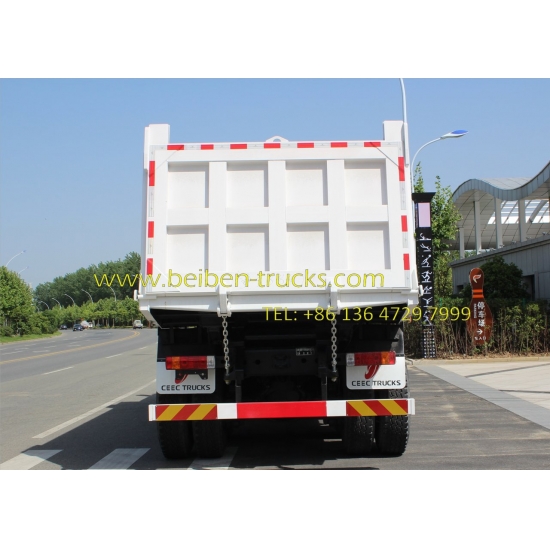

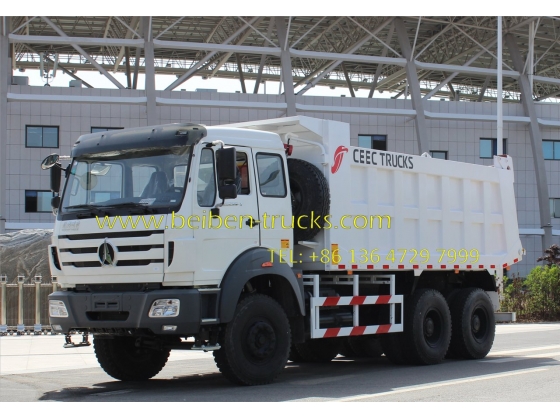

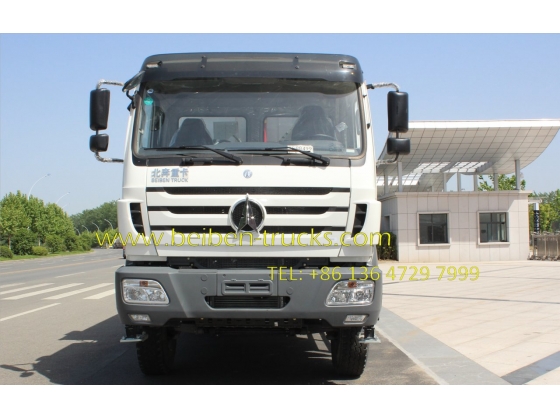

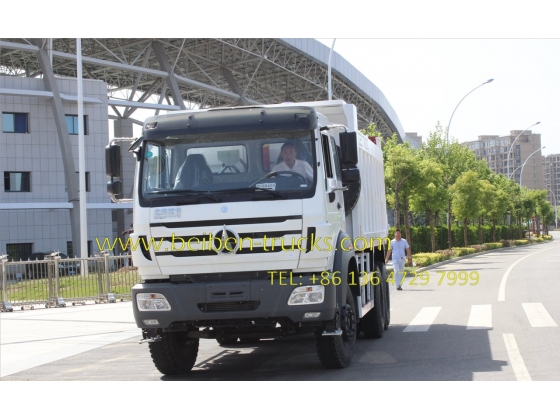

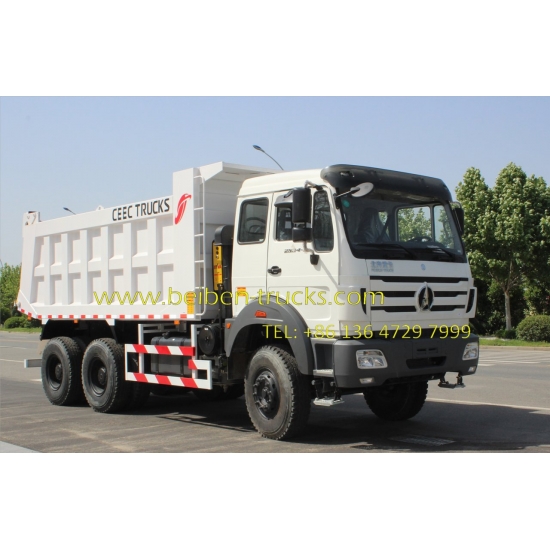

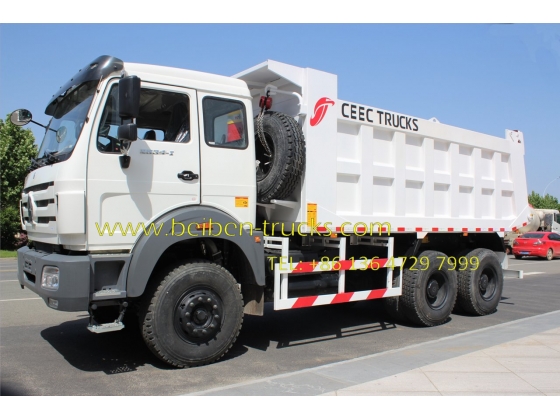

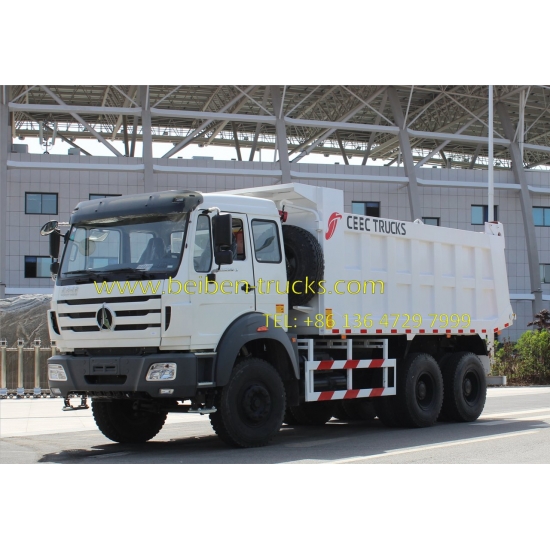

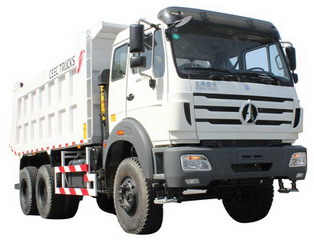

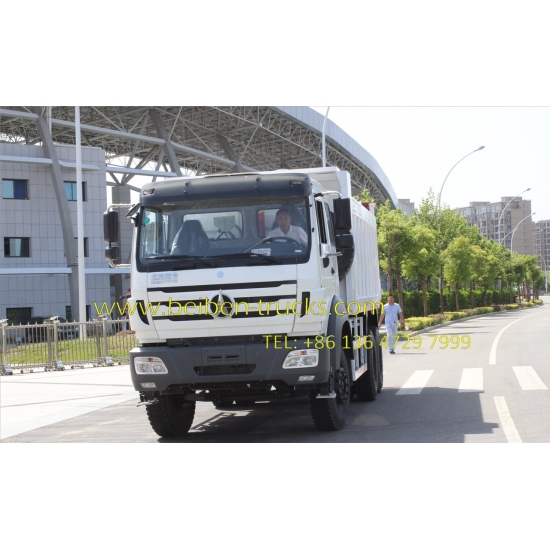

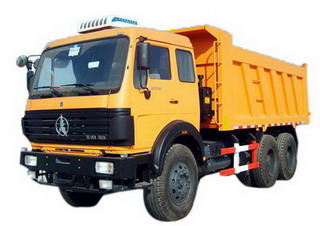

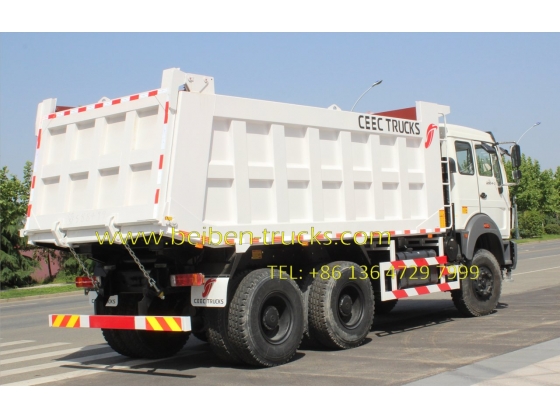

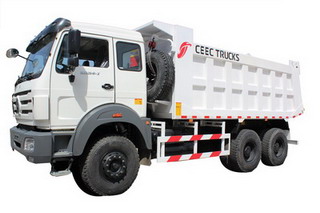

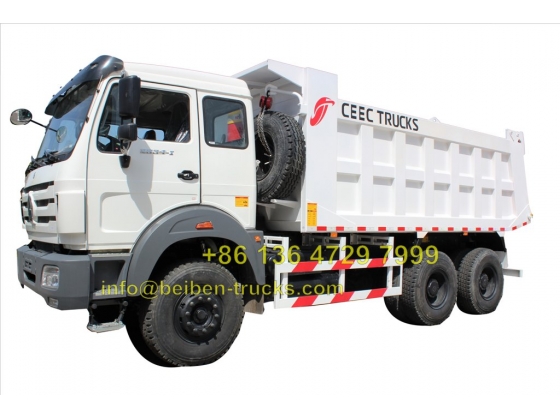

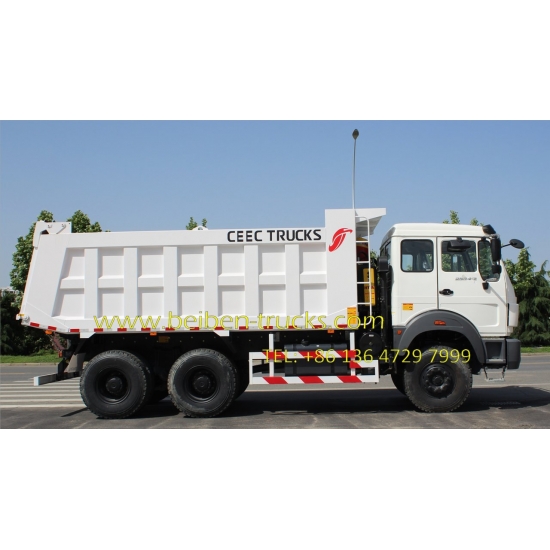

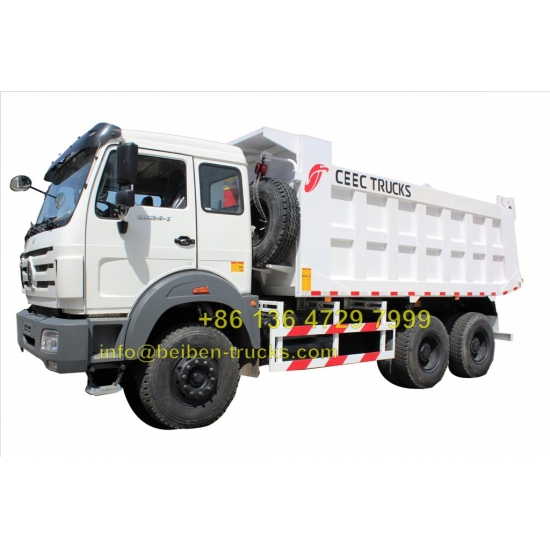

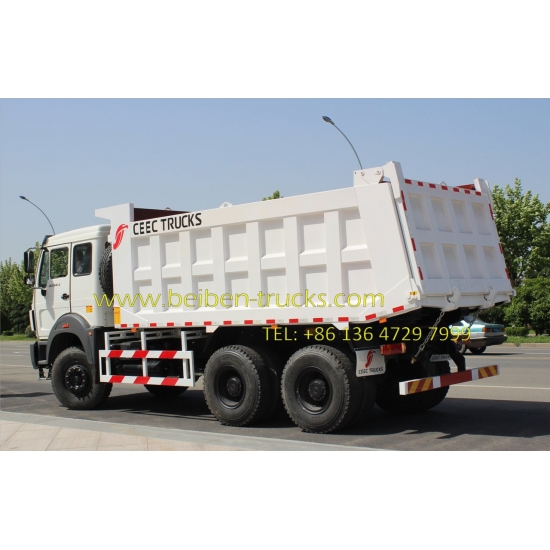

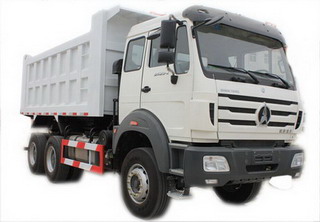

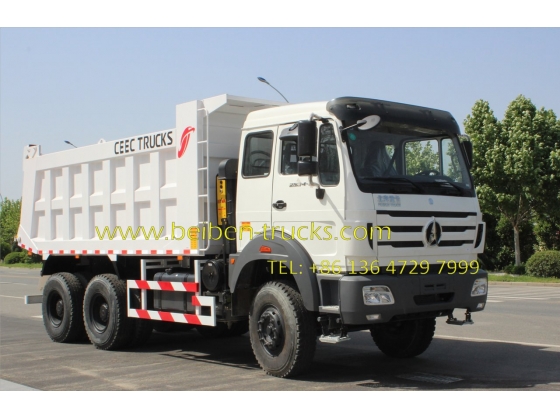

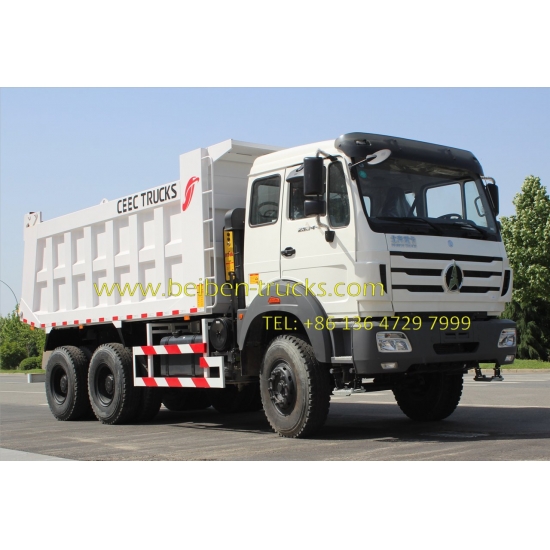

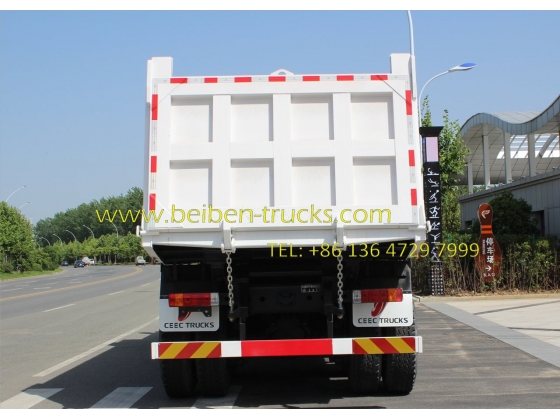

Beiben 2534K dumper /6×4/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

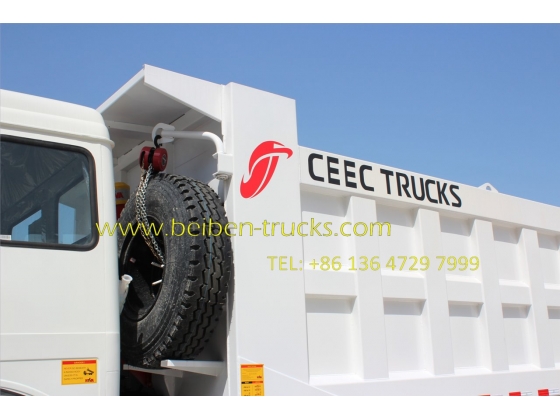

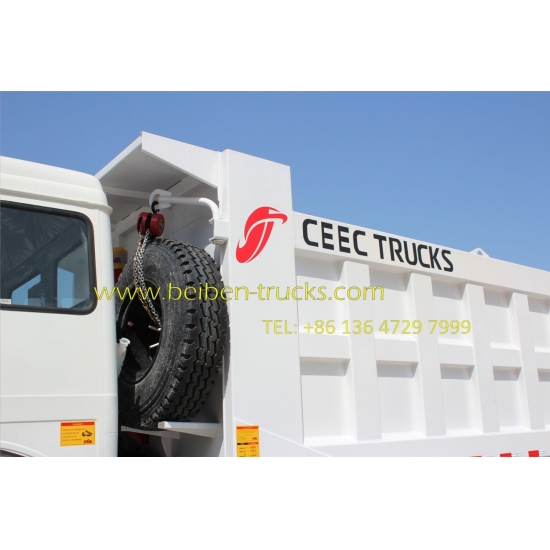

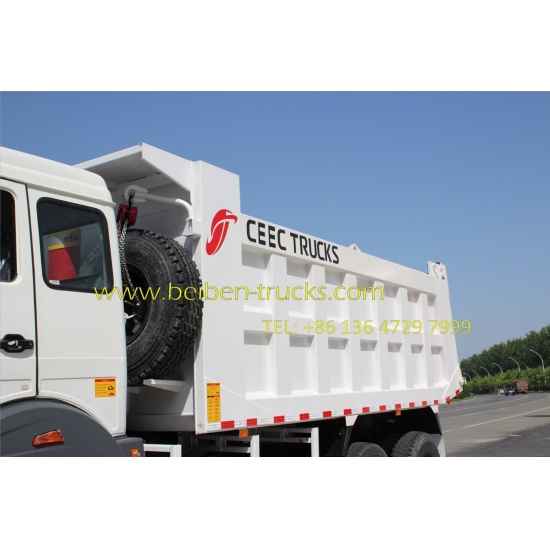

Cargo box

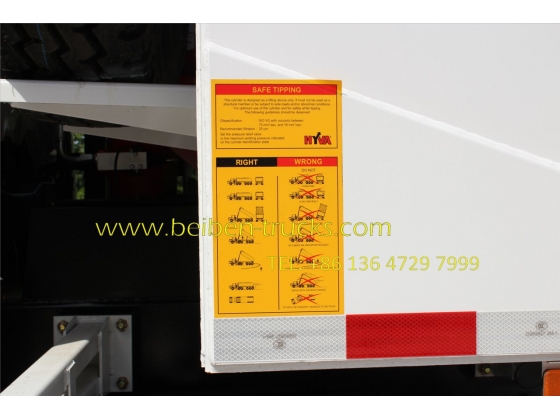

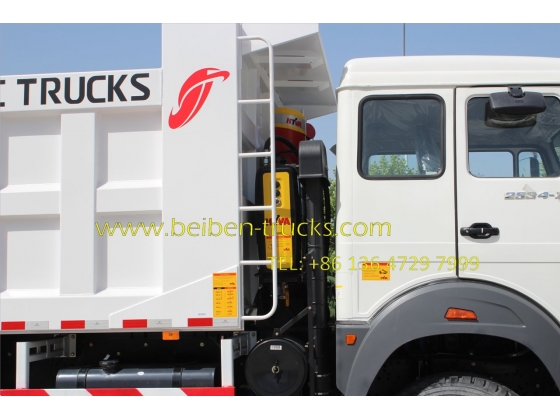

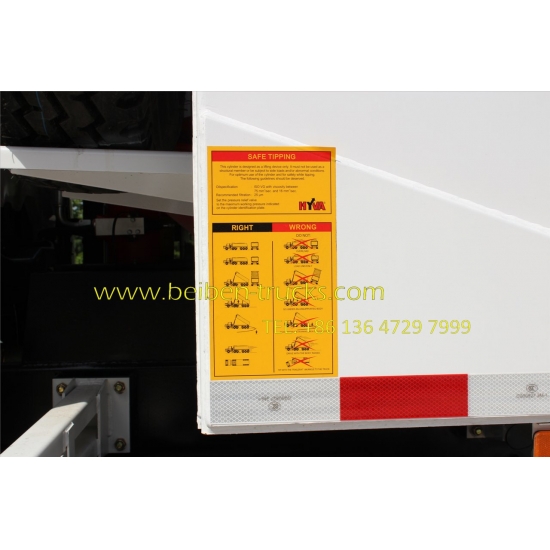

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

3800+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.340E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

250/2200 (kw/rpm)

Max.torque

1600/1800(N.m/rpm)

Emission

Euro III

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs

Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction 16 T axle

Tyre

12.00-20 tyres

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Beiben NG80B dumper Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

Model

Engine Model

Rated Power

Payload

Driving Mode

Beiben 2538

WP10.380N

380 Hp

60 Ton

6*4

Beiben 2534 KY

WP10.340

340 hP

50 tON

6*4

Beiben 2534

WP10.340

340 Hp

30 Ton

6x4

Beiben 2534k

WP10.340

340 Hp

36 Ton

6*4

Beiben 2538k

WP10.380

380 Hp

40 Ton

6*4

Beiben 2529

WP10.290

290 Hp

45 Ton

6*4

Beiben 2538k

WP10.380

380 Hp

40 Ton

6*4

Beiben 2538

WP10.380N

380 Hp

45 Ton

6*4

Beiben 2529

WP10.290N

290 hp

30 Ton

6*4

Power star 2628

WP 10.280N

280 Hp

40 Ton

6*4

Beiben 2629

WP 10.290N

290 Hp

40 Ton

6*4

Beiben 2634

WP 10.340N

340 Hp

35 Ton

6*4

Beiben 2629 dumper

WP 10.290N

290 Hp

35 Ton

6*4

Beiben 2629 A

WP10.340

340 Hp

40 T

6x4

Beiben 2629 A

WP10.290

290 Hp

25-30 T

6x4
