Order(MOQ):
1Goods Stock:
1Production time:
60 daysPayment terms:
T/T
Applications:

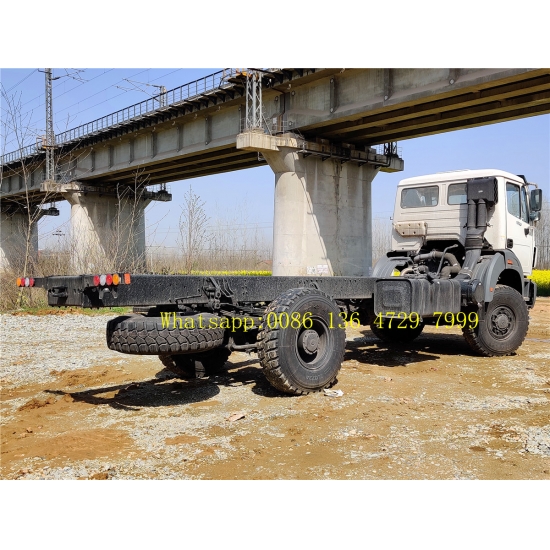

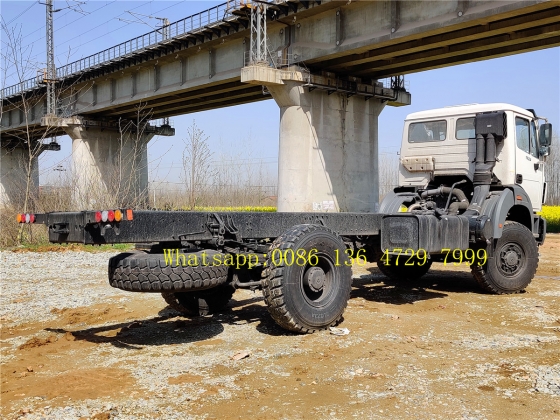

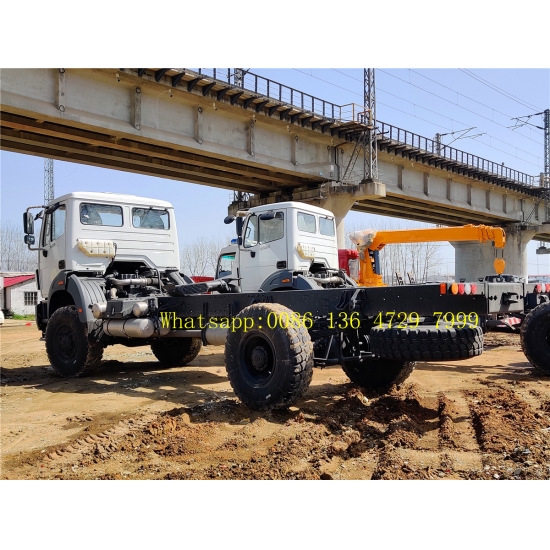

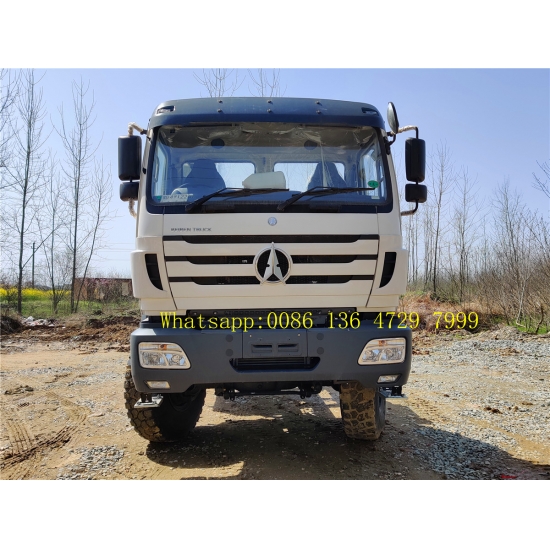

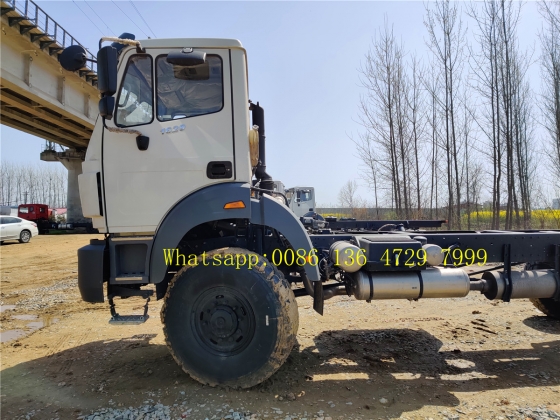

tanzania beiben 4*4 truck chassis ,also
called as beiben 4 wheel drive truck chassis, beiben 4*4 drive cargo truck, china beiben 1934 all wheel drive truck, north benz 1938 all wheel drive truck, is designed
for producing beiben water truck, beiben fuel truck, beiben crane truck, and beiben cargo trucks. . This beiben heavy duty truck chassis can loading, transporting and discharging heavy duty
material , also can
be used in for extremely road and weather situation, can be used in wild area, off road area.
china beiben 1934 truck chassis apply germany benz technology device, with extremely work performance.
The north benz 4*4 wheel drive cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- North benz 1934 chassis, strong military driving system
---- Military quality , Mercedes benz technology
---- 9JS150A transmission, super combination.

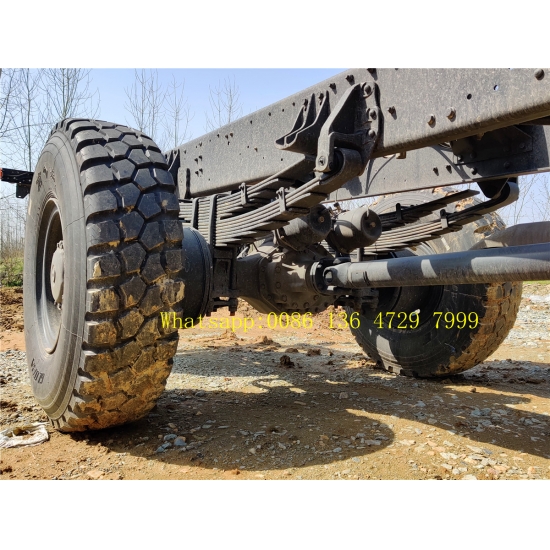

---- Patented axle technology, with wheel reducer
---- Completely steel cabin , safety and reliable.
Specifications:
Africa beiben 1934 off road truck |
|
Model |
Beiben 1934 all wheel drive crane truck |

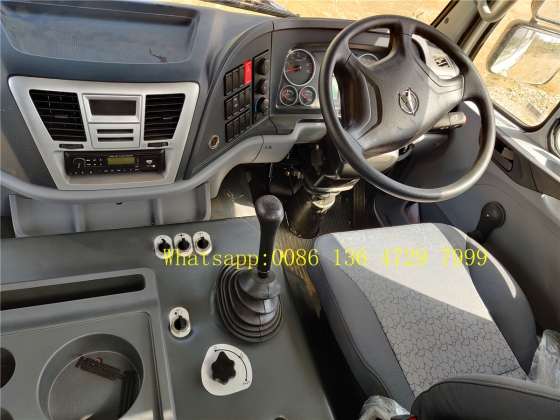

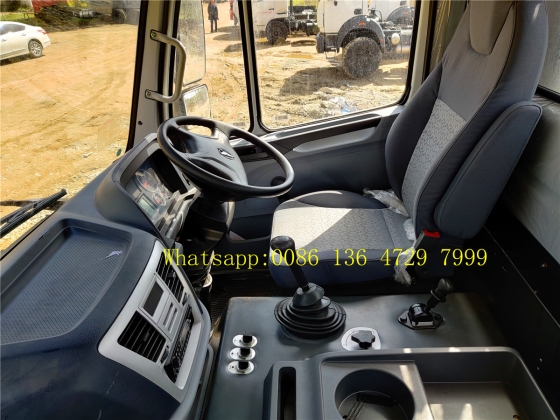

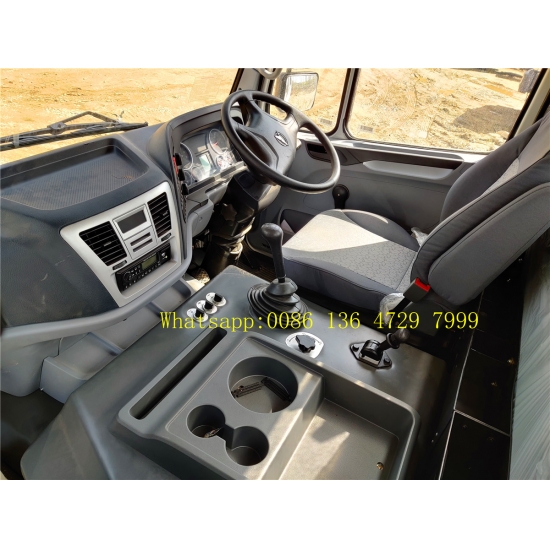

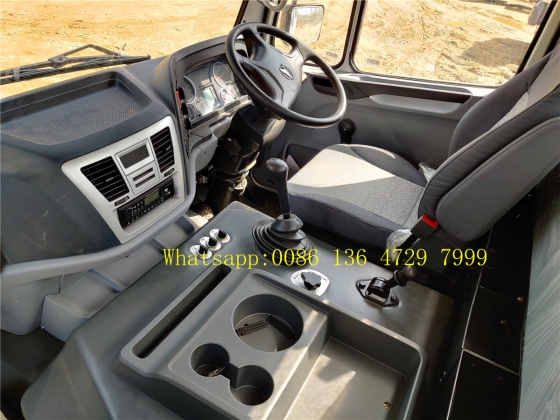

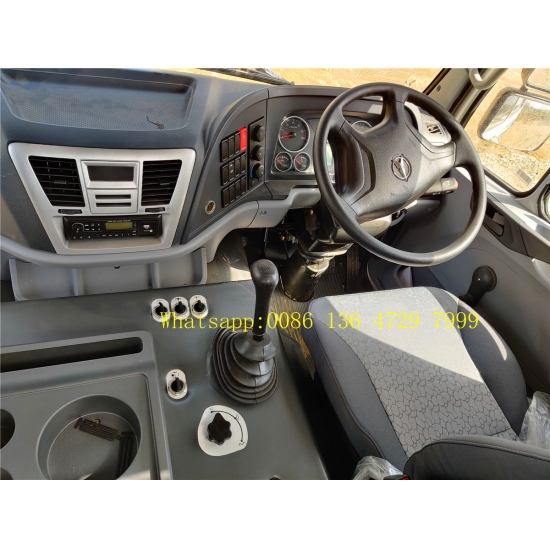

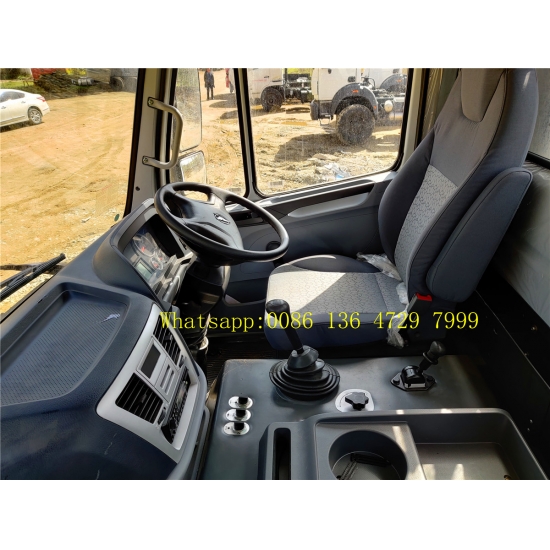

Driver's cab |
Long cabin, one sleeper |
Engine |
Maker: North Benz |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling |
|
Engine model: WP10.340NE32 |
|
Maximum output:340hp@2200rpm |
|
Number of cylinder:6 |
|
Displacement: 11.726L |
|
Clutch |
Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
Transmission |
Fuller 9JS150T transmission. |
Front Axle |
Mercedes Benz, drum brake |

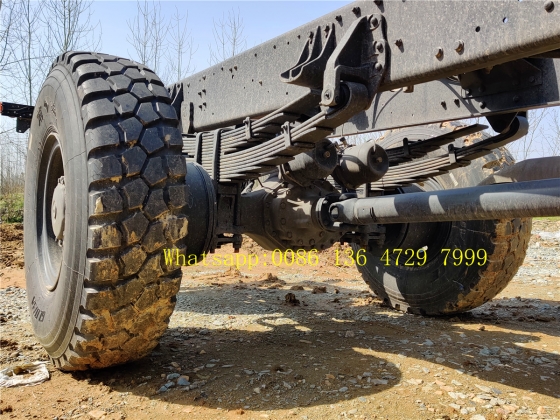

Rear Axle |
Mercedes Benz double reduction drive axle, ratio=5.2 |
Steering |
ZF8098 |
Wheel & Types |
Rims:8.5-20 |
Tyre:12.00R20 tube |
|
Optional: 12R22.5//315/80R22.5 |
|
Radial tire is optional |
|
Electrics |
Operating voltage: 24V,negative grounded |
Dimensions in mm |
Wheel base : 4500 |
Overall size: 9850x2500x3385 |
|
Weight in kg |
Kerb. mass: 8400 kg |
Total mass: 25000kg |
|
Performance |
Maximum driving speed(km/h) 85 |
Body in mm |
6000x2300x800 |
The manufacture reserves the right of technical alteration/change for better improvement prior notice |
china beiben right hand drive off road truck
all wheel drive system, china beiben 4*4 truck
