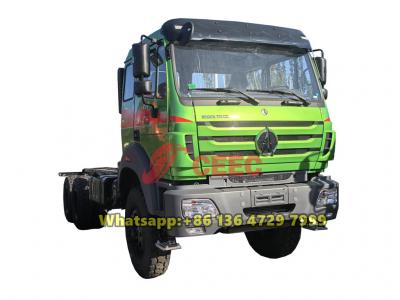

The Beiben 6×6 AWD truck chassis is renowned for its excellent performance and sturdy structure, making it suitable for logistics transportation, off-road exploration, and other fields. It features a 6×6 all-wheel-drive system and is equipped with a 420 horsepower diesel engine, paired with a 12-speed manual transmission for powerful performance. The chassis frame is welded with high-strength steel, ensuring strong load-bearing capacity. With a wheelbase of 4450+1450 millimeters, a gross vehicle weight of 25 tons, and a payload capacity exceeding 20 tons, it boasts impressive specifications. The dual-circuit air brake system and WEVB auxiliary braking enhance safety. The comfortable cab is equipped with amenities such as heating and air conditioning.
Production time:
30 daysPayment terms:
TTWorking Capcity:
40 tonsEngine power:
420 HPDrive system:
6×6 all wheel driveProduct Description
In the field of heavy-duty transportation, the Beiben 6×6 off-road truck chassis has become the preferred choice across multiple industries, thanks to its unique all-wheel-drive system, powerful load-carrying capacity, and exceptional off-road capability.
The Beiben 6×6 AWD truck chassis is equipped with a WP12.420E32 diesel engine, delivering robust power output. This engine not only boasts high power and torque but also incorporates advanced turbocharged intercooling technology, enhancing fuel economy and emission performance. Coupled with a 12-forward and 2-reverse synchronized manual transmission, it ensures smooth gear shifting and agile handling, providing a solid foundation for efficient transportation.
With its powerful performance and reliable quality, the Beiben 6×6 chassis is widely utilized in various fields, including logistics transportation, off-road exploration, construction engineering, and special-purpose vehicle modifications. Whether it's heavy-load transportation, challenging road conditions, or specialized needs, this chassis can handle them all with ease. Its broad adaptability and diverse application scenarios offer users more options and possibilities.
Performance Features:
• Superior Off-Road Capability: The 6×6 all-wheel-drive system, combined with a 34° approach angle and a 24° departure angle, enables the Beiben 6×6 AWD truck to effortlessly navigate steep slopes, muddy roads, and other complex terrains, making it the top choice for off-road transportation.
• Efficient Power Output: The WP12 series engine is renowned for its efficiency and low emissions. Not only does it meet the EURO 3 emission standards, but it also achieves high power output and low fuel consumption through advanced turbocharging technology, reducing operational costs.
• Safety and Reliability: The dual-circuit air brake system, coupled with WEVB auxiliary braking, provides multiple layers of safety. Even during long downhill descents, it effectively controls vehicle speed, preventing brake overheating and ensuring safety.
• Comfortable Driving Experience: The NG80 long cab design features a sleeper berth, heating and air conditioning, a hydraulically suspended driver's seat, seat belts, and an FM/AM radio with a USB port. This creates a comfortable working environment for the driver, enhancing the comfort of long-distance driving.
Product Parameters
|
BEIBEN 6x6 AWD truck chassis Specifications |
|
|
Emission Standard |
EURO 3 |
|
Chassis type |
Cargo truck type |
|
Chassis model |
ND1250 |
|
Driving Type |
6×6, AWD |
|
Dimensions |
|
|
Wheelbase(mm) |
4450+1450 |
|
Overall Dimension(mm) |
Appro 9960×2500×3348 |
|
Weight parameters |
|
|
GVW(kg) |
25,000kgs |
|
Curb weight(kg) |
Appro 13,550kgs |
|
Real load weight(kg) |
More than 20,000kgs |
|
Chassis parameter |
|
|
Front axle |
7 Ton load capacity, drum brake |
|
Rear/middle axle |
18Ton/axle (2 axle combined) |
|
Front wheel track(mm) |
1940 |
|
Rear wheel track(mm) |
1847/1847 |
|
Front/rear overhang(mm) |
1410/2530 |
|
Approach angle(°) |
34 |
|
Departure angle(°) |
24 |
|
Max speed(km/h) |
85 |
|
Suspension |
Leaf spring suspension |
|
Engine performance |
|
|
Engine model |
WP12.420E32 |
|
Engine type |
Straight in-line, 4 strokes, water-cooling, turbocharged with inter-cooling, diesel engine |
|
No. of cylinders |
6 cylinders |
|
Displacement(L) |
11.596 L |
|
Max. output (KW) |
309kw (420hp) |
|
Fuel type |
Diesel |
|
Rated speed |
2100 rpm |
|
Max torque |
1750 N.m |
|
Tire specification |
12.00R24, total 10 units tire+1 spare tire |
|
Drive Line |
|
|
Clutch description |
φ430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
Transmission |
12 forwarders, 2 reverse gear, synchronous meshing by manual |
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
Suspension system |
|
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
Electrical Equipment |
|
|
Voltage |
24V |
|
Batteries |
2X12V/135Ah |
|
Starter |
6.2Kw/24V |
|
Cab description |
|
|
NG80 long cab, with one sleeper, cooling and heating air-conditioner, hydraulic suspension driver's seat, safety belt for driver and co-driver, with FM/AM radio player, USB interface |
|

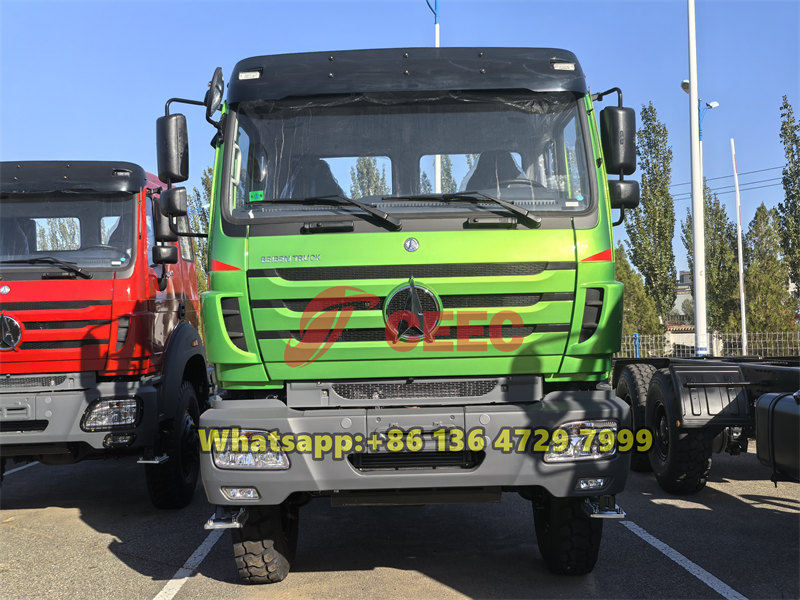

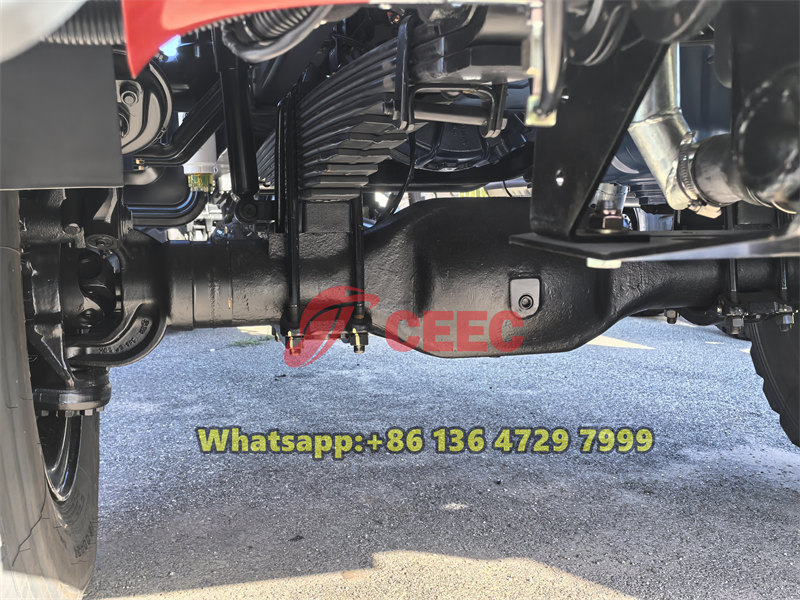

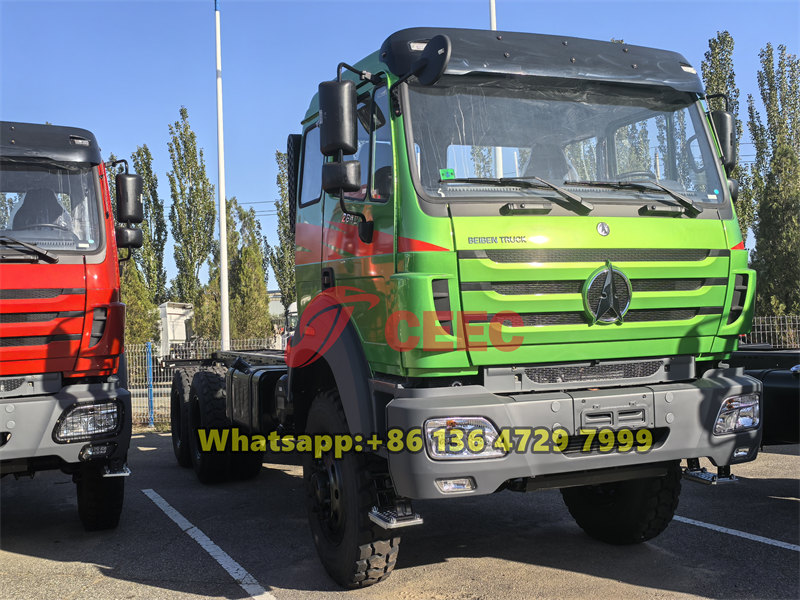

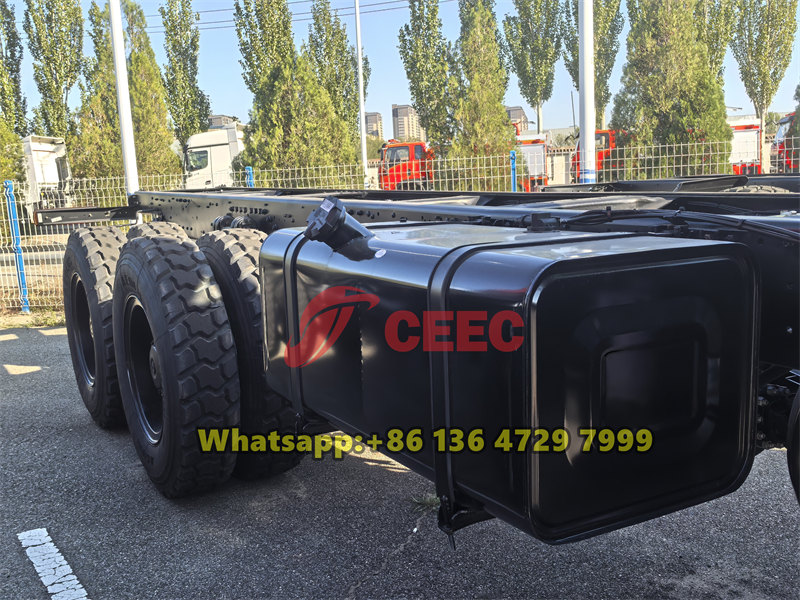

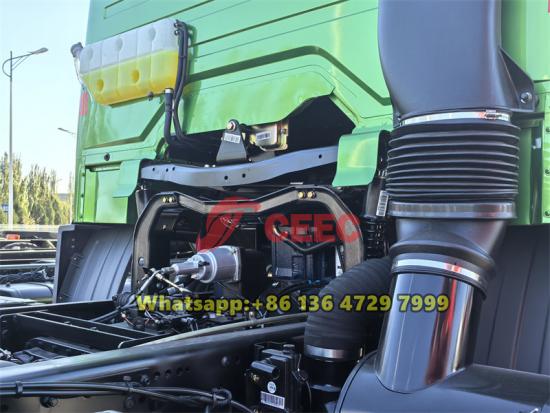

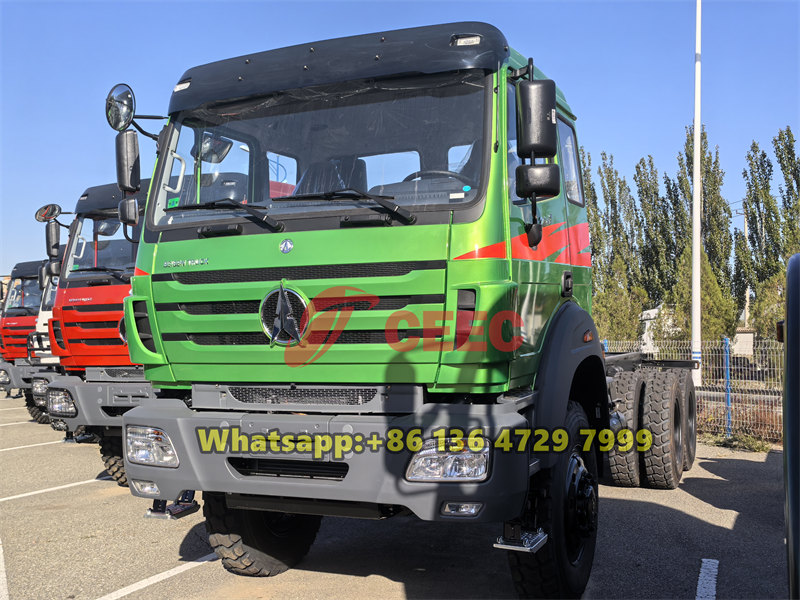

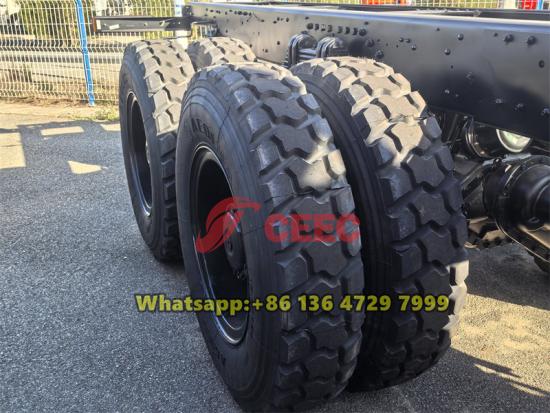

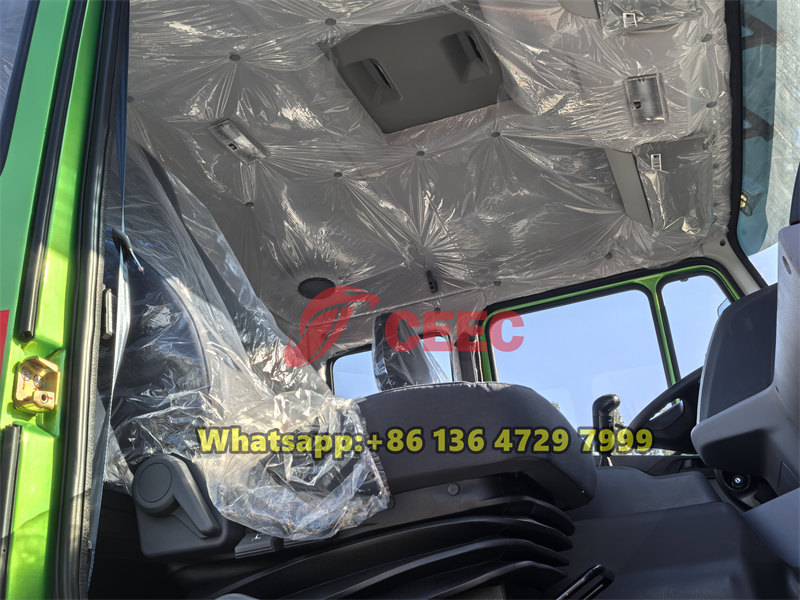

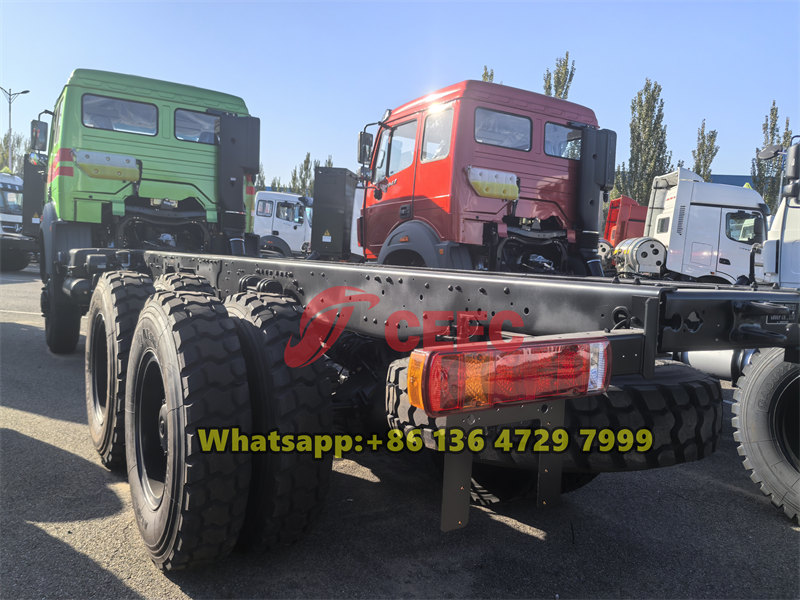

Product Pictures
