The Beiben 6x6 drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions.
Under the hood, the Beiben truck boasts a high-performance WP12.420 diesel engine, delivering plenty of torque and horsepower to conquer steep inclines and rough terrain. The engine is paired with a Fast 12 shift transmission, providing smooth and efficient gear changes for optimal performance and fuel efficiency.
The truck features an NG80B full steel cabin, offering a comfortable and secure environment for the driver to operate in.
Production time:
30 daysPayment terms:
T/TWorking Capcity:
50 TonEngine power:
420HP, WP12.420Drive system:
6x6Beiben 6x6 drive truck is a powerful and reliable vehicle designed for tough off-road conditions. Equipped with 12.00R24 tyres, this truck can easily navigate through rough terrains with ease, providing traction and stability.
The heart of this truck is the WP12.420 diesel engine, which delivers impressive performance and fuel efficiency. With a maximum power output of 420 horsepower, this engine ensures that the truck can handle heavy loads and challenging terrain without breaking a sweat.
The Fast 12 shift transmission allows for smooth and precise gear changes, ensuring optimal performance and efficiency. This transmission also contributes to the overall durability and reliability of the truck, making it a great choice for demanding applications.
The NG80B full steel cabin provides a comfortable and safe environment for the driver, with ample space and ergonomic design features. The cabin is also equipped with modern amenities and controls, making long journeys more enjoyable and less fatiguing.

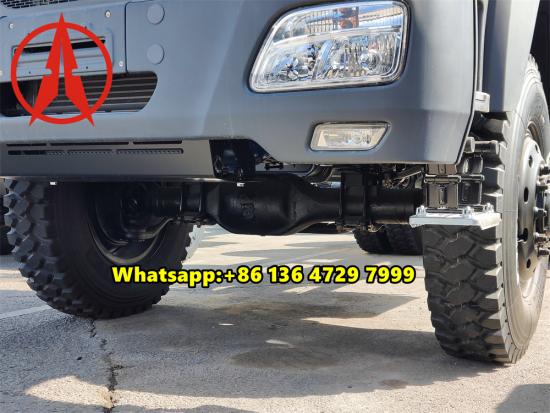

The benz technology front axle and rear axle ensure superior handling and stability, even when the truck is fully loaded. These axles are designed to withstand heavy loads and harsh conditions, making them ideal for off-road use.
|
Required Technical Specification |
||
|
Basic parameter
|
Mode |
2642PZ/6×6 |
|
Length×width×height(mm) |
9526×2500×3385 |
|
|
Wheel-base(mm) |
4450+1450 |
|
|
Curb weight(kg) |
11400 |
|
|
Engine parameter
|
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1600/1400～1600 |
|
|
Displacement(lit) |
11.726 L |
|
|
Fuel tank capacity |
400L Iron oil tanker 400L |
|
|
Transmission system
|
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 9JS150A |
|
|
Steering system
|
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system
|
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake |
|
|
Assisted brake |
Engine exhaust brake |
|
|
Chassis parameter
|
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, no-driving steering axle, drum brake； |
|
|
Middle & Rear axle |

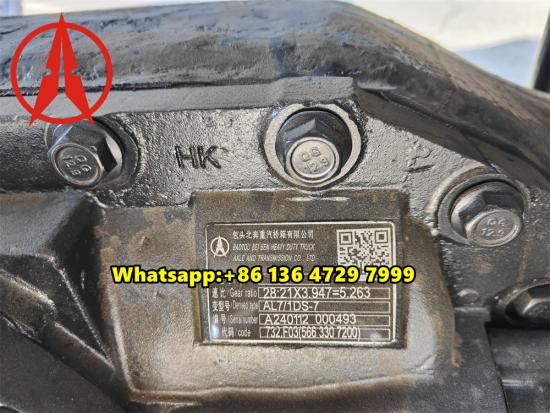

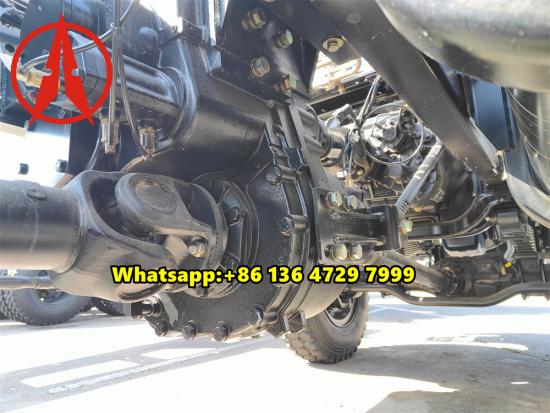

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263； |
|
|
Front and rear suspension |

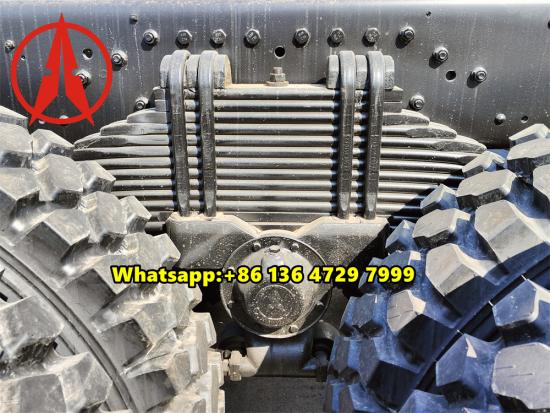

Front/rear: Leaf spring, 13/13 pieces； |
|
|
Tire |
12.00R24 |
|
|
Cab
|
NG80B Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).
|
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument
|
||
|
Offer |
|
|
we are china best beiben 6*6 wheel drive trucks supplier, can provide customer with the best quality beiben 6*6 drive truck chassis, beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
Best beiben 6 wheel drive trucks with super benz trucks quality , beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
CEEC beiben 25 CBM bulk cement truck are equipped with chinese weichai engine and TAS steering. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors and earthmoving projects.
Logging semi-trailers in confirmity with regulations, and matching specifi conditions encountered by foresters. Bogie with reinforced axles, 30 to 50 Tons loading capacity. Width capacity RANGING from 2.5 to 3.5 meters.
"GABON TYPE" log trailers with 2 x 3.10 or 3.5 m wide bunks, mounted on JOST turntables. 1 fixe stake and 1 hinged stake.
The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
north benz 4*4 drive military truck chassis, based on china benz technology ND1921 military truck , original from baotou beiben heavy duty trucks co.,limited.
baotou beiban left hand drive 4*4 wheel military truck chassis supplier , based on china benz technology ND1921 military truck , original from baotou beiben heavy duty trucks co.,limited.
The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
